315/418/433/868MHZ Multifrequency Universal Automatic Cloning Remote Control PTX4 Copy Duplicator for Garage Gate Door

1. Product size: 65.5 38.5 14mm;

2. Working voltage: 12V;

3. Operating current: 12mA;

4. Working frequency: 315MHz, 433MHz(optional) special frequency can be customized;

5. Transmission power: 10-15mw;

6. Launch distance: 100m (open);

7. Frequency deviation: 0.2mhz;

8. Transmission rate: 50-60khz;

9. Oscillation resistance: according to customer requirements;

10. Coding chip:

Learning code HS1527, EV1527, HT6P20B, etc.;

Fixed code HS2260, HS2262, PT2264SC2262, etc.;

Rolling code HCS301, HCS300, HCS200, etc.

Copy of the remote control, can be used alone;

Product name: 433 wireless remote control

Working voltage: 12V

Working current: 12mA

Transmission power: 10-15mw

Launching distance: 100m(open)

Frequency deviation: + -0.2mhz

Transmission frequency: 50-60khz

Number of keys: four

11. Number of keys: four;

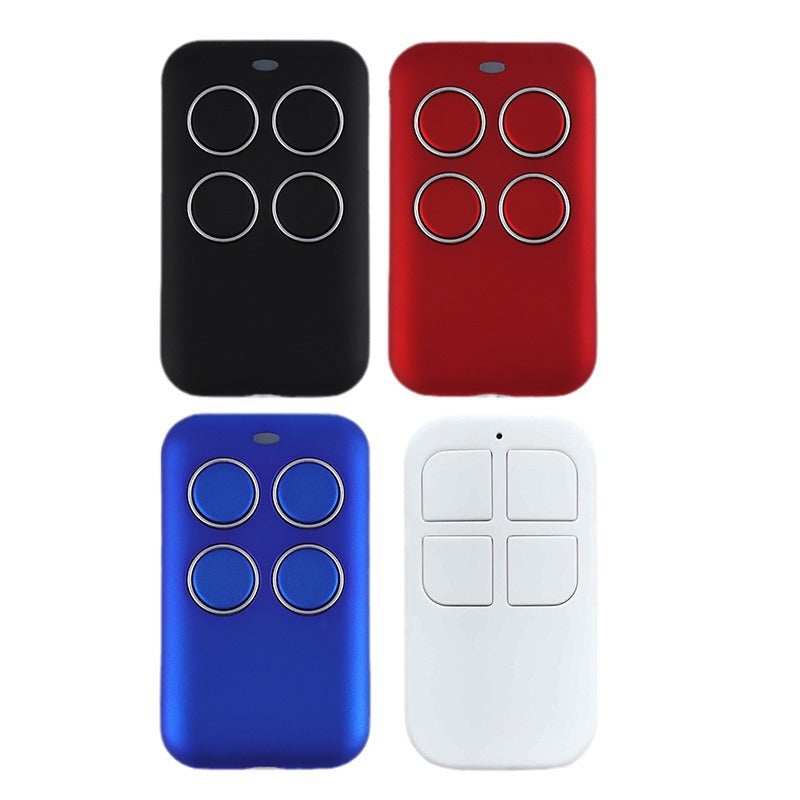

12. Shell color: red, blue, black;

13. Scope of application: 433 wireless remote control is widely used in various doors and Windows control, with 433 intelligent touch switch, such as smart home use
Instructions for remote control at receiving end, remote control only code

The following is the software definition pairing method of our company: For reference only!
1. The following code-matching operation is applicable to the random pasting of remote controllers, integrated remote controllers and remote control switches or linking switches, and gateways. Each key should be coded (device address + key address). Each key can be paired with up to four different random pasting of remote control keys. Full of four keys can automatically clear the front key address. Each remote control key can be paired with four different keys. Each gateway can match four four-button integrated remote controllers or four-button remote controllers at will.
2. Random sticking remote control and remote control switch, 433 on-off, WIFI433 on-off code operation: After successful code matching, the remote controller and remote control switch or material link switch will be paired with dual or multi-control functions. At the same time, 433 paired signals will be received in 2 seconds by pressing the remote control switch and pasting any key randomly. The matching time is 5 seconds. At the same time, the backlight will be flashed three times by red-blue conversion, and some products will be paired successfully with sound hints.
