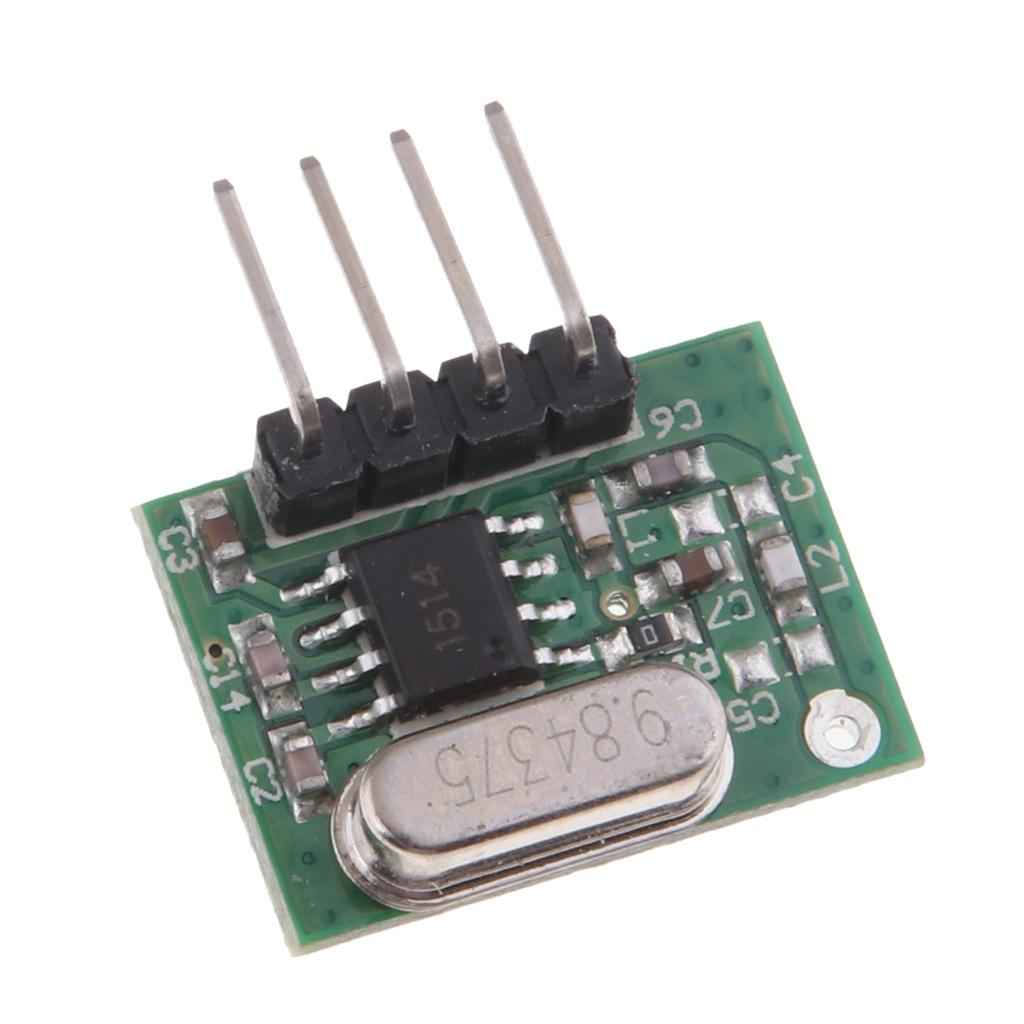

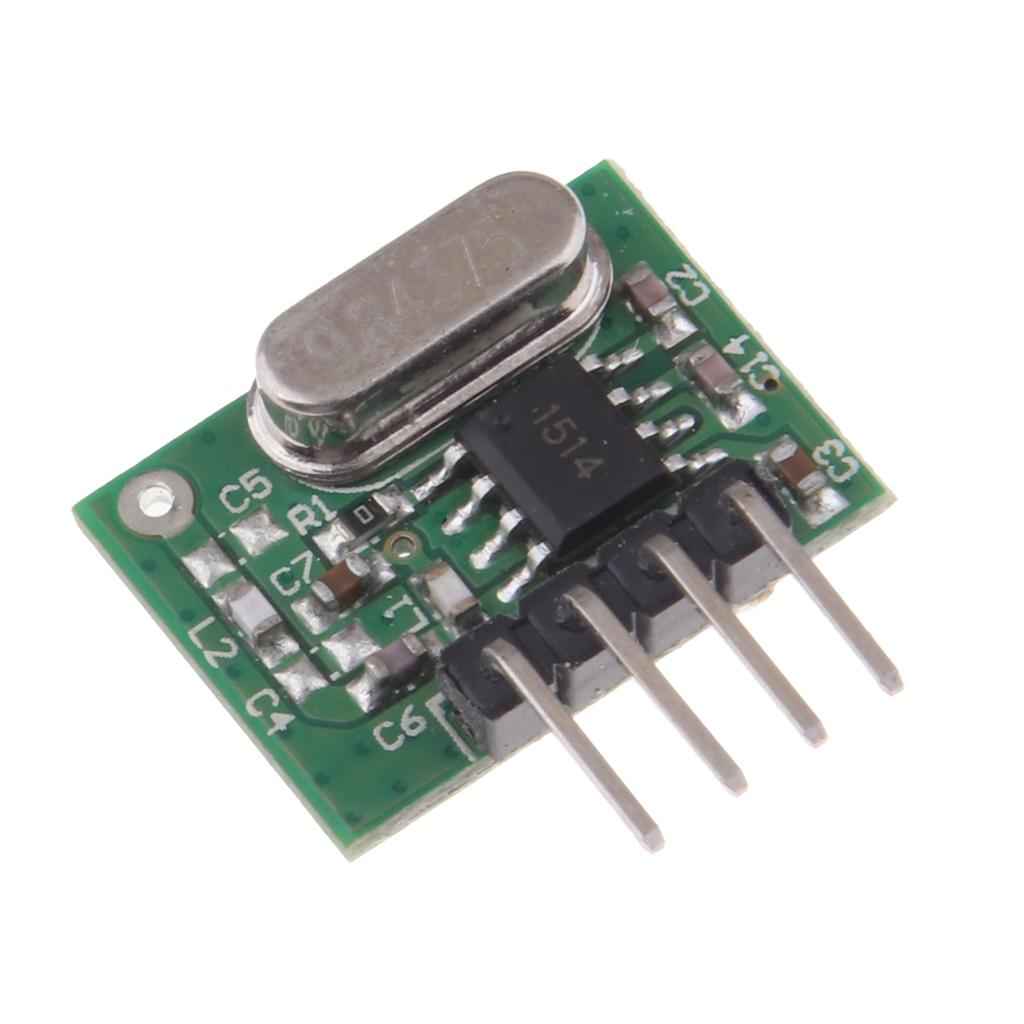

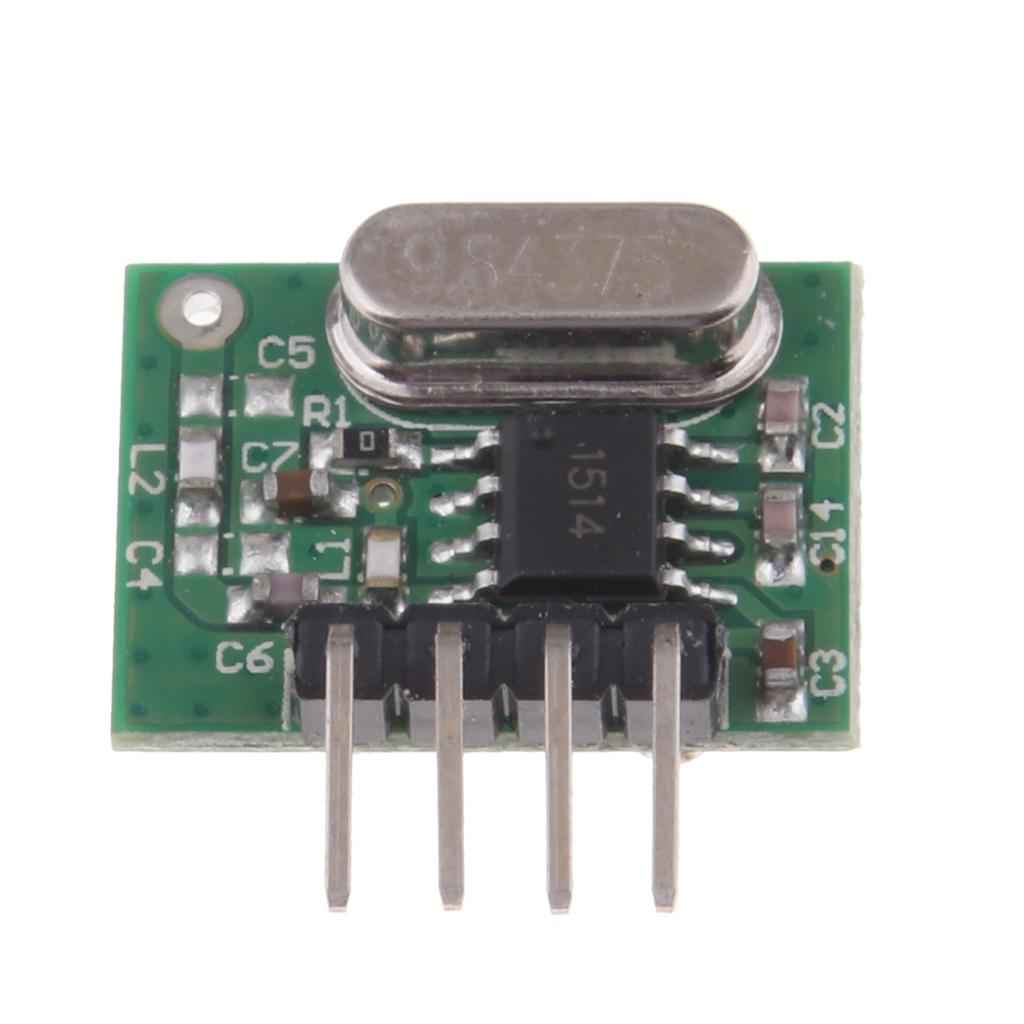

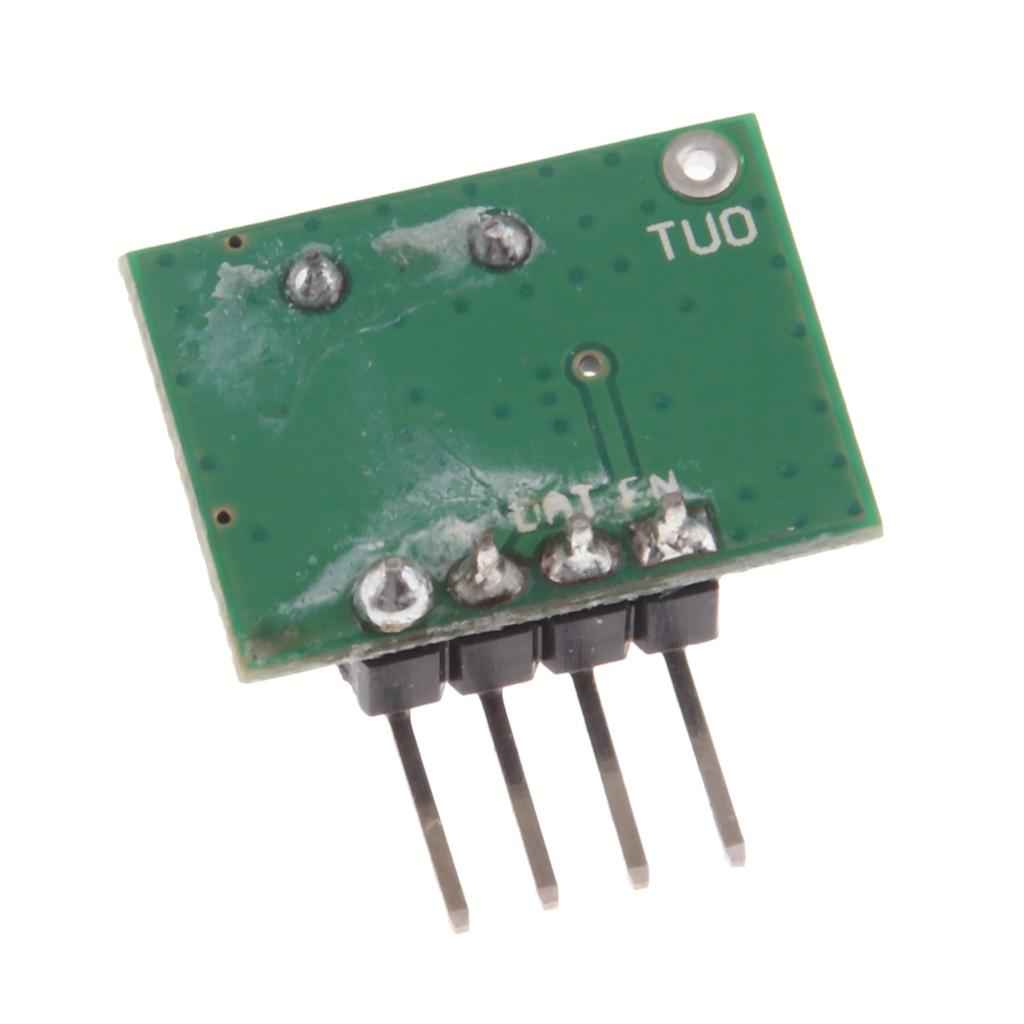

315MHz Wireless RF Module 4 Channel Output Transmitter WL102-341 Code

Description:

Support ASK/OOK modulation mode, the maximum transmit power exceeds 11dbm, and the transmission rate can reach 20Kbps.
Power supply voltage input range: 2.0v-3.6v, low power consumption, shutdown mode current less than 1uA.
Temperature range: -45-85 degrees C, even in harsh ambient temperatures, with a high dynamic range (greater than 60dB).
The module uses a highly integrated chip, built-in front-end low-noise amplifier, mixer, filter, frequency synthesizer and other circuits, which can optimize the signal to the greatest extent.
Scope of application: wireless power switch, socket, remote control curtain, access control, electric car, security, monitoring system, hotel room control, smart home products.

Specification:

Material: highly integrated chip
Size: approx. 18*13*5mm

Package Includes:

1Piece Transmitter Module
