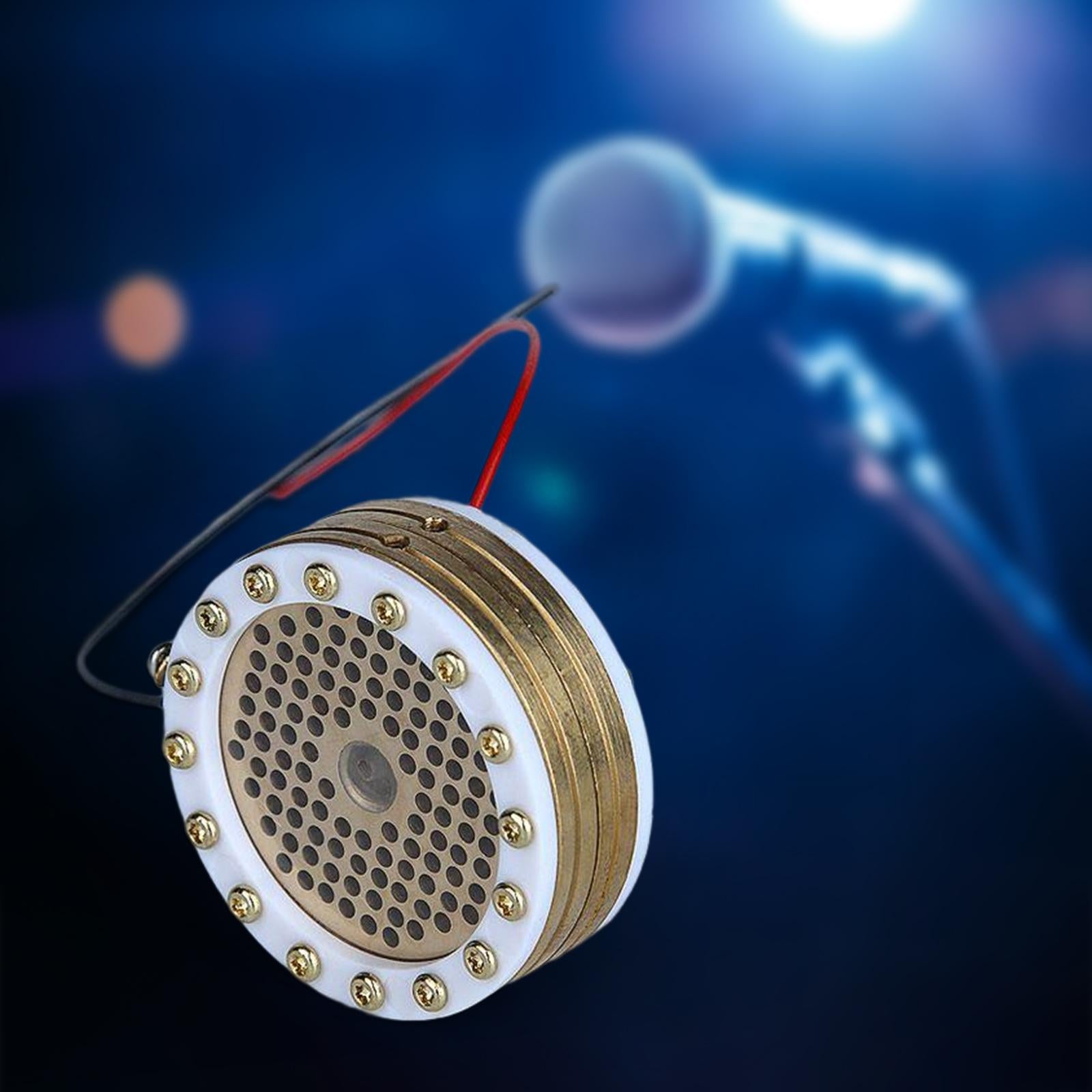

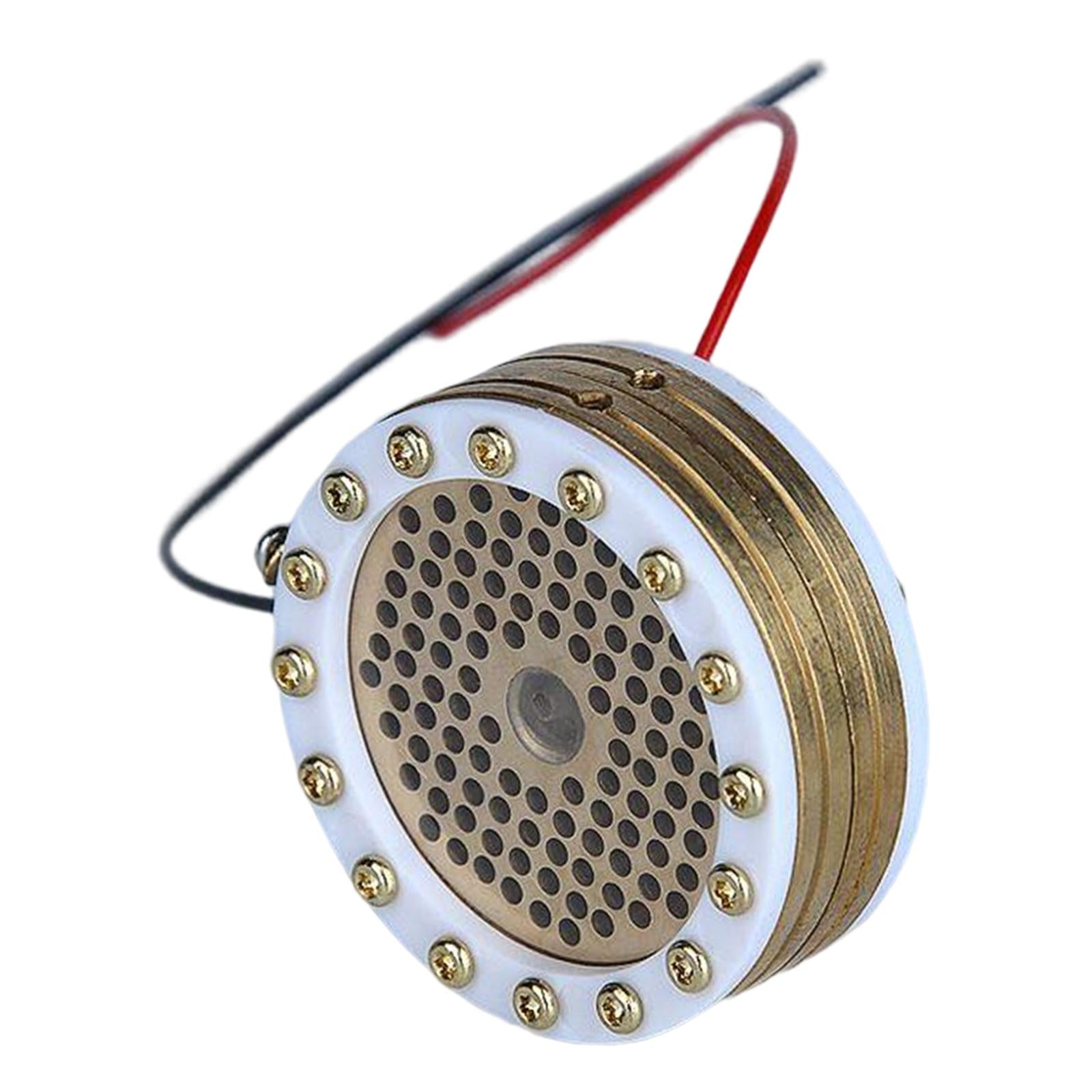

34mm Large Diaphragm Condenser Capsule for Mic Accessory Condenser Mic Head

Description:

Features: A diameter of 34 mm / 1.34" Inch capacitor large diaphragm core, more delicate, more discrimination and clear treble sound collection makes the microphone sound head, soft alto deep and rich bass vividly feedback.

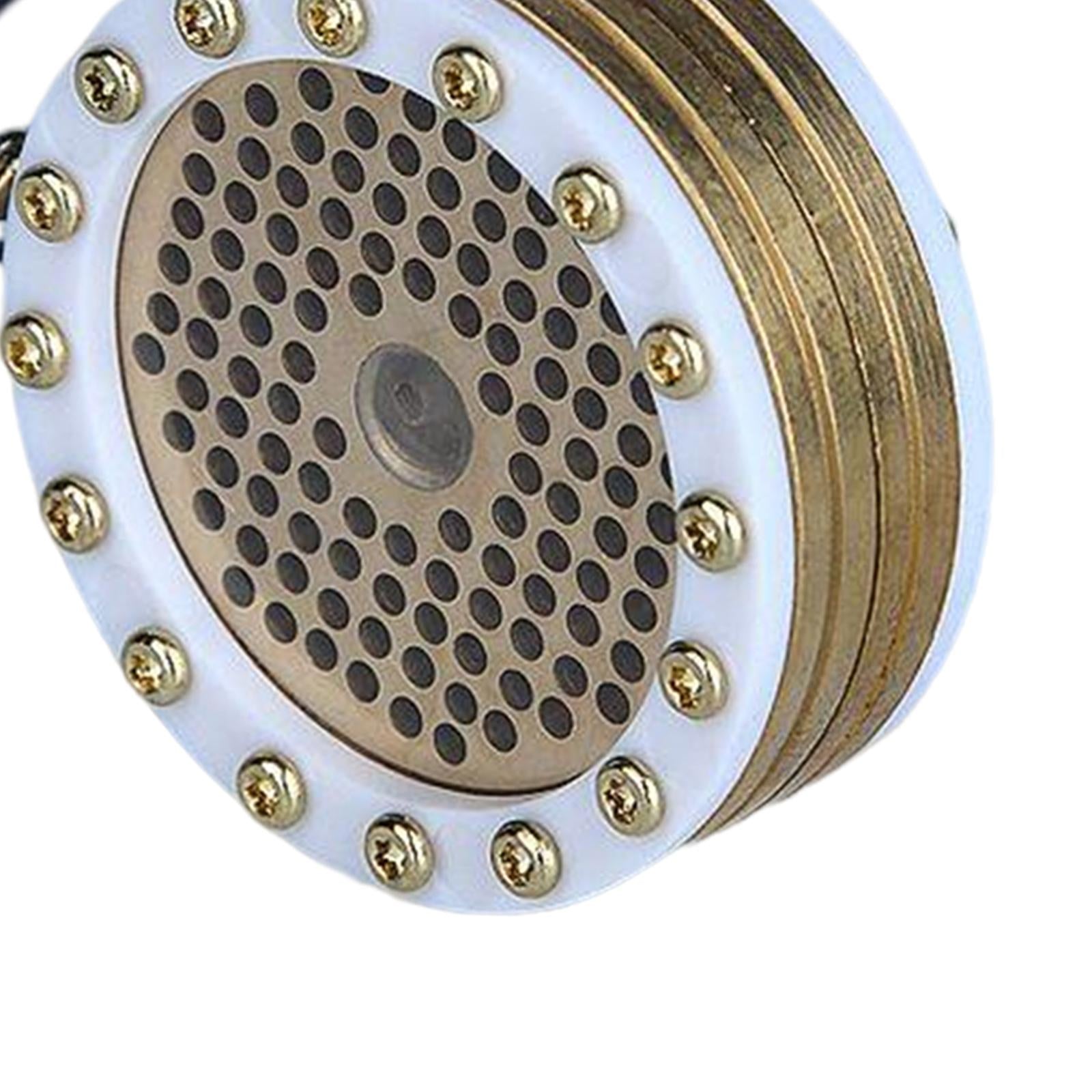

High Quality Diaphragm: The gold plated layer of this large diaphragm sound head is coated with gold wire with high purity, achieve higher sensitivity making them able to reproduce subtle sounds, make the sound delicate and natural, and have a wide frequency response
Professional Studio Microphone Capsule: This microphone capsule can be widely used in such professional situations as recordings,broadcastings,stage performances,post production of film and TV programs,personal computer home recording and so on.
Power Requirement: The real large diaphragm sound head needs 48V phantom power supply, and it needs to be MATCH with the circuit board! If the circuit board of your microphone is a small diaphragm or mid diaphragm on the market, this capsule is not supported
Attention:1. Do not touch the gold plated film on the top and the back film with your hands.2. Do not turn any screws on it. 3. Do not blow air or spray water into the sound head.4. Pay attention to moisture, and wear windproof cotton or spray cover when using.5. Please be cautious when handling and disposing. Man made damage is at your own risk.

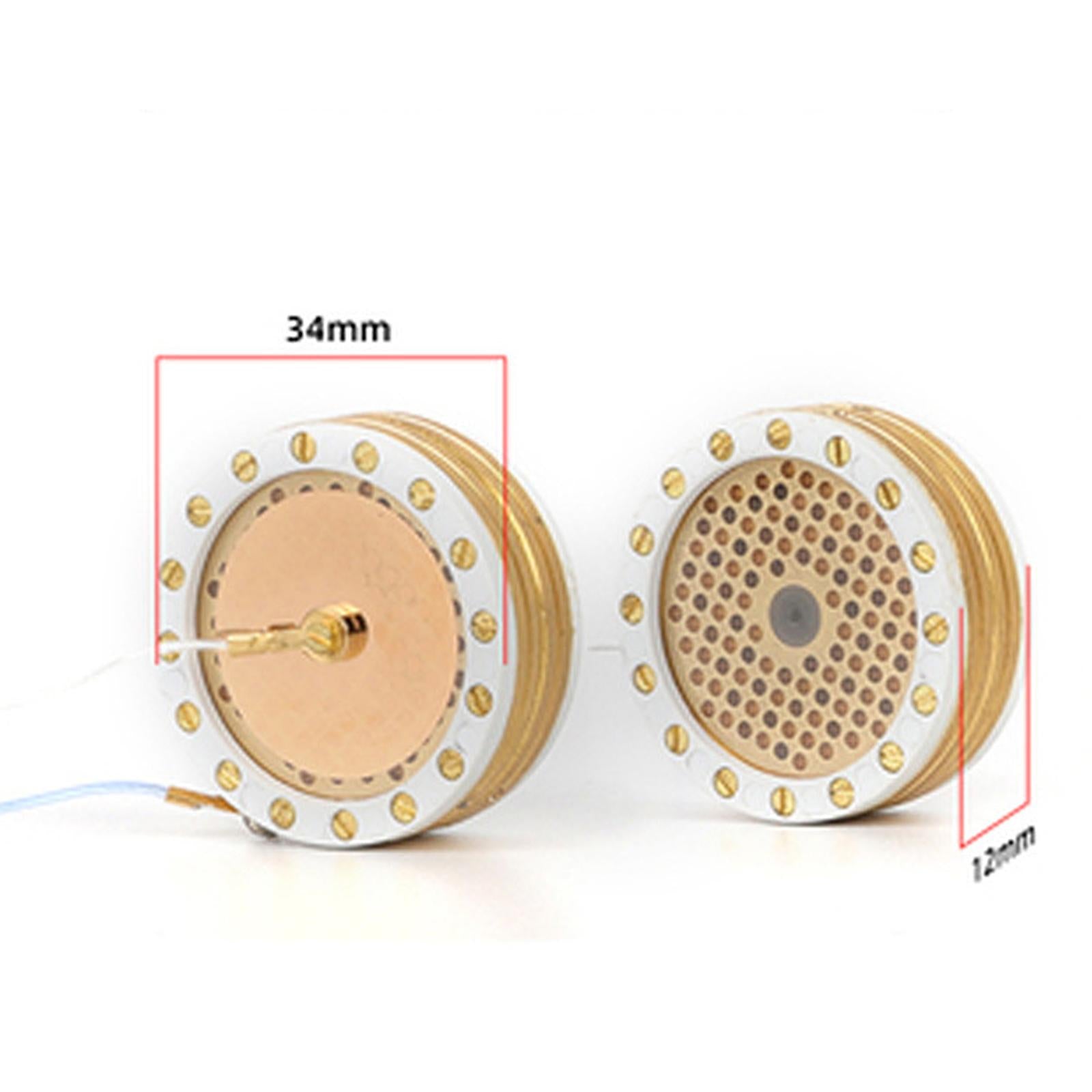

Size Chart:

Frequency response: 20Hz~20KHz
Sensitivity: -35dB±3dB(0dB=1V/Pa at 1KHz)
Directivity: single sided
Maximum sound pressure level: 140dB (at1kHz=1%T.H.D)
Supply voltage: 48 V Phantom Power
Use temperature: 5-35 degrees
Power Requirement: 48V

Package Includes:

1 Piece Condenser Microphone Capsule
