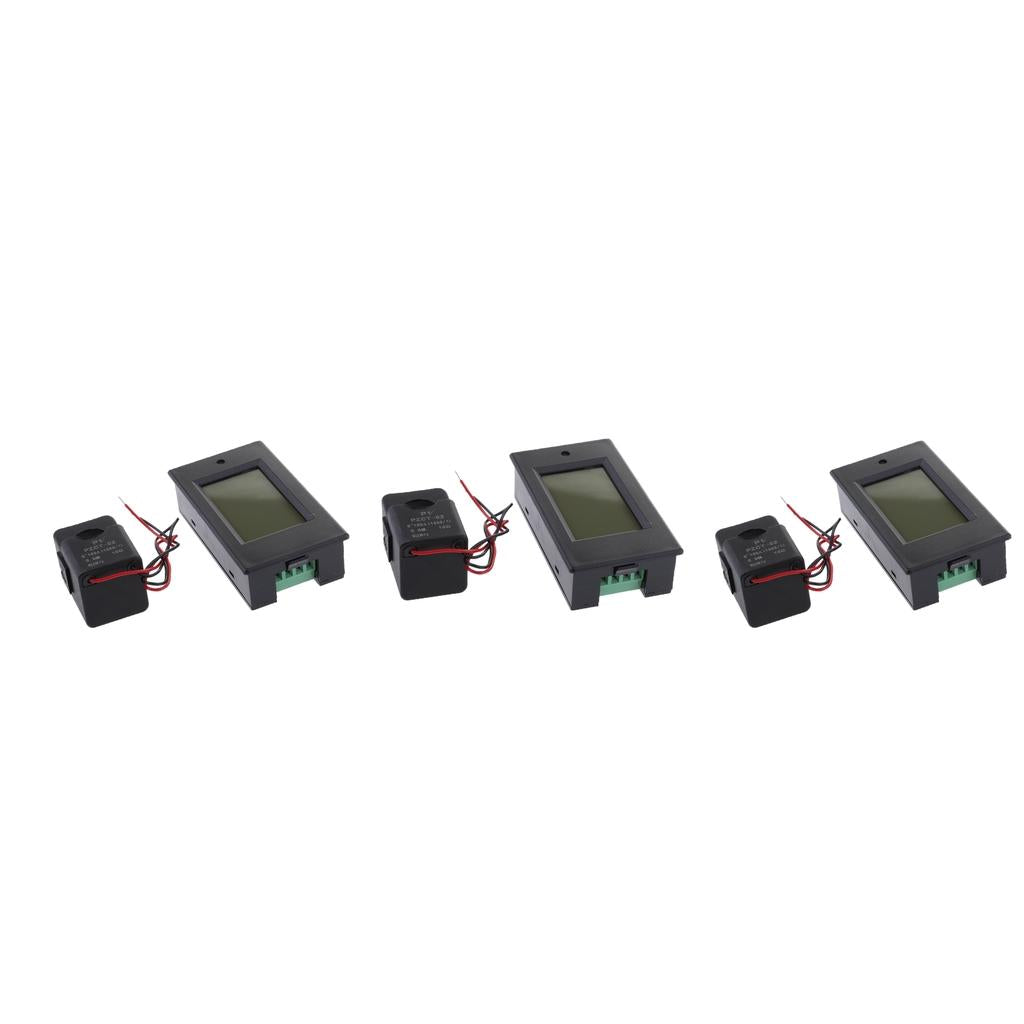

3Piece AC80-260V 100A Digital Current Voltage Amperage LCD Power Panel Meter

Description:

- The meter can only measure the active power(real power).

- It doesn't show Apparent power. If you measure power from a DC-AC inverter please make sure it's PURE SINE WAVE. Otherwise the meter can be burnt or melted.
- Voltage test range: One-Phase 80~260V AC Power, 50/60HZ; Current test range: 0~100A; Inner diameter of the CT: 15mm/0.6inch.
- Store energy data when power off(can be reset).
- Large-screen LCD (display voltage, current, active power, energy at the same time).
- The blue backlight can be turned on/off manually, The CT can be either on Live line or Neutral Line.

Specification:

Material: Plastic
Size: approx. 8.96x4.96x2.4cm/3.53x1.95x0.94inch

Package Includes:

3Piece Digital Meter (Closed Current Transformer)
3Piece English Manual

Note:

Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand. Thank you!
