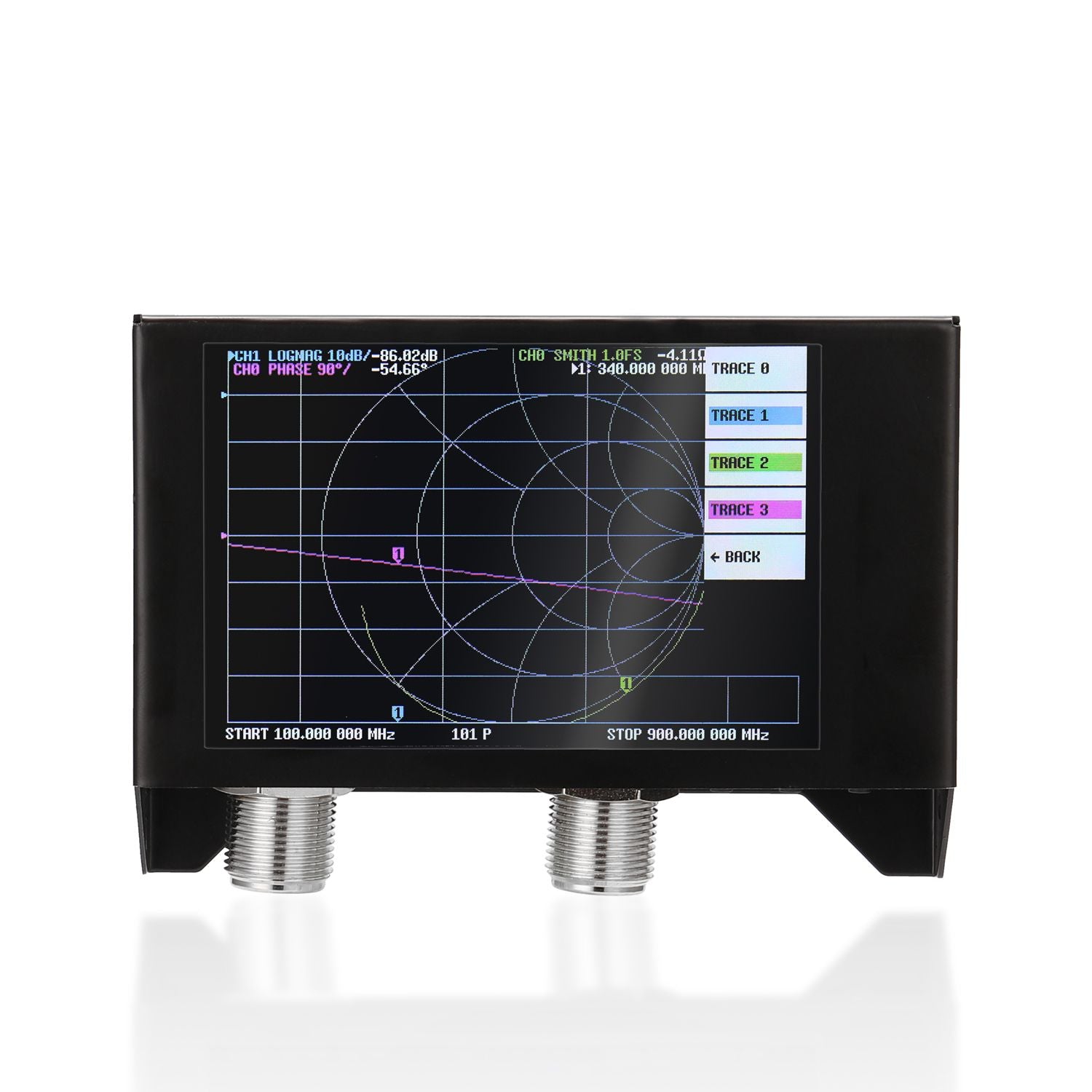

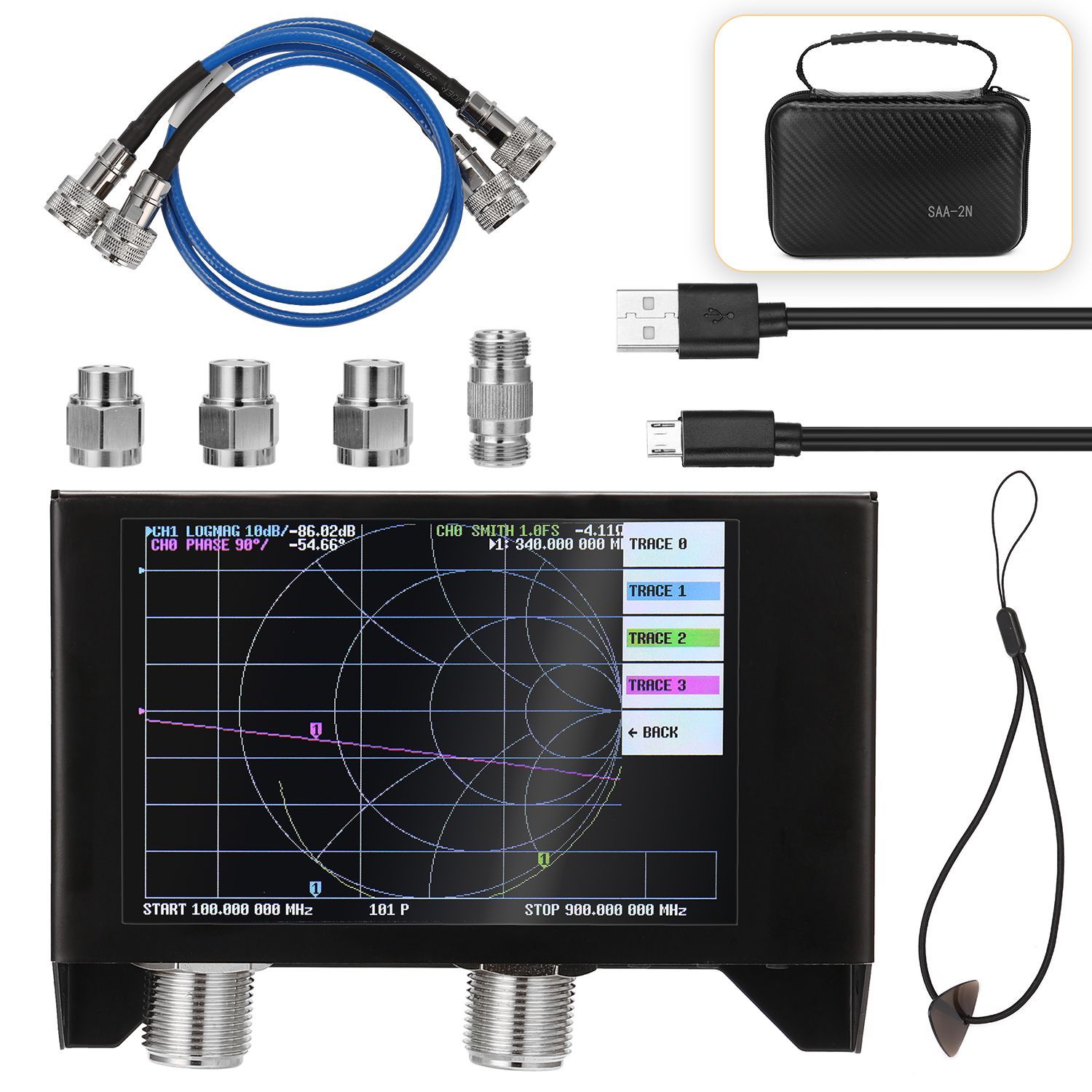

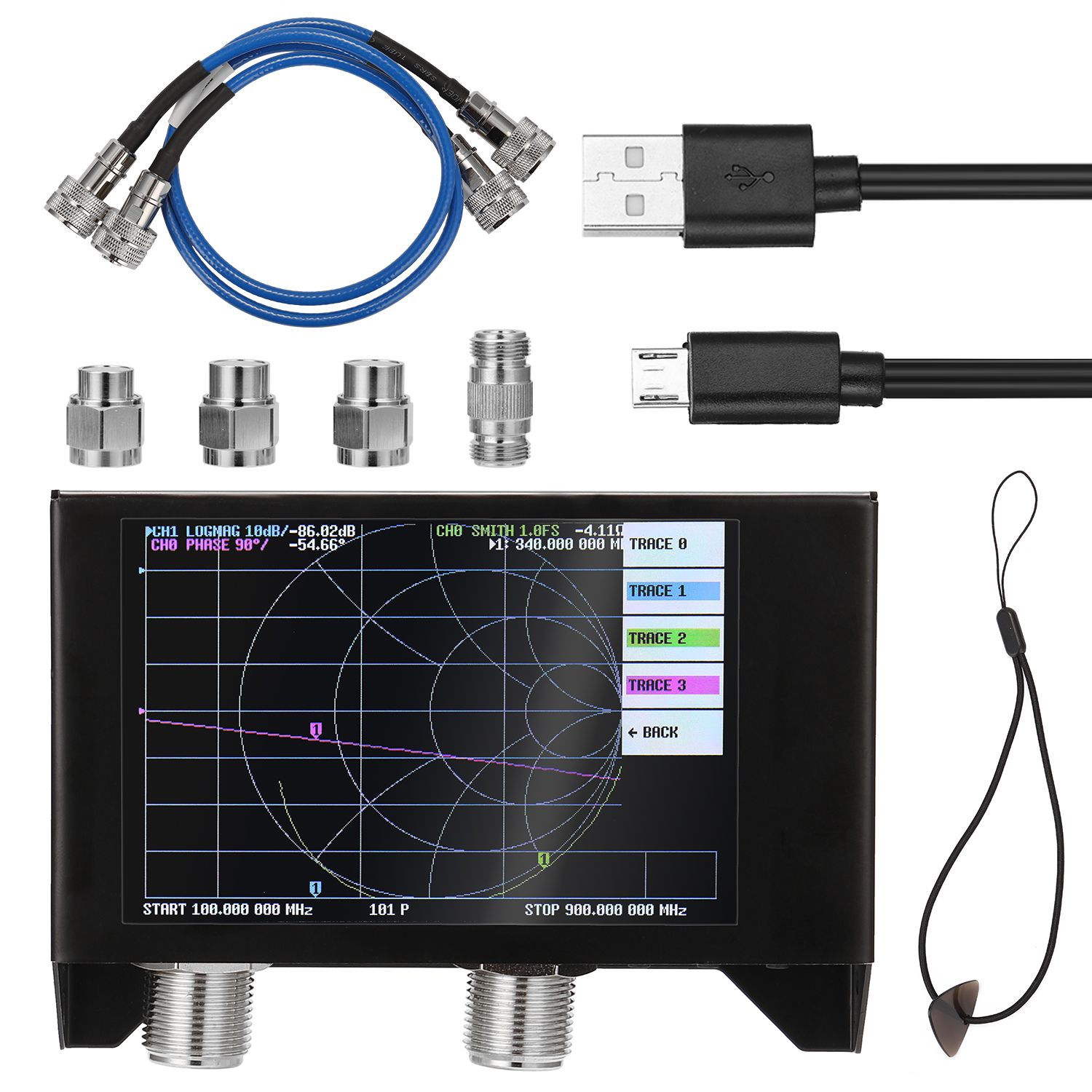

4.0 Inch Screen 3G Vector Network Analyzer SAA-2N NanoVNA V2

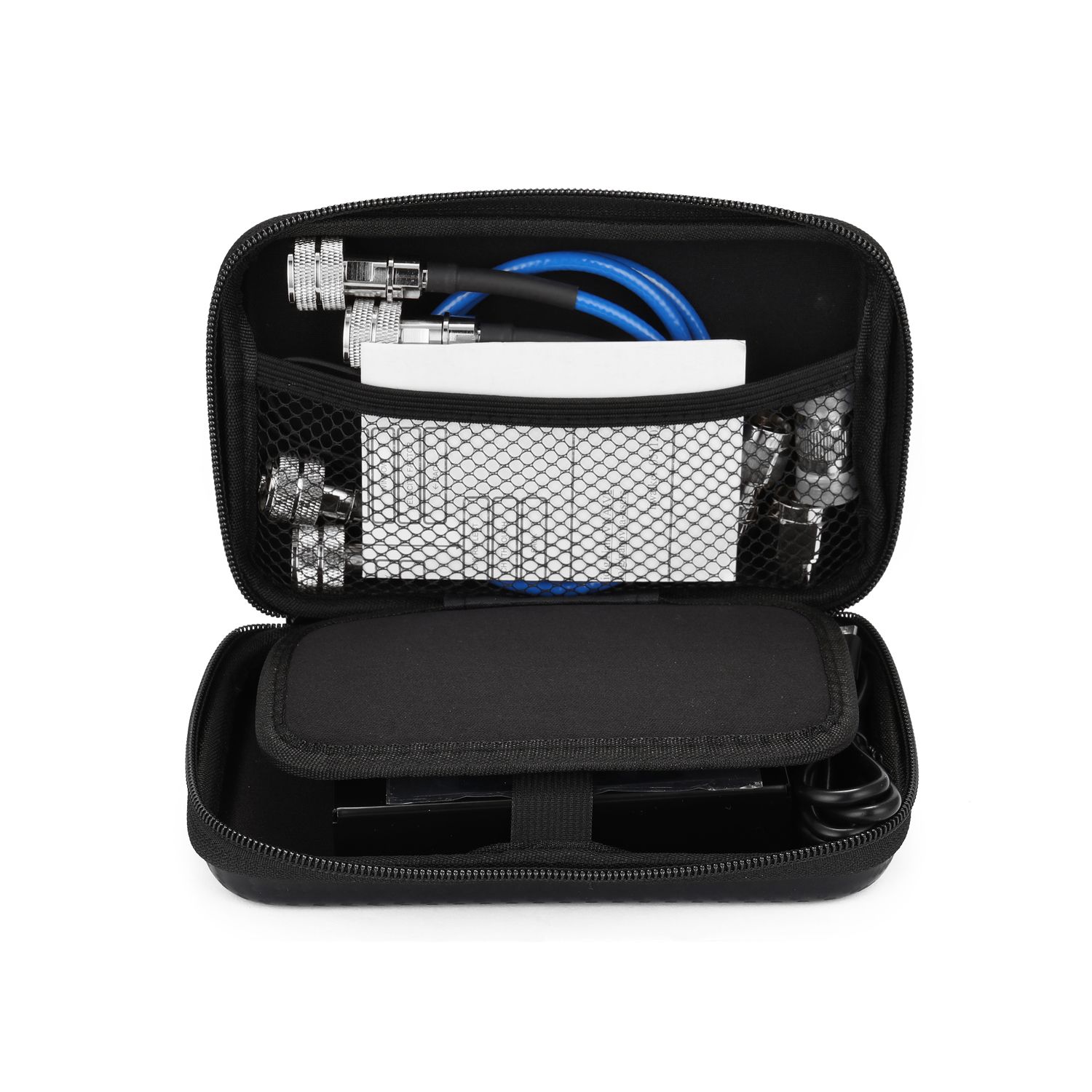

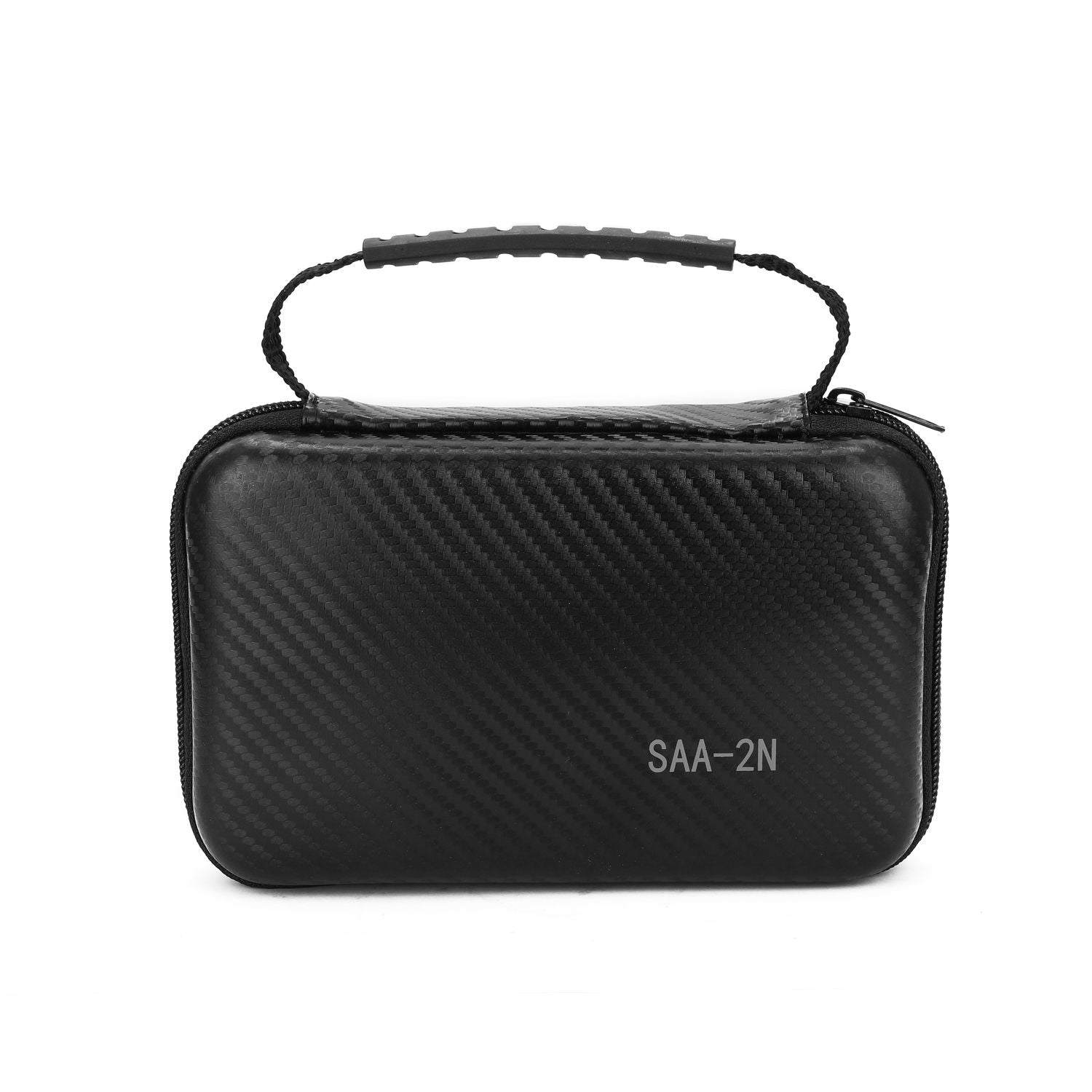

Made of fine quality material practical easy to operate and use has a long service life.Features:Made of fine quality material practical has a long service life.Portable and compact easy to operate and carry.4.0 inch TFT LCD touching screen display.Measurement frequency range is 50KHz~3GHz.High stability high sensitivity high accuracy greatly improved performance.EVA storage bag is convenient for storage and carrying.Specifications:Main material: PCB+ironColor: blackBattery: 1 * lithium battery 3000mAh (included)Measurement frequency range: 50KHz-3GHzFrequency tolerance: ?2ppmFrequency stability: ?0.5ppmSystem dynamic range (calibration): 70dB (up to 1.5GHz) 60dB (up to 3GHz)S11 noise floor (calibration): -50dB (up to 1.5GHz) -40dB (up to 3GHz)Sweep rate: 100 points / secondDisplay: 4.0 inch 320 * 480USB interface: Micro USBPower supply: USB maximum charging current 1ABattery connector: JST-XH 2.54mmMaximum sweep points (on device): 201Maximum sweep points (USB): 1024Port 2 return loss (1.5GHz): 20dB typPort 2 return loss (3GHz): 13dB MINItem size: 117 * 85 * 25mm / 4.6 * 3.3 * 1.0inItem weight: 368g / 13.0ouncePackage size: 215 * 137 * 85mm / 8.5 * 5.4 * 3.3inPackage weight: 972g / 2.1lbNote:VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releasesPacking List:1 * SAA-2N Host1 * Micro USB Data Cable2 * 500mm N-type Male to Male RG142-PUR RF Cable1 * N-type Male Calibration Kit-OPEN1 * N-type Male Calibration Kit-SHORT1 * N-type Male Calibration Kit-LOAD1 * N-type Female to Female Connector1 * EVA Storage Bag1 * Touching Screen Paddle and Lanyard
