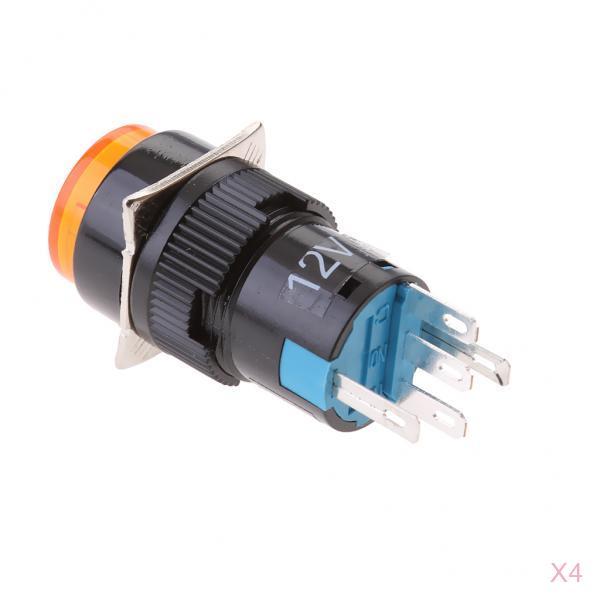

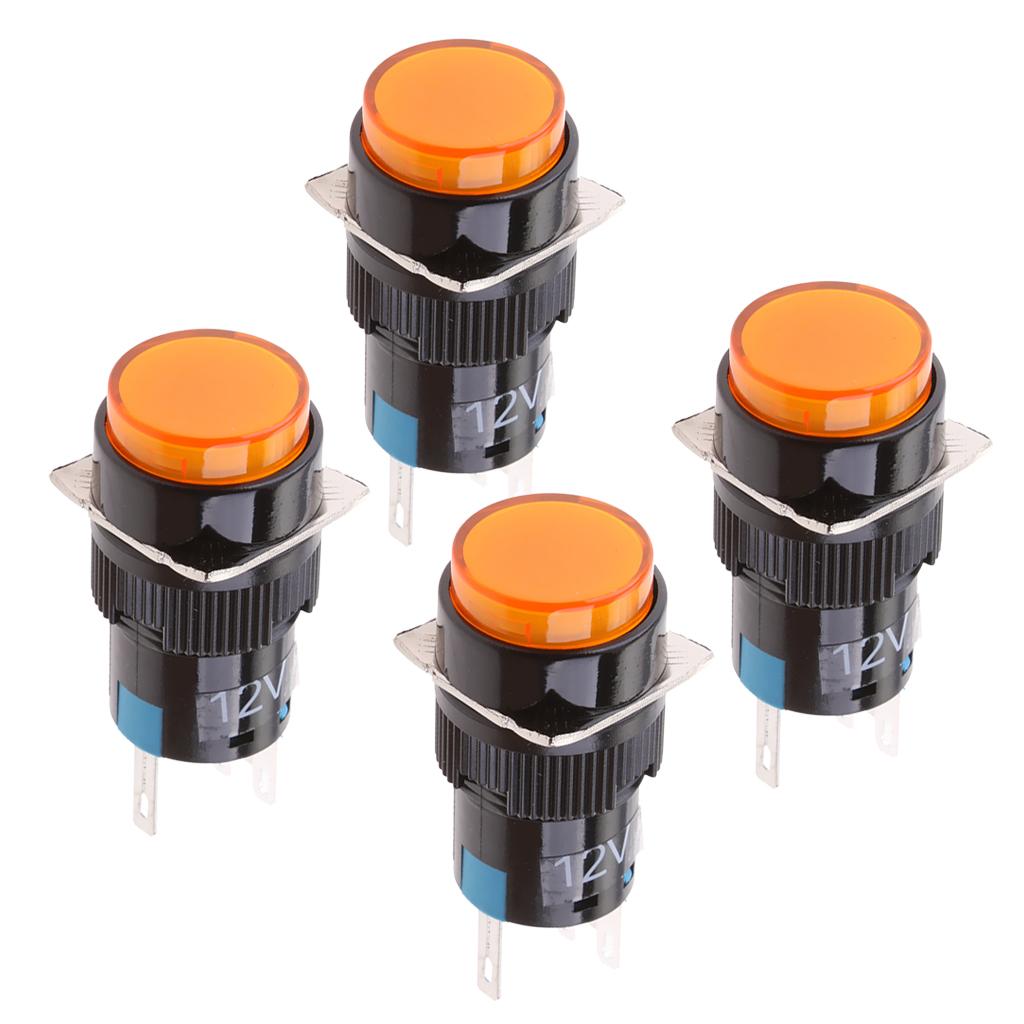

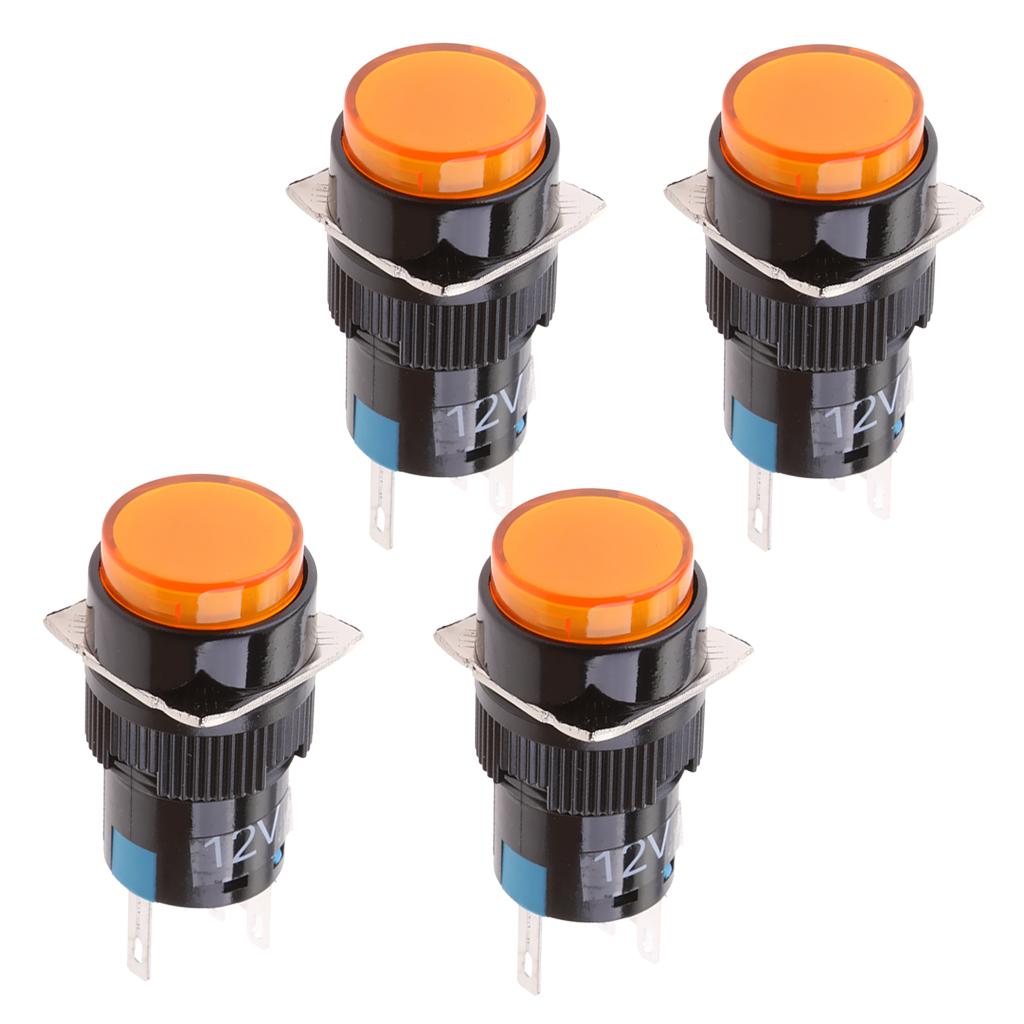

4 Pieces Self Reset Momentary Push Button Power Switch with Light yellow

Description:

100% brand new and high quality,good material,rugged, wear resistant

Installation diameter:16mm AC250V 3A DC30V 5A

High quality electric shock,protect the circuit,make the product life longer.A normally open, a normally closed electric shock

Self Reset:A.Press the button and hold still,power ups.Release the hand,power off. B.Press the button and hold still,power off.Release the hand,power ups

Wiring:Connect NO and C,it's the above plan A. Connect NC and C,it's the above plan B

Specification:

Material:Plastic

Operating Voltage:250V

Working Current:10A

Rated Heating Current:5A

Contact Resistance:0.1Ω

Insulation Resistance:10Ω

3C Rated Voltage Range:≥440V

Rated Voltage:12V 24V 220V

Dameter:16mm

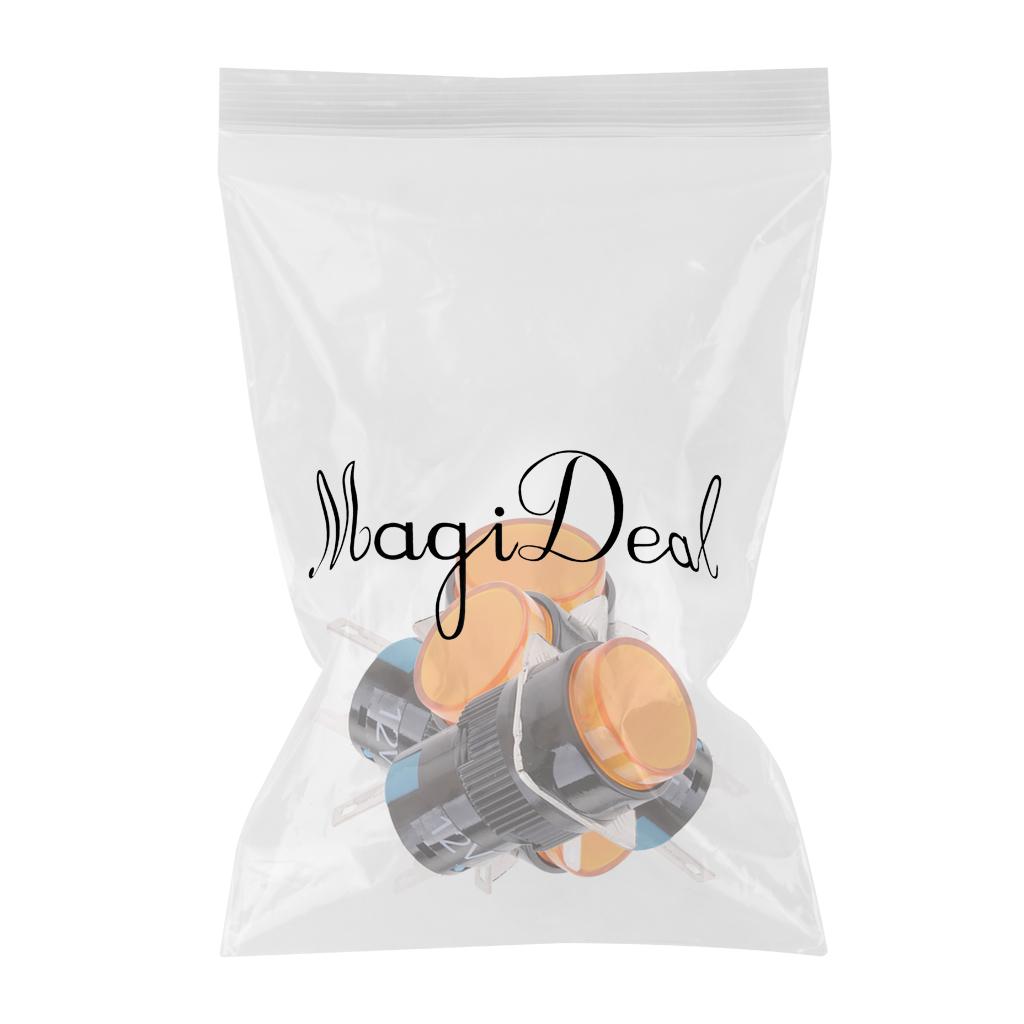

Package Includes:

4 Pieces LA16Y-11 Self Reset Push Button Power Switch
