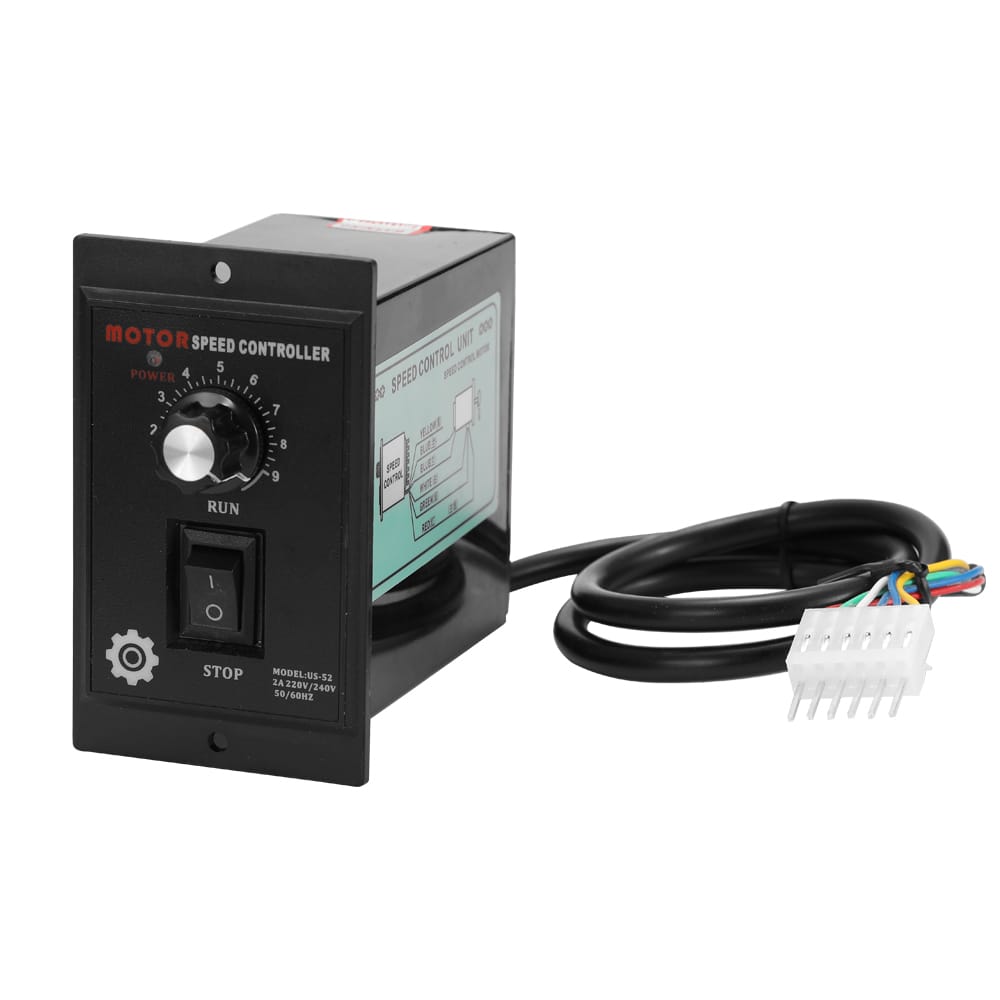

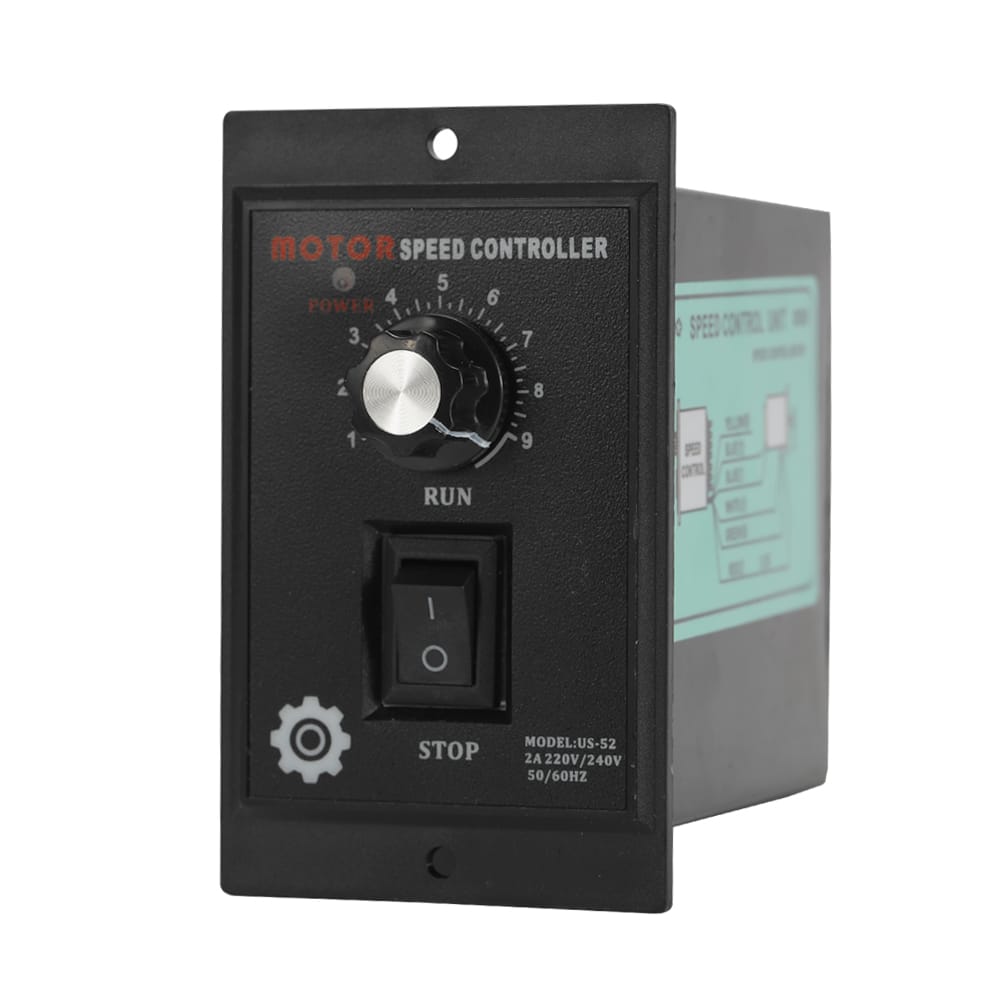

400W 50/60Hz 220V AC Motor Speed Control Pinpoint Regulator

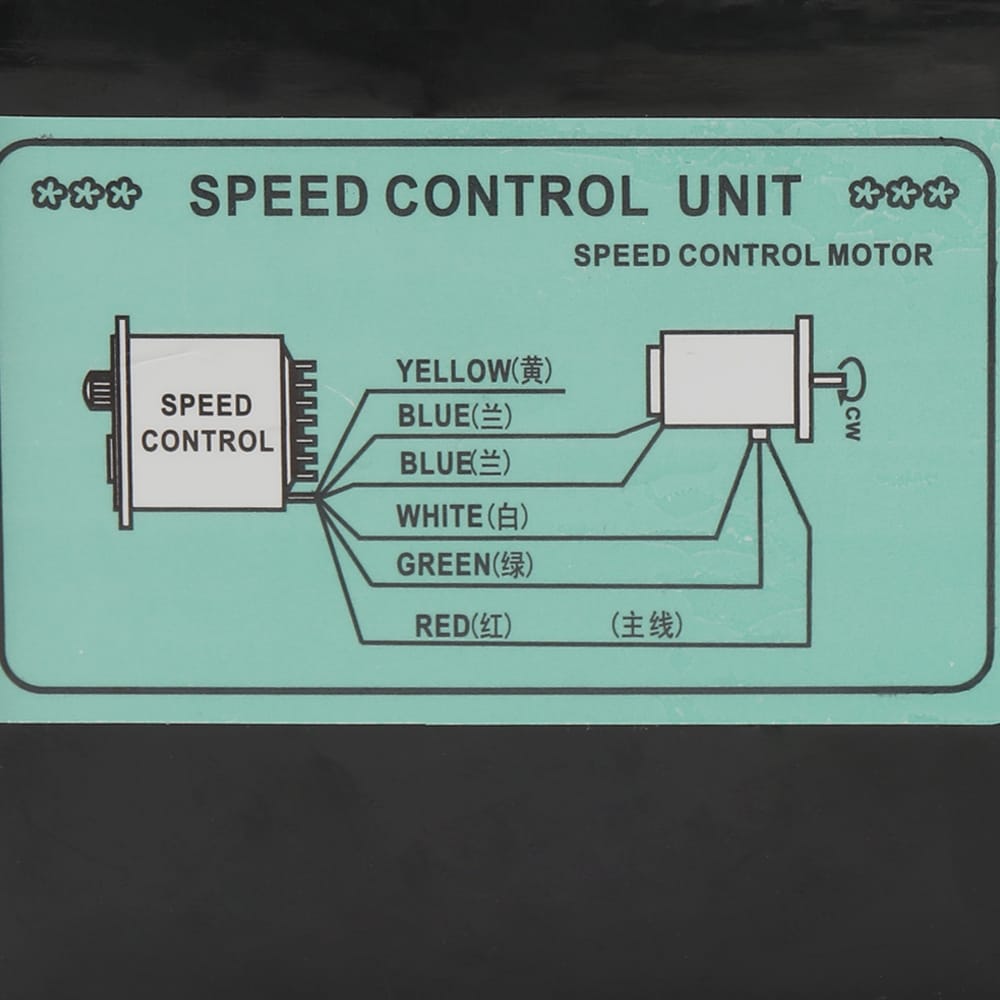

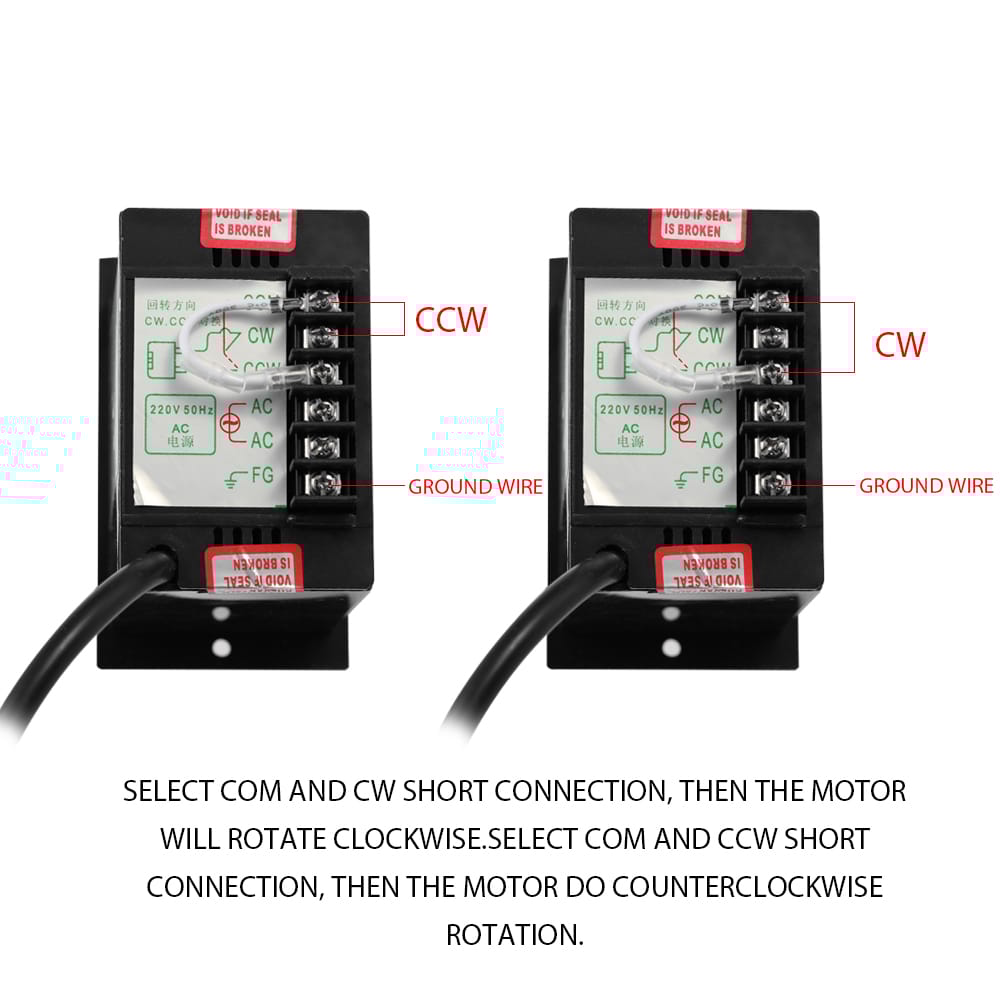

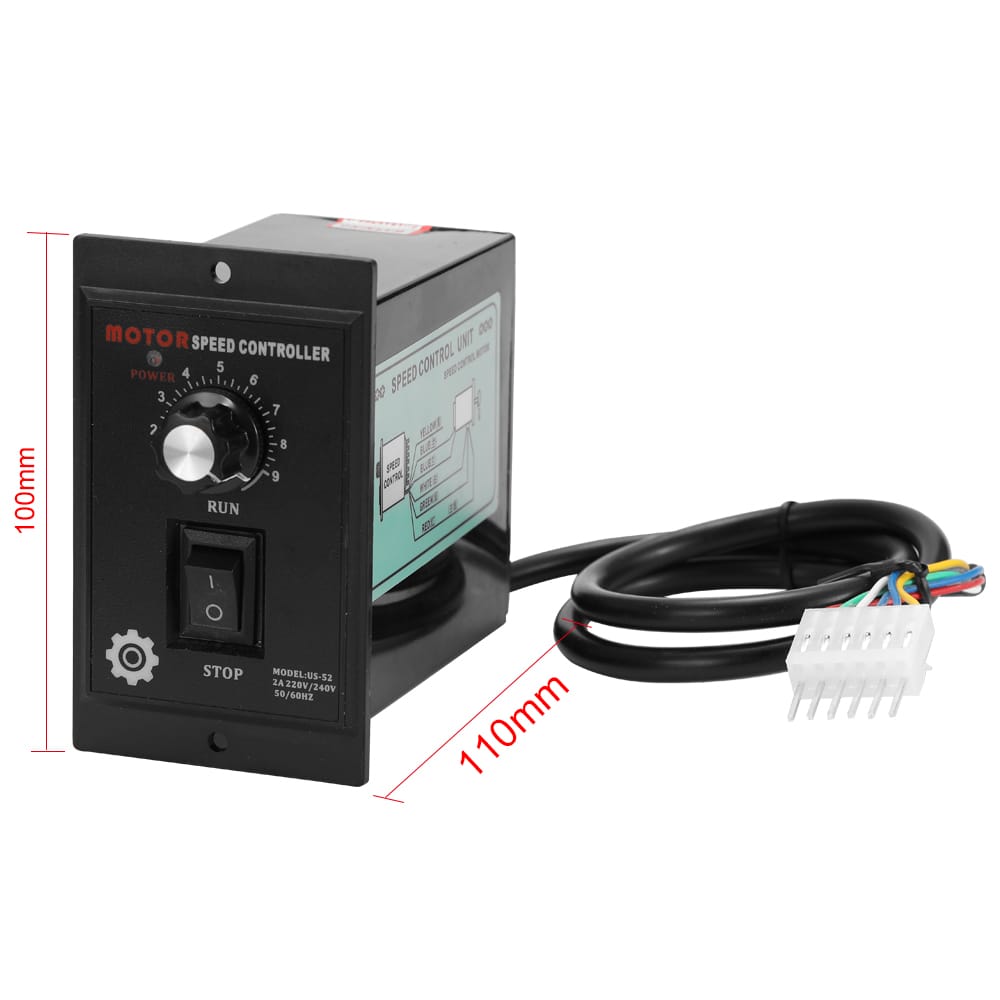

This motor speed controller uses fine quality electronic circuit and integrated components for durability small size high accuracy wide speed controlling range and long service life.Features:This motor speed controller is suitable for AC220V 50/60HZ motor.Speed regulation range is 90-1400r/min 50HZ 90-1700r/min 60HZ.Suitable for packaging printing food electronics instrumentation equipment clothing industry production line for speed control drive devices.The controller uses fine quality electronic circuit and integrated components for durability.It has small size high accuracy wide speed controlling range and long service life.Wiring Method:Redwire is the motor main wire yellow wire is the ground wire.Specifications:Motor Type: AC MotorRated Power: 400WApplication: motor speed regulatorPower Supplied: AC 220V 50/60HzEnvironment Temperature: -10? - 50 ?Relative Humidity: ?90%Speed Regulation Range: 90-1400r/min 50HZ 90-1700r/min 60HZItem Weight: 238g / 8.40ouncePackage Weight: 257g / 9.07ounceItem Size: 110 * 100 * 60mm / 4.33 * 3.94 * 2.36inPackage Size: 130 * 110 * 110mm / 5.12 * 4.33 * 4.33inMethod of use:Turn off the power connect it according to the wiring diagram and make sure the connection is correct.Fix the controller well and set the speed to the lowest 0 so as to avert sudden large current and permanent damage when starting the power supply.Then turn on the power and adjust the speed knob to the desired position. Please turn off the power when not needed.The governor is connected to the motor. If the torque or speed is found to be inconsistent with the requirements please adjust the fine-tuning potentiometer on the side of the product.To change the running direction of the motor simply replace the jumper lines of CCW and CW on the back of the controller.Select COM and CW short connection then the motor will rotate clockwise.Select COM and CCW short connection then the motor do counterclockwise rotation.(When changing direction do not change the direction until the motor stops running completely.)Package List:1 * Speed Controller
