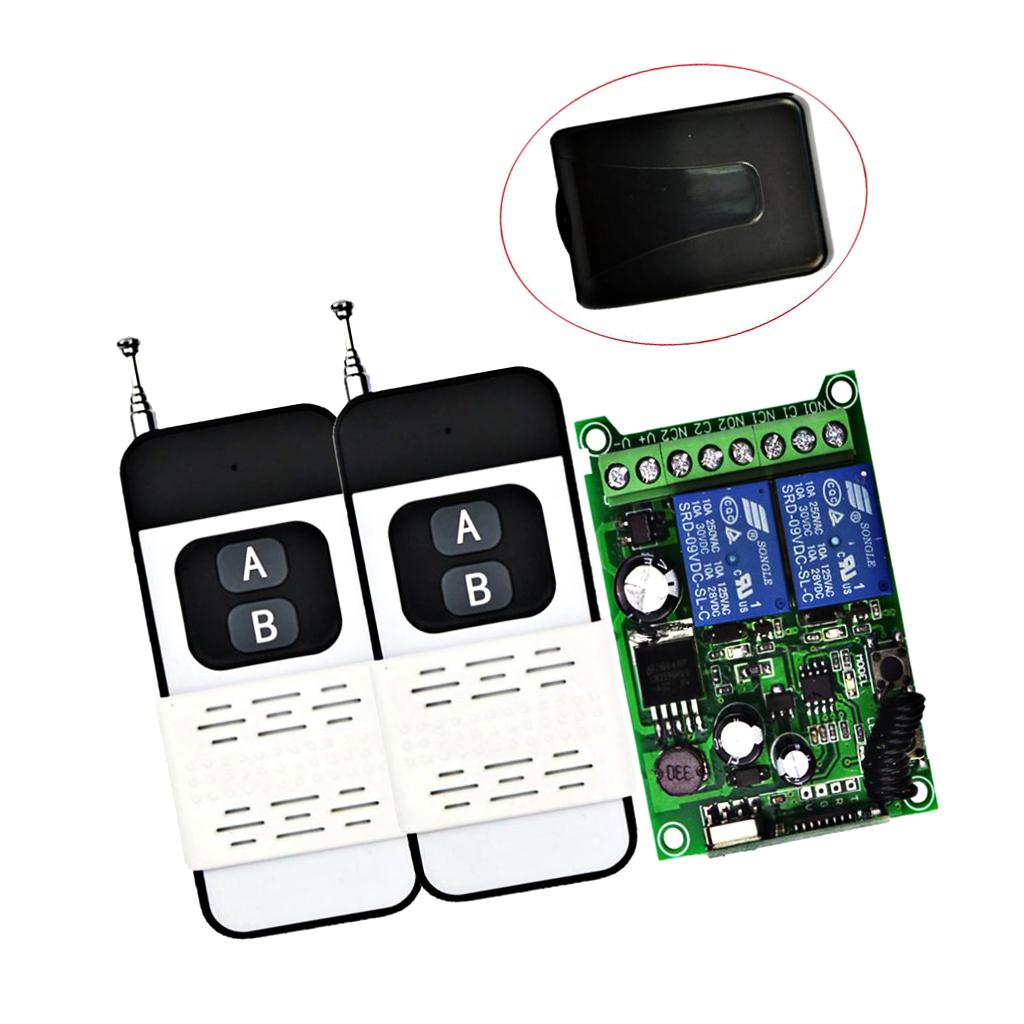

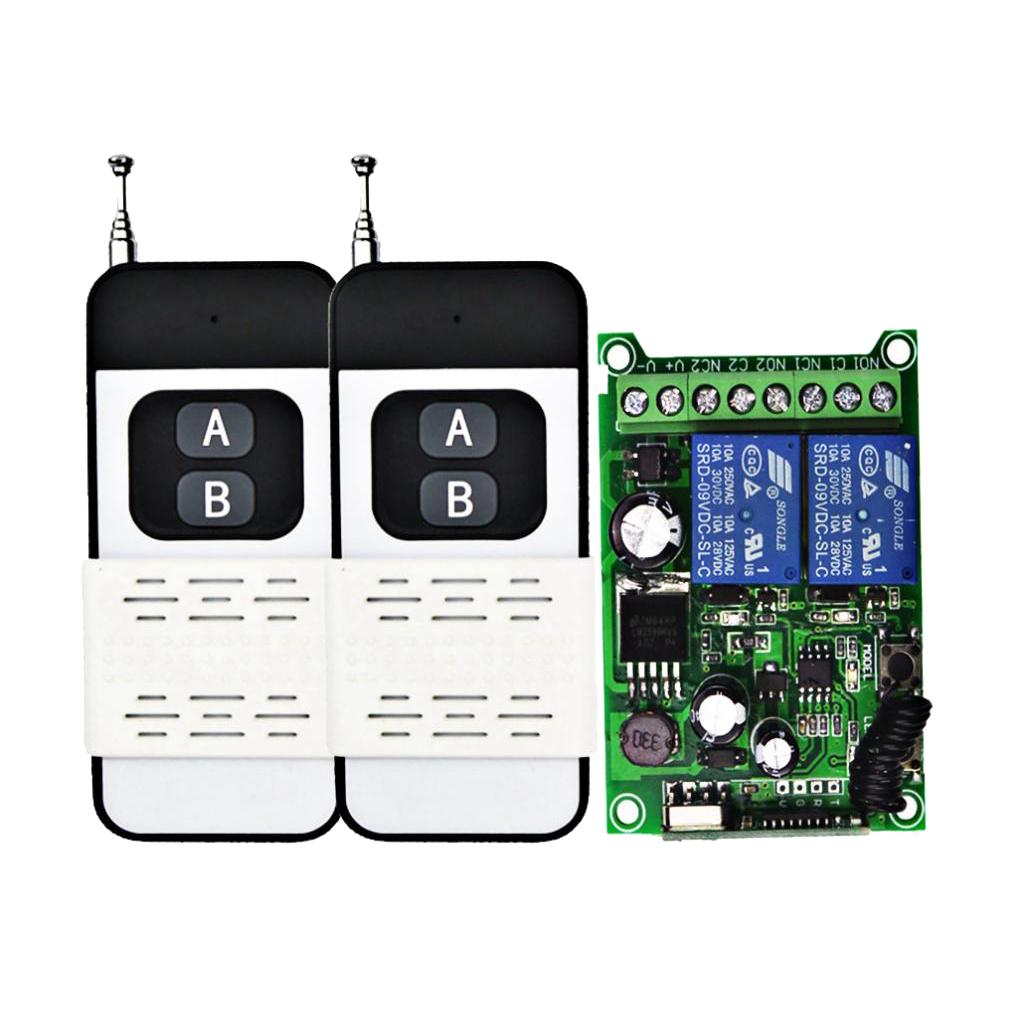

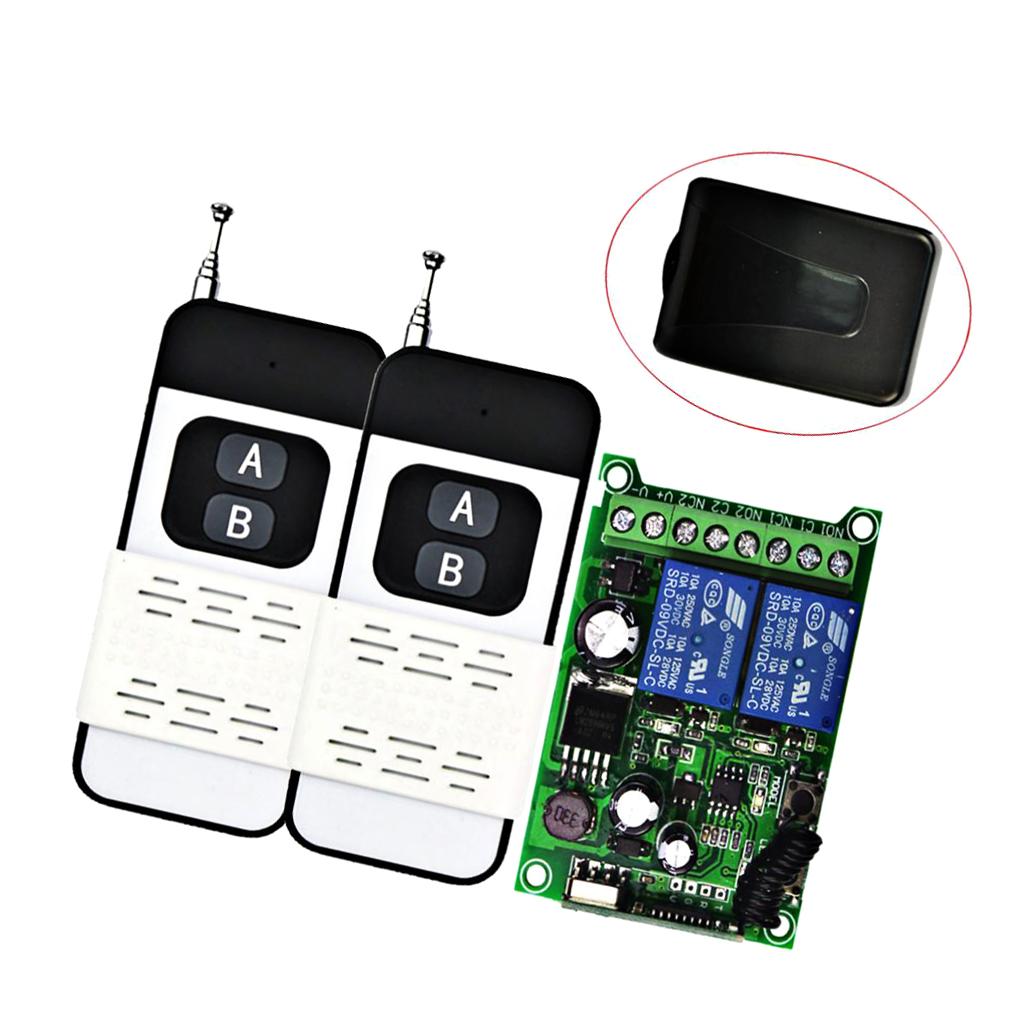

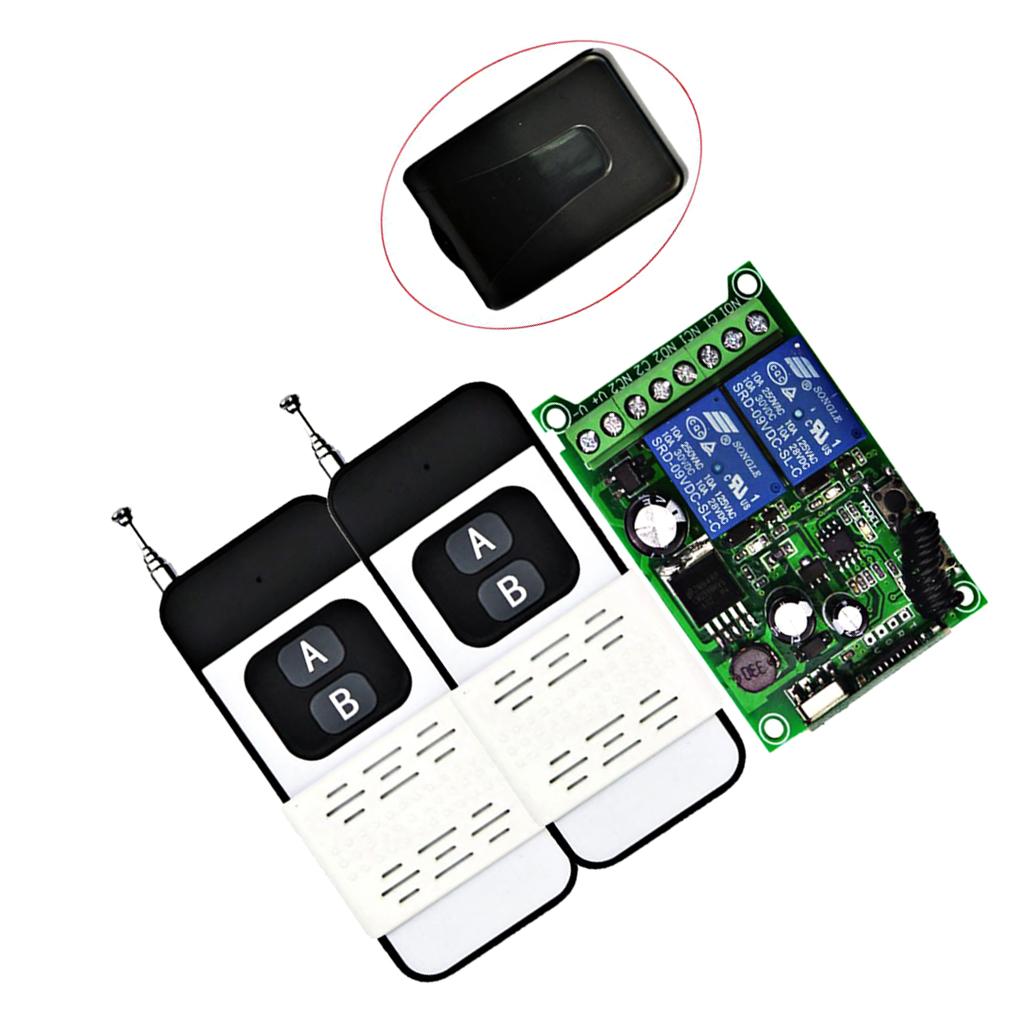

433MHZ DC12V-48V Wireless Remote Control Switch 2CH Relay Receiver 2 Button

Description:

High confidentiality, stable performance and low power consumption.
Using 10A relay that can load high power appliances.
Used for car/motorcycle/electric car refit, electric doors, windows, lifting equipment, gates, lifts, industrial control and security industries.

Specification:

Channel: 2CH
Radio Frequency: 433MHZ
Operating Voltage: DC 12V-48V
Static current :10mA
Working current: 30mA-90mA
Operating temperature: -20℃-80℃
Receive sensitivity: -103dBm
Load range: ≤10A
Output mode: Switch signal contact output
Material: FR-4 lead free pcb board
Receiver Size: Approx. 68 x 48 x 20mm/2.7 x 1.9 x 0.8inch
Output Mode: self-locking; interlock; jog
Relay shell color: random

Package Includes:

1 Piece Remote Control Switch
12 Pieces Receiver Module

Note:

Due to the quality differentiation of monitors and lighting effect, the picture may not reflect 100% the actual color of the item
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
