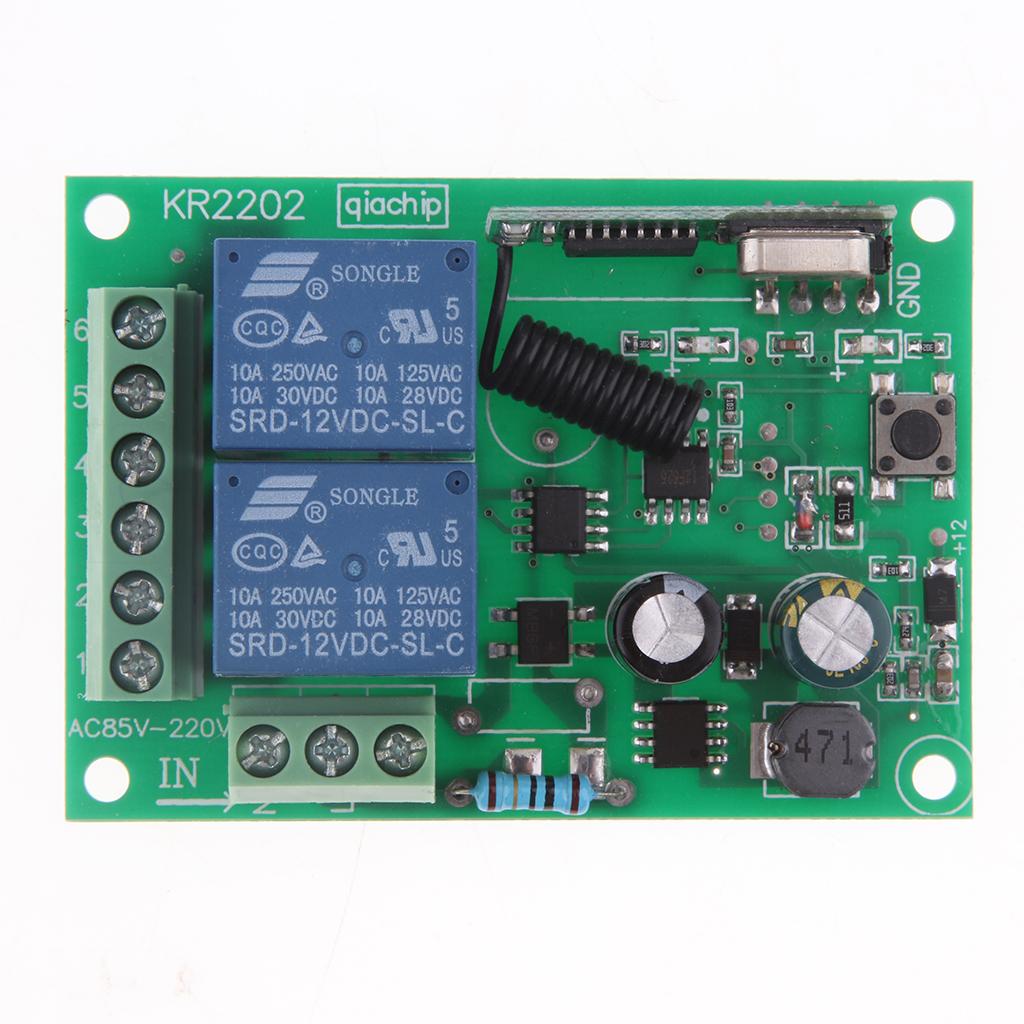

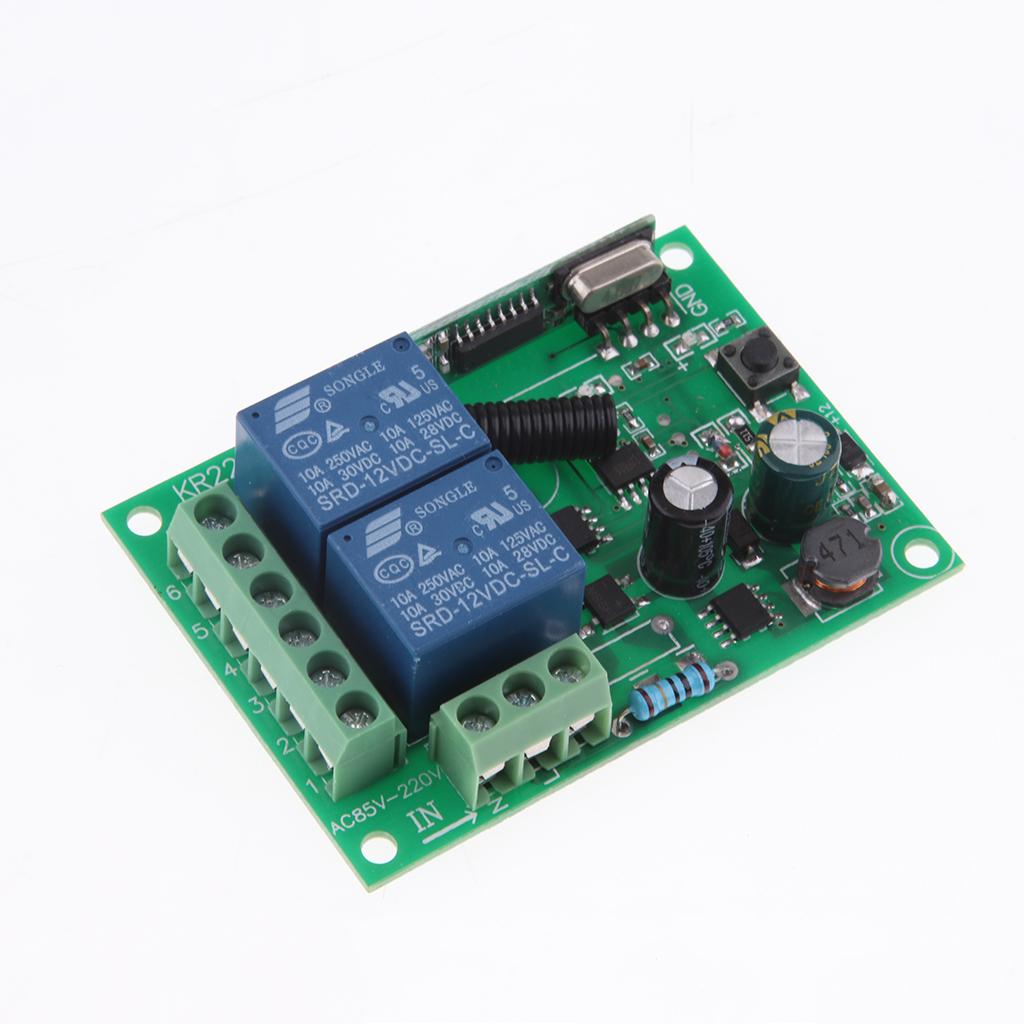

433Mhz Wireless Remote Control Switch Receiver Module RF Transmitter Remote

Description:

Input voltage: AC85V - AC220V, RF working frequency: 433Mhz
RF working : super heterodyne reception, receiving sensitivity: -107dbm
Remote control distance: open space is greater than 100 meters.
Can store remote control quantity: 20, support remote control type: learning code 1527 encoding.
Various working modes: point movement, self locking and interlocking.

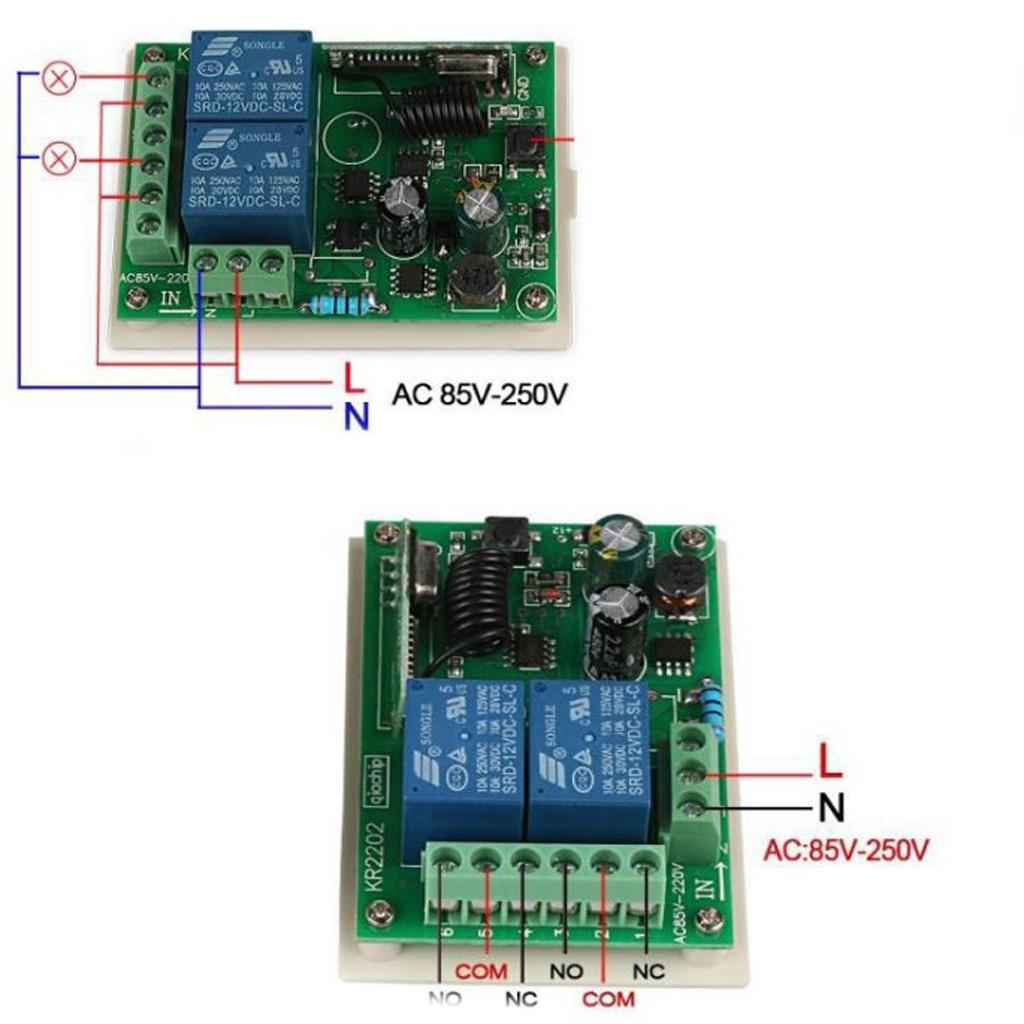

Wiring : learning button.

Specification:

Clear and counter code:
1. Clearance Function: After pressing the "Learning Button" eight times continuously, the LED indicator lights are extinguished and the hands are released, and all the remote control code data in the memory are emptied. When the LED indicator lights are flashed seven times and extinguished, the clearance function is completed.
2. Code function-press the "learning button", LED indicator light indicates that the microprocessor enters the state of learning code, press the matching wireless remote control button, LED indicator flashes three times and then extinguishes to indicate the success of the code. (this is a key pair code, and the program will automatically allocate data bits).
3. Code test-after the code is successful, the relay corresponding to the remote controller will make the corresponding function action.

Package Includes:

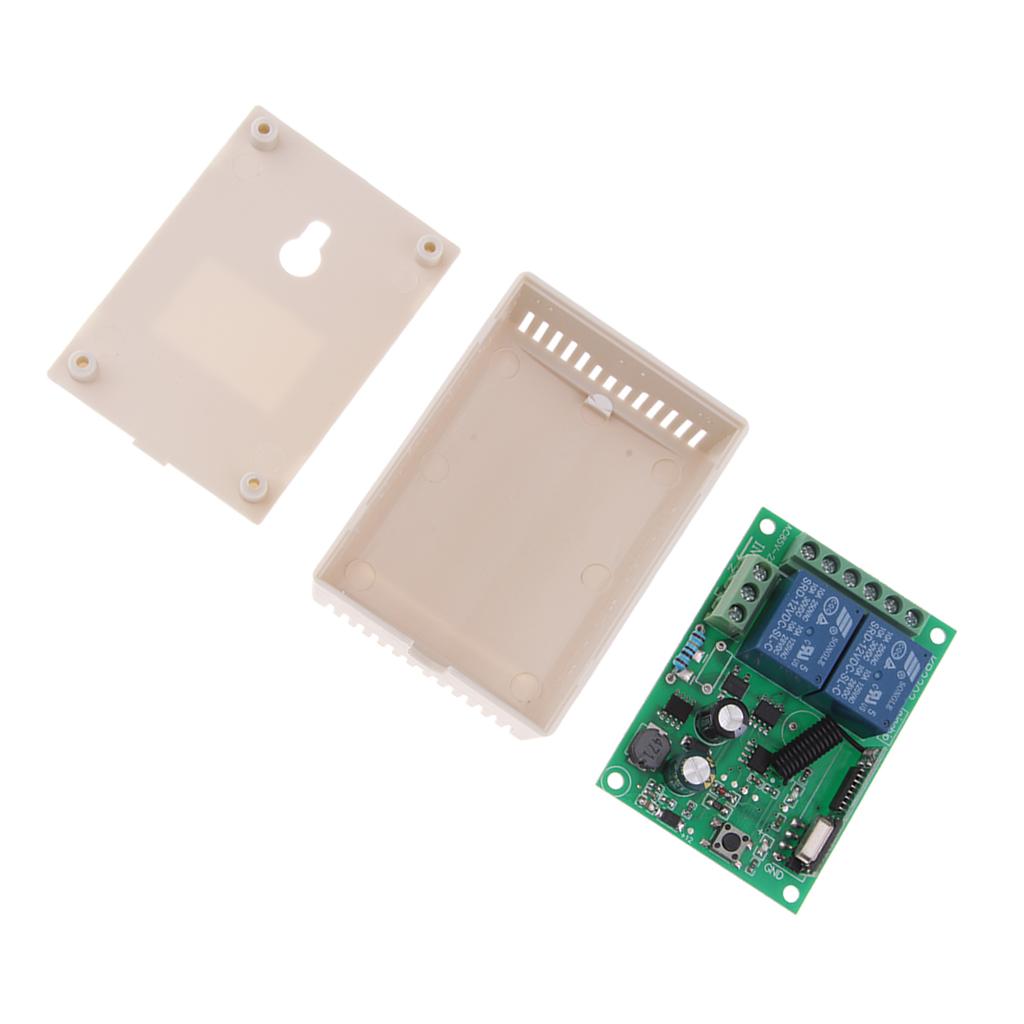

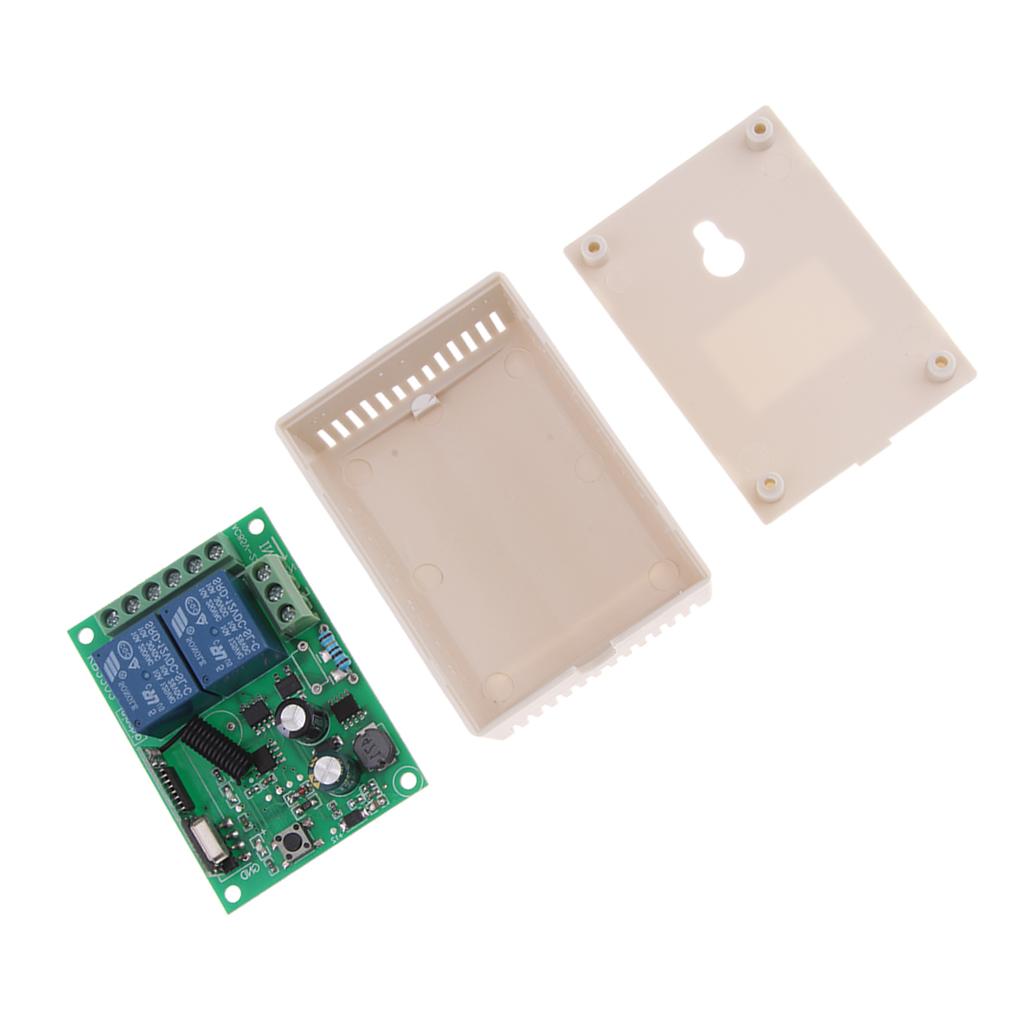

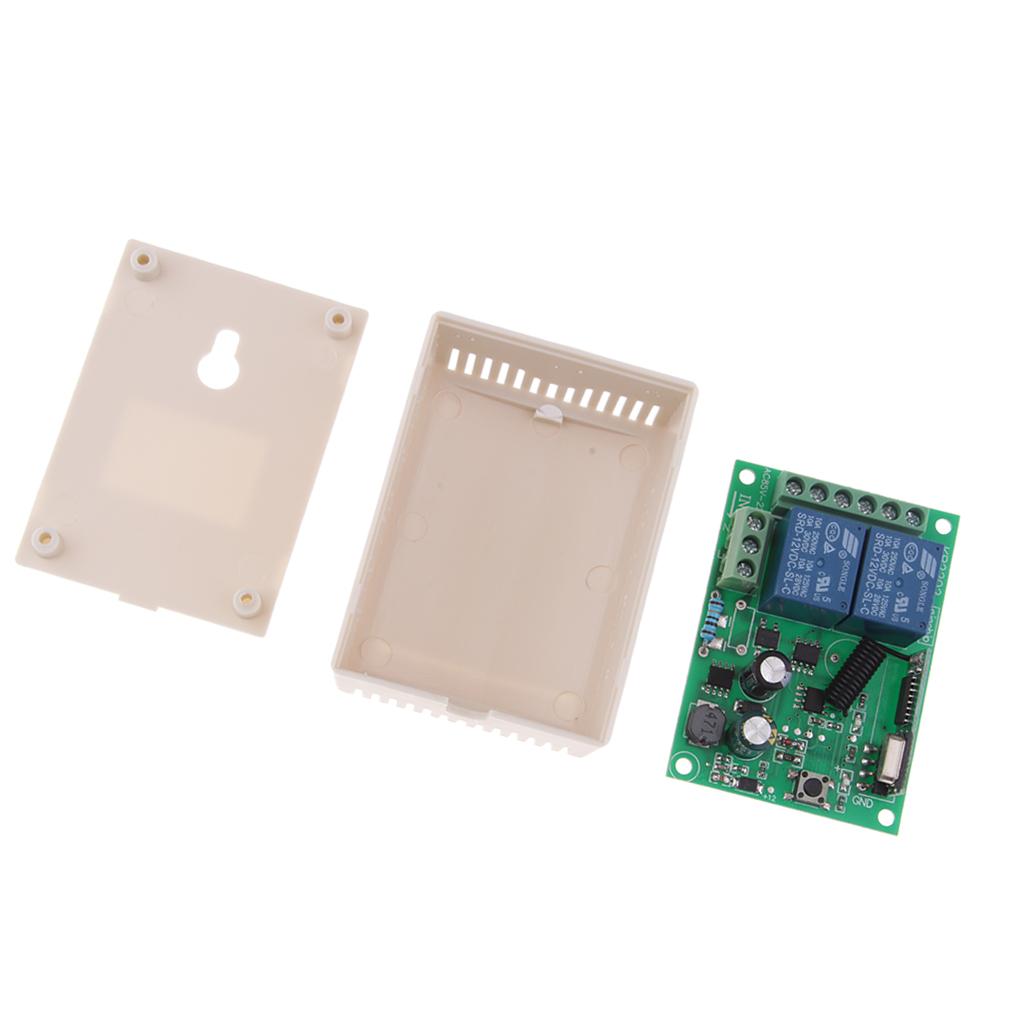

1 Piece Universal Wireless Remote Control Switch
