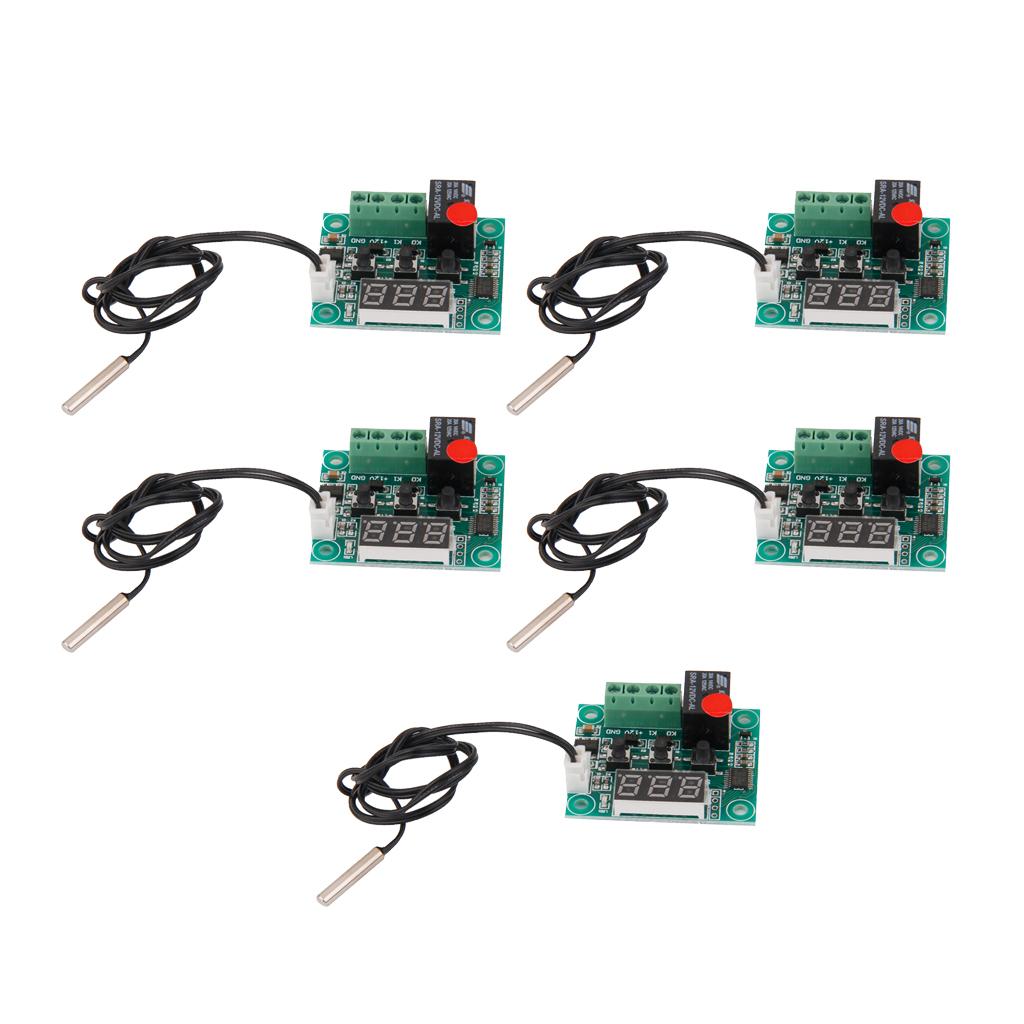

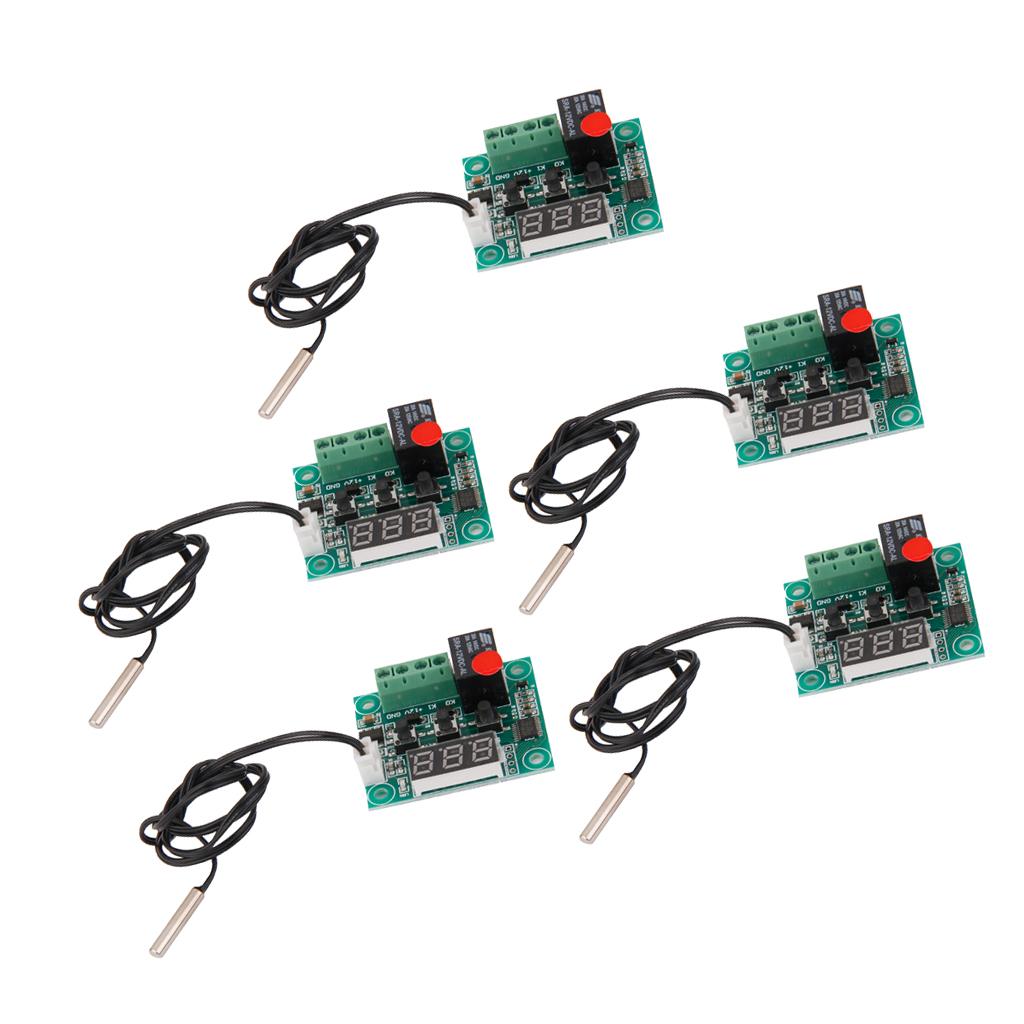

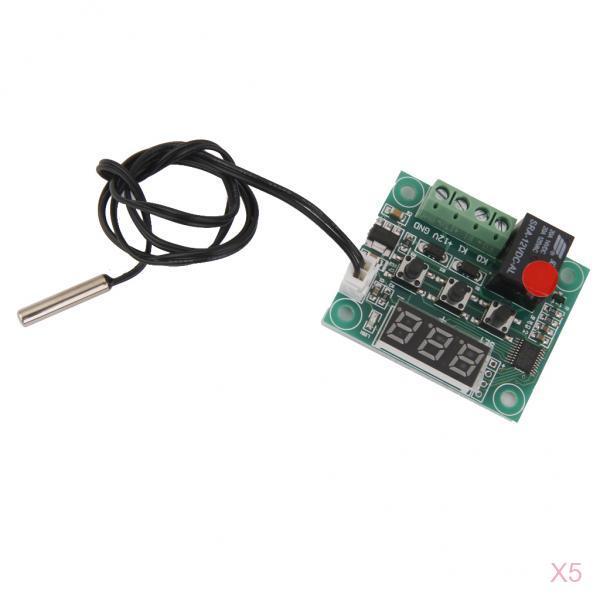

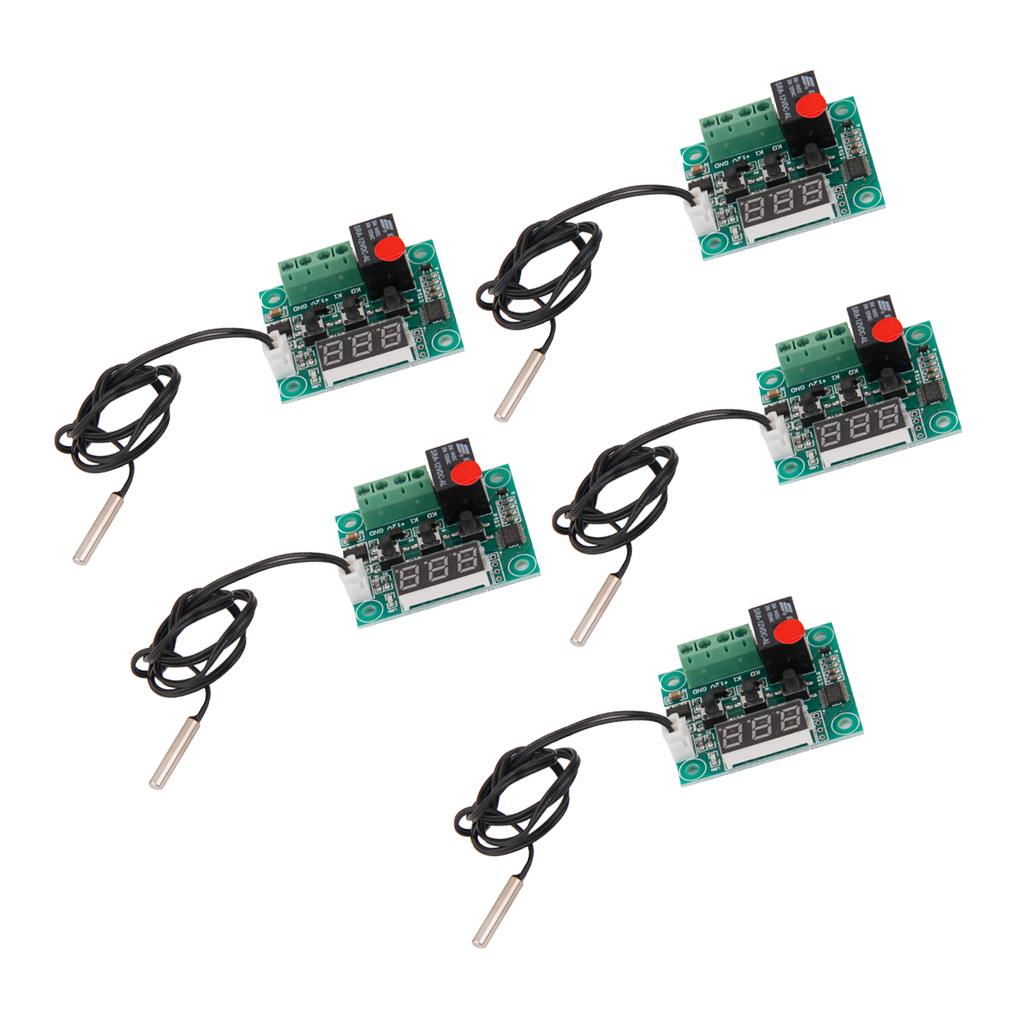

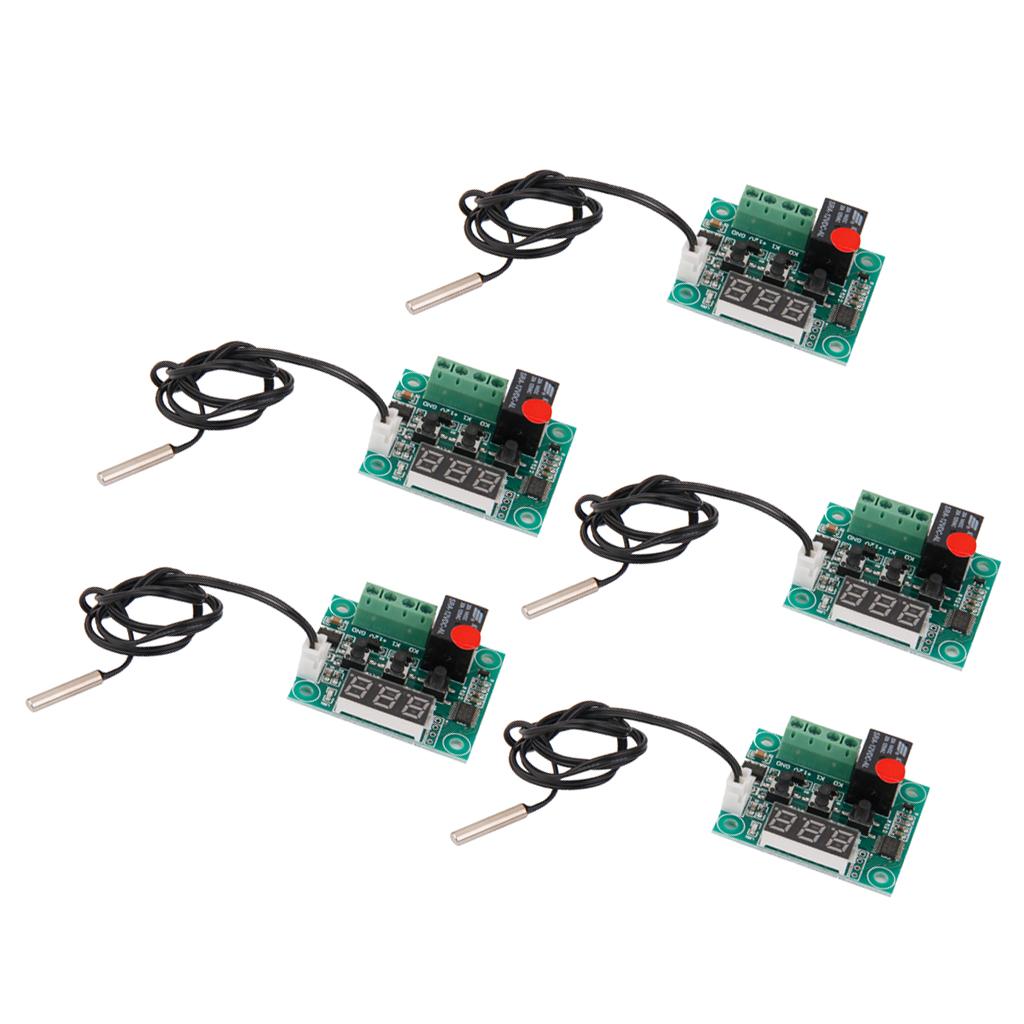

5 Pieces W1209 Digital Thermostat Temperature Control Switch Sensor Module

Description:

Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier, steamer, industrial equipments and other temperature-controlled systems.
Temperature range :-50-110 ℃
Resolution: -9.9 to 99.9 is 0.1° C , 1 ° C temperature ranges other
Measurement Accuracy: 0.1 ℃
Control accuracy: 0.1 ℃
Hysteresis accuracy: 0.1 ℃
Refresh rate: 0.5 S
High temperature protection: 0 ~ 110 ℃
Input Power: DC12V
Output voltage: DC 12V
Output power: 20A relay
Measuring inputs: NTC (10K 0.5%) Waterproof sensor
Environmental requirements: -10 ~ 60 ℃ , Humidity 20% -85%
Power consumption: Static current:<=35MA, Attract current:<=65MA
Size: Approx. 48 (L) x 40 (W) x 14 (D) mm

Package Includes:

5 Pieces Digital Thermostat Temperature Control Switch

Note:

Color maybe slightly different due to different monitor.
The above size is measured by hand, please allow slightly difference. Thanks !
