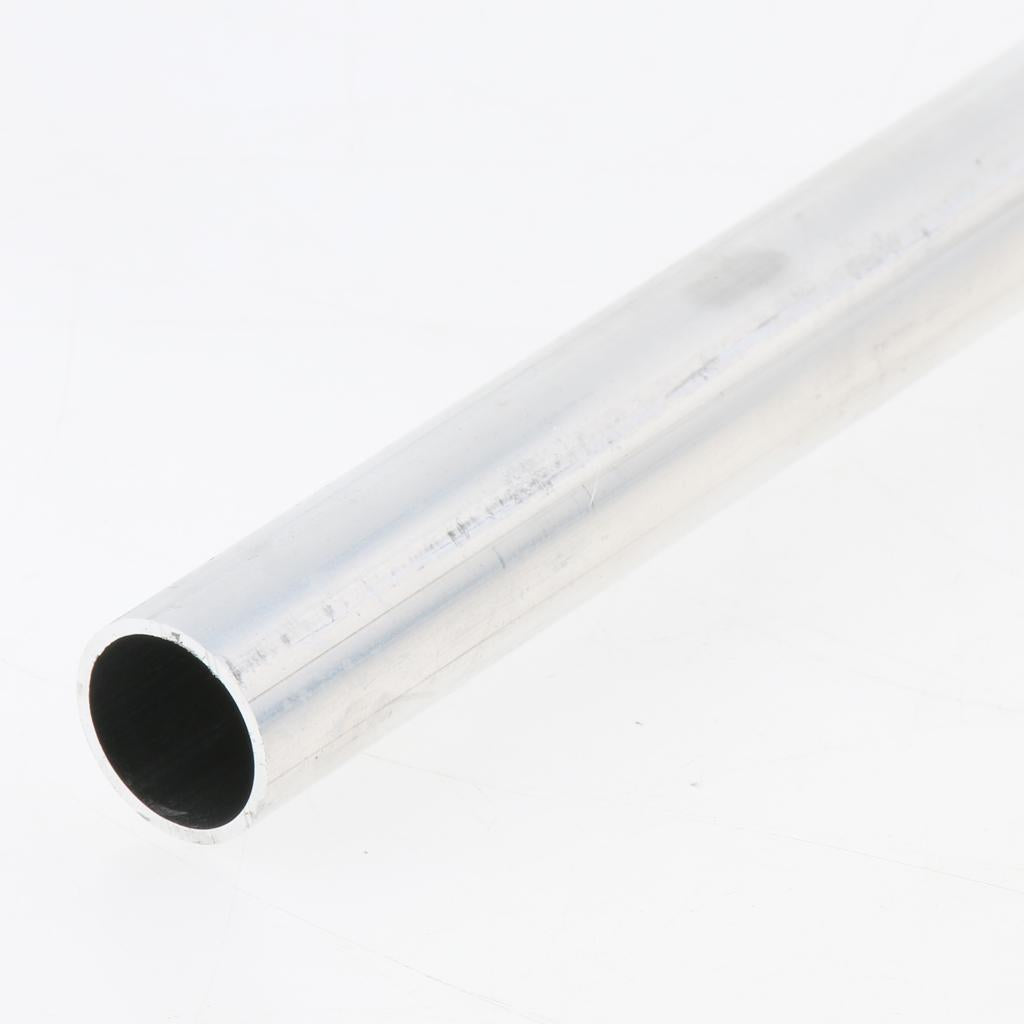

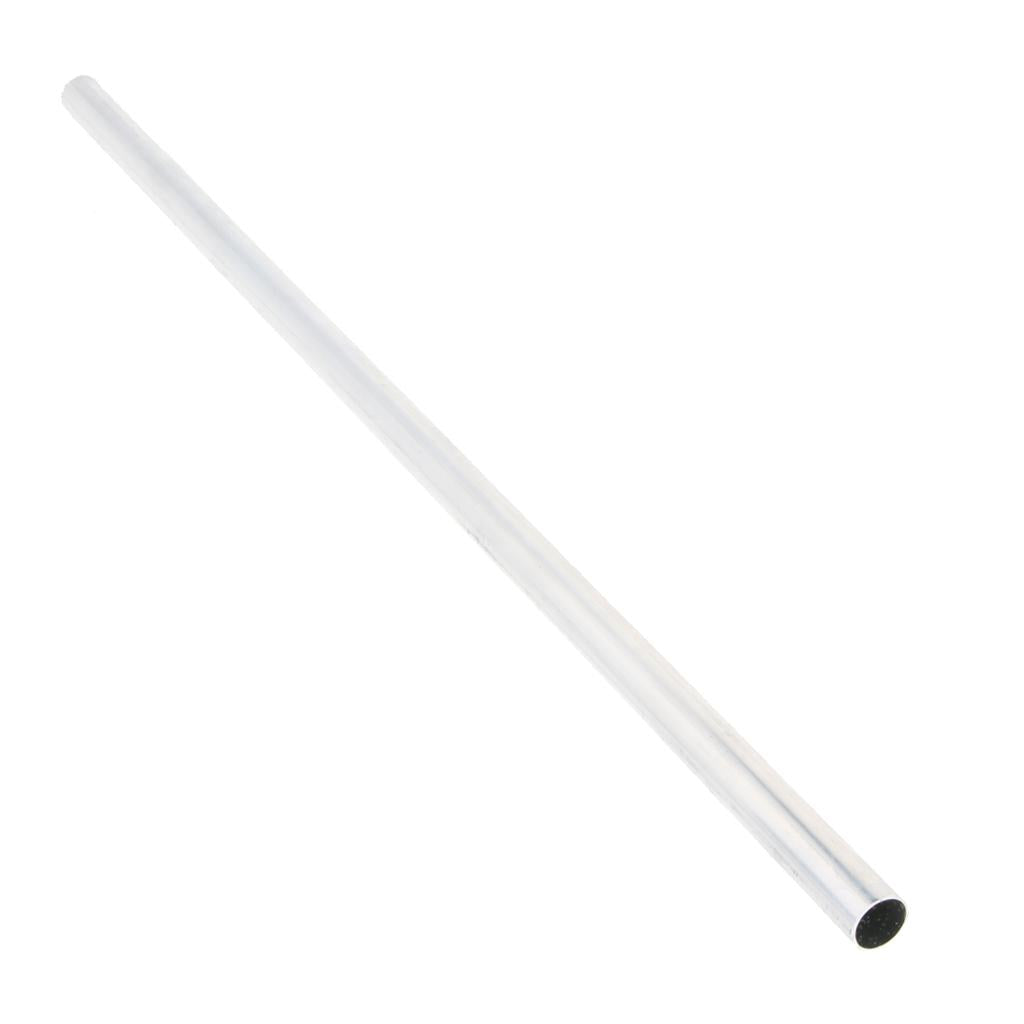

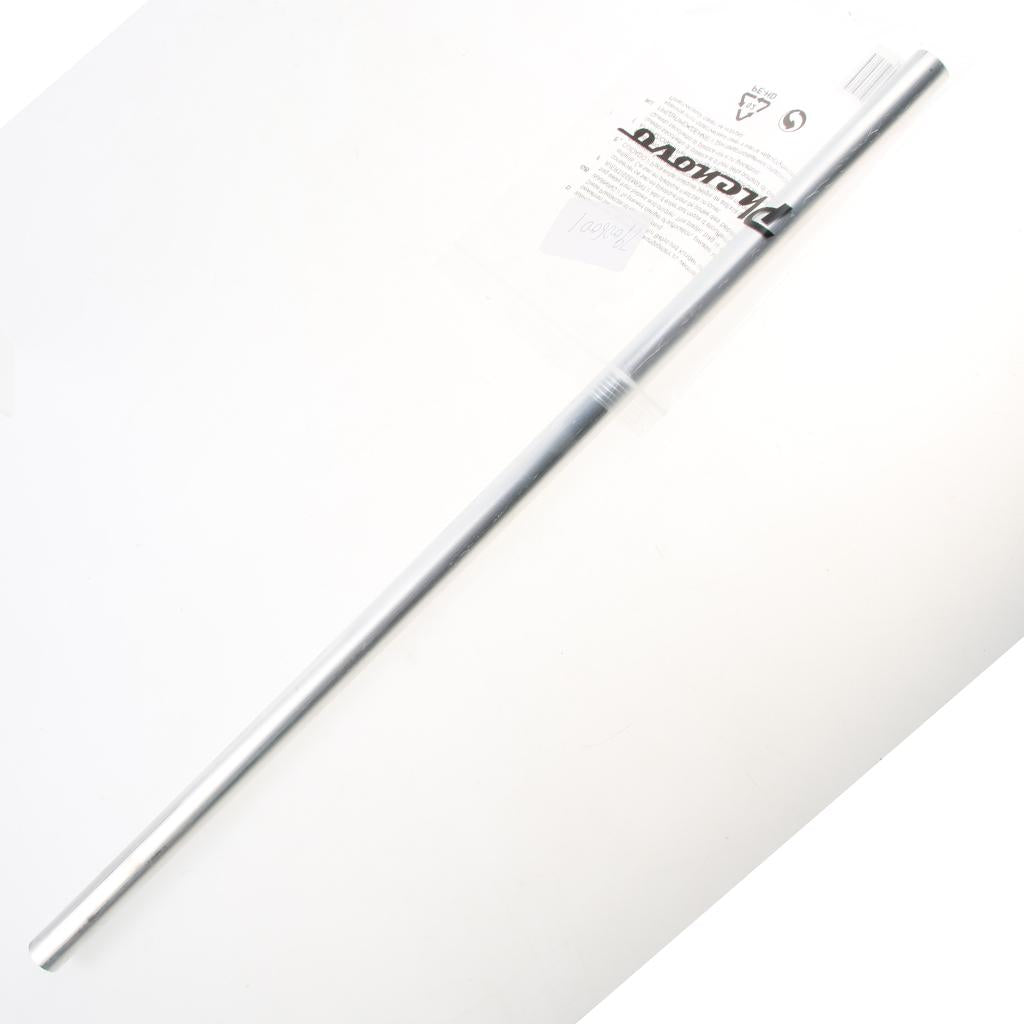

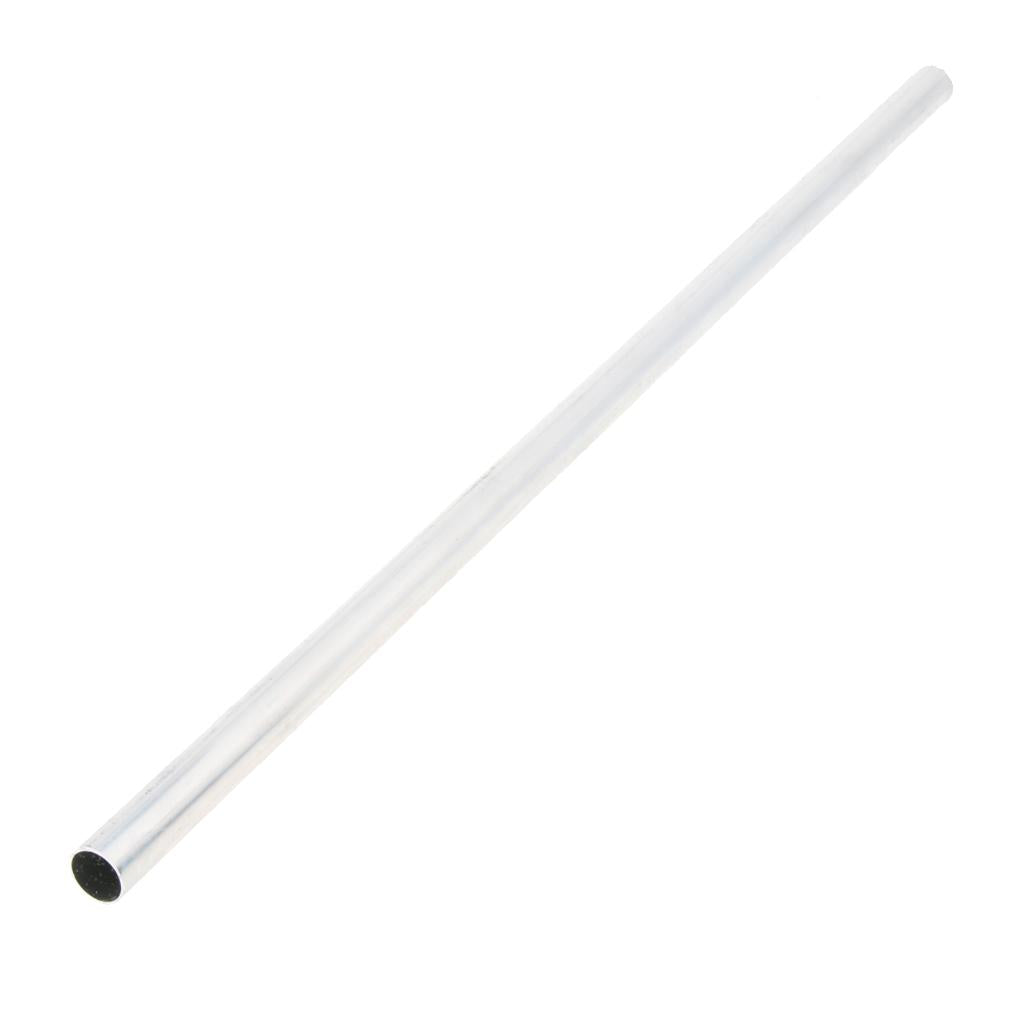

50cm x 6063 Aluminium Alloy Round Tube Pipe Pole Hollow Shaft OD. 16mm

Description:

50cm( 19.7 inch) length 6063 Aluminium Alloy( Al-Mg-Si) Round Tube, outer diameter( OD) varies from 8mm to 20 mm

Has good mechanical properties, is heat treatable and weldable, similar to the British aluminium alloy HE9

Allows complex shapes to be formed with very smooth surfaces fit for anodizing

Popular for visible architectural applications such as window frames, door frames, roofs, and sign frames

Most common alloy used for aluminium extrusion

Specification:

Material: 6063 Aluminium Alloy( Al-Mg-Si)

Wall Thickness: 1mm

Full length: 50cm (19.7'')

Outer Diameter: 8mm/ 10mm/ 12mm/ 14mm/ 16mm/ 20mm

Size Chart:

Alloy composition:

Silicon minimum 0.2%, maximum 0.6% by weight

Iron no minimum, maximum 0.35%

Copper no minimum, maximum 0.10%

Manganese no minimum, maximum 0.10%

Magnesium minimum 0.45%, maximum 0.9%

Chromium no minimum, maximum 0.10%

Zinc no minimum, maximum 0.10%

Titanium no minimum, maximum 0.10%

Other elements no more than 0.05% each, 0.15% total; Aluminium is the reminder.

Package Includes:

1 Piece Aluminium Alloy Round Tube
