540 13T Brushed Motor with 60A ESC Combo for 1/10 Traxxas Ford F-150 RC Car

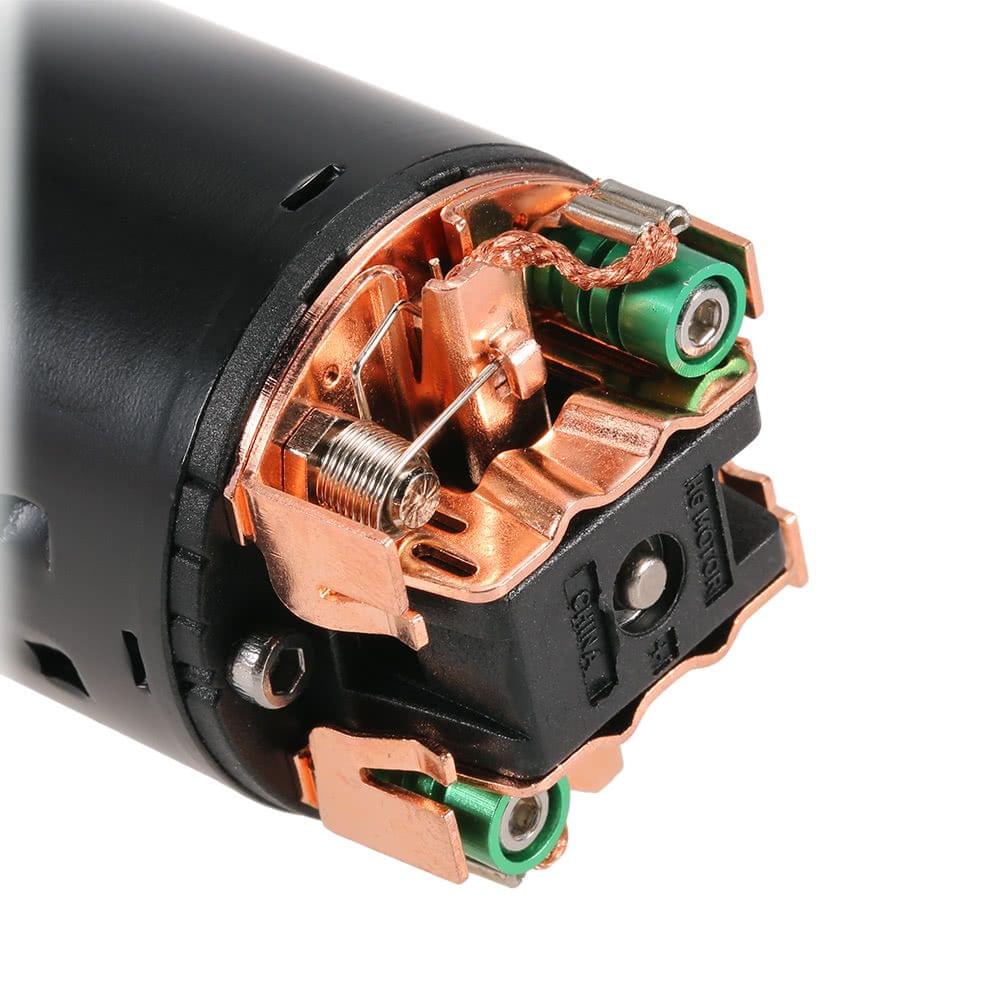

The motor features high power output, a heatsink design, and replaceable brushes. The ESC is waterproof and dustproof — perfect for all-weather use. Everything you need is included in the combo!

Features:

• High purity copper windings for maximum efficiency

• Precision-balanced rotor for smooth, reliable, high-RPM operation

• High-strength magnets for excellent torque and long runtimes

• Direct-solder wiring tabs for flexible soldering options

• Dual ball bearing design

• Waterproof and dustproof — ideal for all weather races

• Multiple protections:

  • Low voltage cut-off (battery protection)

  • Overheat protection

  • Throttle signal loss protection

• 6V/3A BEC output suitable for 1/10 RC cars

Motor Specifications:

• Type: 540 13T

• Max Voltage: 8.4V

• Idle Current: 4.5A

• RPM: 29,000

• Screw Hole: 4 × M3

• Shaft Diameter: 3.17mm

• Shaft Length: 12mm

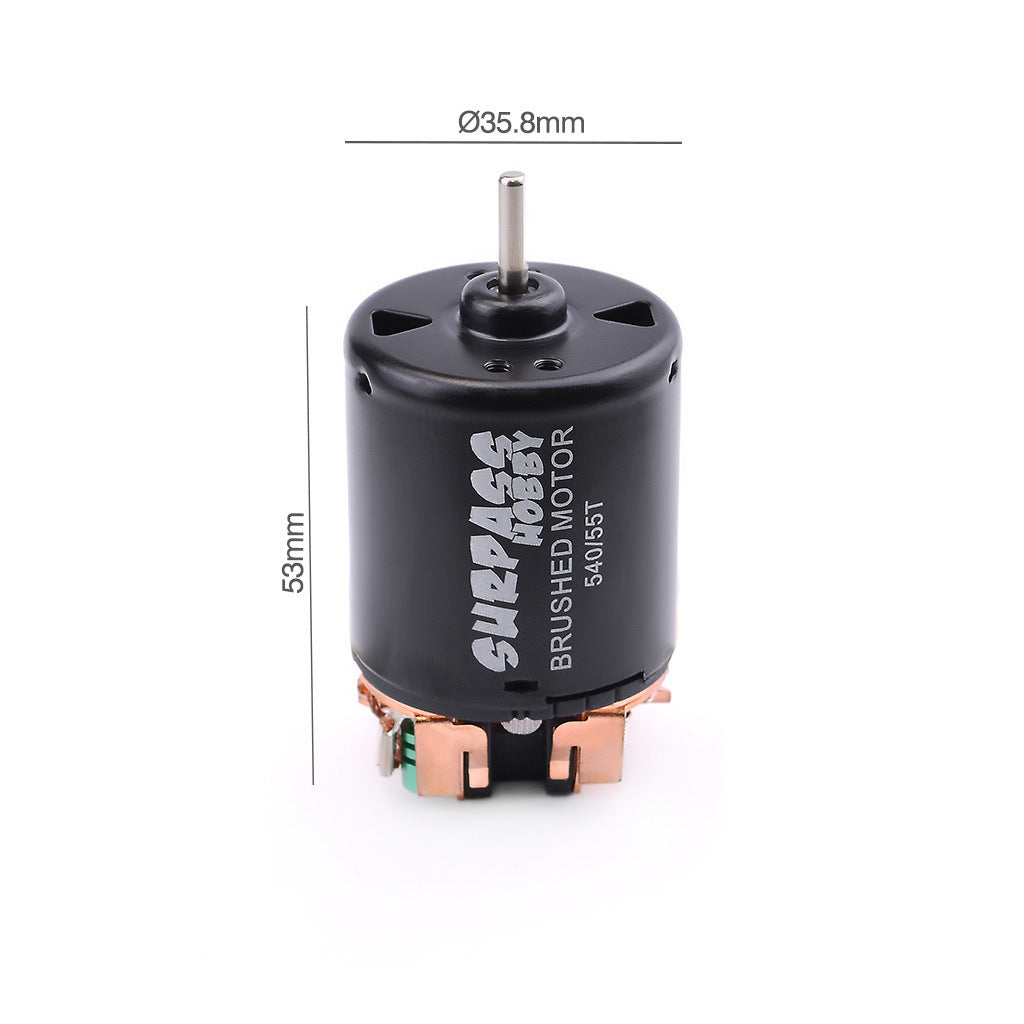

• Motor Diameter: 36mm

• Motor Length: 53mm

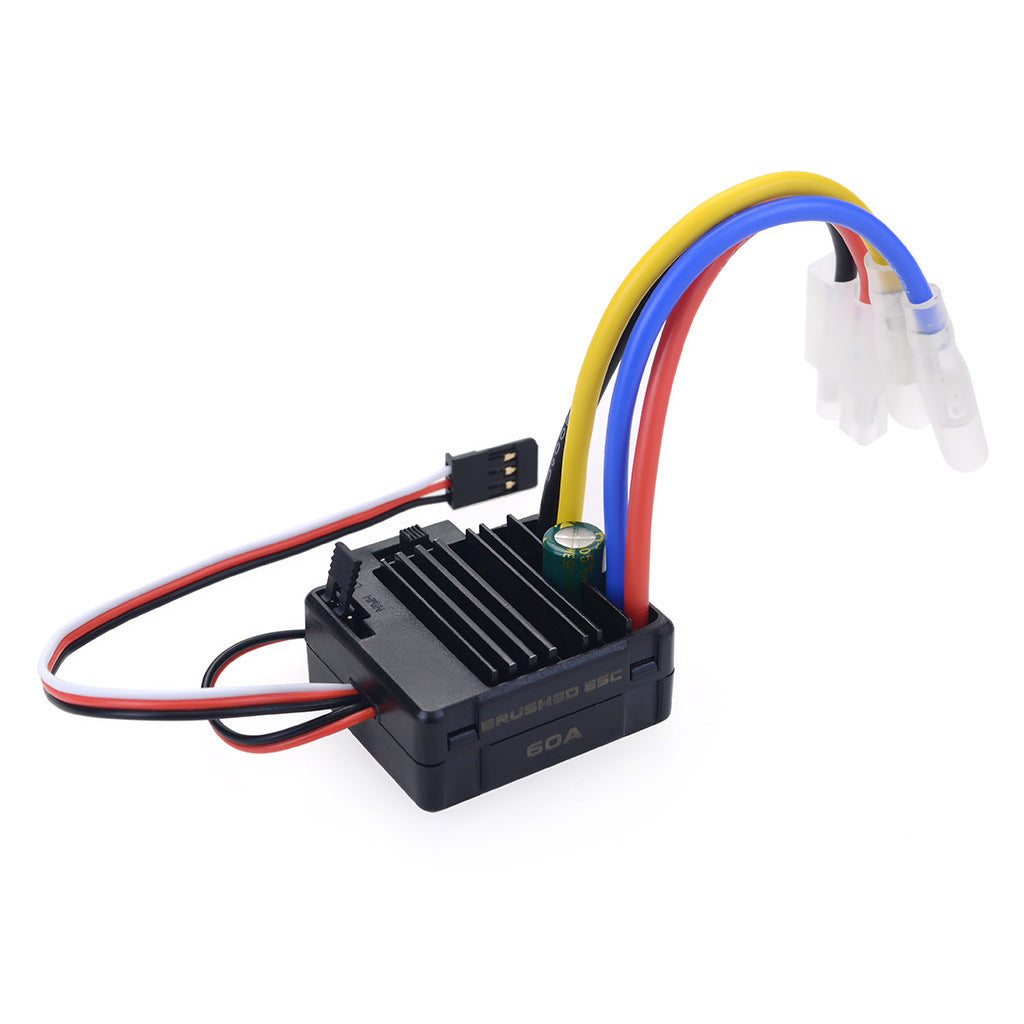

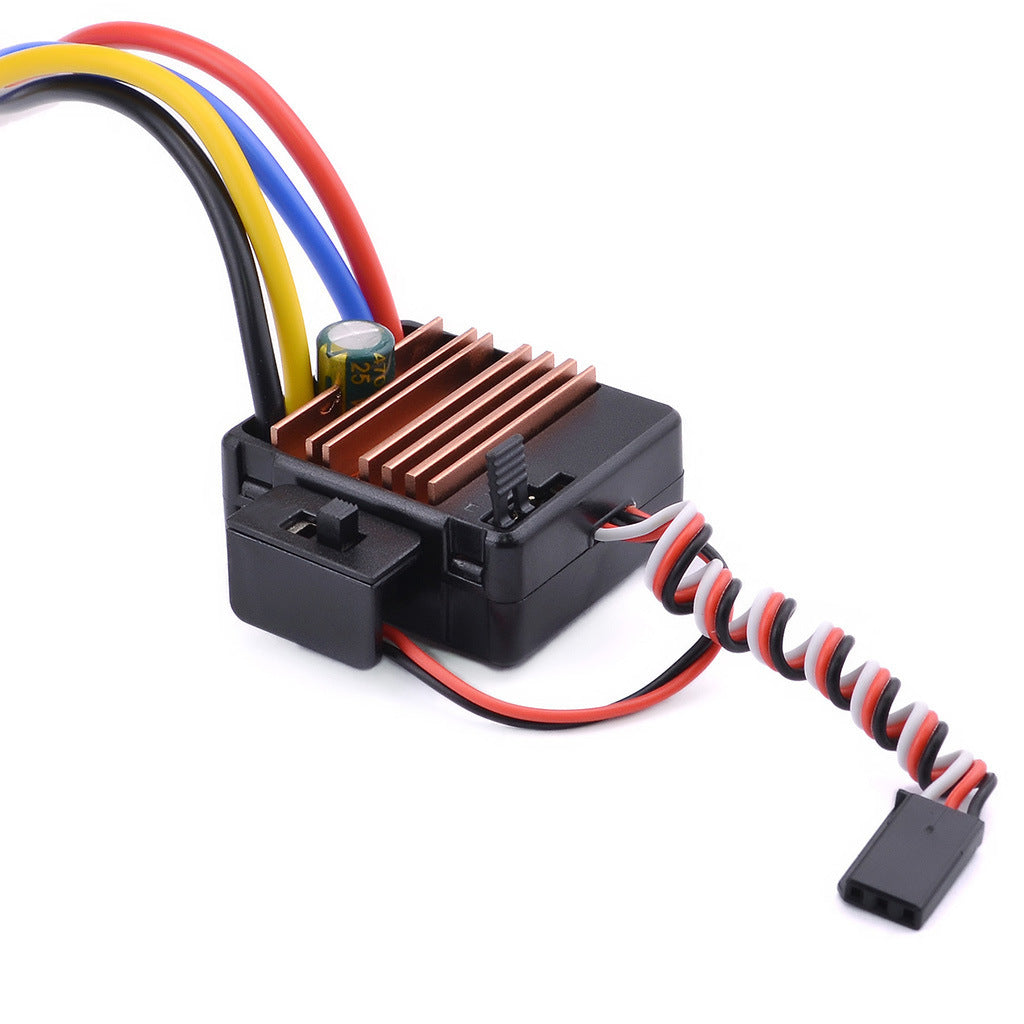

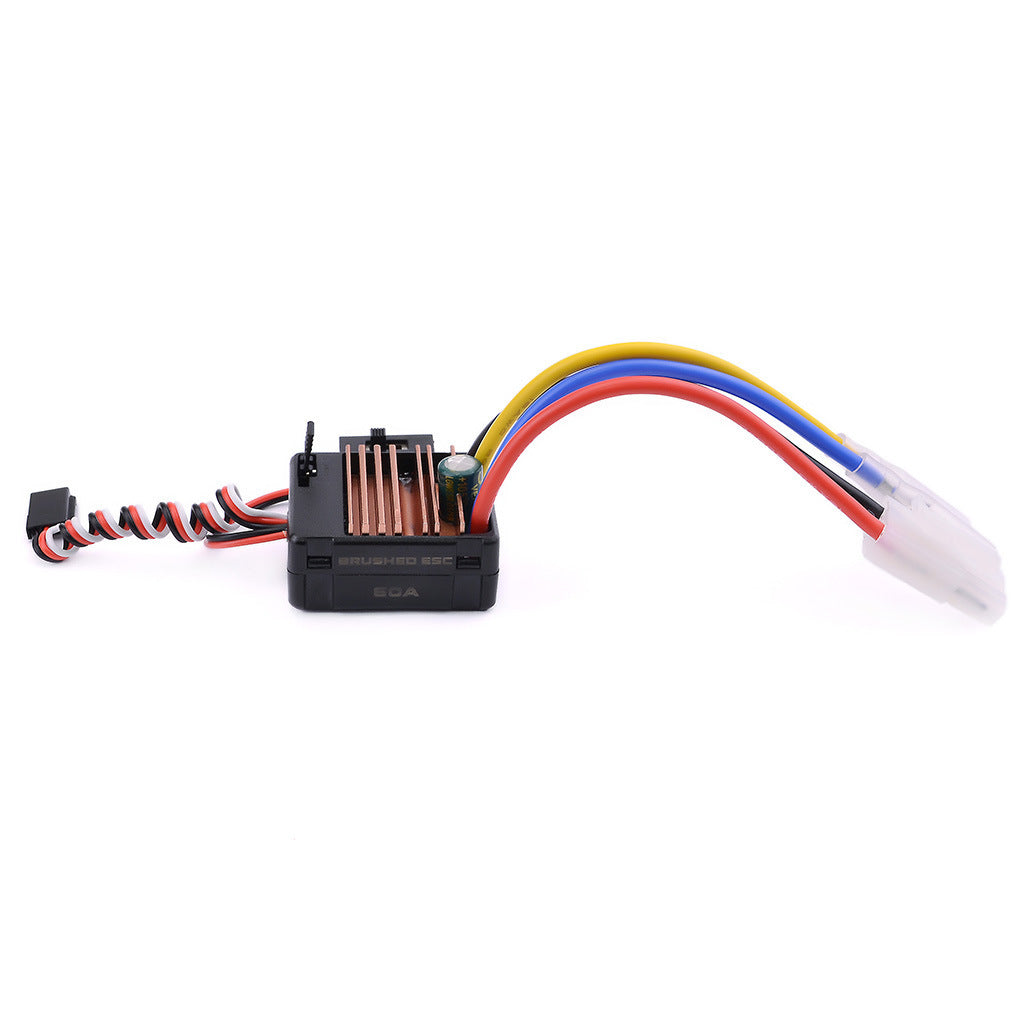

ESC Specifications:

• Continuous Current: 60A

• Burst Current: 360A

• Power Supply: 2–3S LiPo / 5–9S NiMH battery (Not Included)

• BEC Output: 6V/3A

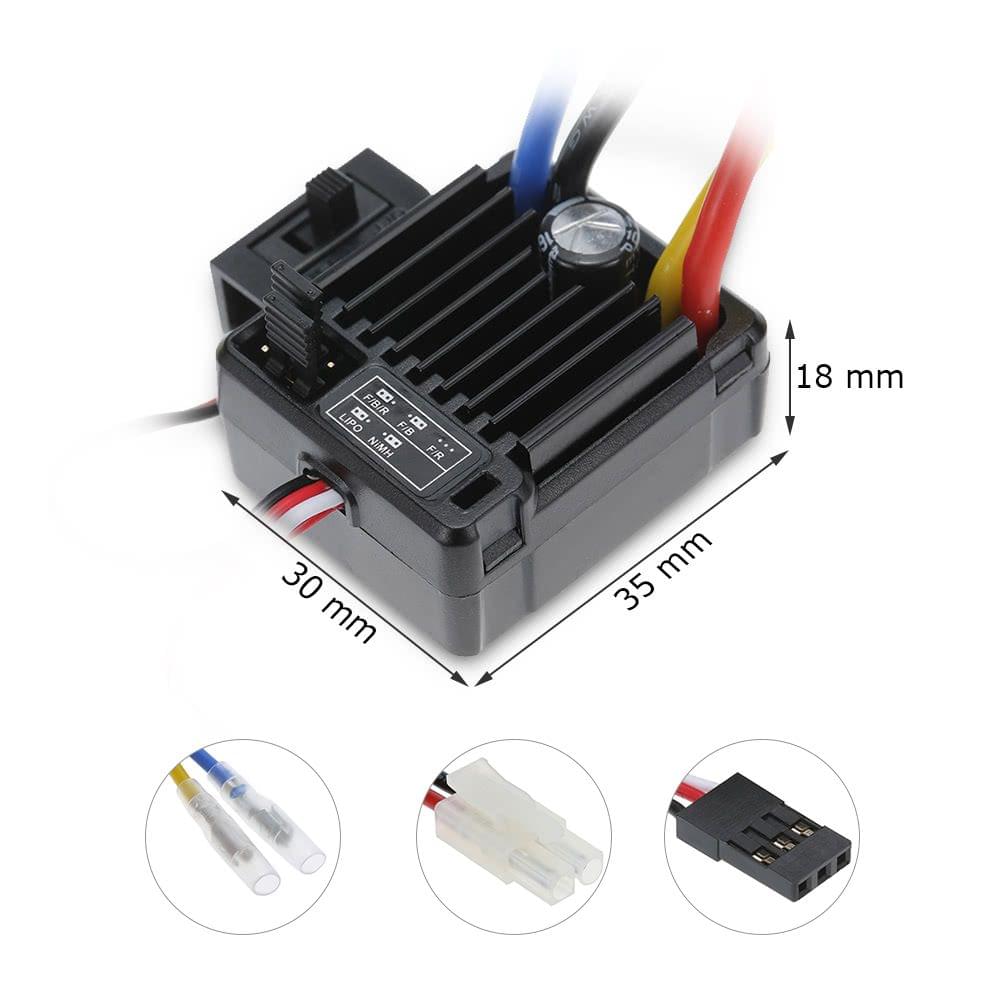

• Item Size: 35 × 30 × 18mm (without cable)

• Item Weight: 39g

Package Information:

• Package Size: 10.5 × 8 × 6cm / 4.1 × 3.2 × 2.4in

• Package Weight: 244g / 8.6oz

• Packaging: Gift Box

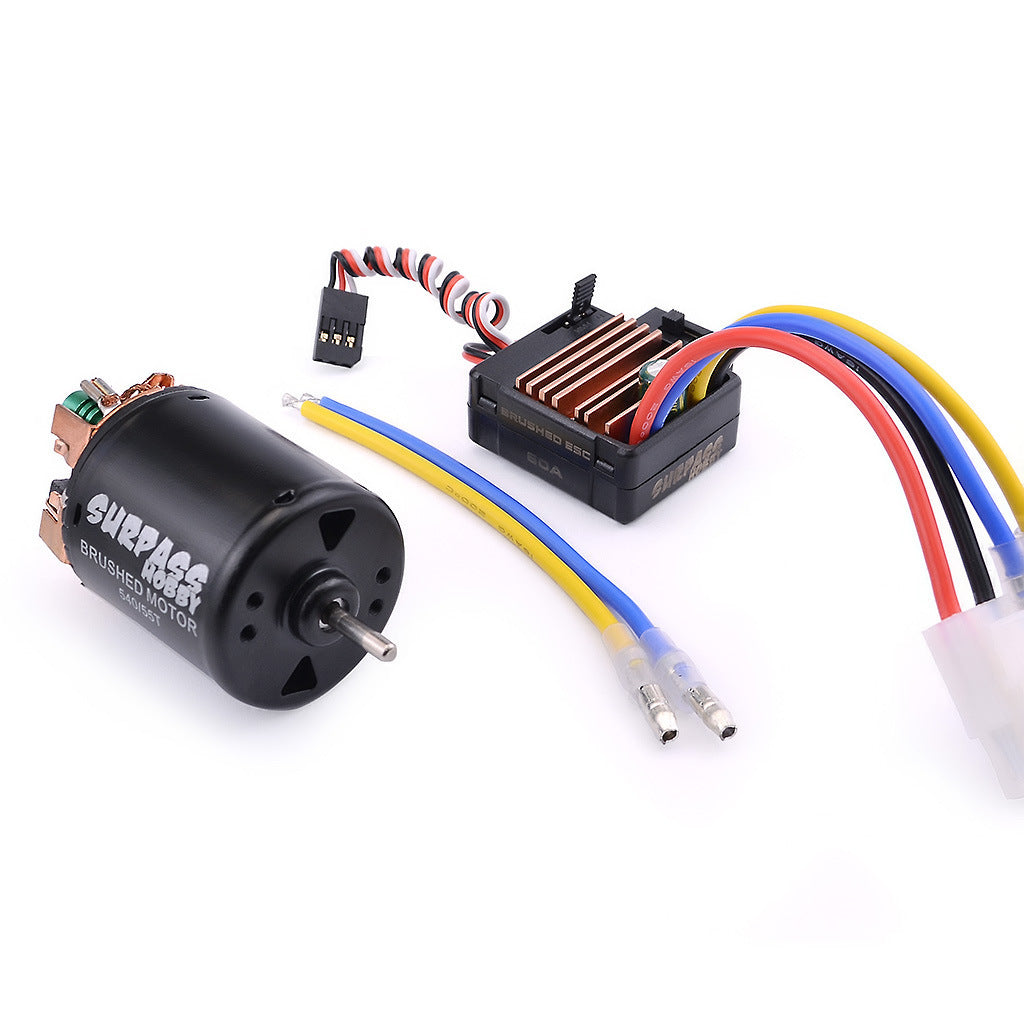

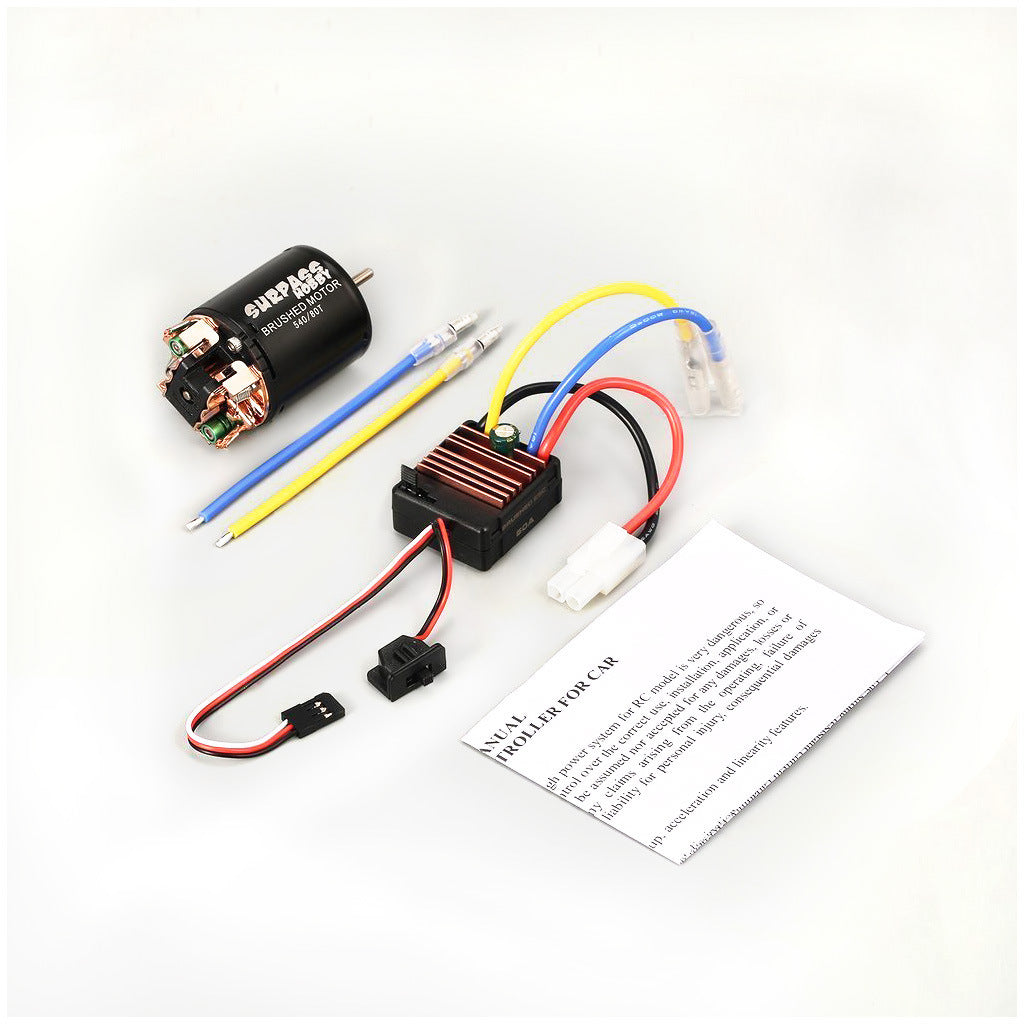

Package List:

• 1 × 540 13T Brushed Motor

• 1 × 60A Brushed ESC

• 2 × Motor Connecting Cable
