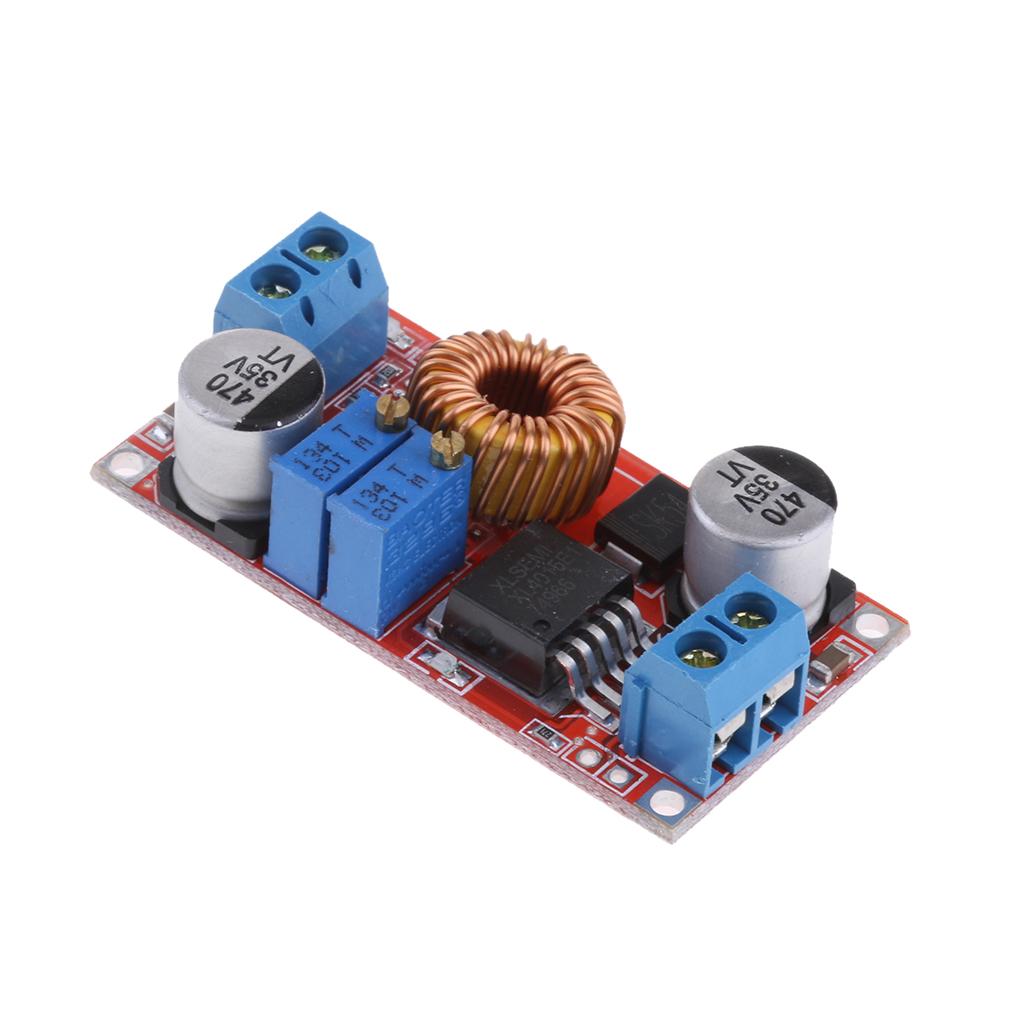

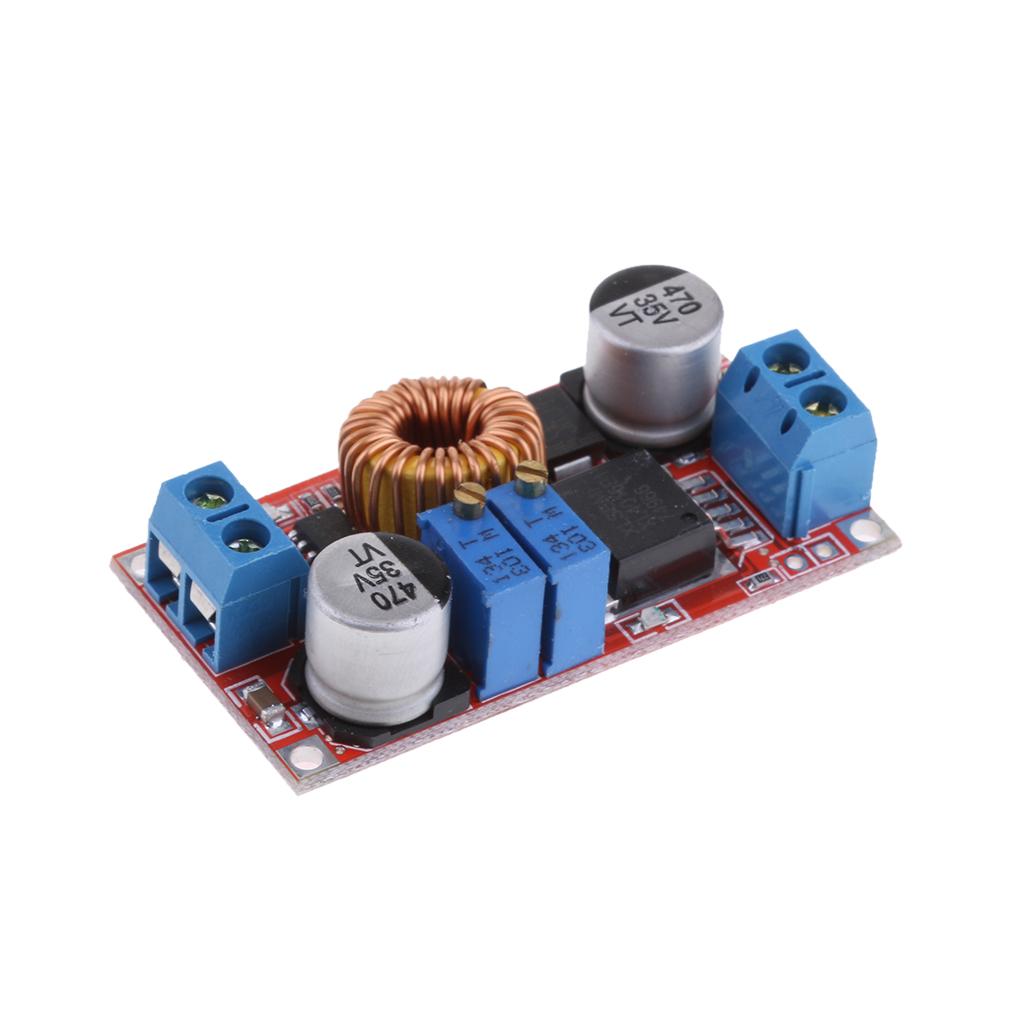

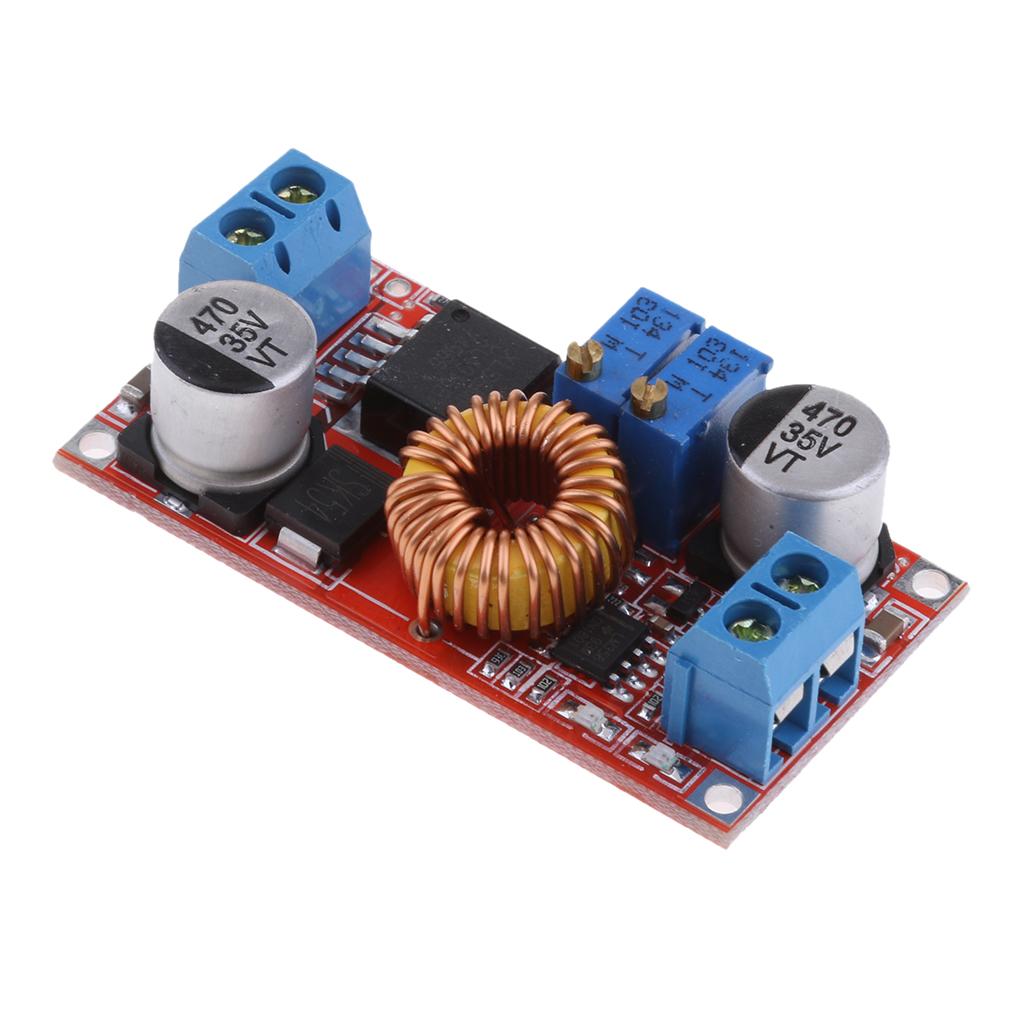

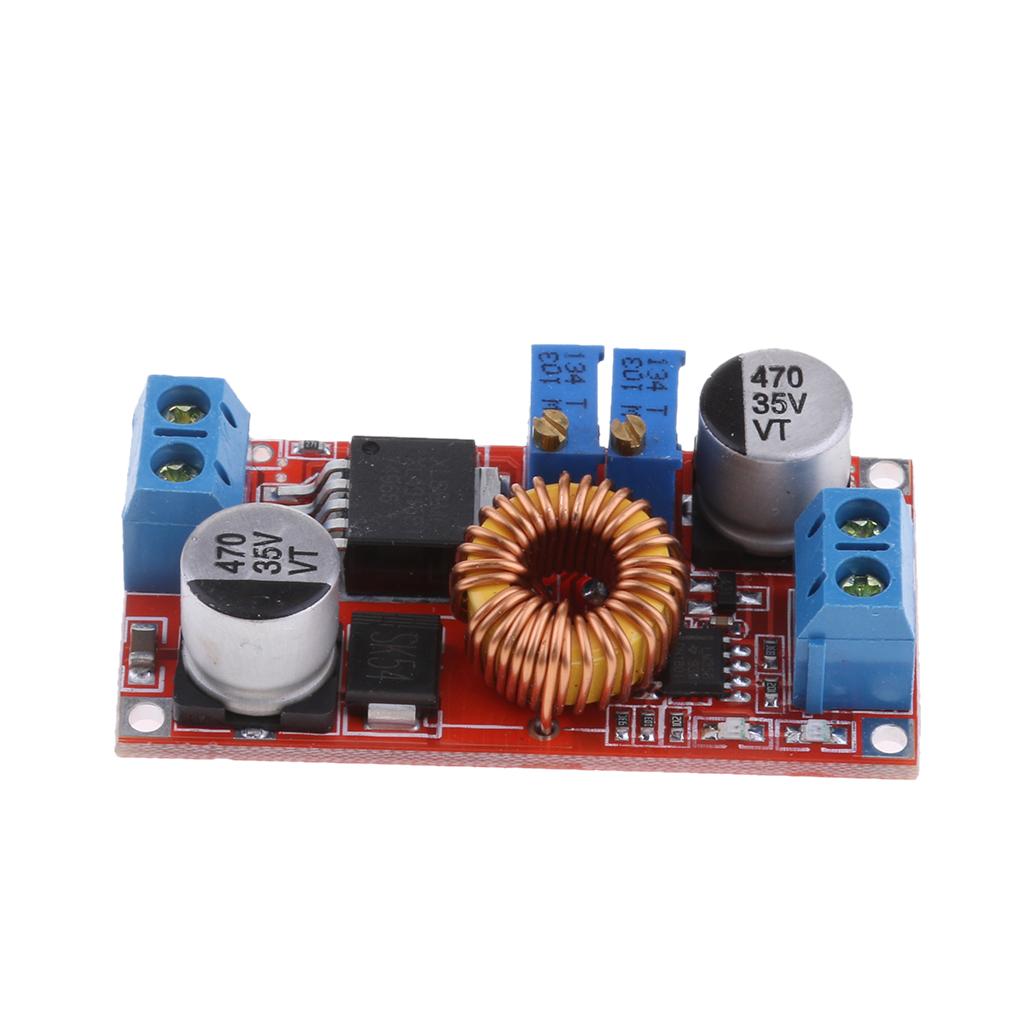

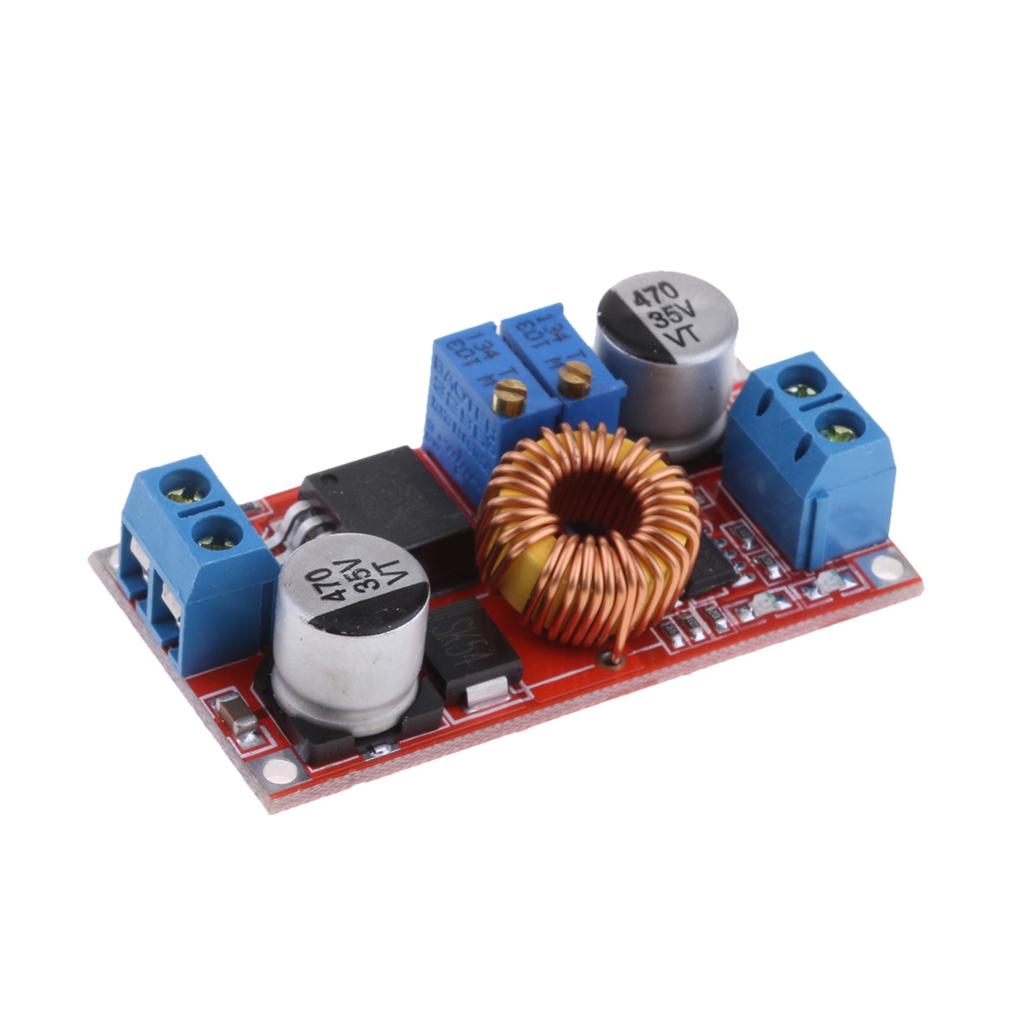

5A 5V-32V to 0.8-30V Lithium Battery Charger Module LED Driver New

Description:

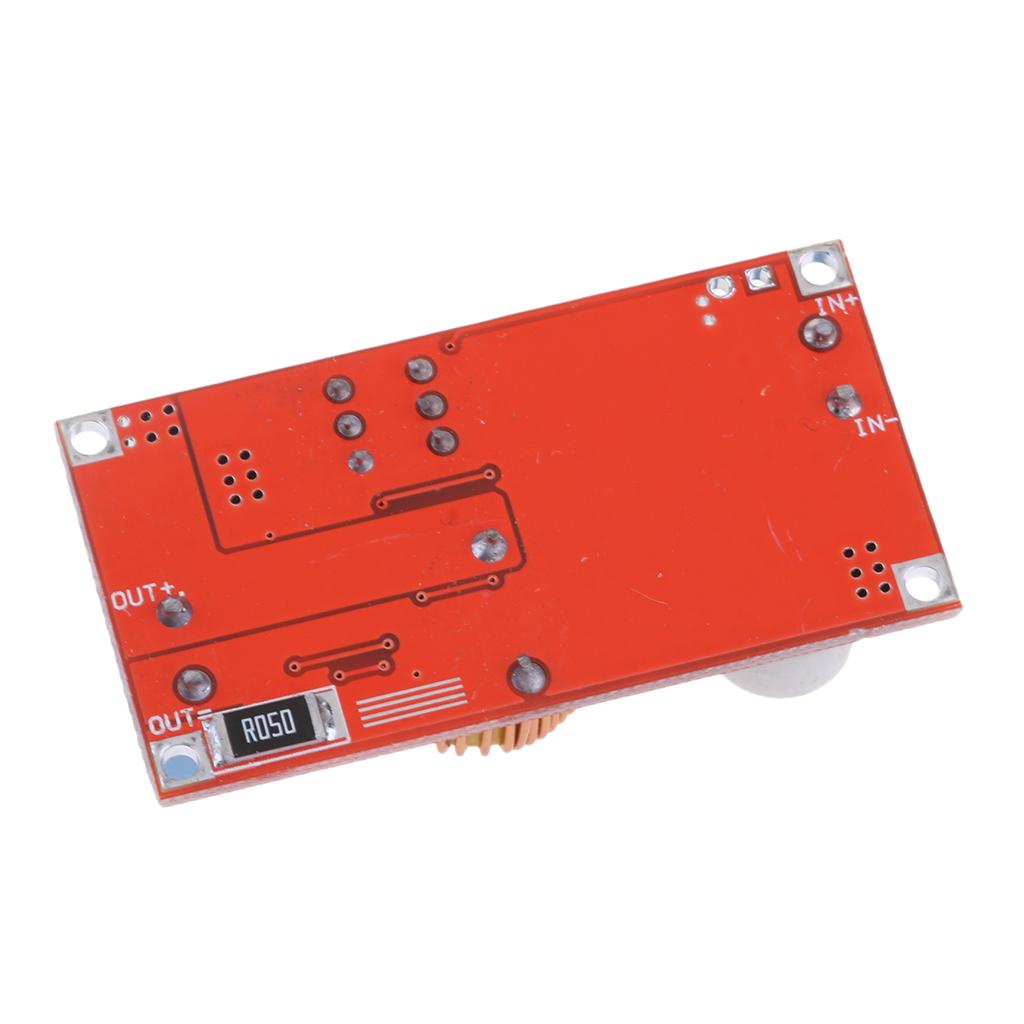

The IN- (input negative), IN+ (positive input), OUT- (output negative) and OUT+ (positive output) marked on the module must be connected correctly, otherwise the module may be damaged.
The buck power converter input voltage range is DC 5V-32V, output voltage range is DC 0.8-30V, output current is 5A(Max).
Note: 32V is the highest input voltage limit, please leave some room to use or it will be damaged.
It is a step down regulator module, the input voltage must be 2V higher than Output voltage.
100% brand new, high quality.

Specification:

Module Properties: non-isolated step down module
Rectification: non-synchronous rectification
Input voltage: 5V-32V
Output voltage: 0.8V-30V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Operating Temperature: -40℃to +85℃
Size (LxWxH): Approx. 51x26.3x14 mm / 2.00x1.03x0.55 inch

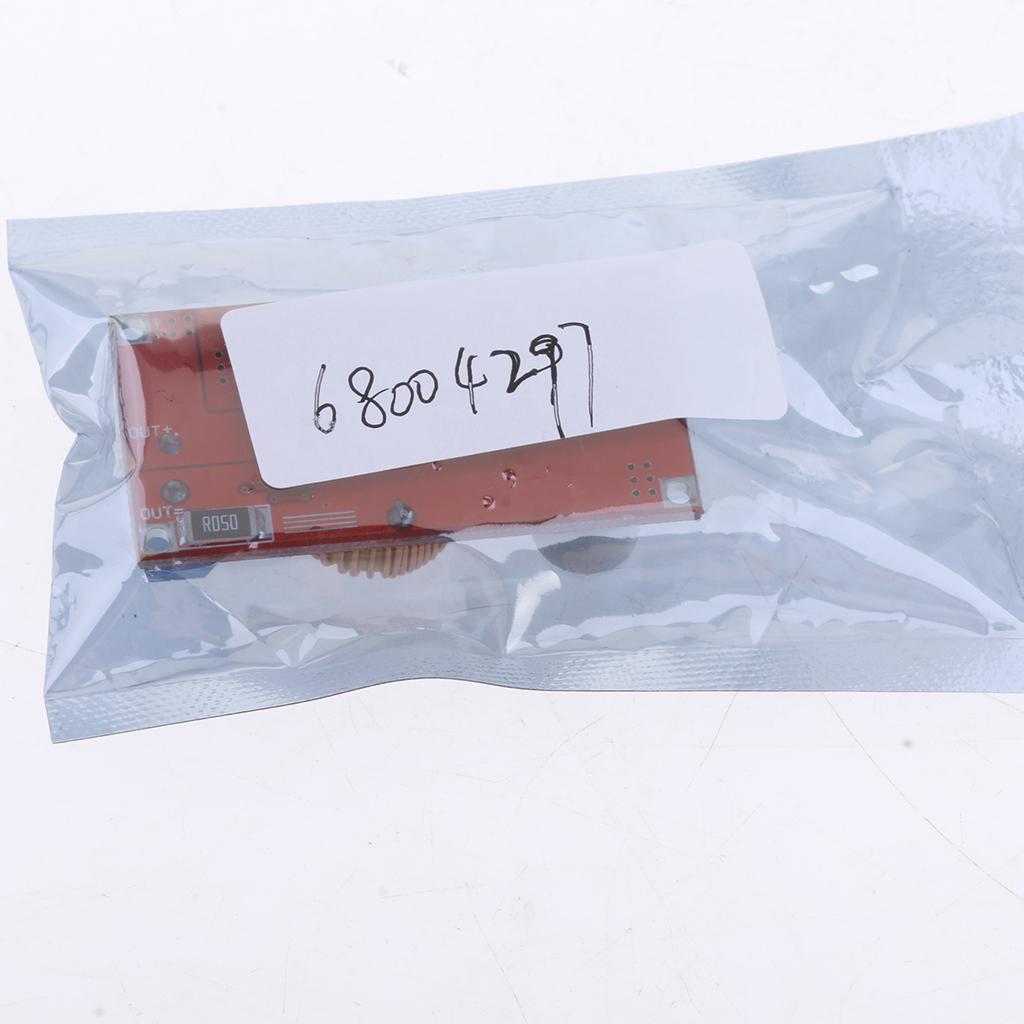

Package Includes:

1 Piece step down power module
