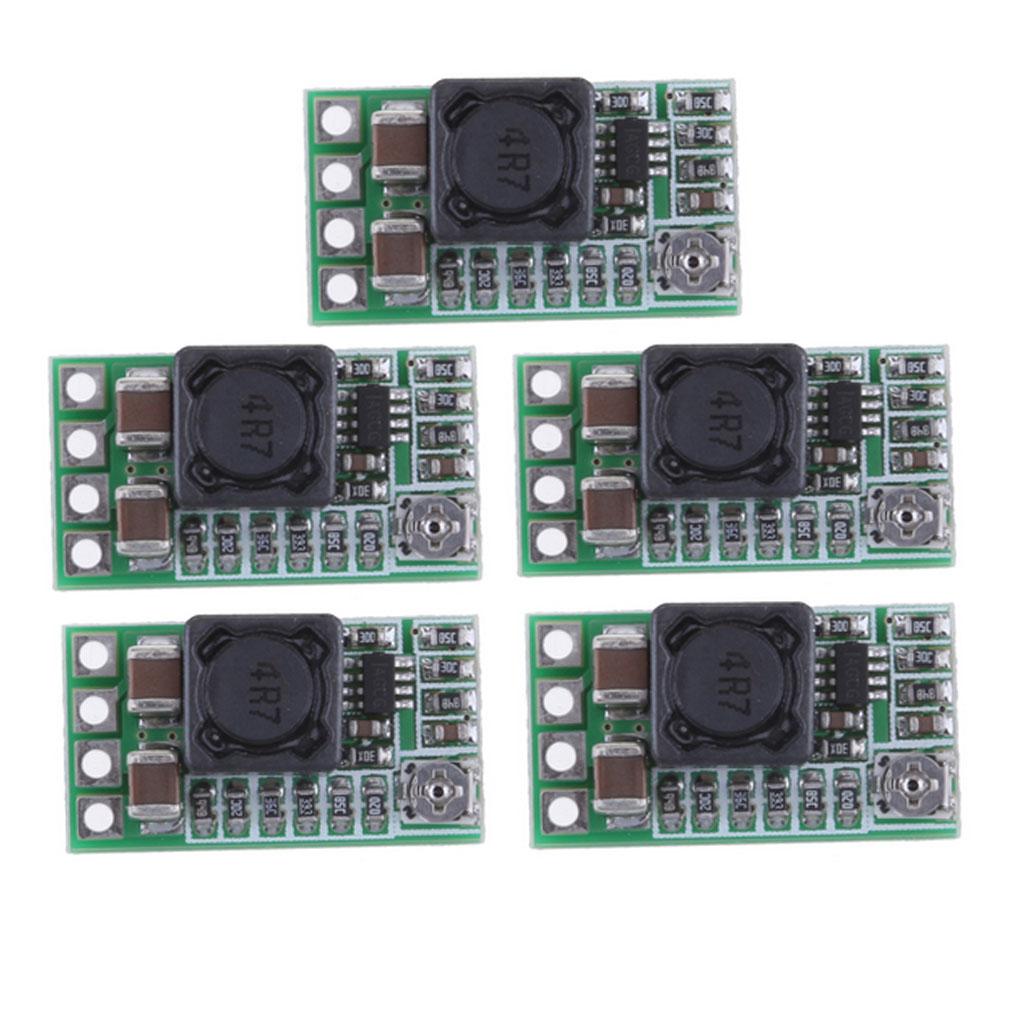

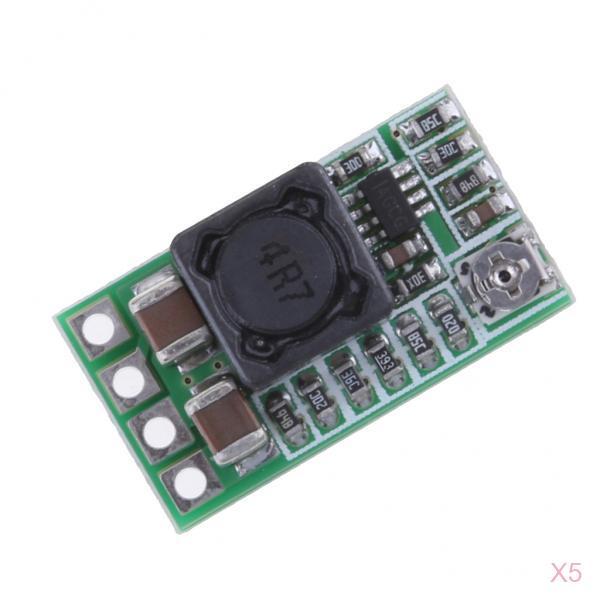

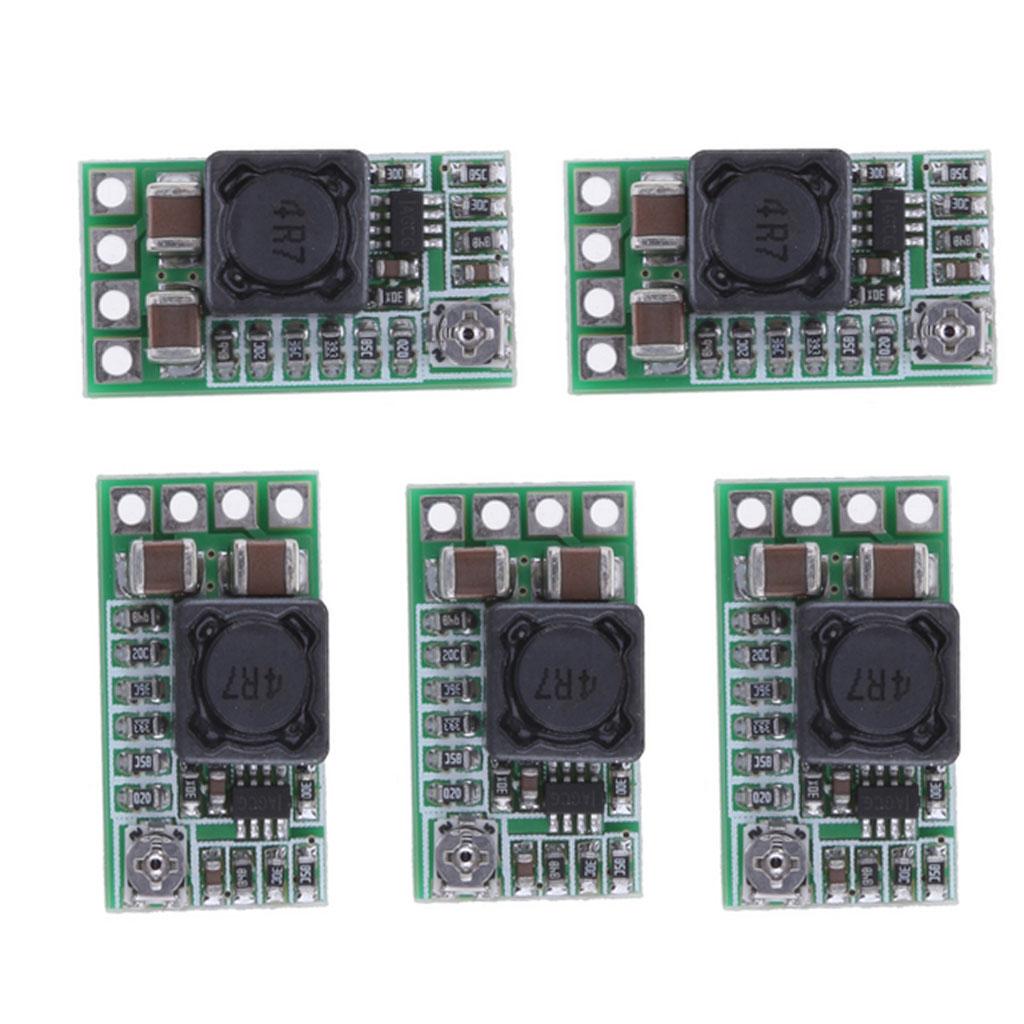

5Pcs Mini DC DC Buck Converter DC 4.5-24V to 5V 3A Power Supply

Description:

Module type: Non-Isolated Module
Input voltage: 4.5 – 24 V
Output voltage: 5V
Output current: 3A (max), actual testing input 12 V, output within 1.5A don't need heat dissipation
Output voltage: Integration adjustable and fixed output, back side can choose fixed output voltage
Adjustable range: 0.8 – 17 V, fixed voltage (1.8/2.5/3.3/5/9/12 V)
Efficiency: Up to 97.5% (6.5 to 5 V/0.7A)
Switching frequency: 500 kHz
Output ripple: 20mV (12 V to 5 V/3A), 20 M band width
Quiescent current: 0.85MA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Output overvoltage protection: No
Output short circuit protection: Yes (temporary)
Input reverse polarity protection: No
Connecting type: Soldering
Input way: Soldering
Soldering hole space: 2.54 mm
EN: Enable port; IN+: Input positive; GND: Public negative; VO+: Output positive

Specification:

Material: electronic components
Size: approx. 1.95x 1.1cm/0.77 x 0.4inch

Package Includes:

5 Pieces DC DC Buck Converter
