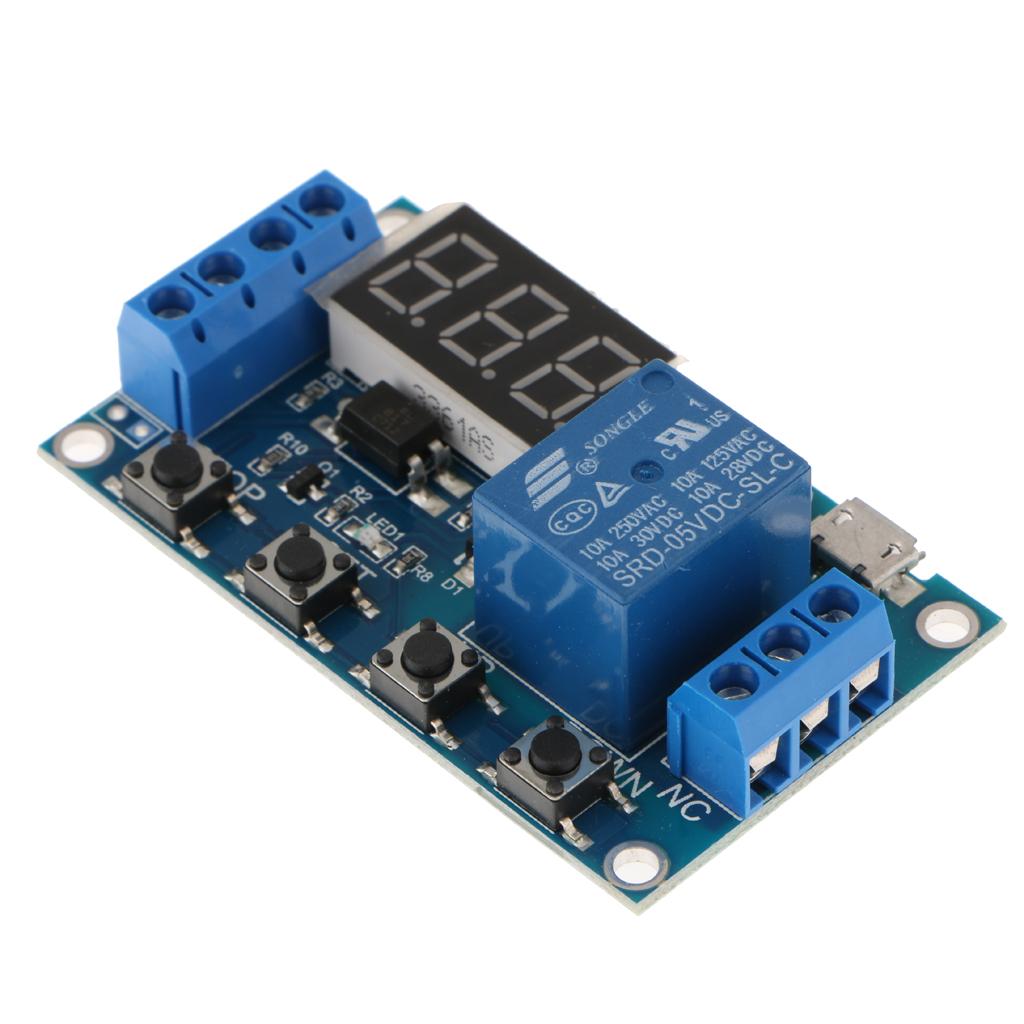

6-30V Adjustable Relay Timer Cycle Module Switch Trigger Time Delay Circuit

Description:

0.1 second (minimum) ~ 999 minutes (maximum) continuously adjustable
Wide voltage supply (6~30V) supports micro USB 5.0V power supply, very convenient to use
The interface is clear and simple, powerful, easy to understand, and almost meets all your needs.

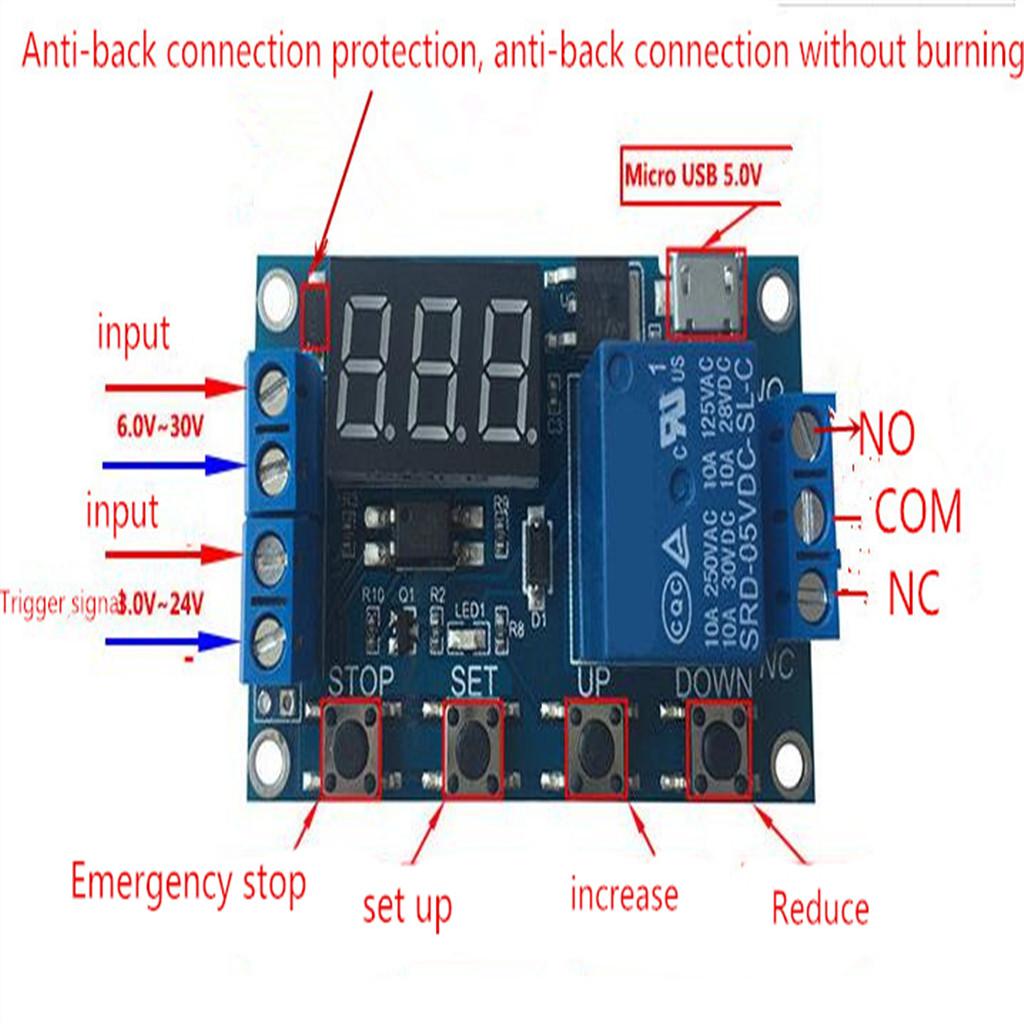

One button emergency stop function (STOP button), with reverse connection protection, reverse connection does not burn
Added sleep mode, after enabling, no operation within 5 minutes, automatically turn off the display; any button to wake up;
Different OP, CL, LOP parameters can be set. These parameters are independent of each other and saved separately.
All setting parameters are automatically powered down and saved.
With optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters for permanent memory after power off.

Specification:

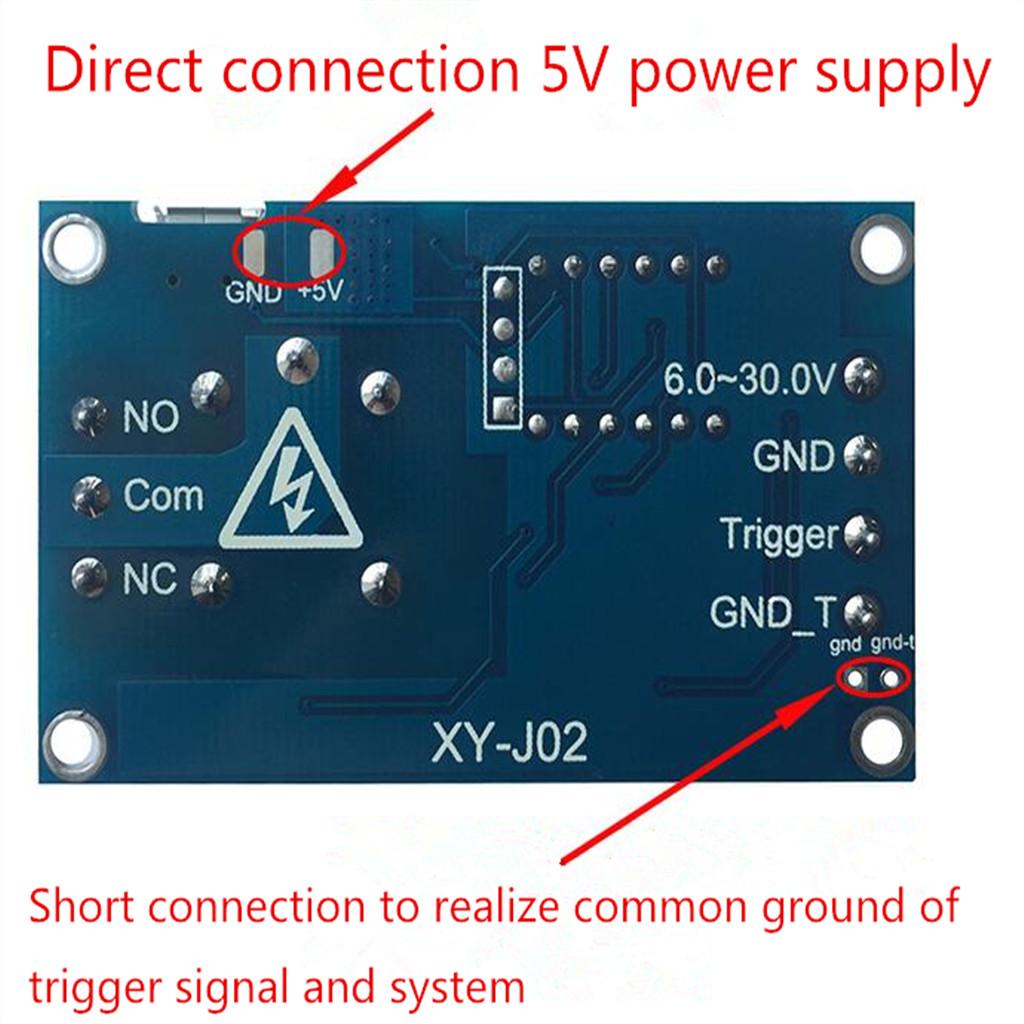

Operating voltage: 6--30V supports micro USB 5.0V power supply
Trigger signal source: High-level trigger (3.0V—24V) signal ground and system ground to improve the anti-interference ability of the system (also can be short-circuited by itself)
Output capability: It can control devices within 30v 5A or within 220v5A
Quiescent current: 20mA
Working current: 50mA
Service life: more than 100,000 times
Working temperature: -40-85 ° C
Working mode: P1 mode: After the signal is triggered, the relay turns on the OP time, then turns off; in the OP time, the following operation P1.1: the signal is triggered again invalid P1.2: the signal is triggered again to re-time P1.3: signal again Trigger reset, relay is disconnected, stop timing; P-2: give trigger signal, relay turns off CL time, relay turns OP time, after timing is completed, disconnects relay; P3.1: gives trigger signal, relay turns on After OP time, relay
Size: 6.2x3.8x1.7 cm / 2.44x1.49x0.66 inch

Package Includes:

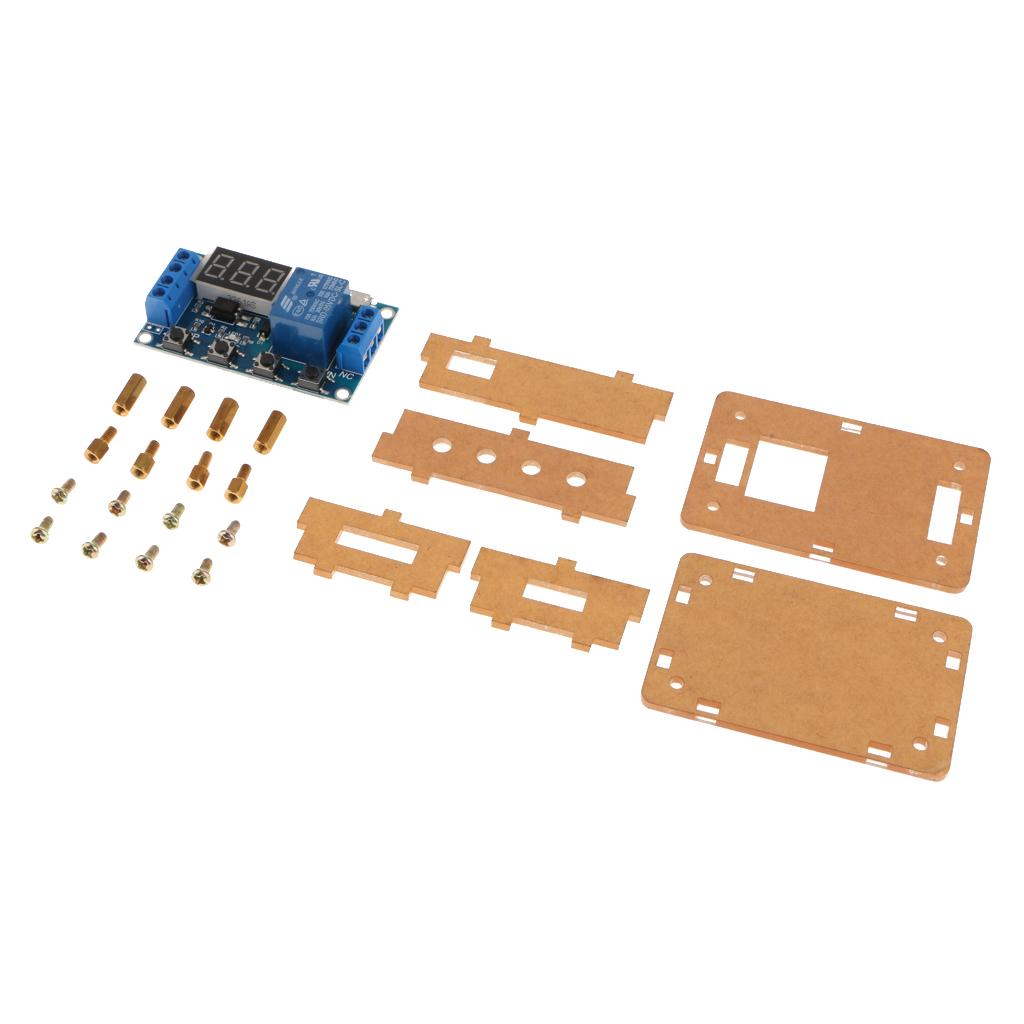

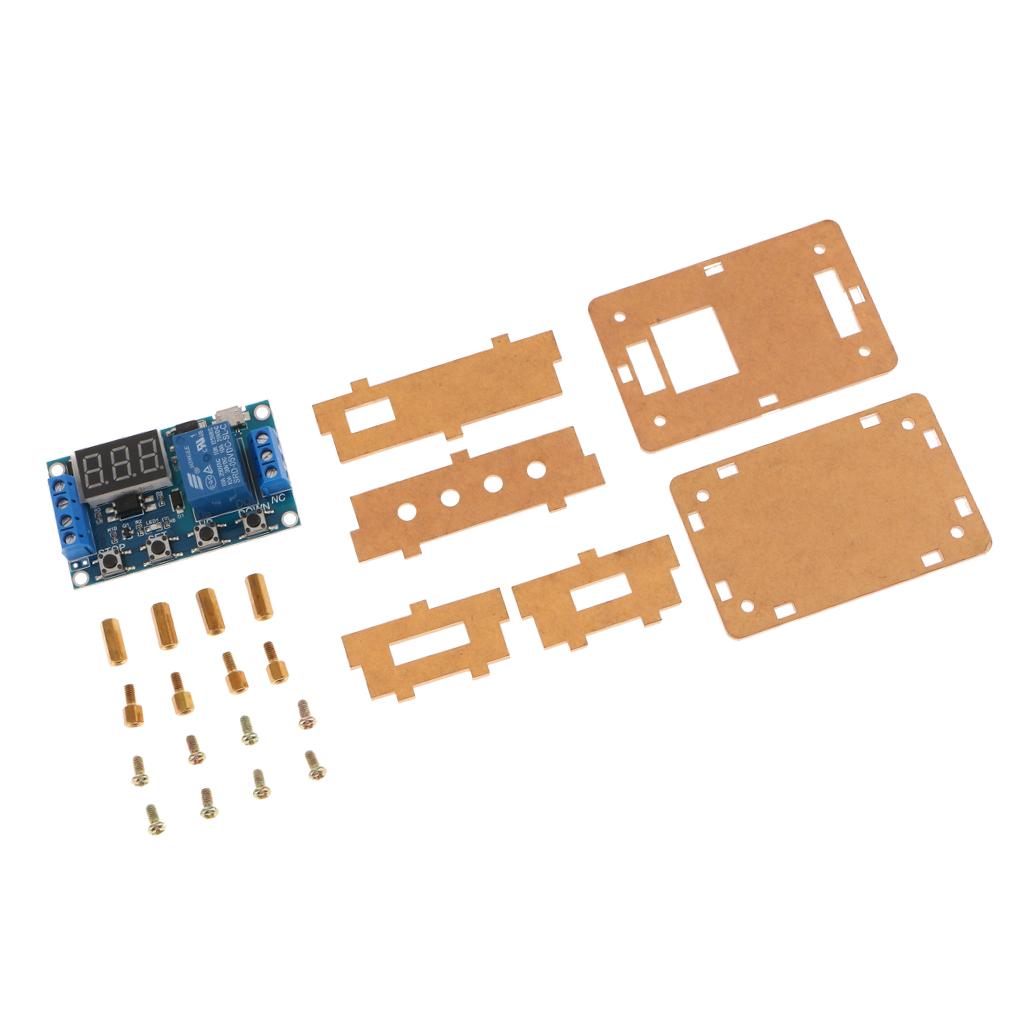

1 piece relay module
Bulk housing kit
