775 DC 12V-36V 3500-9000RPM Motor Ball Bearing Large Torque

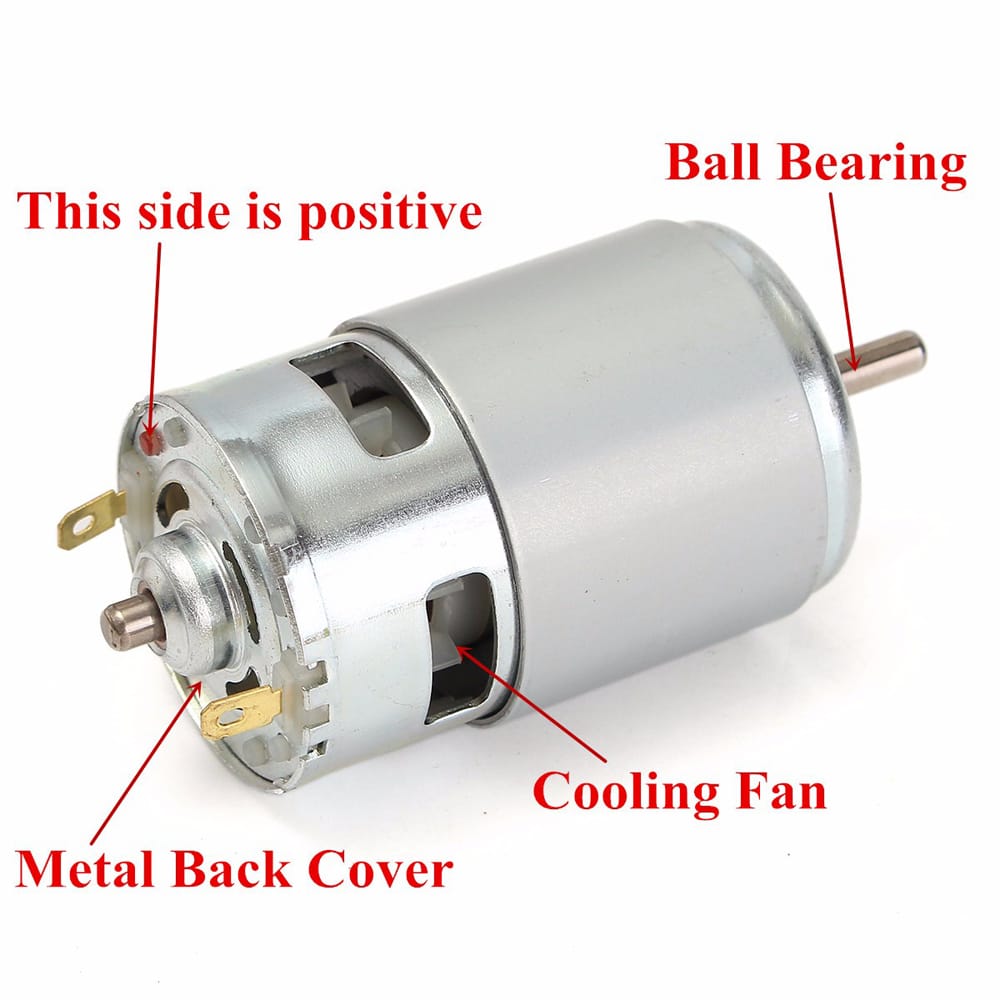

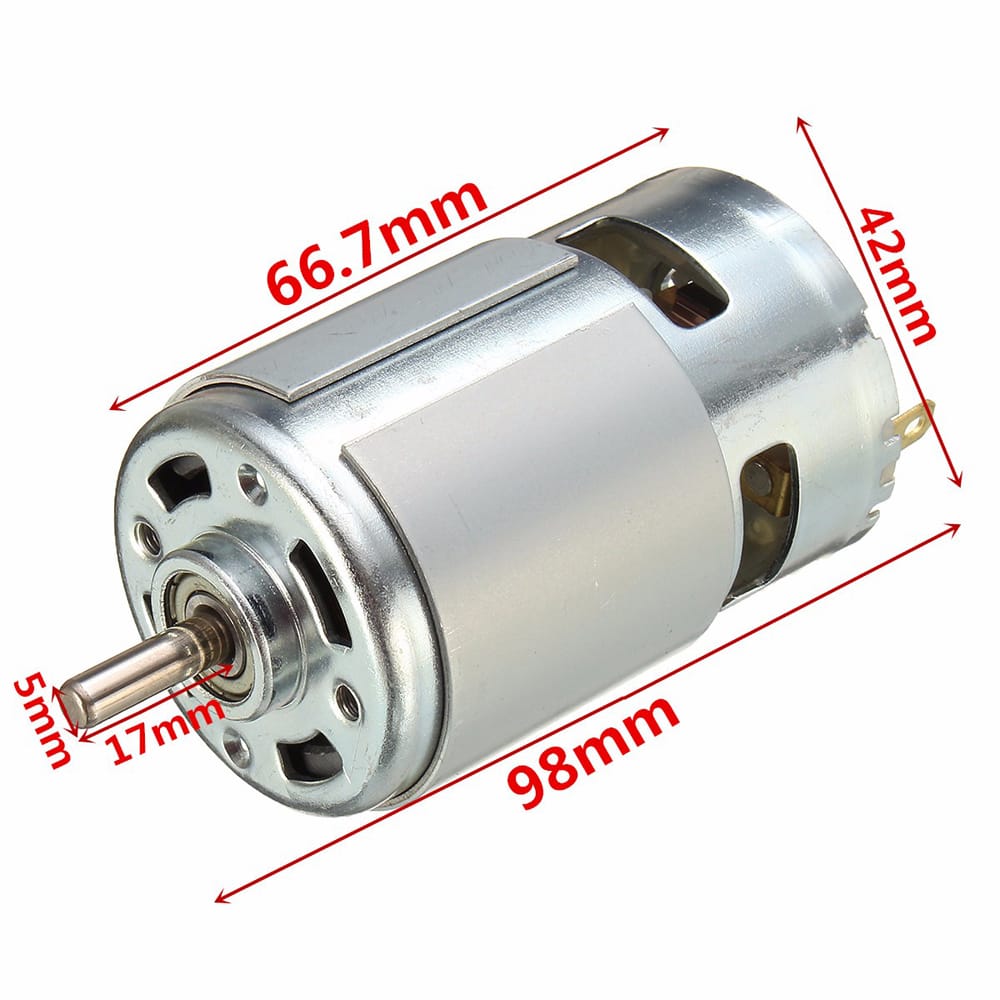

This is the front end of the motor ball bearing copper sets of back-end 5 groups winding at a voltage of 24V large torque low noise.Features:High torque and low noise.Great replacement for the rusty or damaged DC gear motor on the machine.Ball bearing with cooling fan.Used in electric tool motors power is very large you can make a small spindle motor and is also suitable for DIY aspect.Used for electronic game machine electronic toys car toys robot electronic equipment etc.Specifications:Model: 775Mounting Hole Size: M4Mounting Hole: 2Cooling Fan: YesRated Voltage: 24VCurrent Rating: 0.16ARated Speed: 7000RPMDifferent Voltage Parameters:DC 12V current 0.14A speed 3500RPMDC 18V current 0.15A speed 4500RPMDC 24V current 0.16A speed 7000RPMDC 30V current 0.17A speed 8100RPMDC 36V current 0.20A speed 9000RPMShaft Diameter: 5mm / 0.2inShaft Length: 17mm / 0.67inBody Length: 66.7mm / 2.63inFront Steps Diameter: 17.4mm / 0.69inFormer High Level: 4.7mm / 0.19inBody Diameter: 42mm / 1.65inMotor Overall Length: 98mm / 3.86inDiagonal Installation Pitch: 28.8mm / 1.13inPackage Weight: 351g / 12.38ouncesPackage Size: 100 * 50 * 50mm / 3.94 * 1.97 * 1.97inPackage List:1 * 775 Motor
