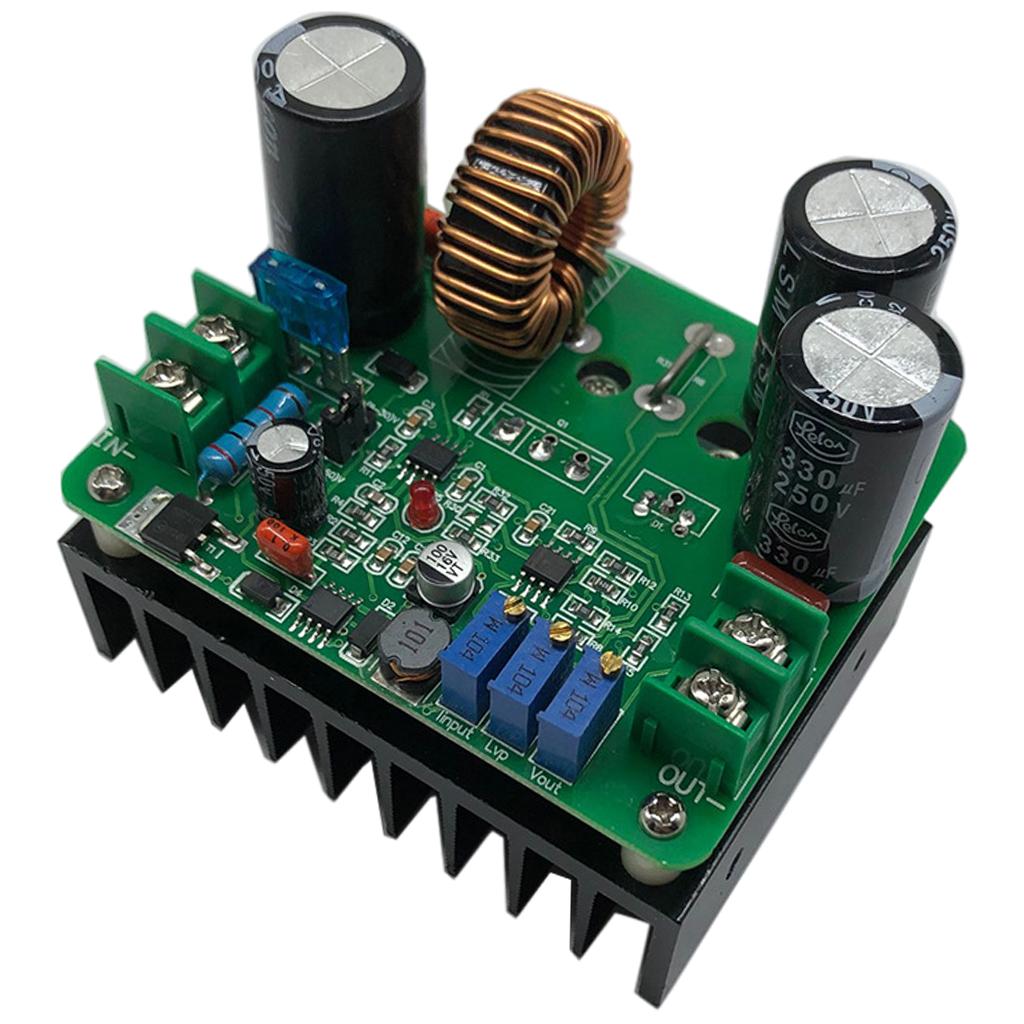

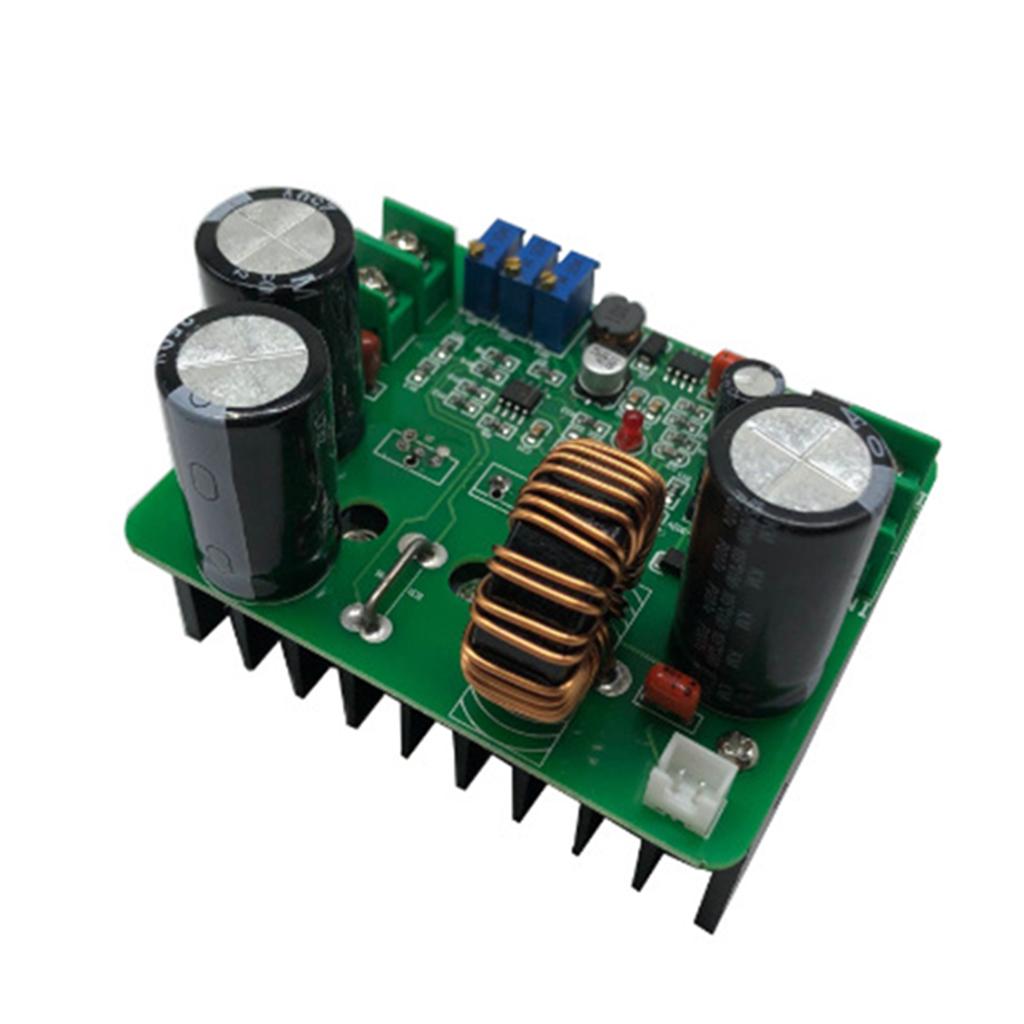

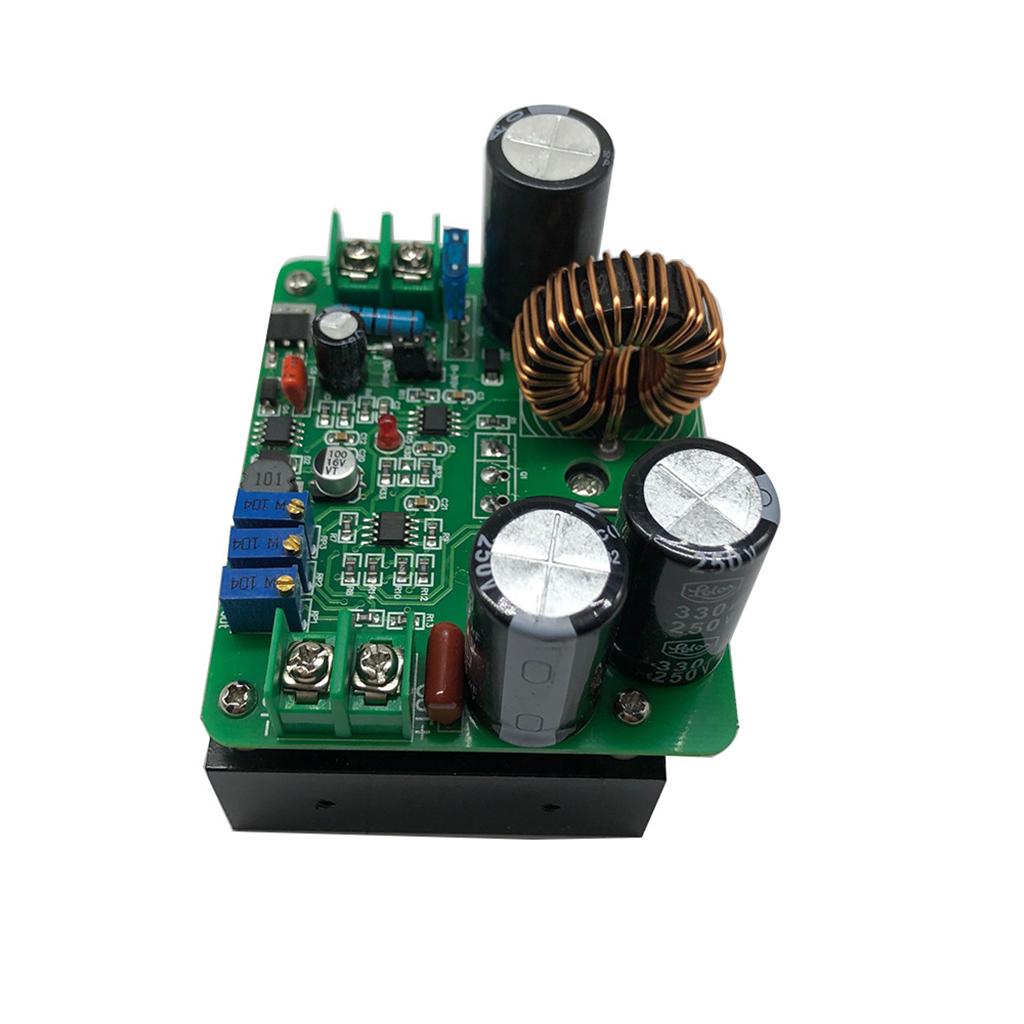

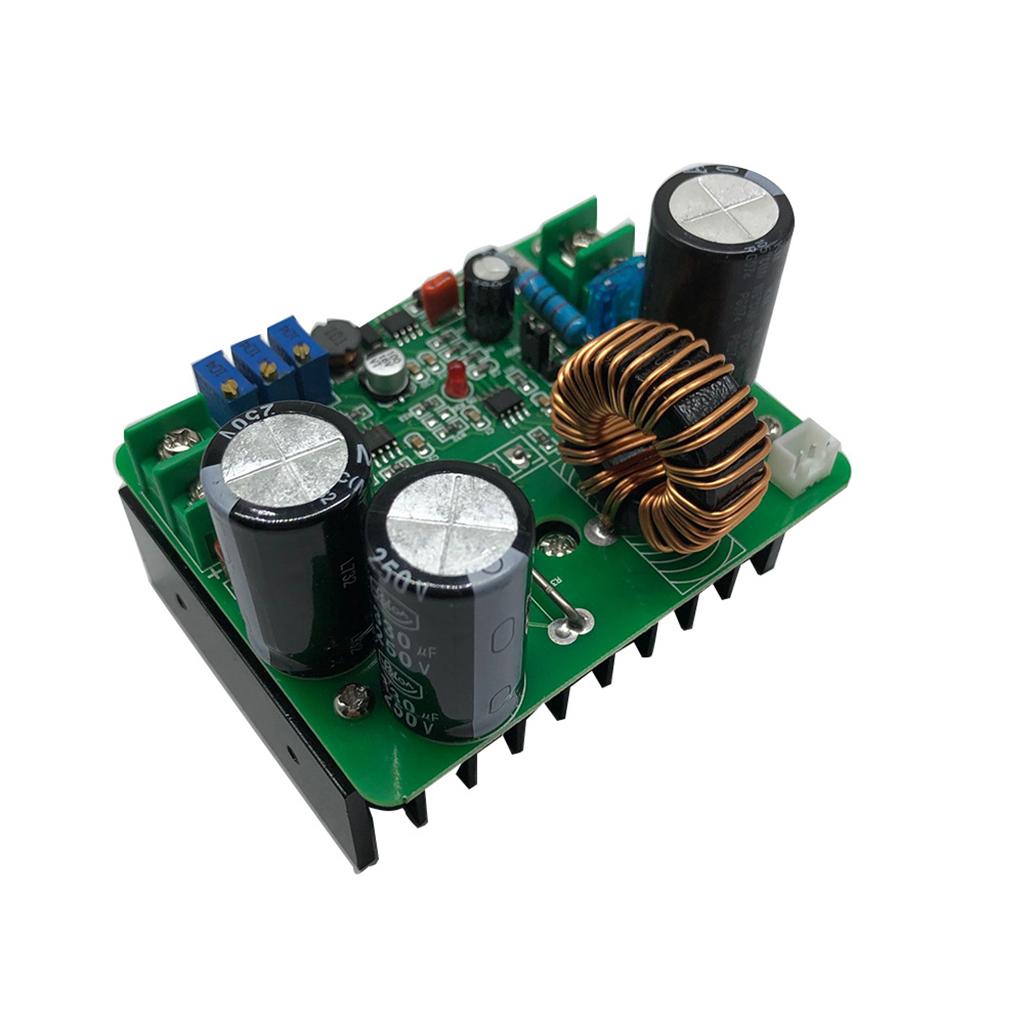

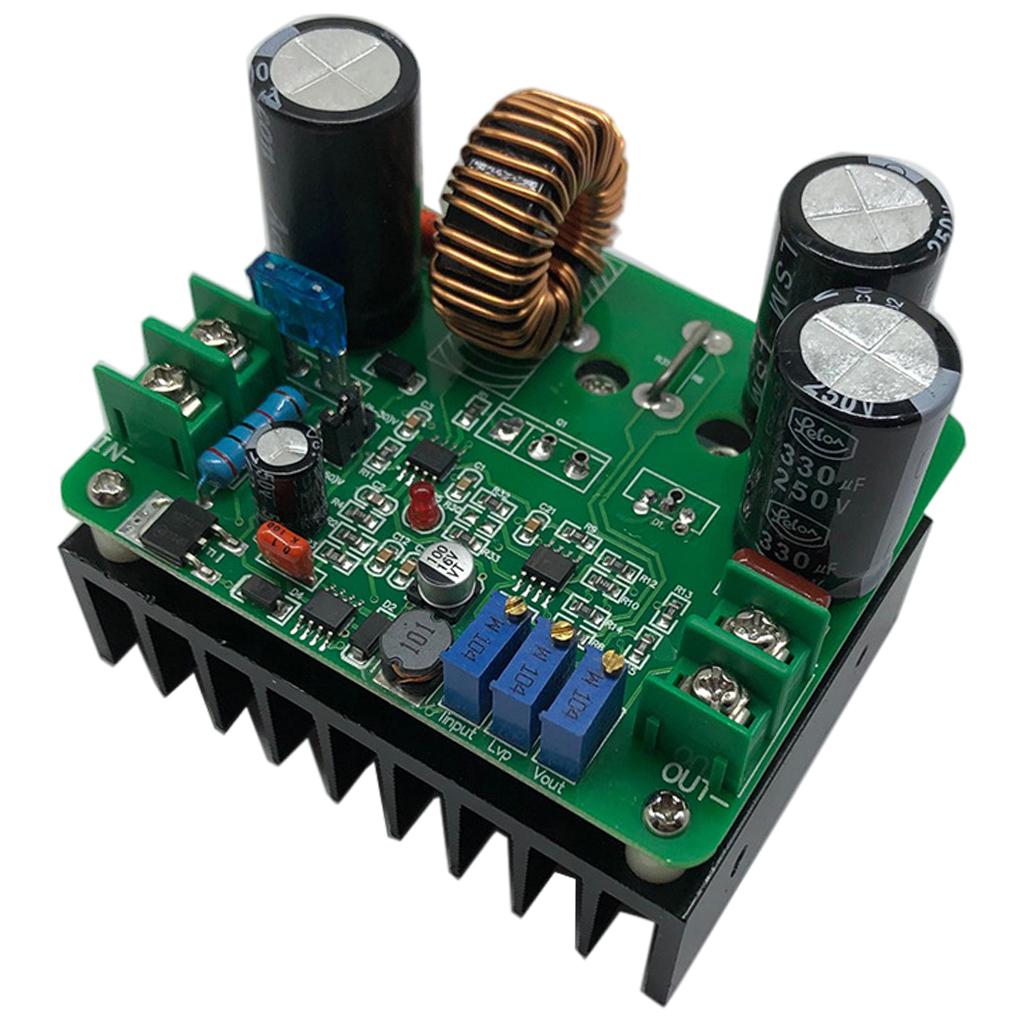

900W Dc-Dc Boost Converter 8V-60V to 12V-130 V Step-Up Transformer Durable

Description:

Wide input and output voltage range. Input voltage 8V~30V; 30~60V, output voltage 12V~130V;
Very low input and output pressure difference
Using 1mm double wire wound inductors, high-quality filter capacitors, boost output power supply quality is better
With voltage adjustment and current adjustment potentiometers, the output voltage and current can be adjusted at any time.
With input under-voltage protection function, it is especially suitable for batteries and solar panels to prevent battery over-discharge and solar panel voltage from being too low to start the module

Specification:

Input voltage: 8V-30V: 30V-60V
Input current: 15A (MAX)
Output voltage: 12V~130V continuously adjustable
Output current: 15A (MAX)
Output power: 900W (MAX)
Output ripple:<50mV
Conversion efficiency: about 85%
Voltage and current adjustment method: potentiometer
Short circuit protection: 15A fuse
Cooling method: radiator, natural air cooling
Wiring mode: 8500 terminal block
Product size (L×W×H): 85.0×69.5×7mm

Package Includes:

1 Piece BT900W Power Module

Note:

1. Please allow slightly error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Wish you a wonderful on-line shopping!
