AC 100A Voltage Current Energy Hz Power factor RS485 Modbus Module

Description:

AC single phase with RS485 serial port multi-function box; can measure voltage, current, power, power, frequency, power factor, maximum 100A!
It can display six measurement parameters on the computer when communicate through the software; it can also communicate with the buyer's own micro controller (the buyer should program by yourself)!
The high accuracy, better compatibility will make it use widely.
PZEM-016: Measuring Range 100A (external transformer) With Split CT + USB to 485 module.
Active power Measuring range: 0～2.3kW;Power factor Measuring range: 0.00～1.00;Frequency Measuring range: 45Hz～65Hz.Active energy Measuring range: 0～9999.99kWh.

Specification:

Voltage:
Measuring range:80～260V
Resolution: 0.1V
Measurement accuracy: 0.5%

Current
Measuring range: 0～100A
Starting measure current: 0.02A
Resolution: 0.001A
Measurement accuracy: 0.5%

Active power
Measuring range: 0～23kW
Starting measure power: 0.4W
Resolution: 0.1W
Display format:
When the data is ＜1000W, it display one decimal, such as: 999.9W
When the data is ≥1000W, it display only integer, such as: 1000W
Measurement accuracy: 0.5%

Power factor
Measuring range: 0.00～1.00
Resolution: 0.01
Measurement accuracy: 1%

Frequency
Measuring range: 45Hz～65Hz
Resolution: 0.1Hz
Measurement accuracy: 0.5%

Active energy
Measuring range: 0～9999.99kWh
Resolution: 1Wh
Measurement accuracy: 0.5%
Display format:
When the data is ＜10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9999Wh
When the data is ≥10kWh, the display unit is kWh, such as: 9999.99kWh
Reset energy: use software to reset.

Over power alarm: Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm

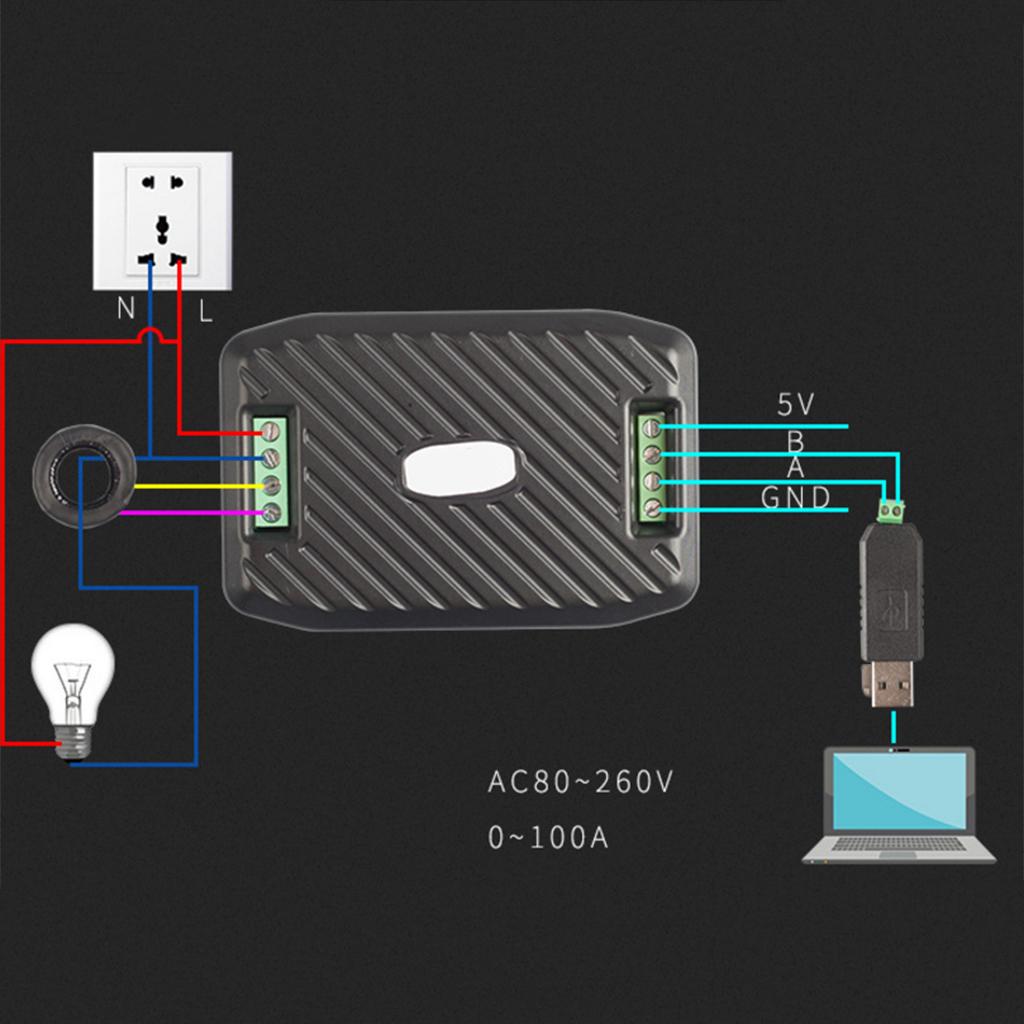

Communication interface: RS485 interface

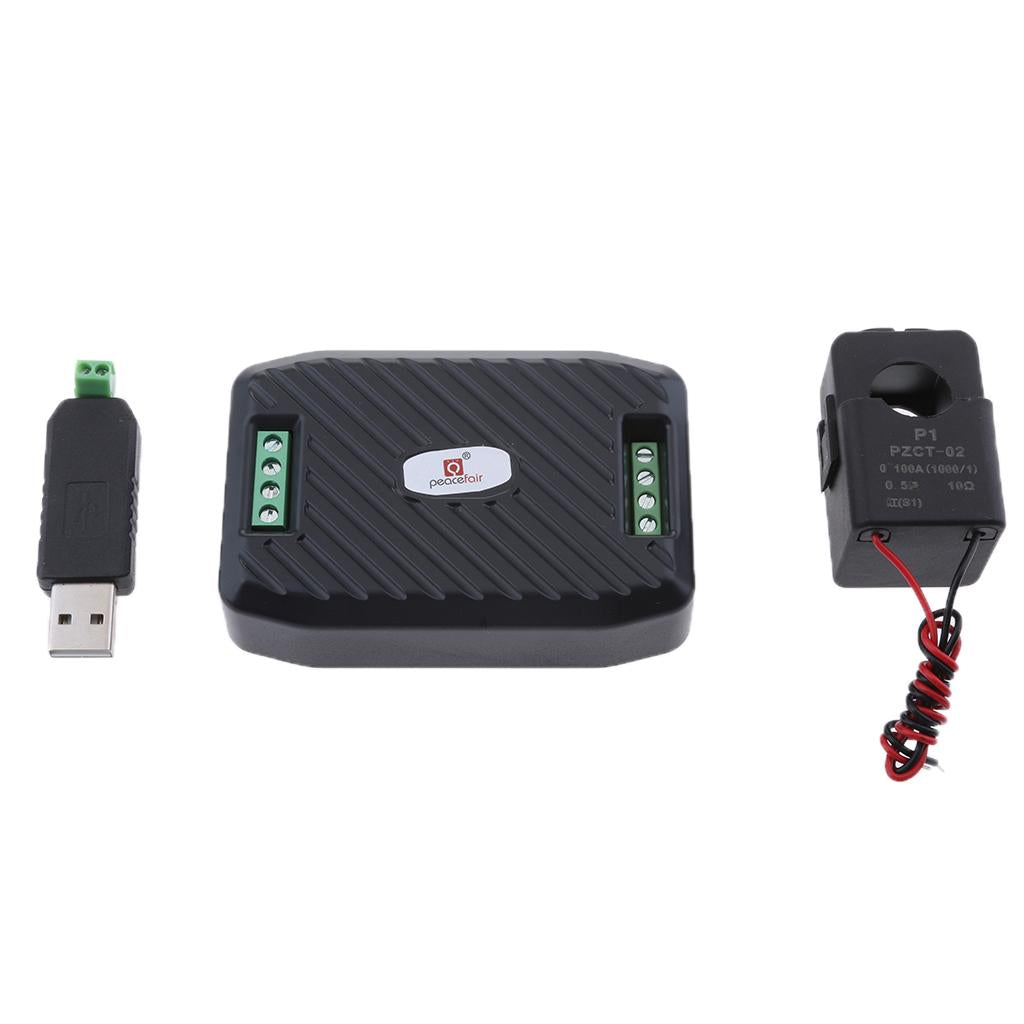

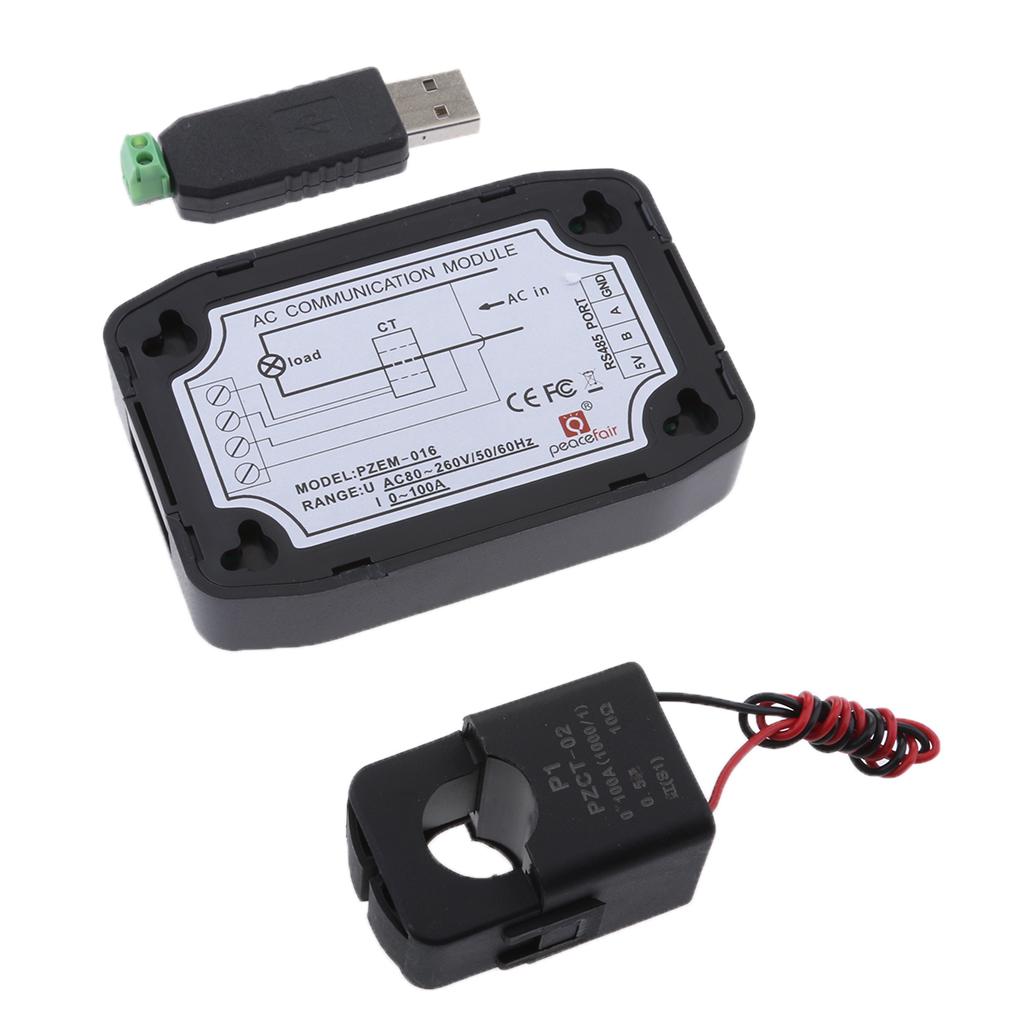

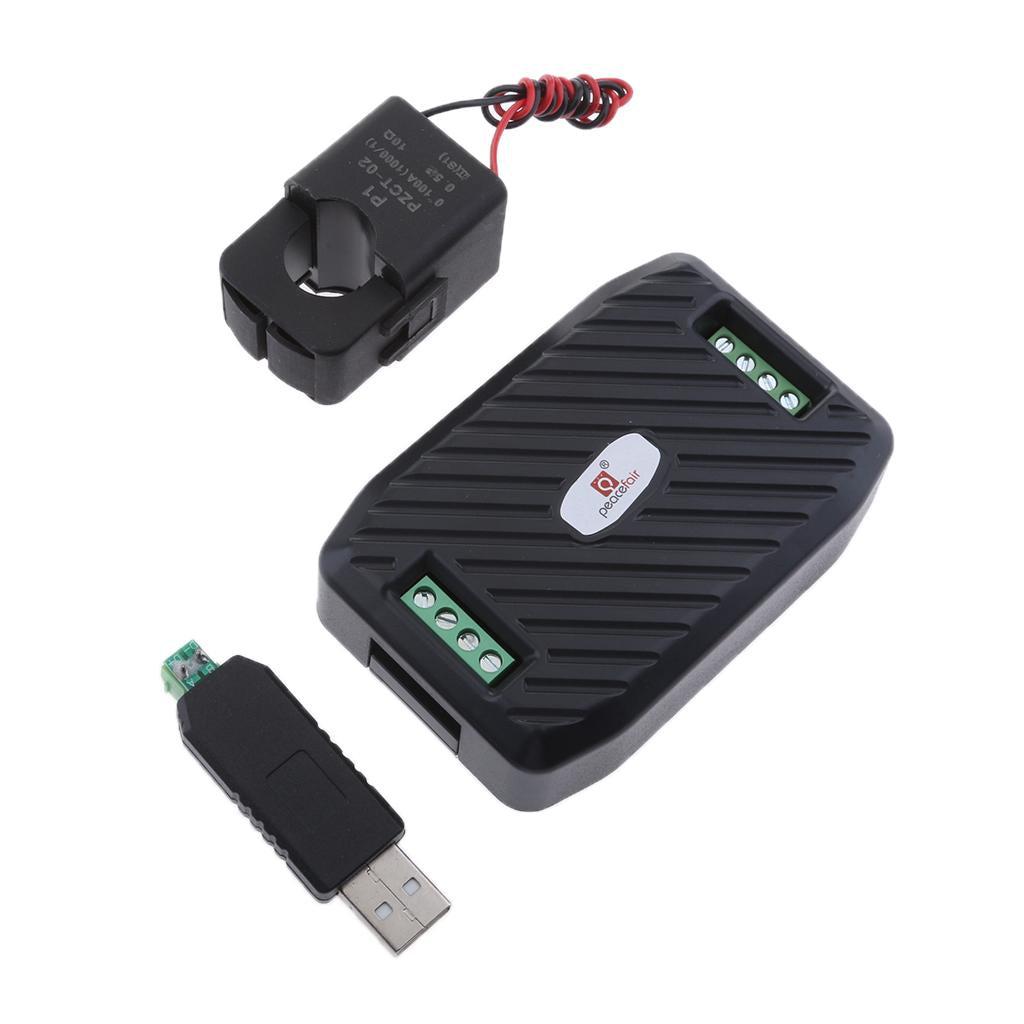

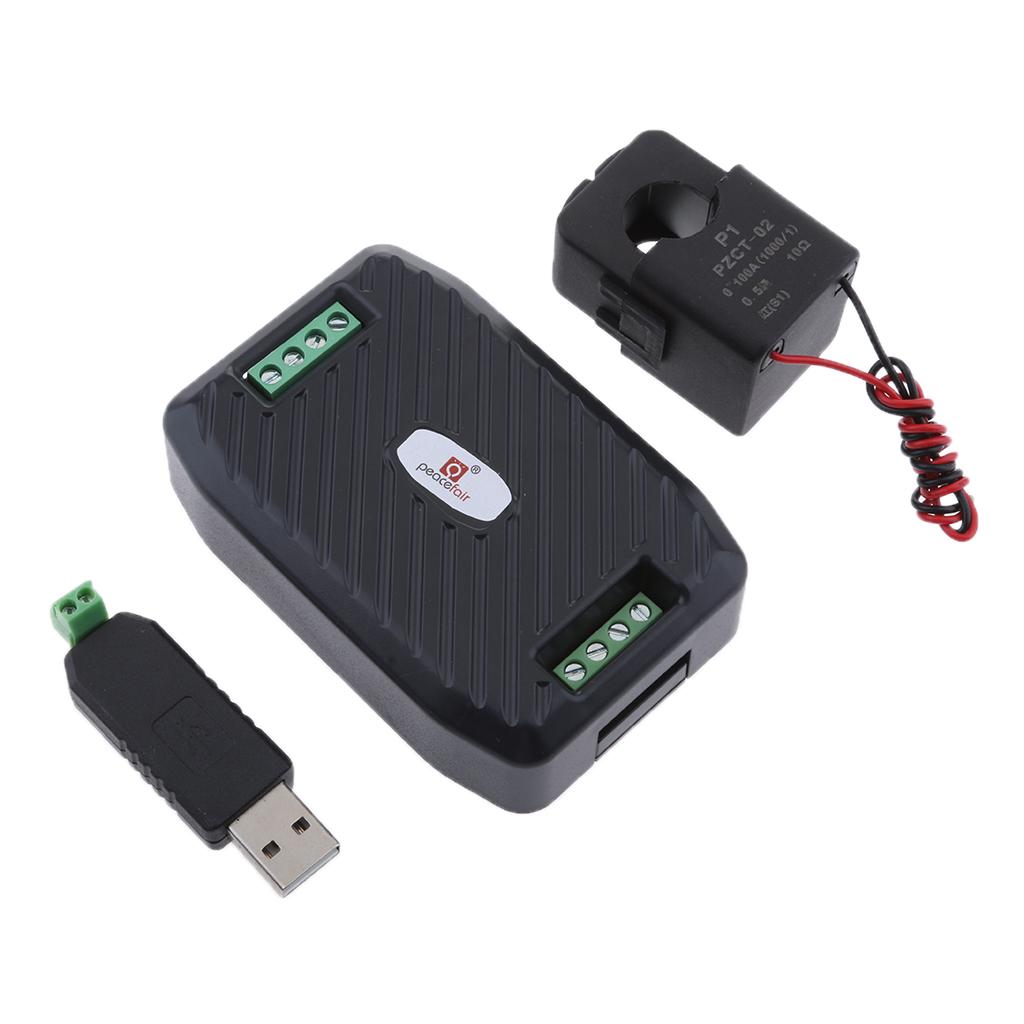

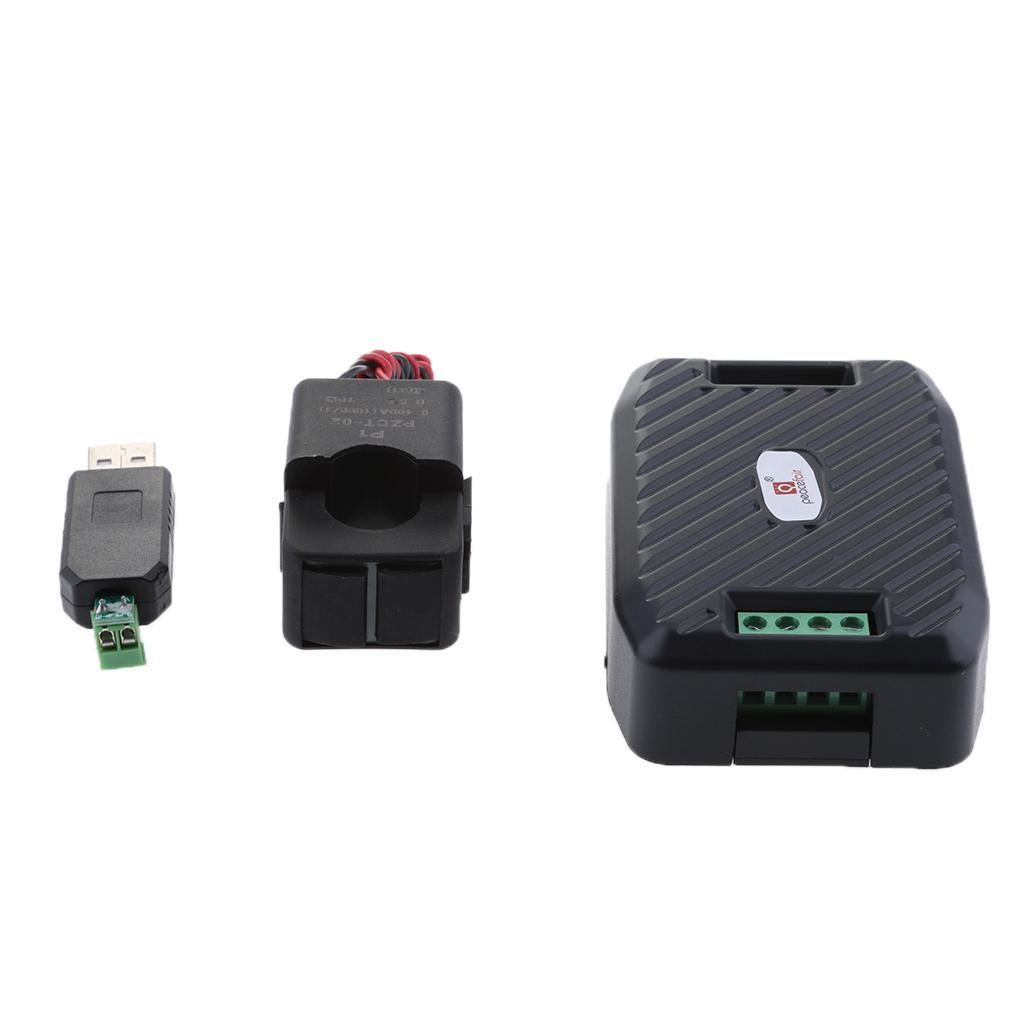

Package Includes:

1 Piece PZEM-016 AC Communication Module;
1 Piece Split CT;
1 Piece USB to 485 module
