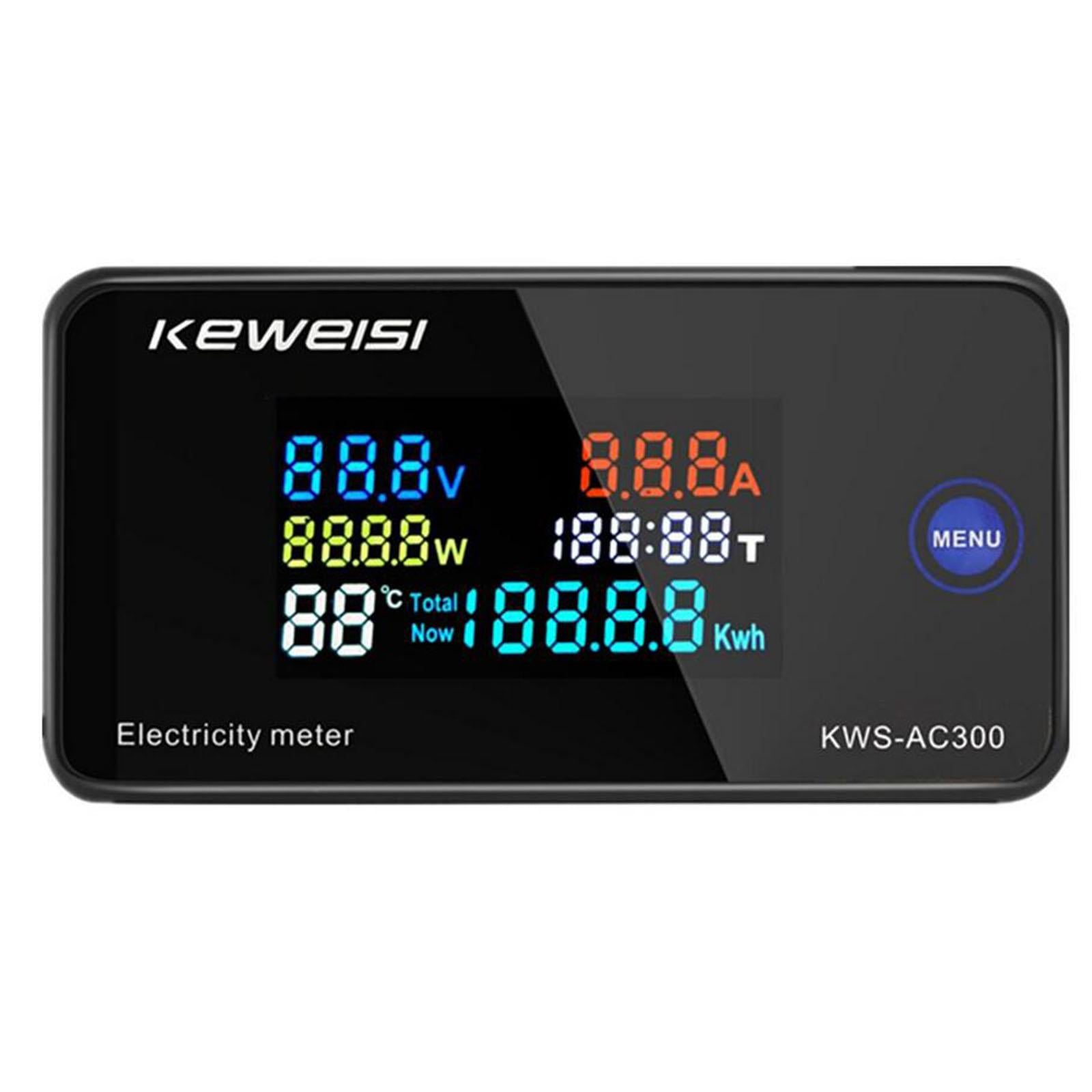

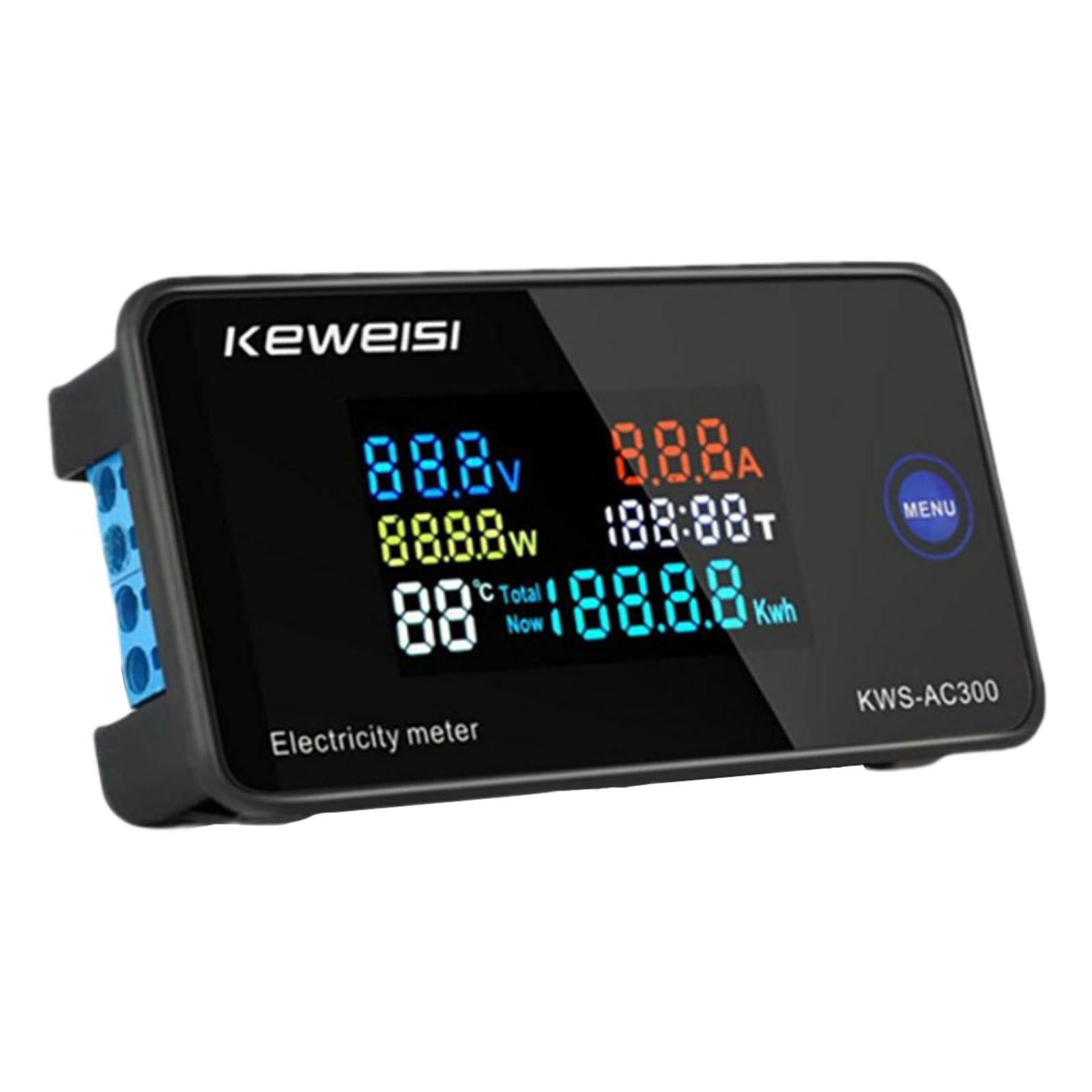

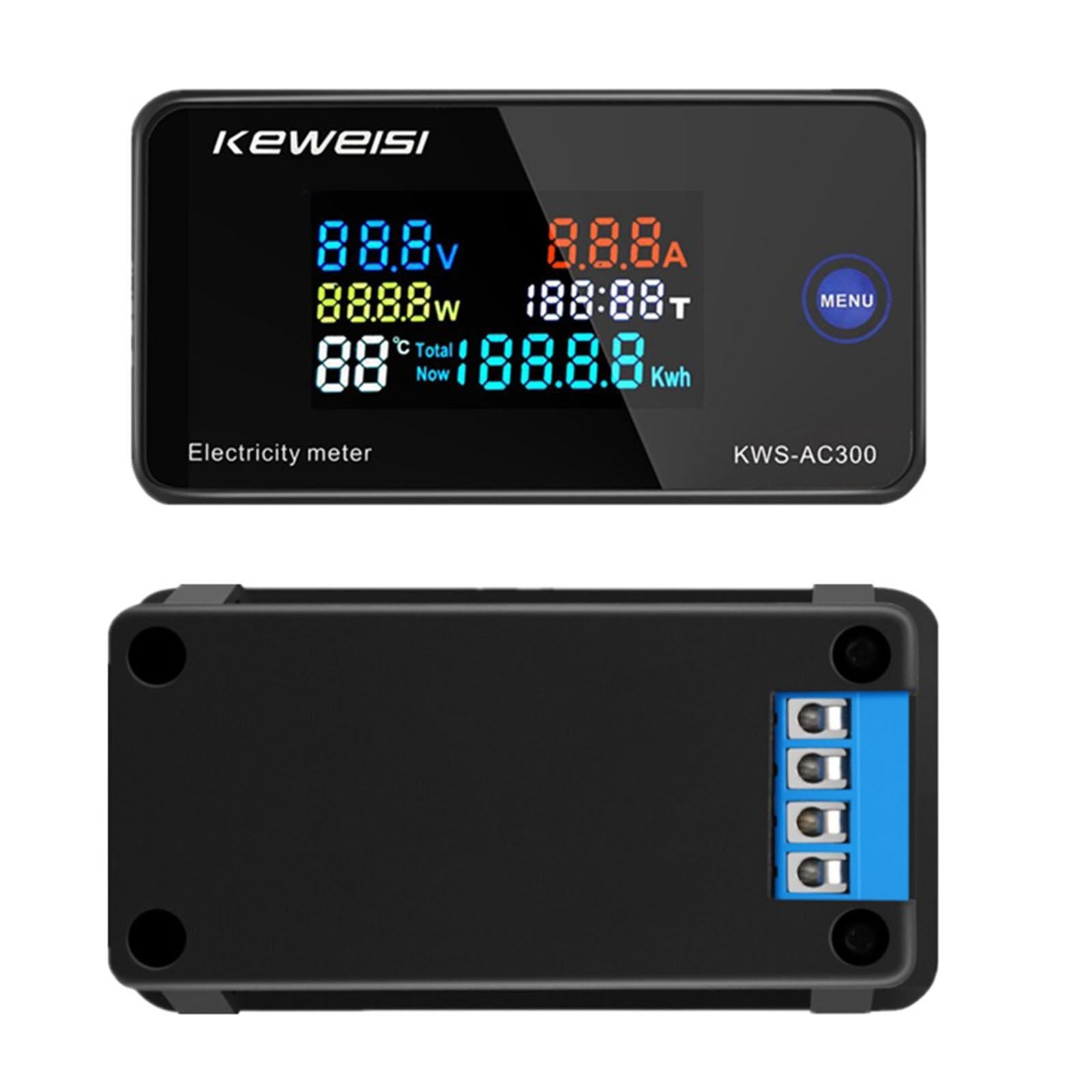

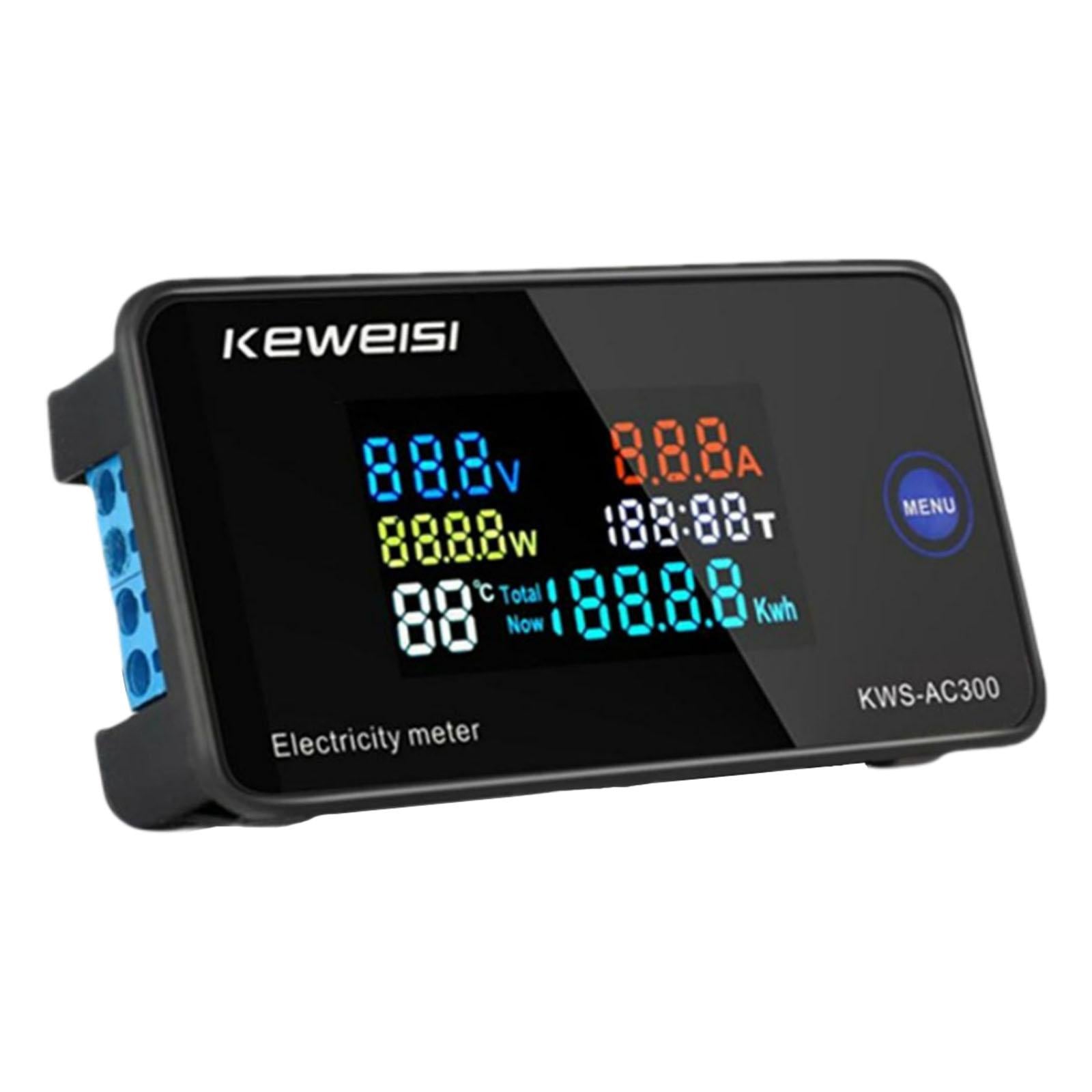

AC 50-300V 100A Digital Display Panel Meter Voltmeter Ammeter Power Energy AC300-100A Closed

Description:

6-in-1 electricity meter. Clear and large screen can display voltage, current, active power, KWH, time and temperature at the same time

Electric energy and timing have memory-performance.

The LCD display clearly shows the measurement data from multiple angles, color LCD display, read out easily.

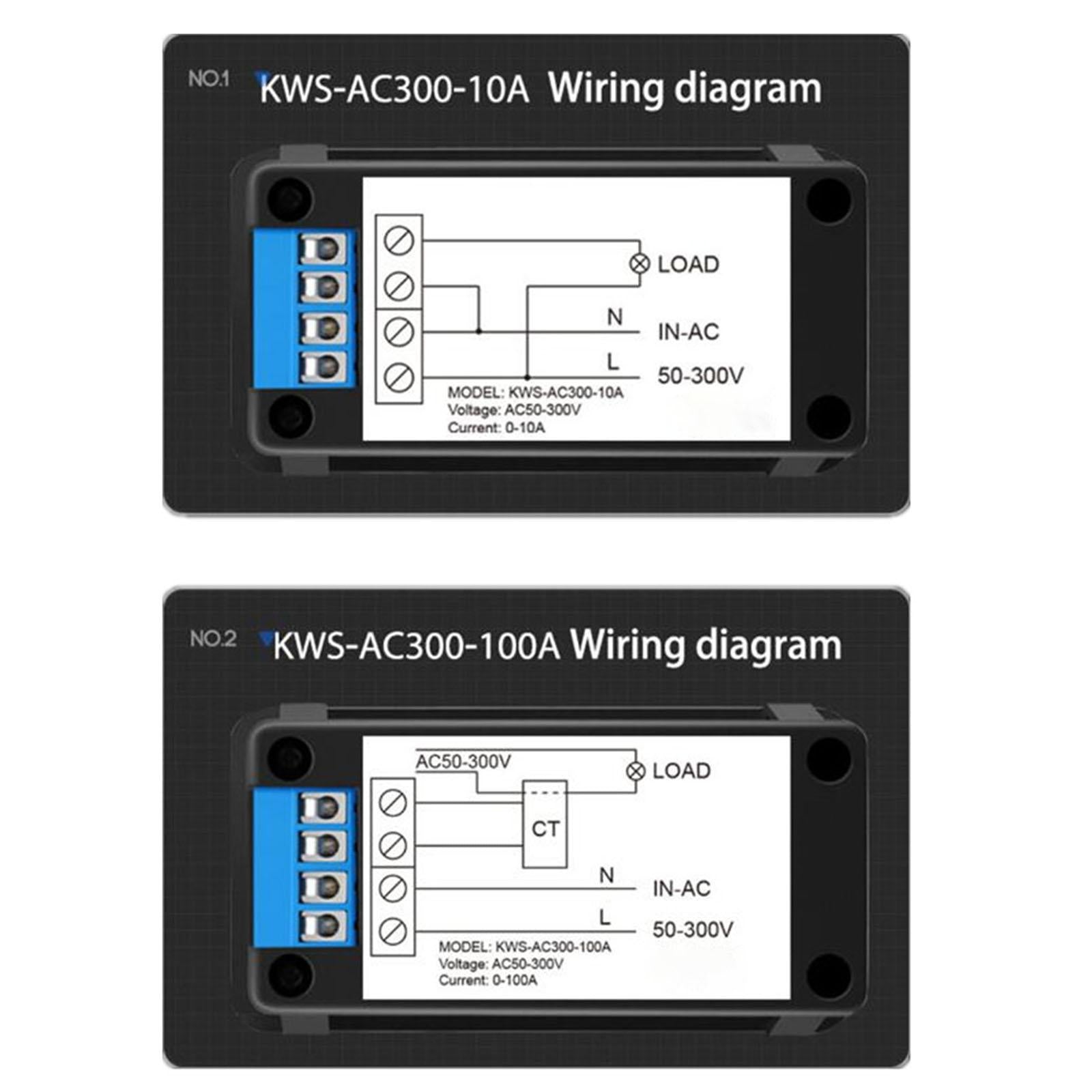

Split CT is more easy to wiring,comfortable to touch.

Manual Button to reset data, comfortable material,Environment friendly.

Specification:

1. Voltage: AC50-300V
2.Current: 0-100A
3.Power: 0-30KW
4.Capacity: 0.01-19999Kwh
5.Timing: 0-200H
6.Temperature: -10 ° C to 99 ° C

Operating Instructions:
Click the MENU button on the panel to view the current electrical energyand cumulative electrical energy. Electric energy and timing reset method: Press and hold the MENU button for 5 seconds, the number in the timingarea will flash, then click the button to select timing, current electricalenergy and cumulative electrical energy reset. When the number flashes,double-click the button to reset. Press and hold the button for 5 secondsto save the settings.

Package Includes:

1x Digital Electricity Meter
1x shunt/ CT Coil
1x Manual

Note:

1. Please allow slightly error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Wish you a wonderful on-line shopping!
