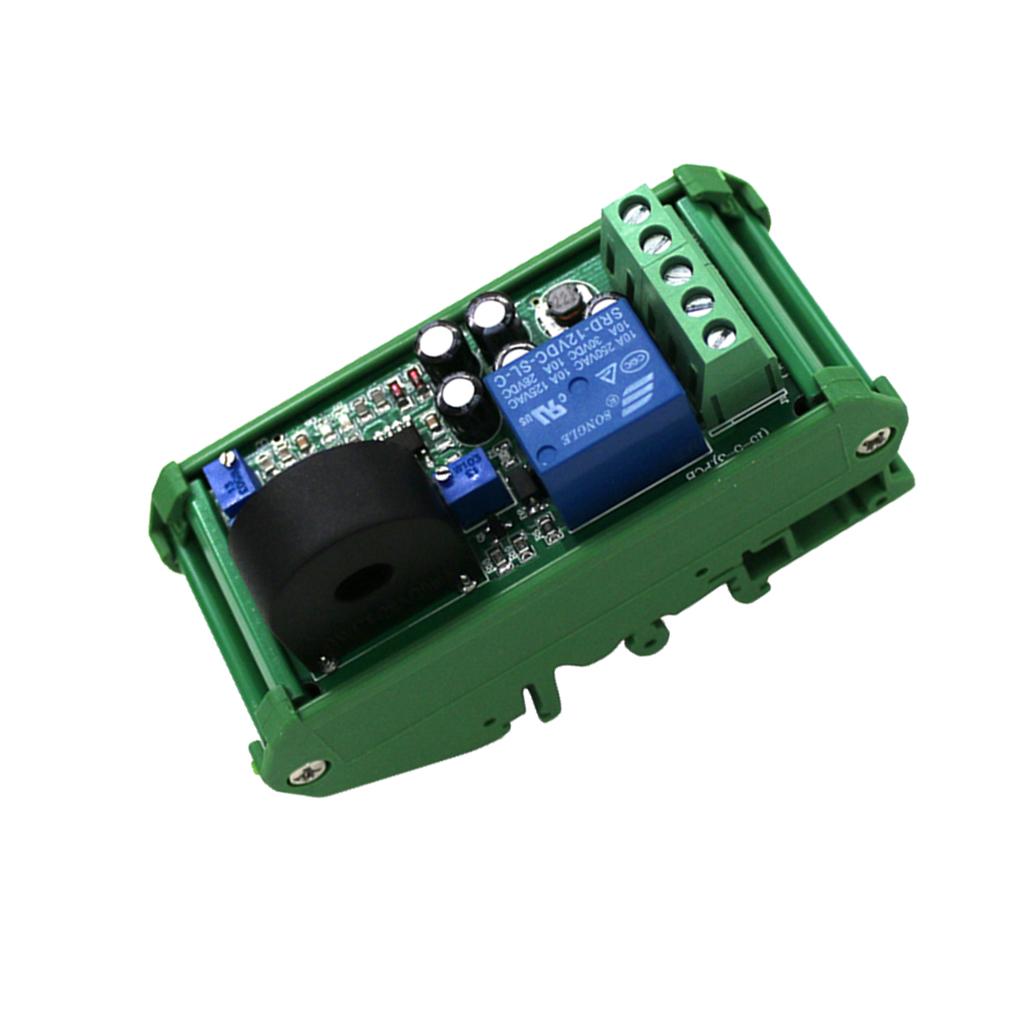

AC Current Detection Module 0-20A Range Linear Adjustable Switching Output

Description:

Working voltage: DC 24V
Output: switch output/0-5v linear output
The current detection range: AC 0-20A
The set point is adjustable over-current signal, AC 0-20A full range of linear adjustable
Accuracy: ±1%

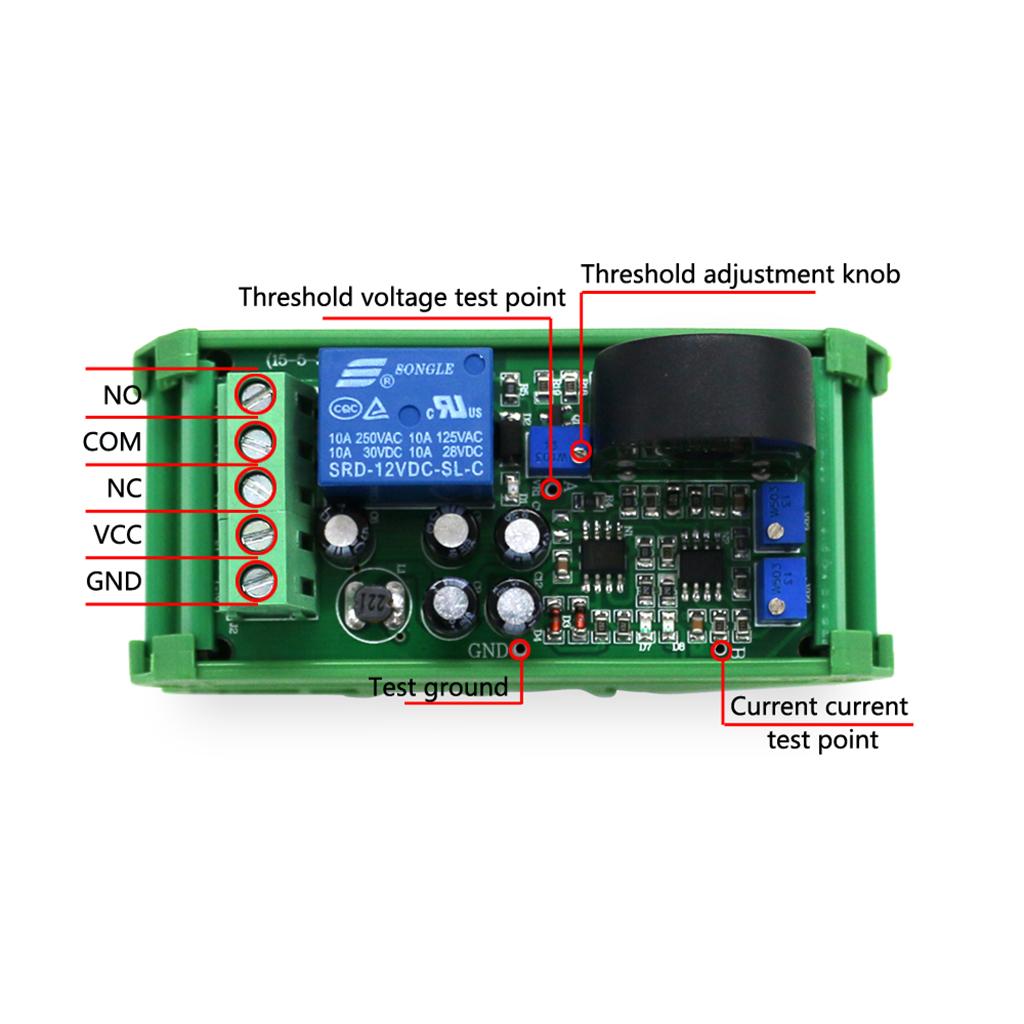

Specific debugging method: measuring voltage threshold voltage test points, at this point, 0-5V voltage equivalent to current 0-20A.

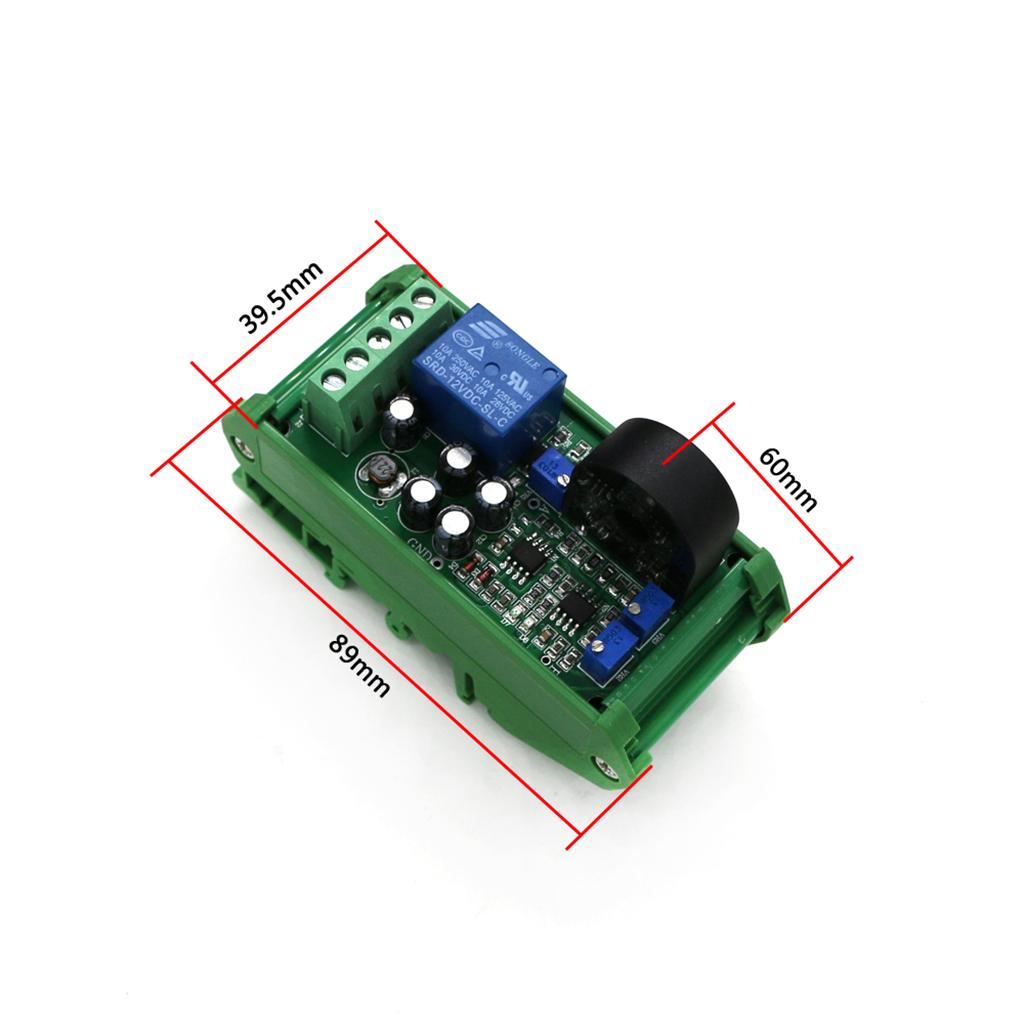

Size: approx. 87x40x60mm/3.4 x 1.6 x 2.4inch

Package Includes:

1 Piece AC Current Detection Sensor

Note:

The module is auto reset, can not directly used to control subsequent equipment, need to use delay relay or air switch and can also connect the controller.
