AC/DC 12-24V 20W 10String2 Low-voltage Solar Lamp Drive LED Power Supply

Description:

IP67 Waterproof power supply driver to protect the electronic components against dust and submersion of water.
Use high quality aluminium material, does well in heat radiation, which guarantees the long-term stability of power supply.
Suitable for lamps DC 12-24V input 10 strings of 600mA floodlight, locomotive lighting, ship lighting, portable flood light.
Widely used in commercial, industrial and household Indoor and Outdoor Applications, also widely used in automation, communication and industrial control equipment.

Specification:

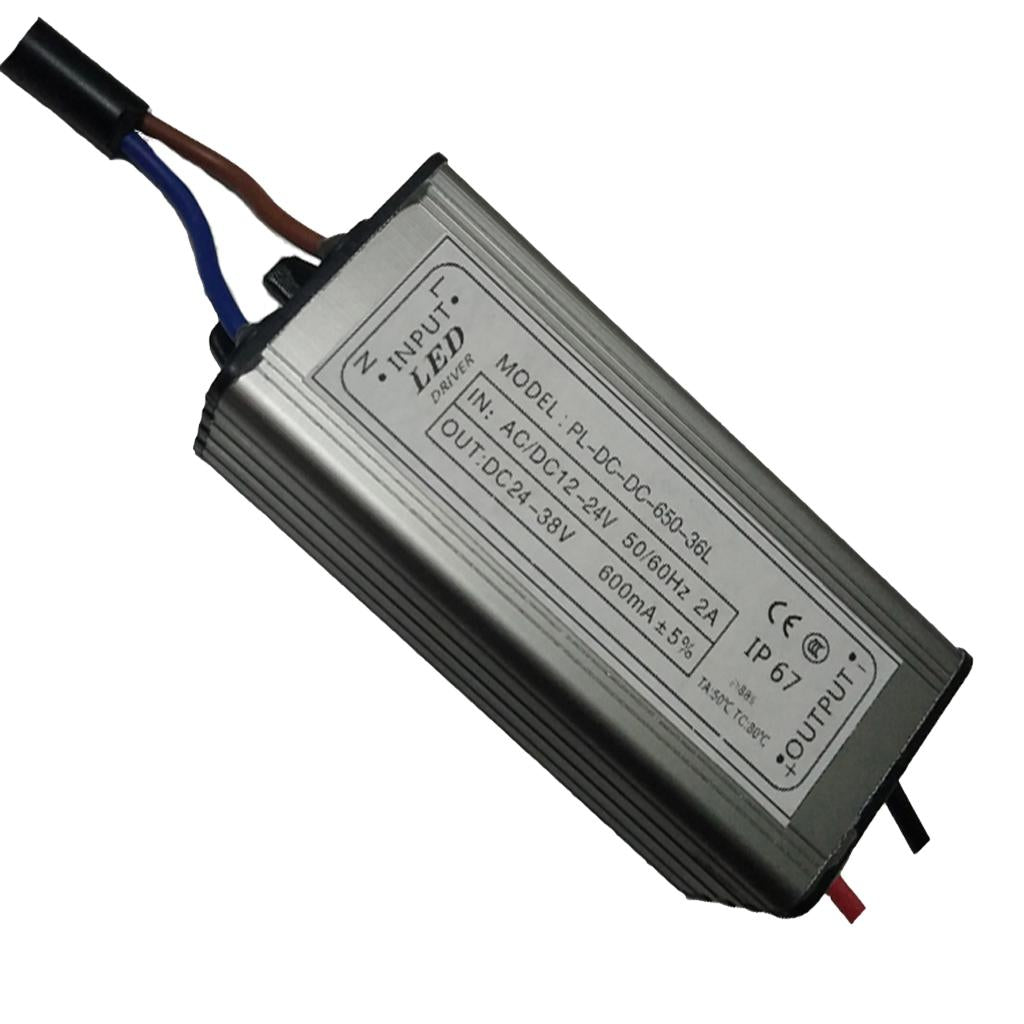

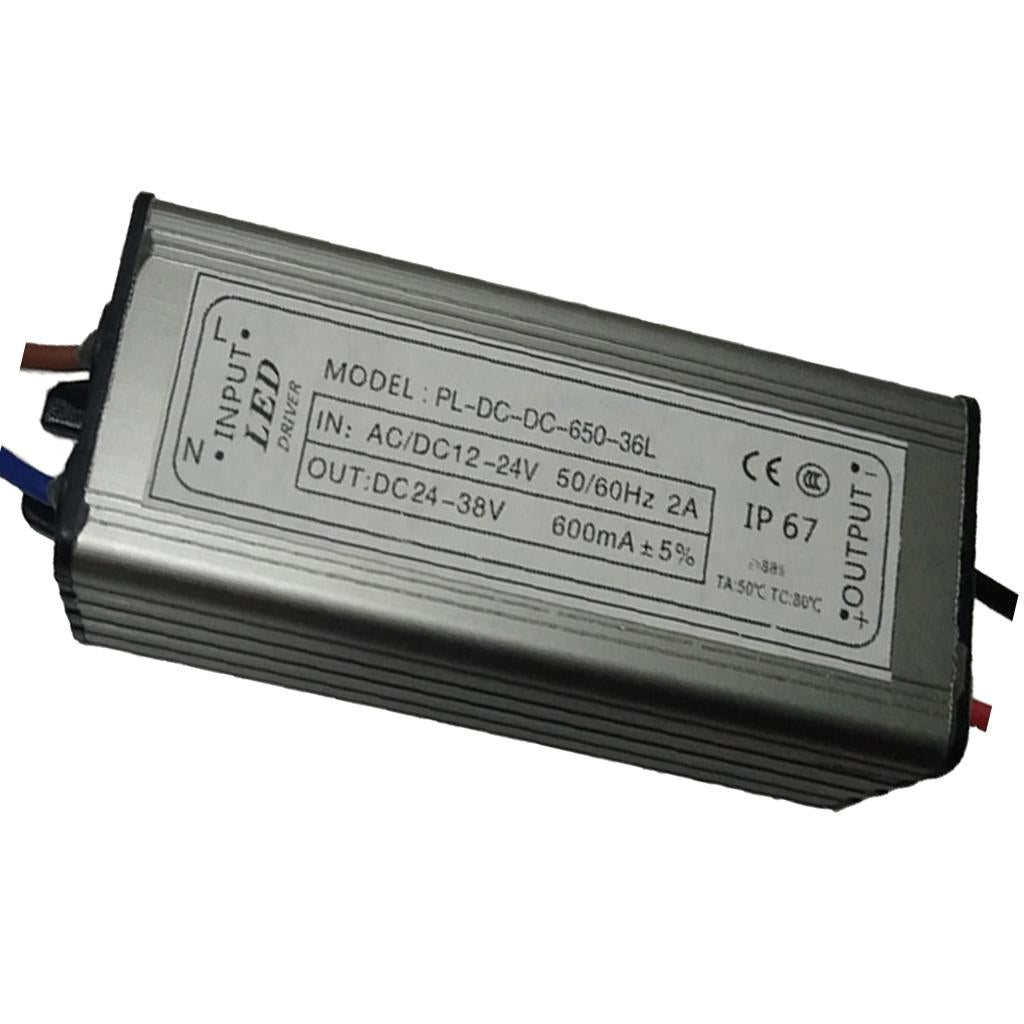

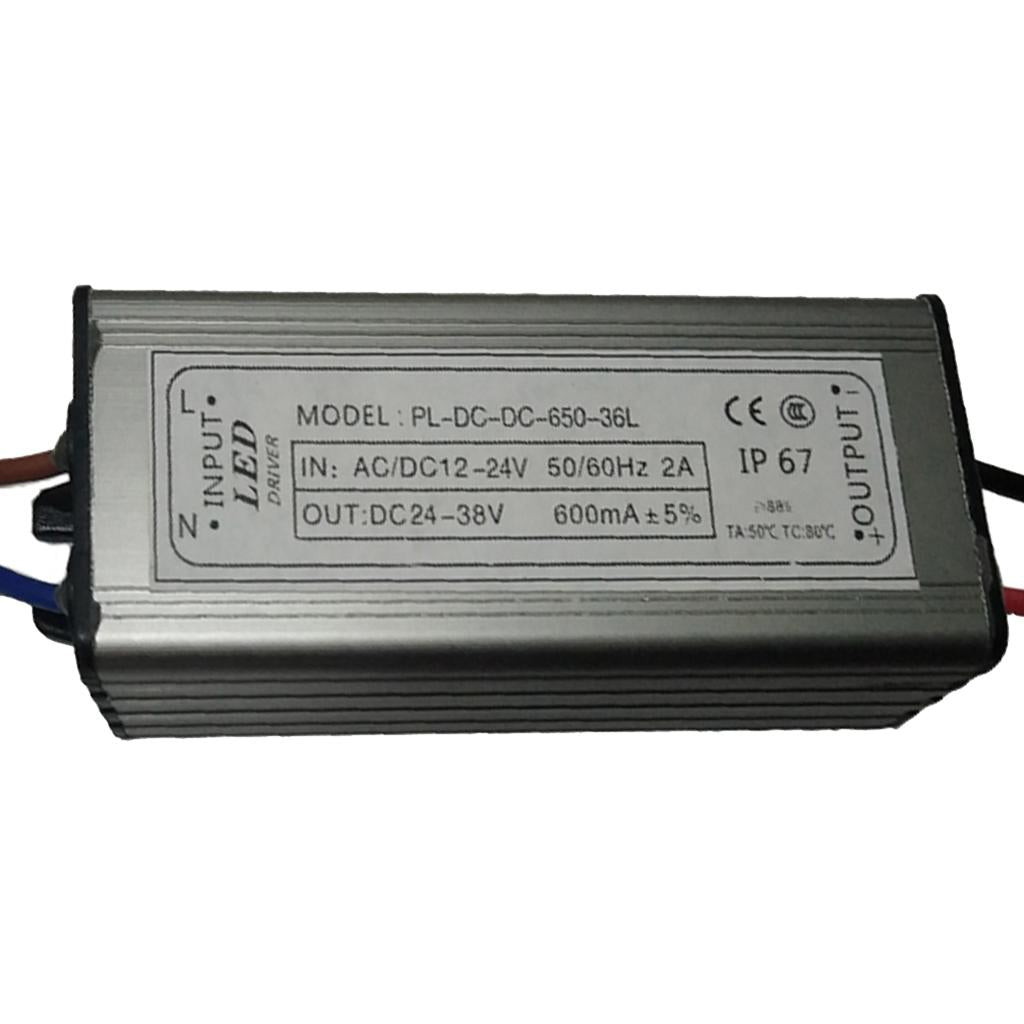

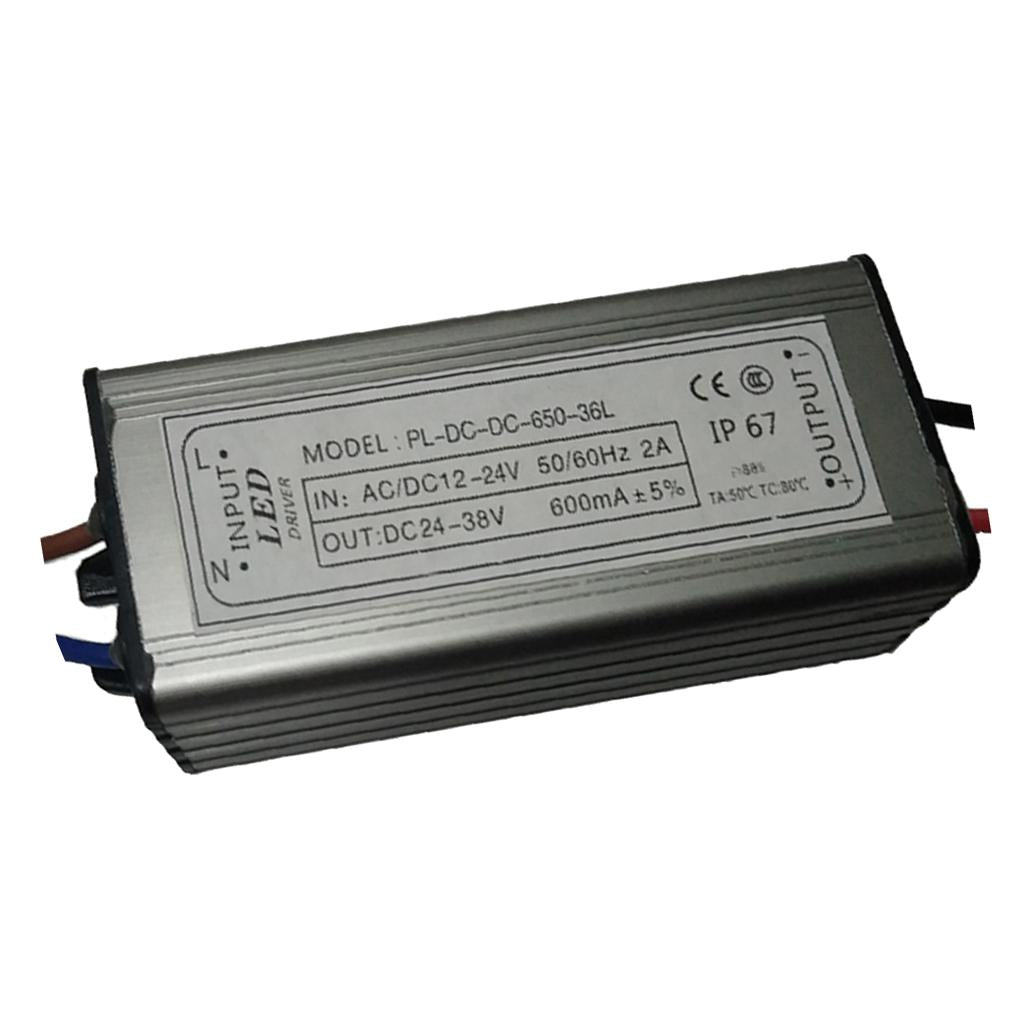

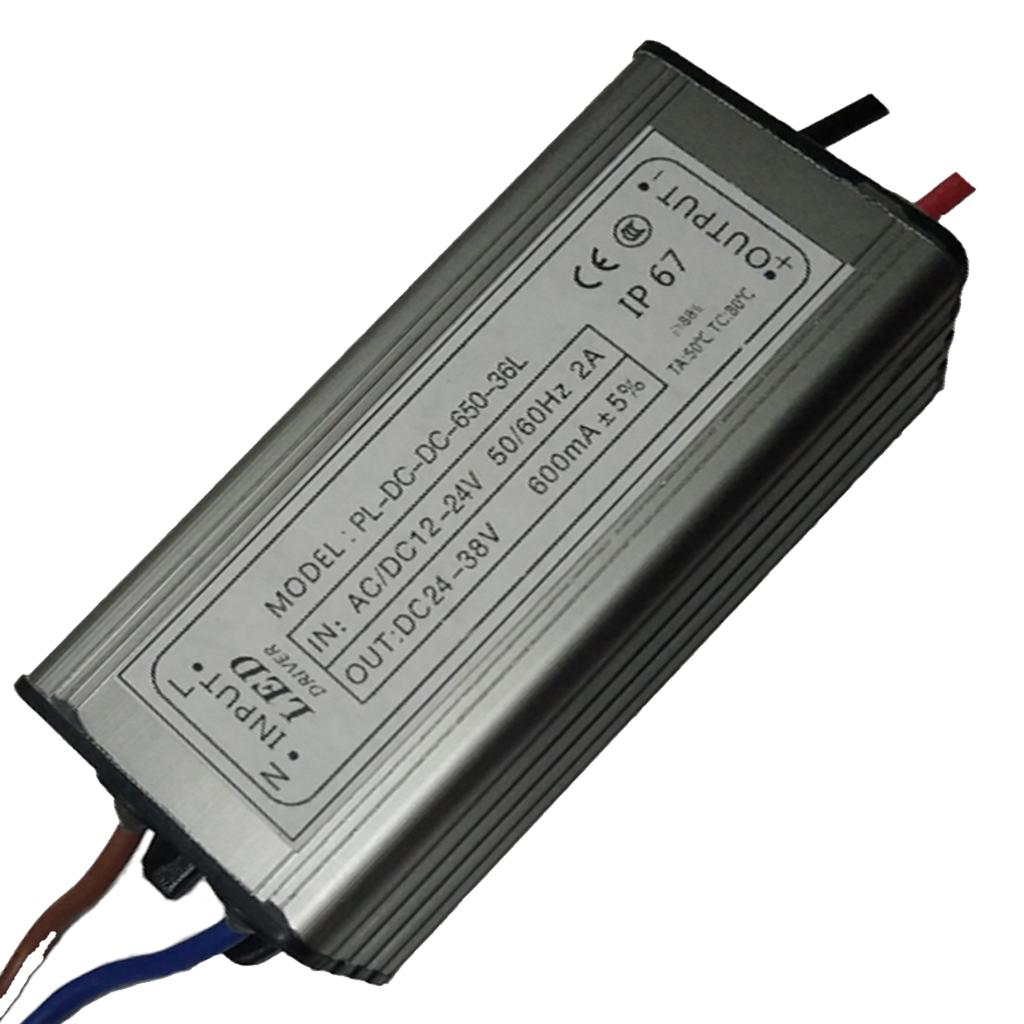

Model: PL-DC-DC-650-36L
Input Voltage: DC 12-24V
Input Power(load): 20W
Output Current(load): 600mA
Output Voltage: DC 24-38V (load); ≤ DC 55V(empty load)
Working Frequency: 50~60 Hz
Short Circuit Protection: Yes
Ripple: ≤ 600 MVpp(120Hz)
Efficiency: ≥ 85 %
Waterproof: IP67
Working Temperature: -25℃ ~ +40℃
Material: Aluminium
Size: 82 x 30 x 20mm/ 3.23 x 1.18 x 0.78inch

Package Includes:

1 Piece 20W LED Driver Supply

Note:

Please allow 1-3mm error due to manual measurement.
Photo color might be a little different from the actual product due to color display of different monitors.
