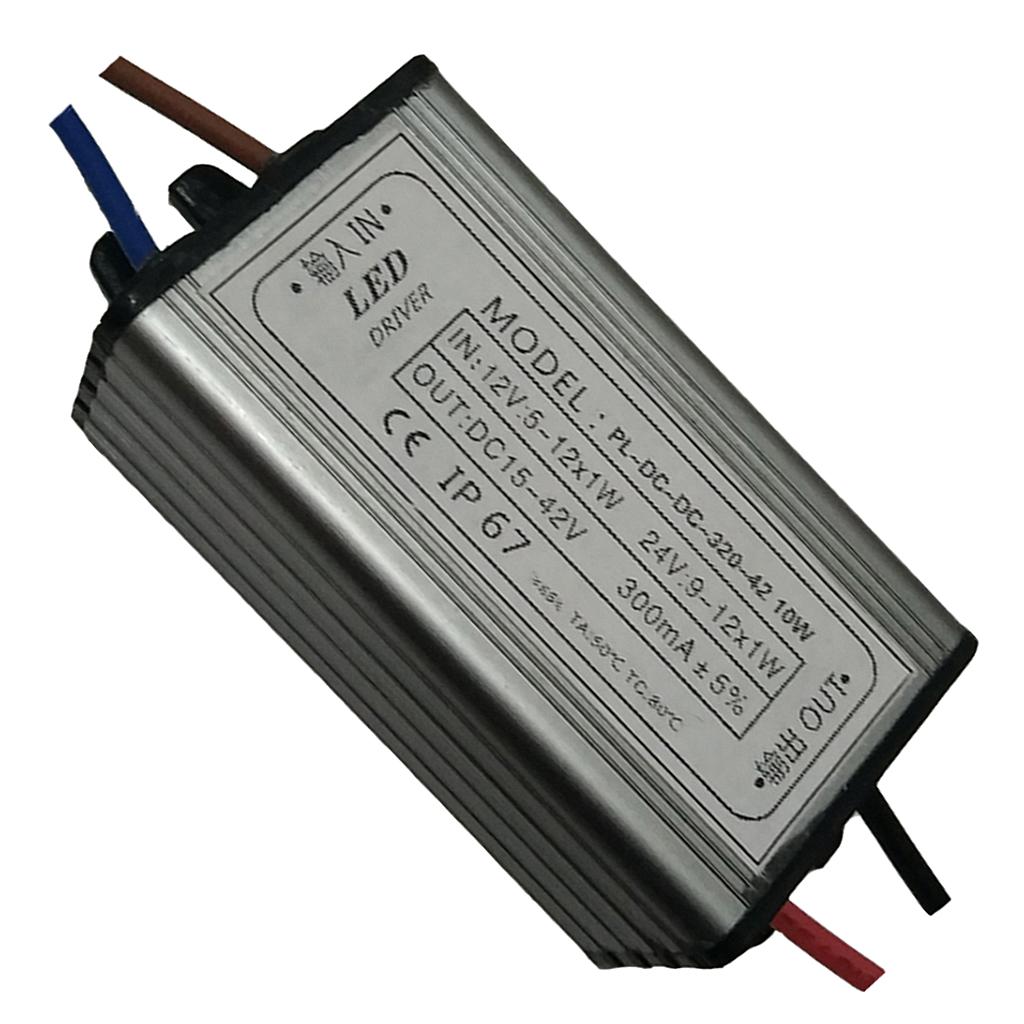

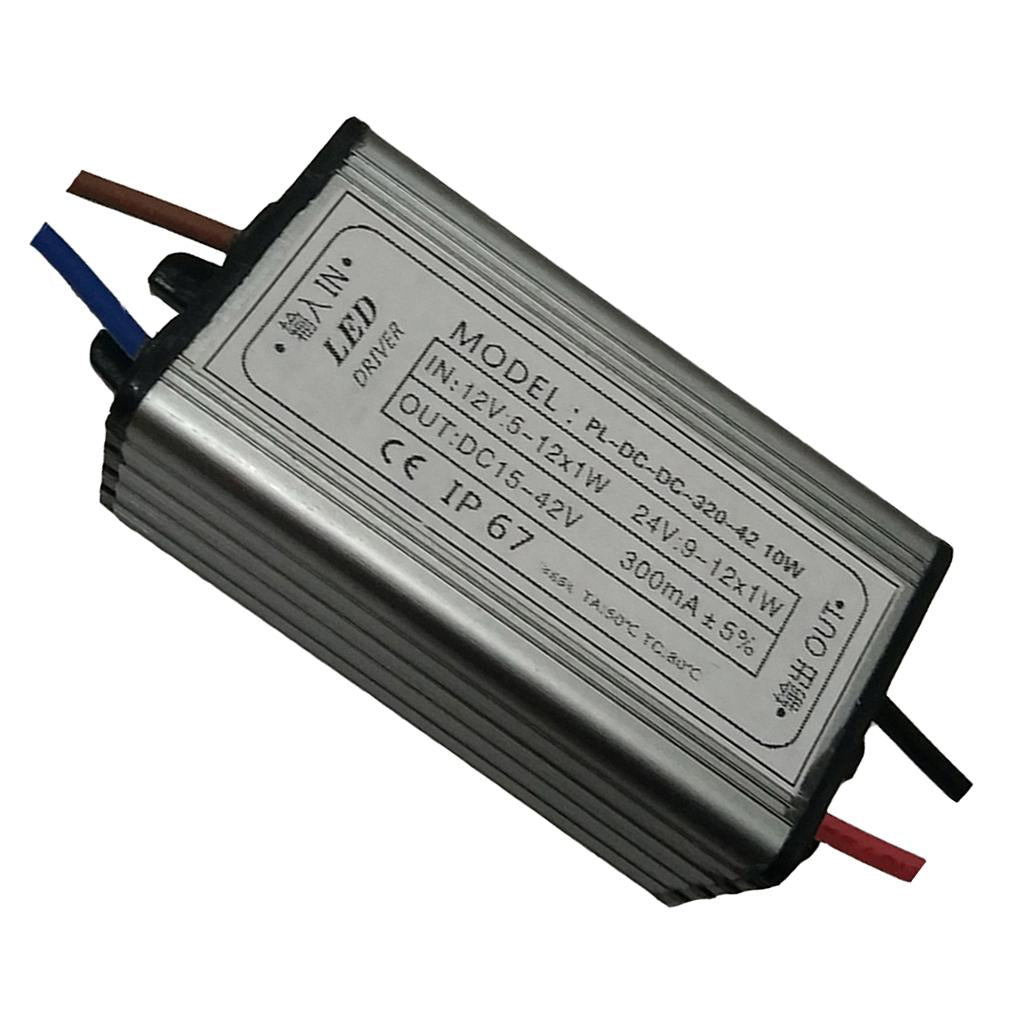

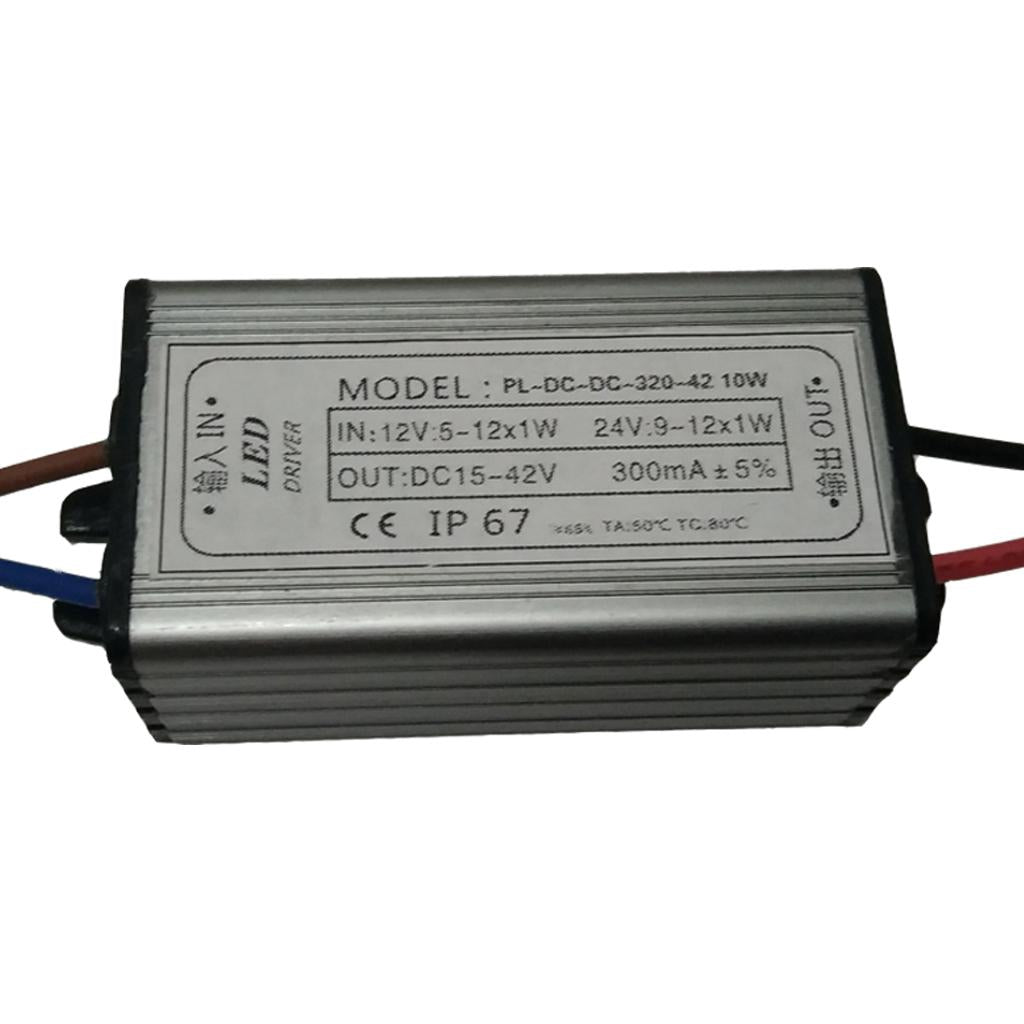

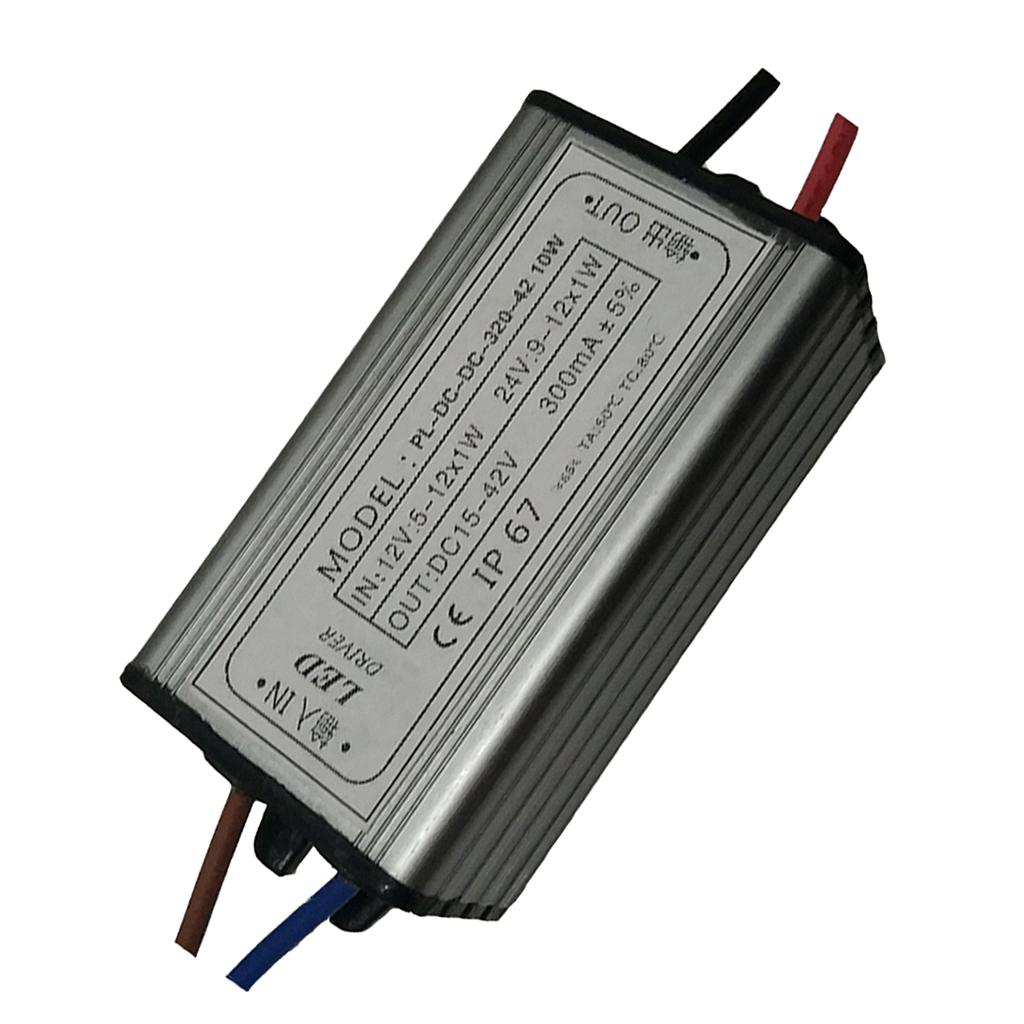

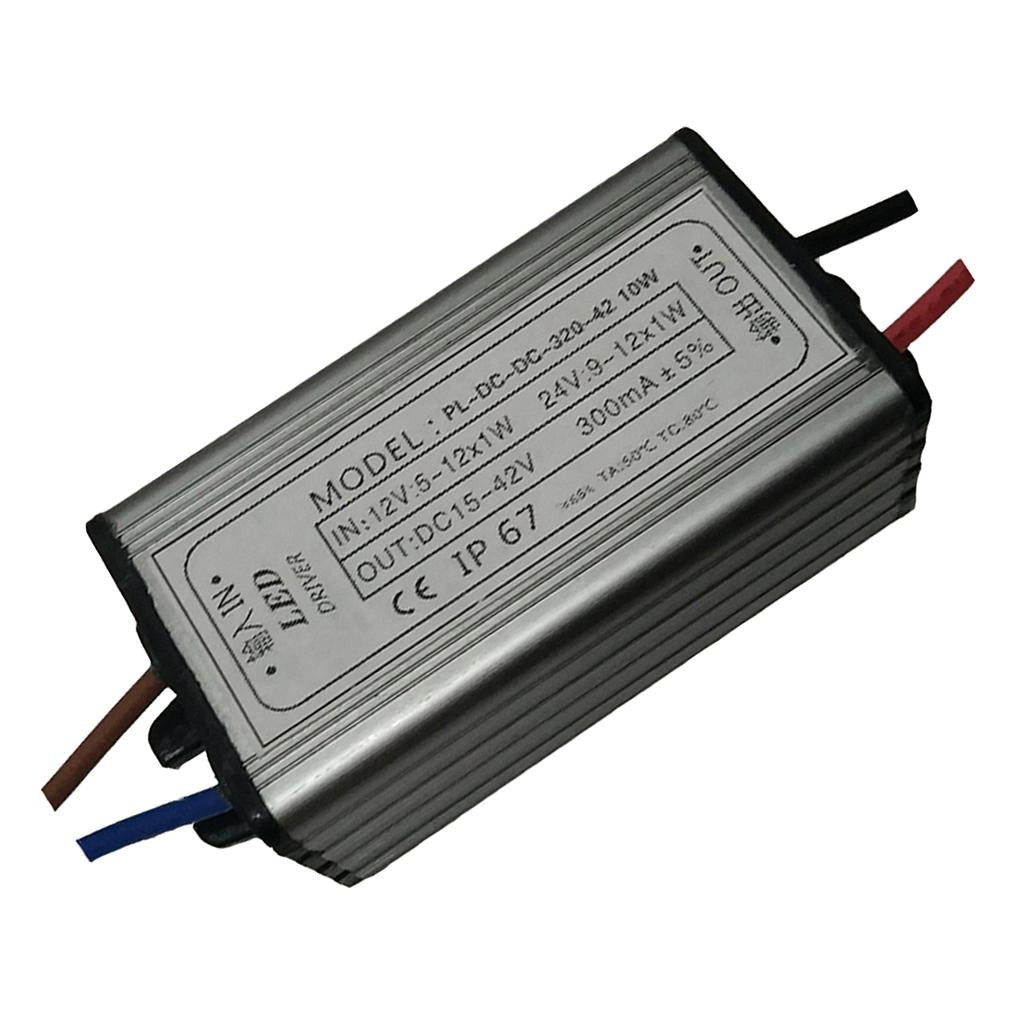

AC/DC12-24V 1W 300mA Constant Current Power Supply LED Dimmable Driver

Description:

AC/DC12-24V(In) 1W LED Driver For wall washer light solar power supply,5 String 12.
Input Rating voltage: AC/DC12-24V; Output Voltage(loading): DC15-42V
Output Voltage(no loading): DC ≤ 55V; Output Current(loading): 300mA
Size(LxWxH): 63x30x20mm
Suitable for Input Voltage 12-24V(IN) light 5 String 12 and 300mA floodlight, locomotive lighting, ship lighting, moving lighting.

Specification:

Model: PL-DC-DC-320-42
Reference Standard Basics: IEC 61347
Working Frequency: 50 ~ 60 Hz
Input power(loading): ≤ 13W
Short Circuit Protection: Yes
Overloading Protection: Yes
Insulation Strength: AC 1.5 KV/5 mA 1Min
Ripple: ≤ 600 MVpp(120Hz)
Working Temperature: -25 °C ~ +40 °C
Efficiency: ≥ 85 %

Package Includes:

1 piece Power Supply LED Driver
