AD8232 ECG Module Heart Monitor Measurement Sensor Pulse Signal Board Set

Description:

AD8232 is an integrated front-end for signal conditioning of cardiac bioelectrical signals for heart rate monitoring.

AD8232 adopts double poles high-pass filter to eliminate the motion artifacts and half cell potential.

AD8232 adopts an operational amplifier that is without using constraint to build a three pole low pass filter, eliminating extra noises.

This design makes low power consumption AD converter (ADC) and embedded microcontroller collect output signal with ease.

Application: Fitness and sports heart rate monitoring, portable ECG, remote health monitor, game peripheral equipment, bioelectricity signal collection

Specification:

Material: Acrylic

Rated temp range : 0~+70 ℃

Operating temperature: -40 ℃ - +85 ℃

Size: 50x6x6cm/19.69x2.36x2.36in

When the AD8232 heart rate monitor disconnects from the IC's nine connections, you can weld pins, wires or other connectors.

Package Includes:

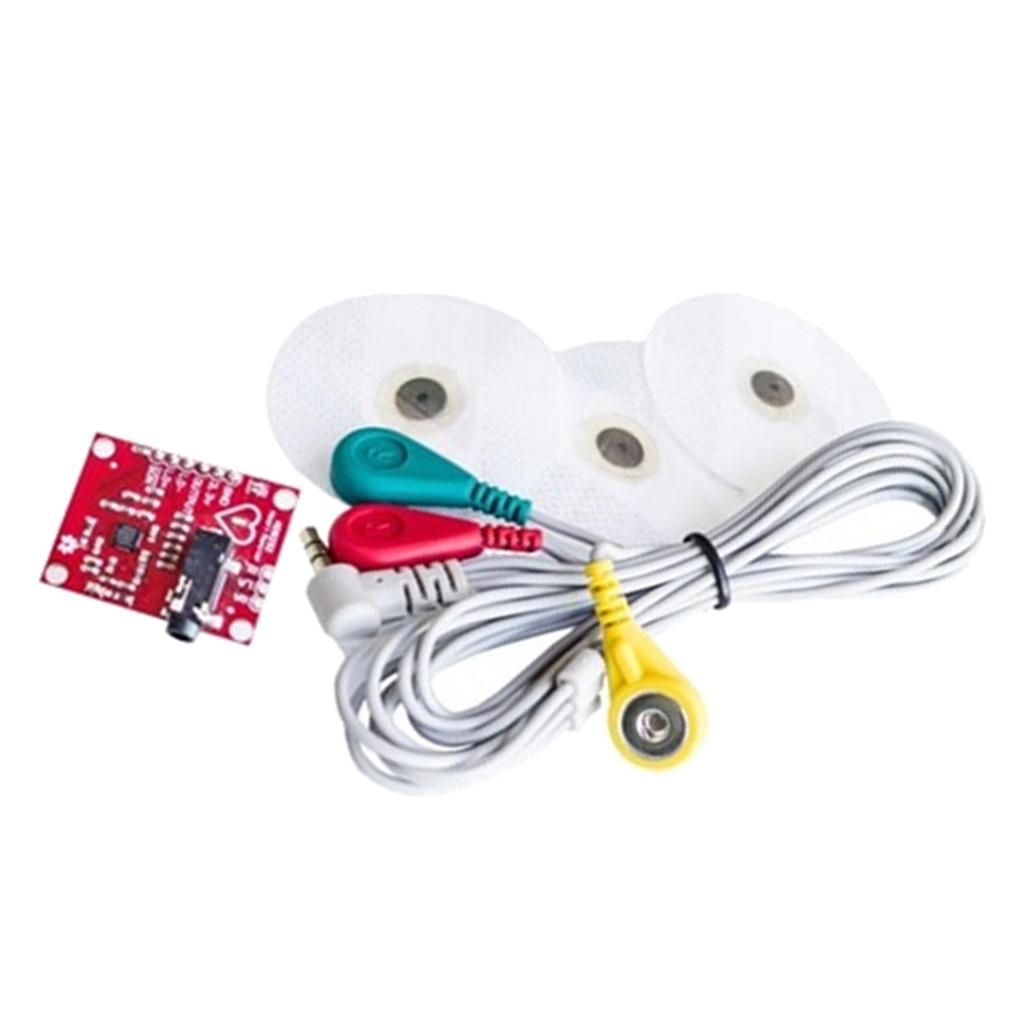

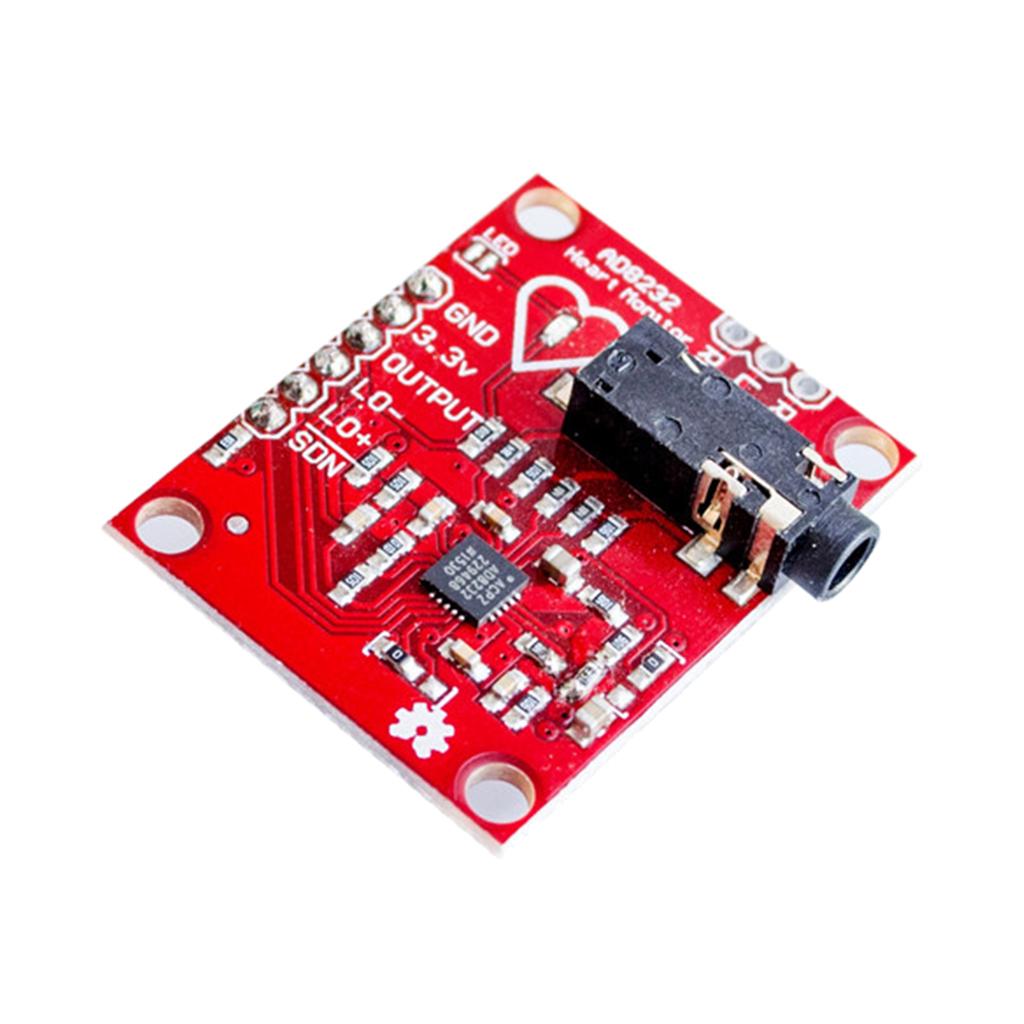

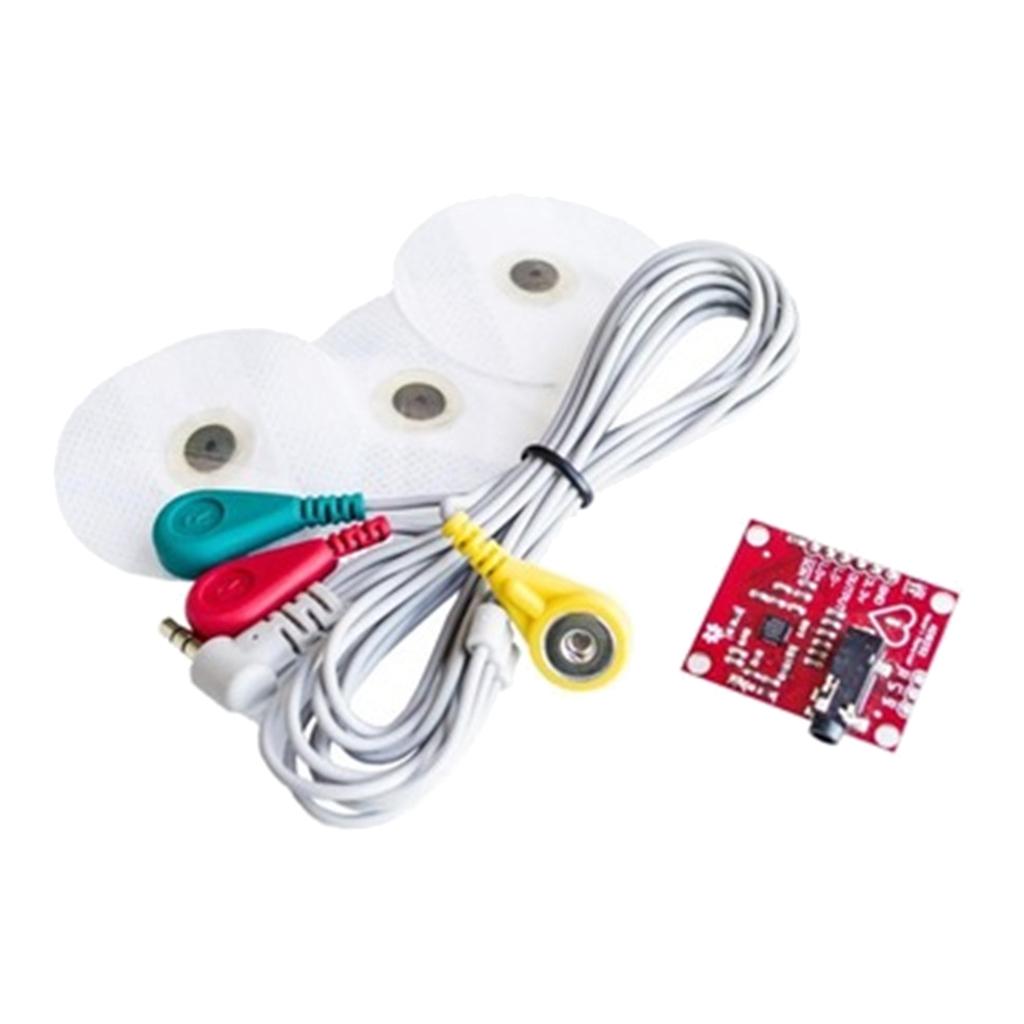

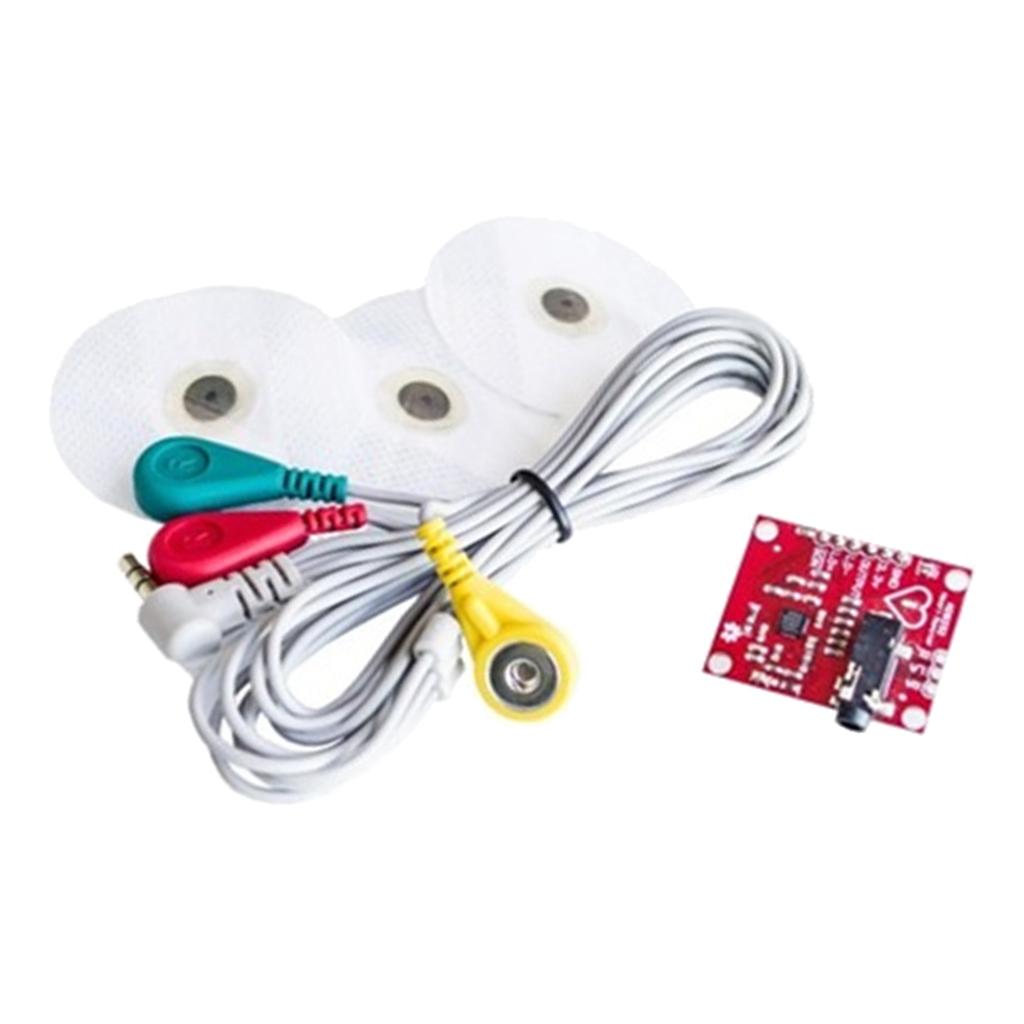

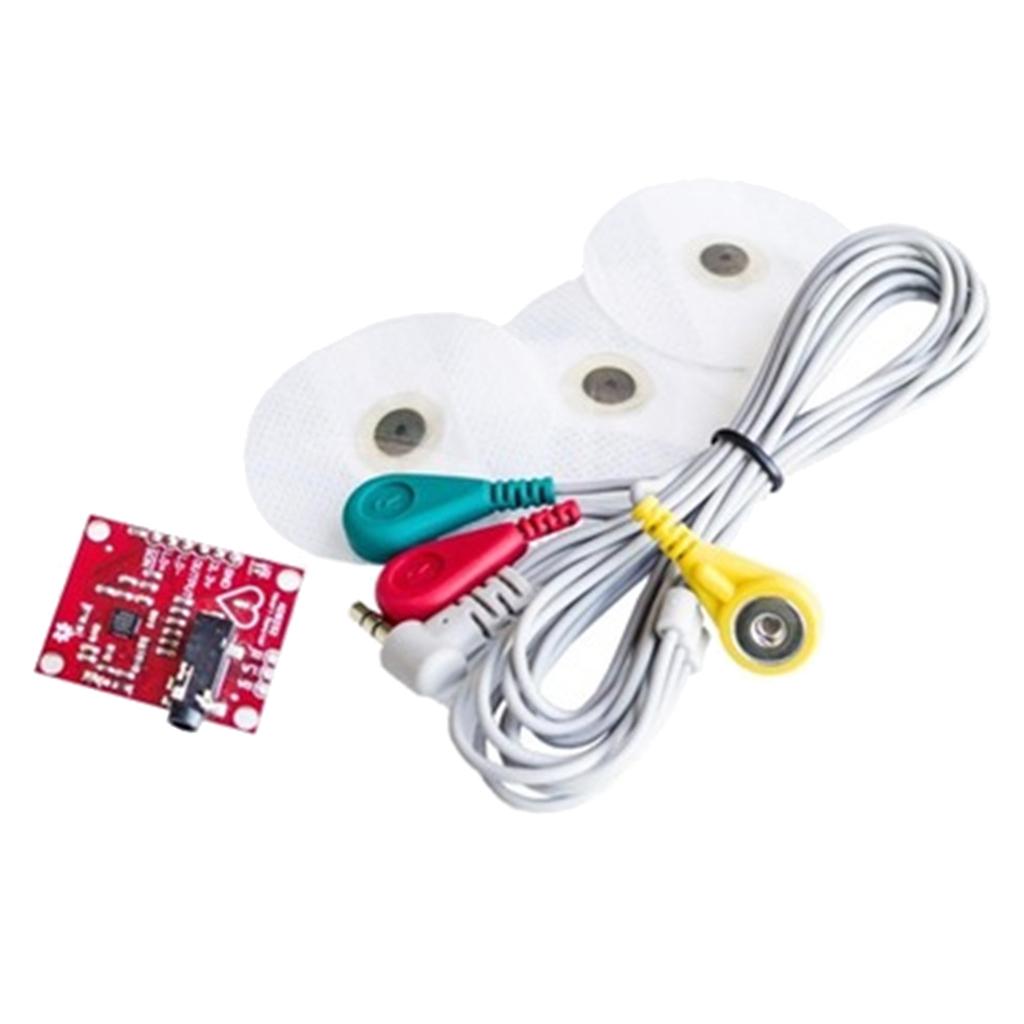

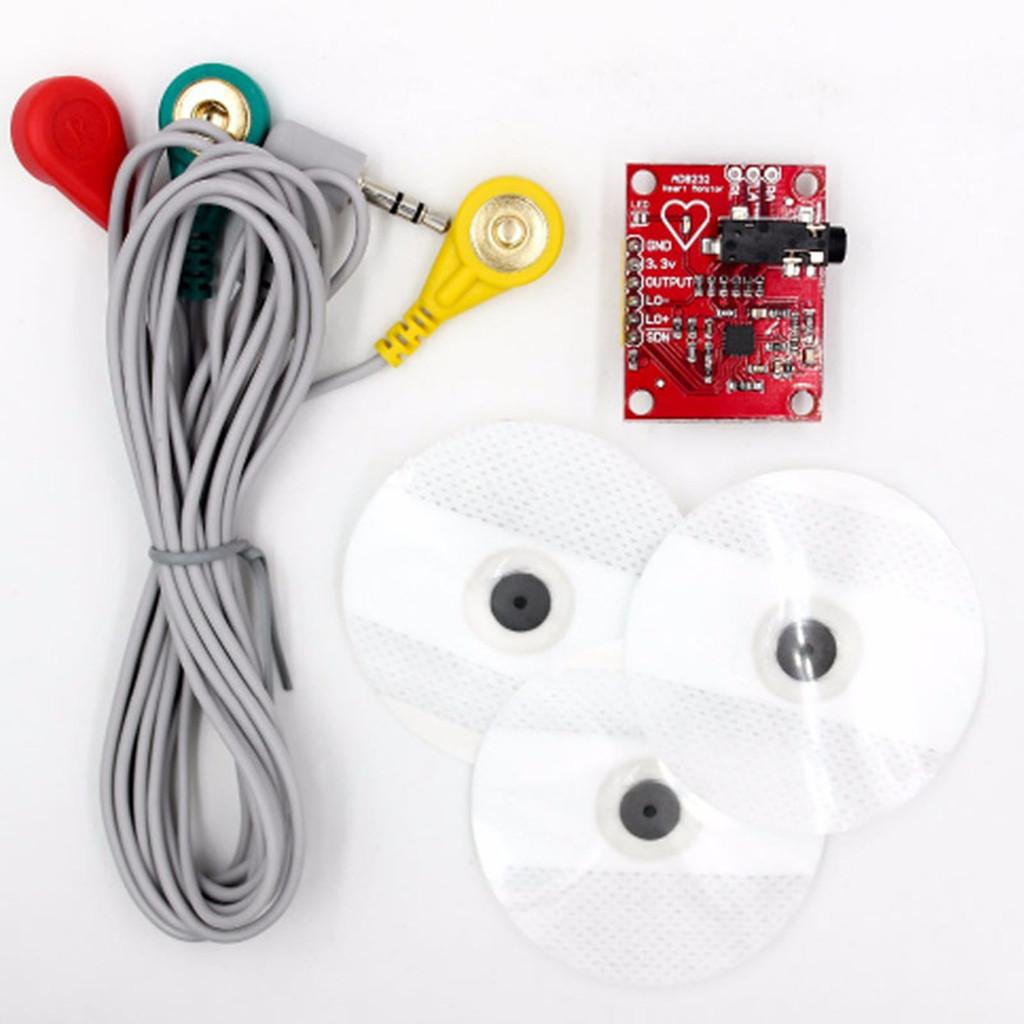

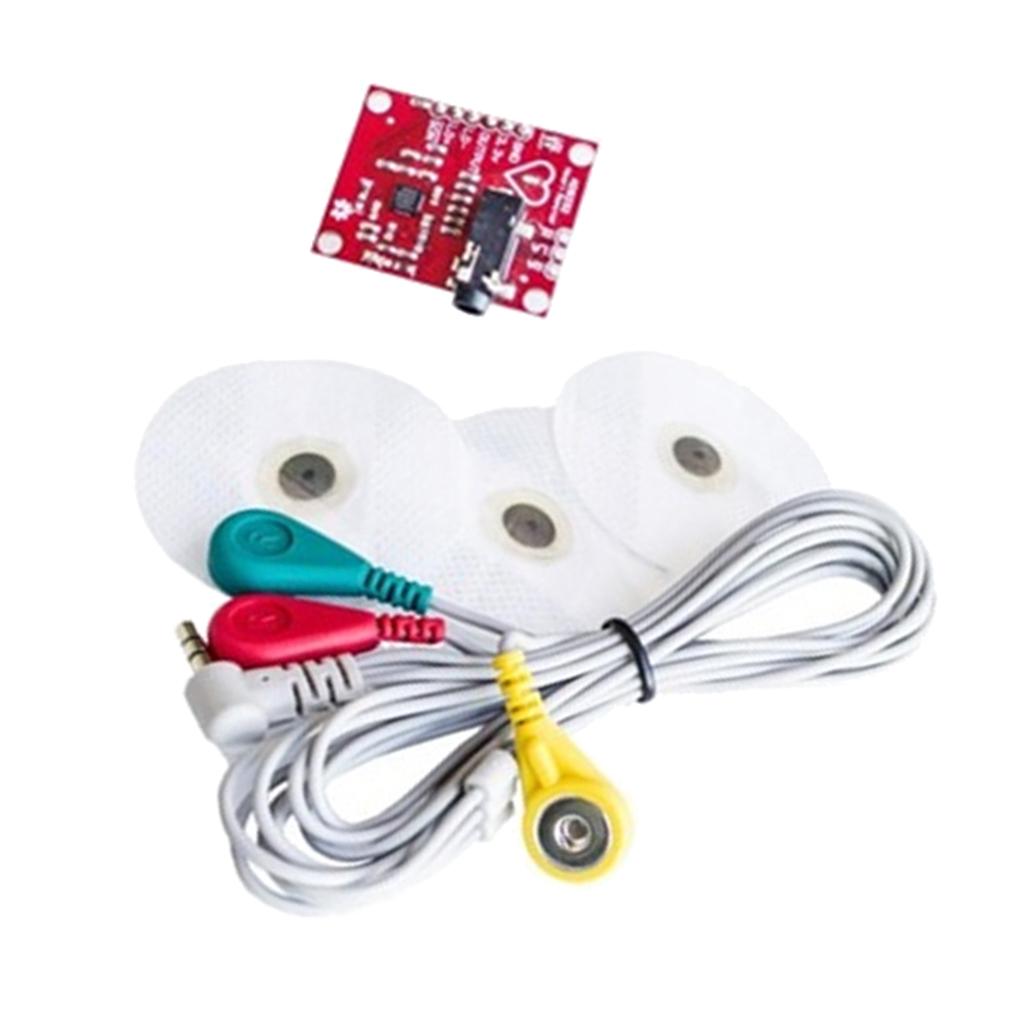

1x AD8232 ECG Sensor Module

1x ECG/EMG Lead Cable

3x Disposable Electrodes (please prepare more disposable electrodes for yourself according to your needs.)

Note:

The color of item might be slightly different from the picture shown, which mainly lies in different light effect and computer monitor. Please give us your understanding. Thank you!
