Description:
AD8232 is an integrated front-end for signal conditioning of cardiac bioelectrical signals for heart rate monitoring.
AD8232 adopts double poles high-pass filter to eliminate the motion artifacts and half cell potential.
AD8232 adopts an operational amplifier that is without using constraint to build a three pole low pass filter, eliminating extra noises.
This design makes low power consumption AD converter (ADC) and embedded microcontroller collect output signal with ease.
Application:
Fitness and sports heart rate monitoring
Portable ECG
Remote health monitor
Game peripheral equipment
Bioelectricity signal collection
Specification:
Material: Plastic
Supply voltage: DC 3.3V
Output: Analog output
Interface (connected to RA LA RL): 3PIN 2.54 pin or headset
Rated temp range : 0~+70 ℃
Operating temperature: -40 ℃ - +85 ℃
Board Size: 36 x 30mm/1.4 x 1.2inch

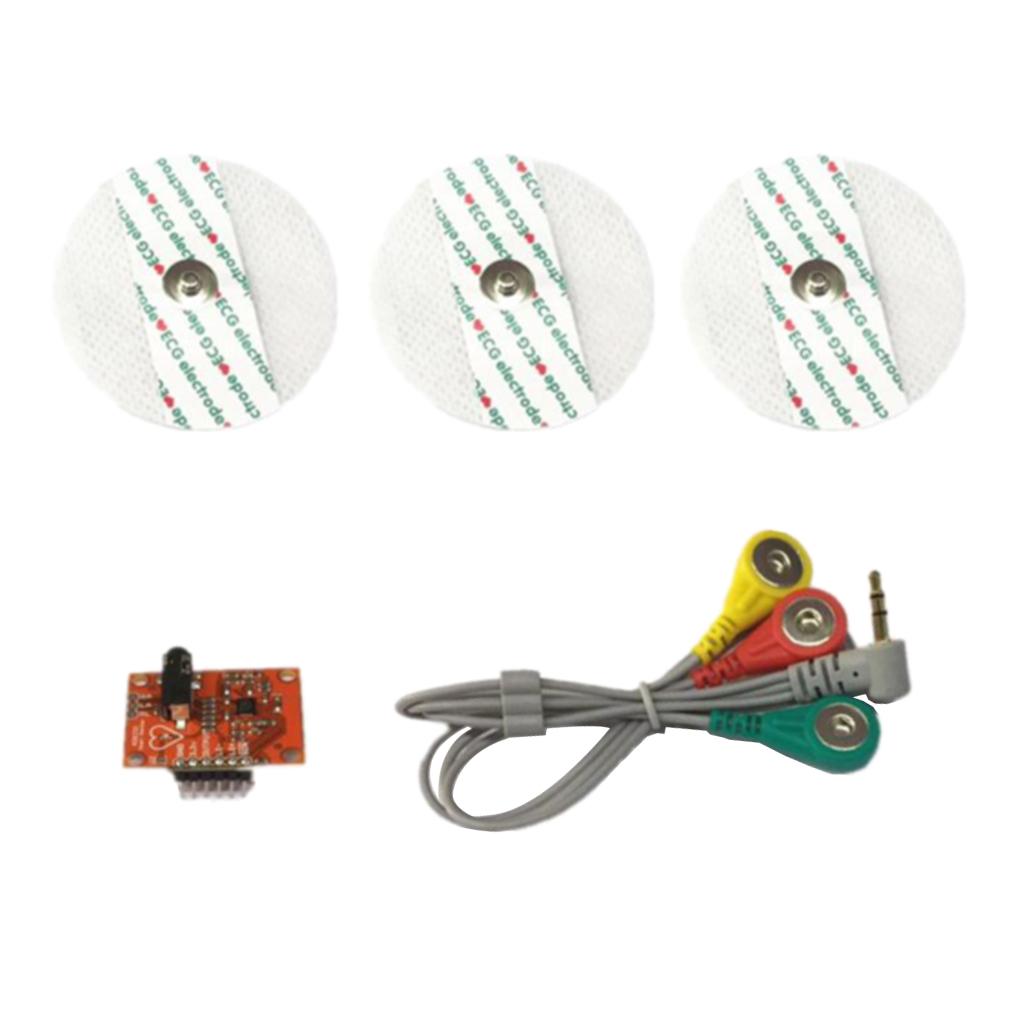

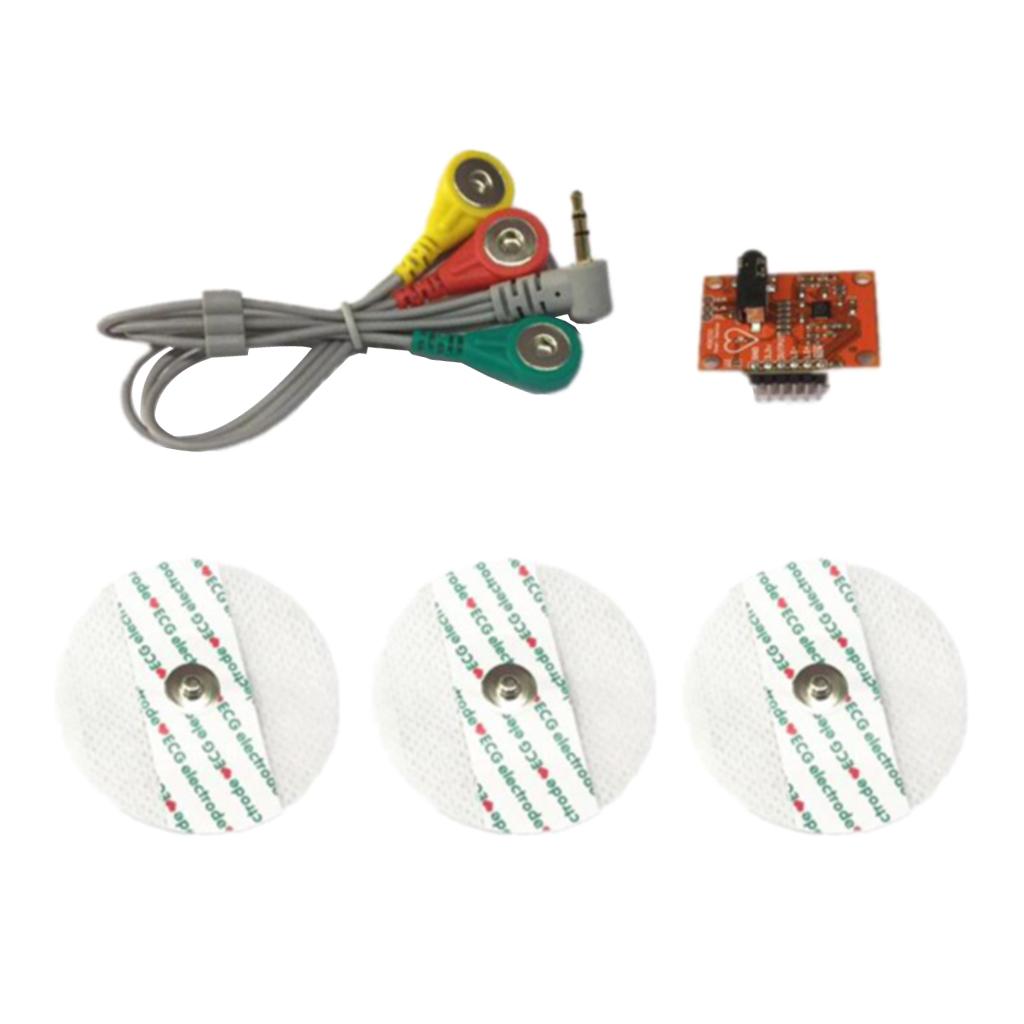

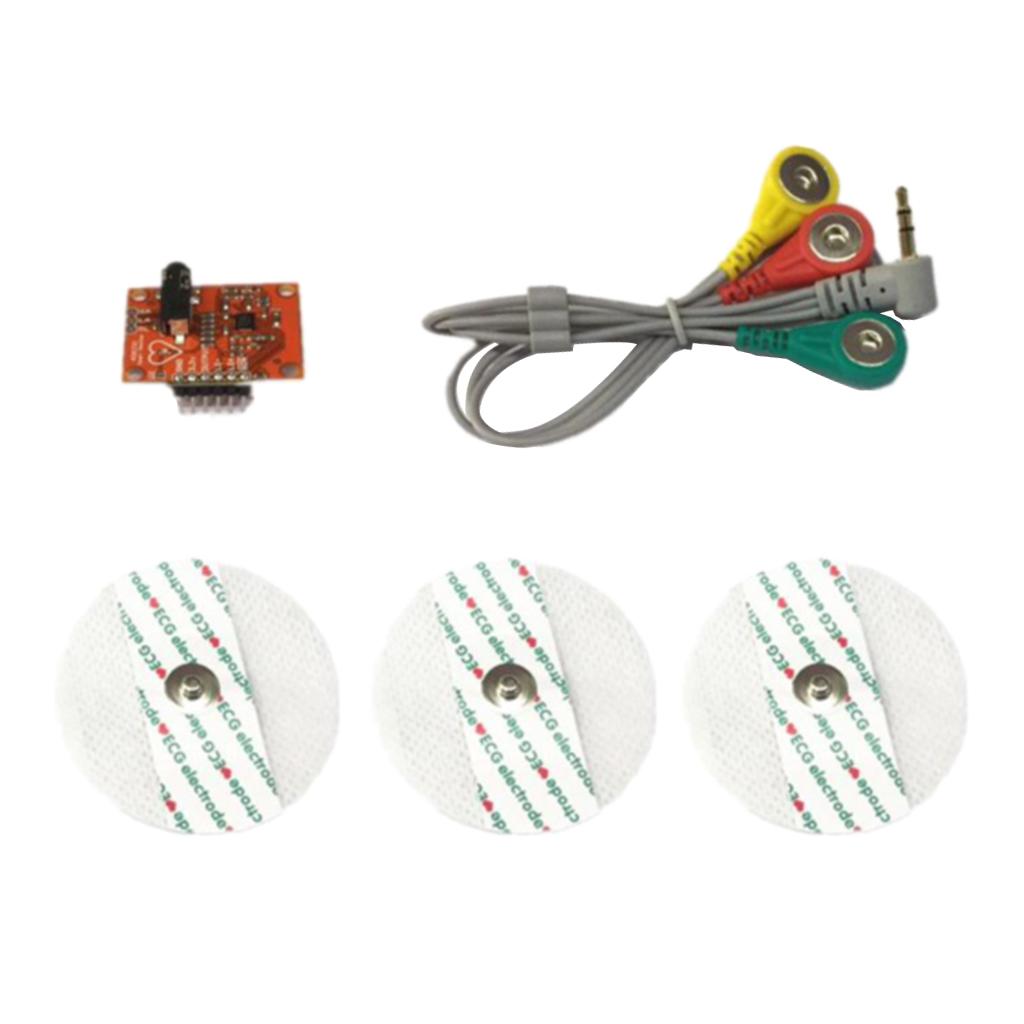

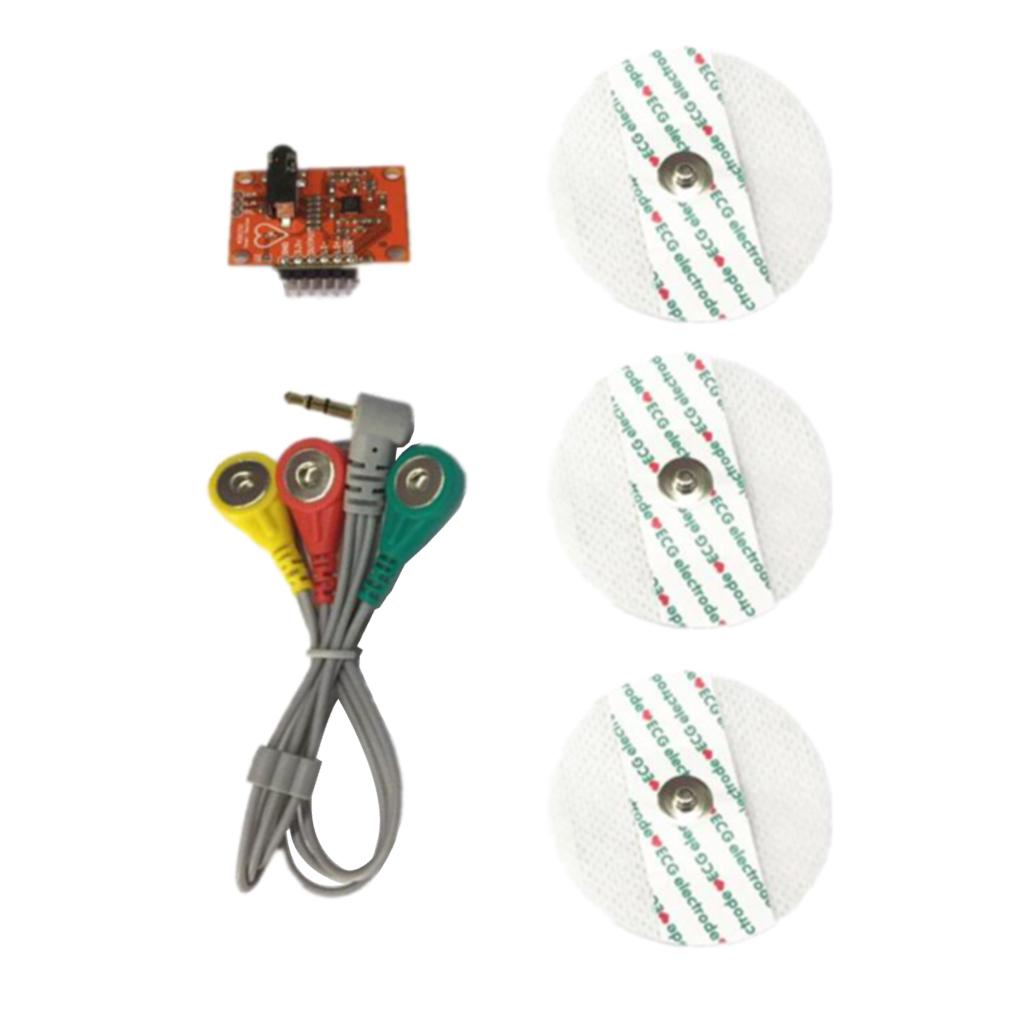

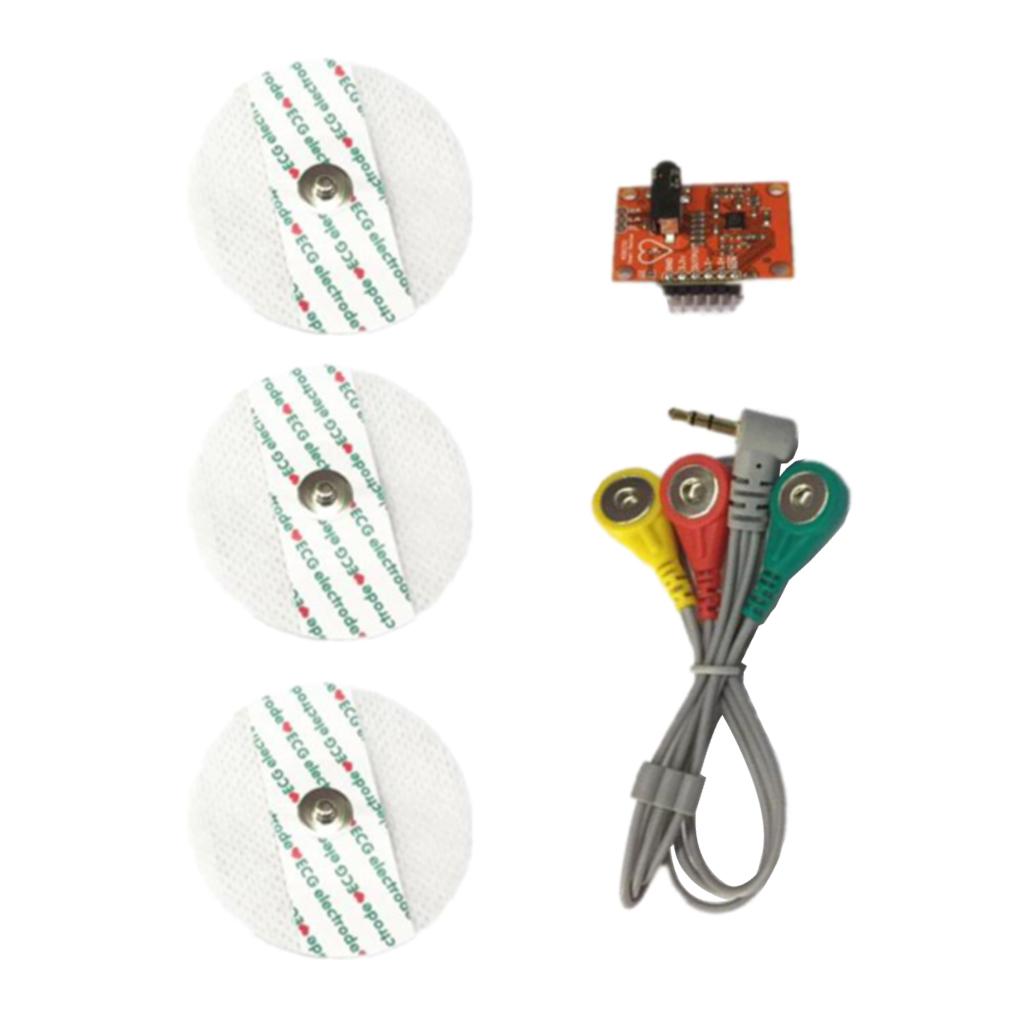

Package Includes:
1 Set of AD8232 ECG Sensor Module Kit
2 Pieces Lead Cable
Note:
The color of item might be slightly different from the picture shown, which mainly lies in different light effect and computer monitor. Please give us your understanding. Thank you!
