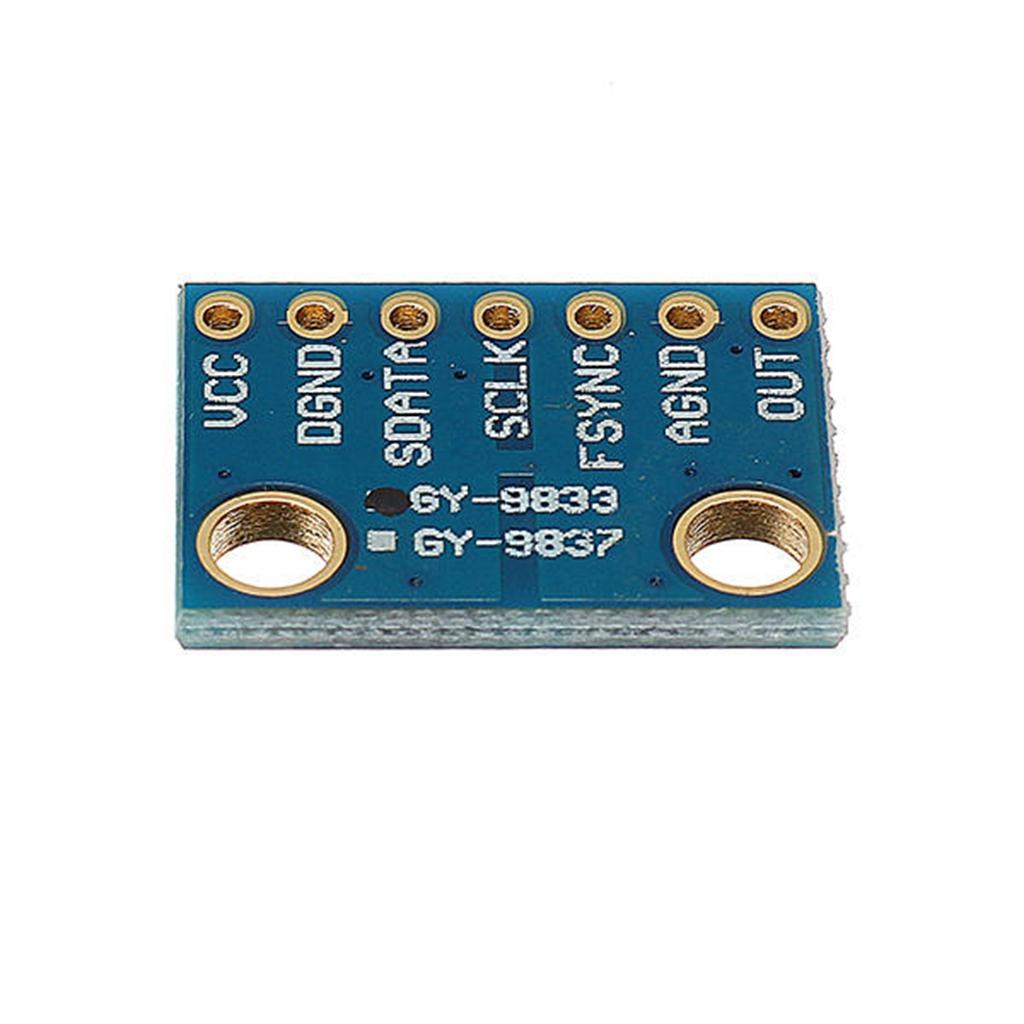

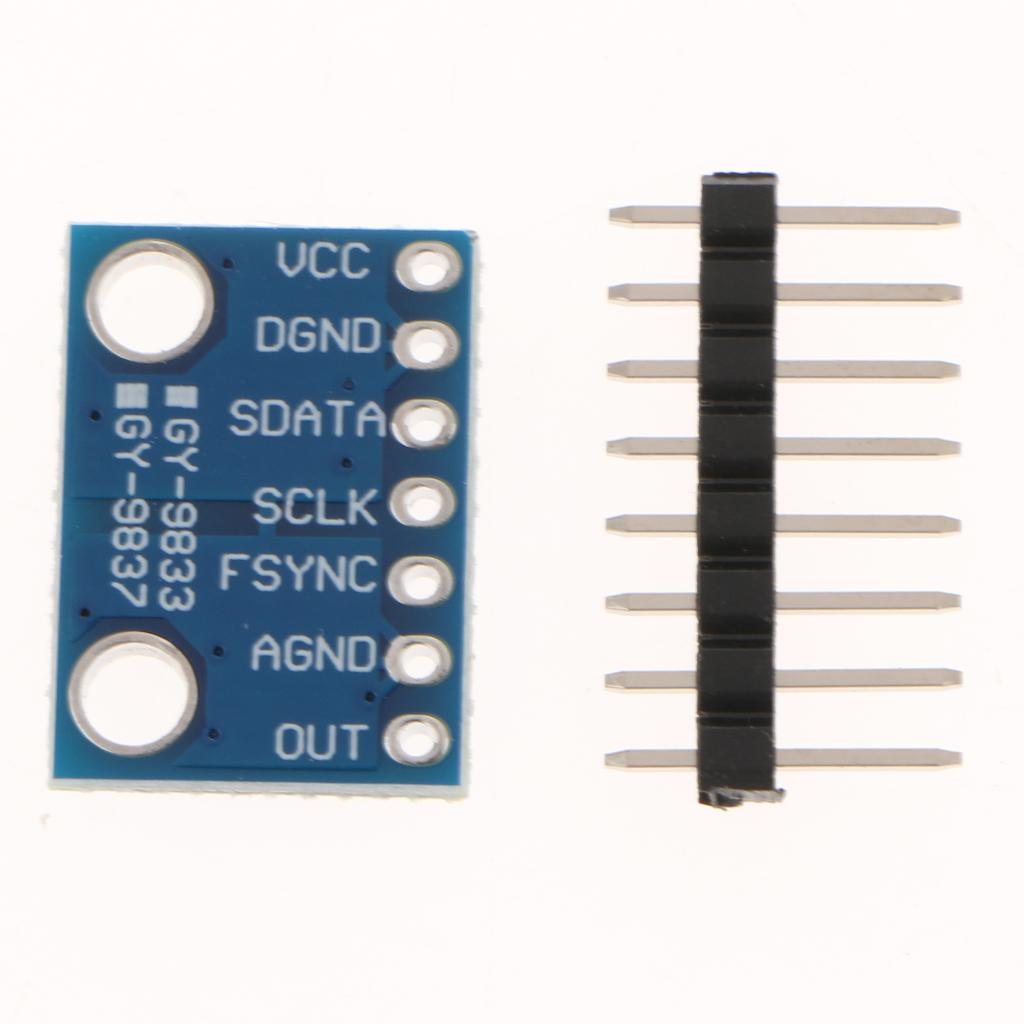

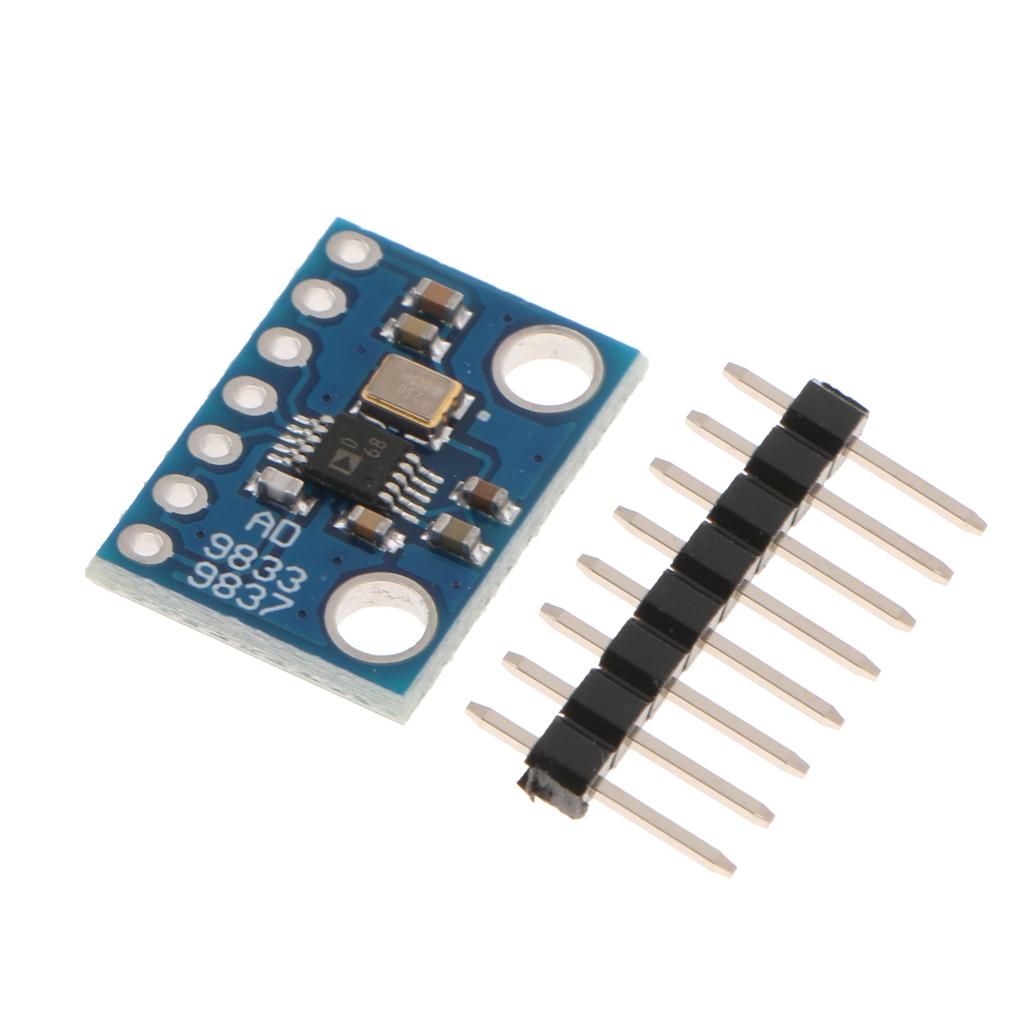

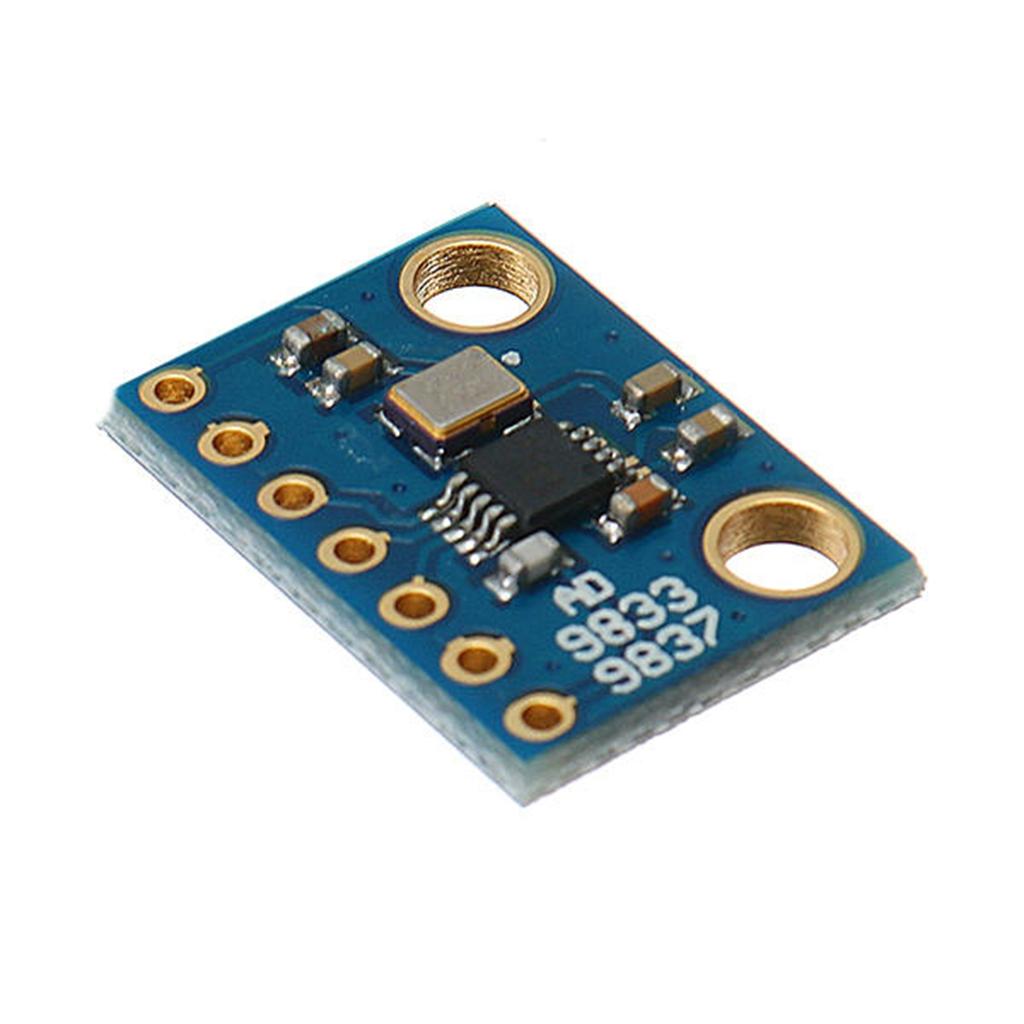

AD9833 Serial Interface Module Sine Square Wave DDS Signal Generator

Description:

AD9833 is a programmable waveform generator capable of generating a frequency 0-12.5MHZ sine, triangle, square wave signal.
Easy to adjust, clocked clock is 25MHz, precision 0.1Hz, clock frequency is 1MHz, the precision is up to 0.004Hz.
Frequency excitation / waveform generation. Liquid, gas flow measurement.
Sensing applications - approximation, sports, defect detection.
Linear loss, linear decay,Test equipment, equipment,Scan clock generator

Specification:

Material: plastic + electronic components
Product detailed size: 17mmX12mm/0.67x0.47inch
Digitally programmable frequency and phase
12.65 mW power consumption at 3 V
0 MHz to 12.5 MHz output frequency range
28-bit resolution: 0.1 Hz at 25 MHz reference clock
Sinusoidal, triangular, and square wave outputs
2.3 V to 5.5 V power supply
No external components required
3-wire SPI interface
Extended temperature range: −40°C to +105°C
Update rate: 25(max)
VOUT maximum: 0.65V
VOUT minimum: 38mV
VOUT temperature Coefficient: 200°
Input high voltage: 1.7-2.8V
Input low voltage: 0.5-0.7V
Input current: 10µA
Input capacitance: 3pF
Operating temperature range: −40°C to +105°C
Typical specification at 25°C.

Package Includes:

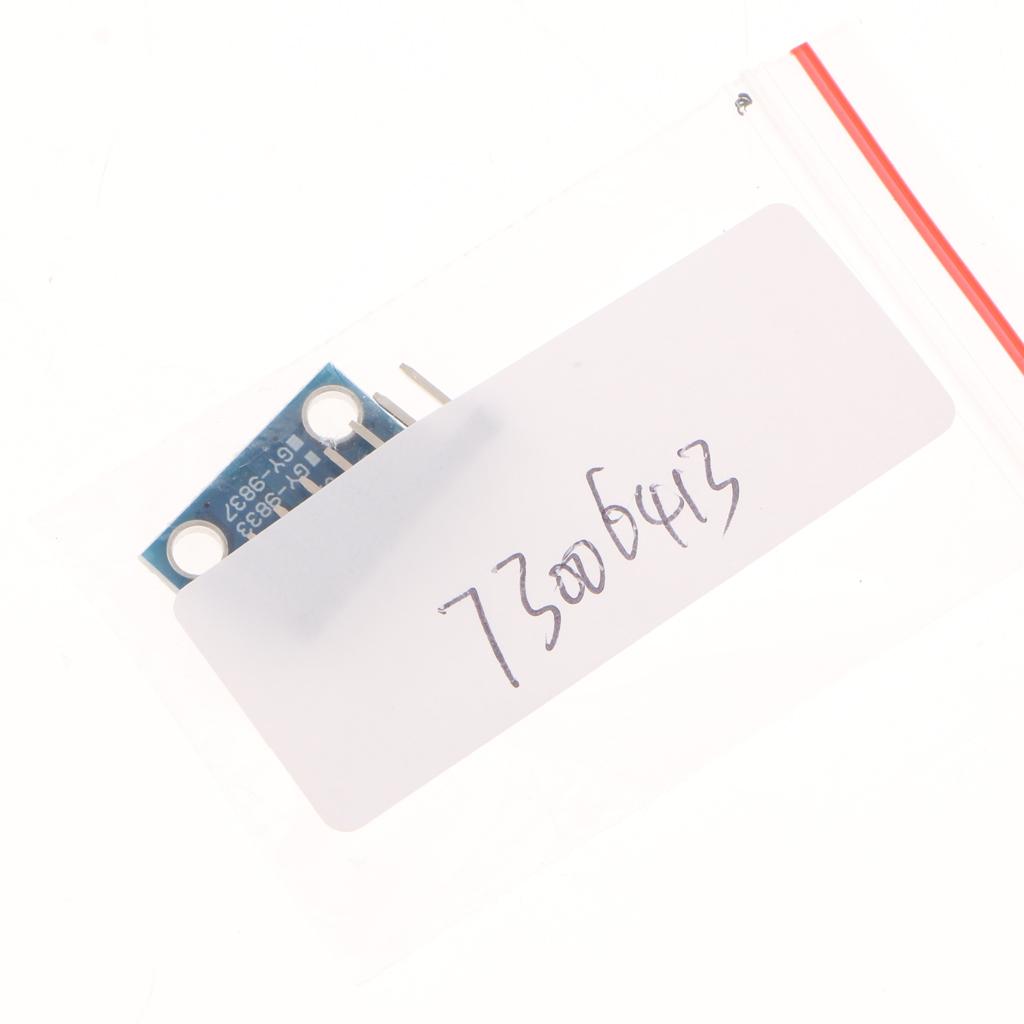

1 x Signal Generator Module
