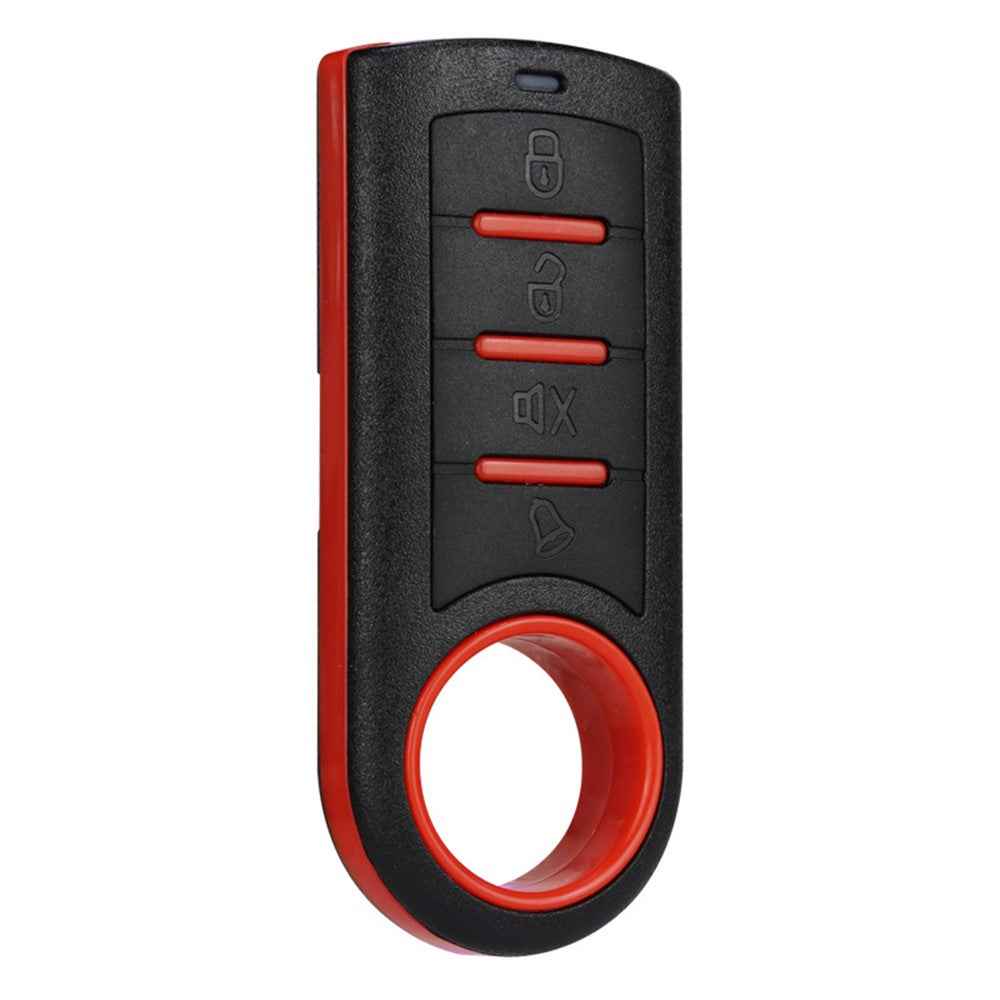

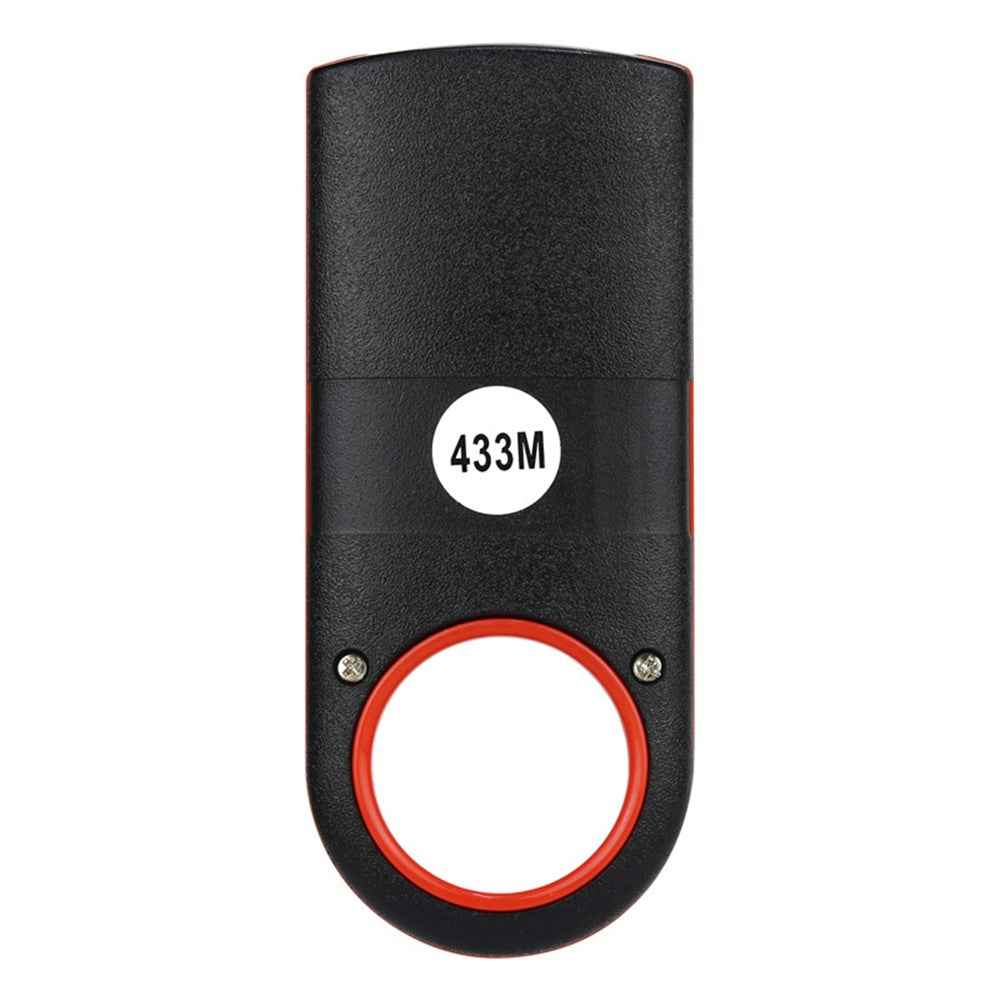

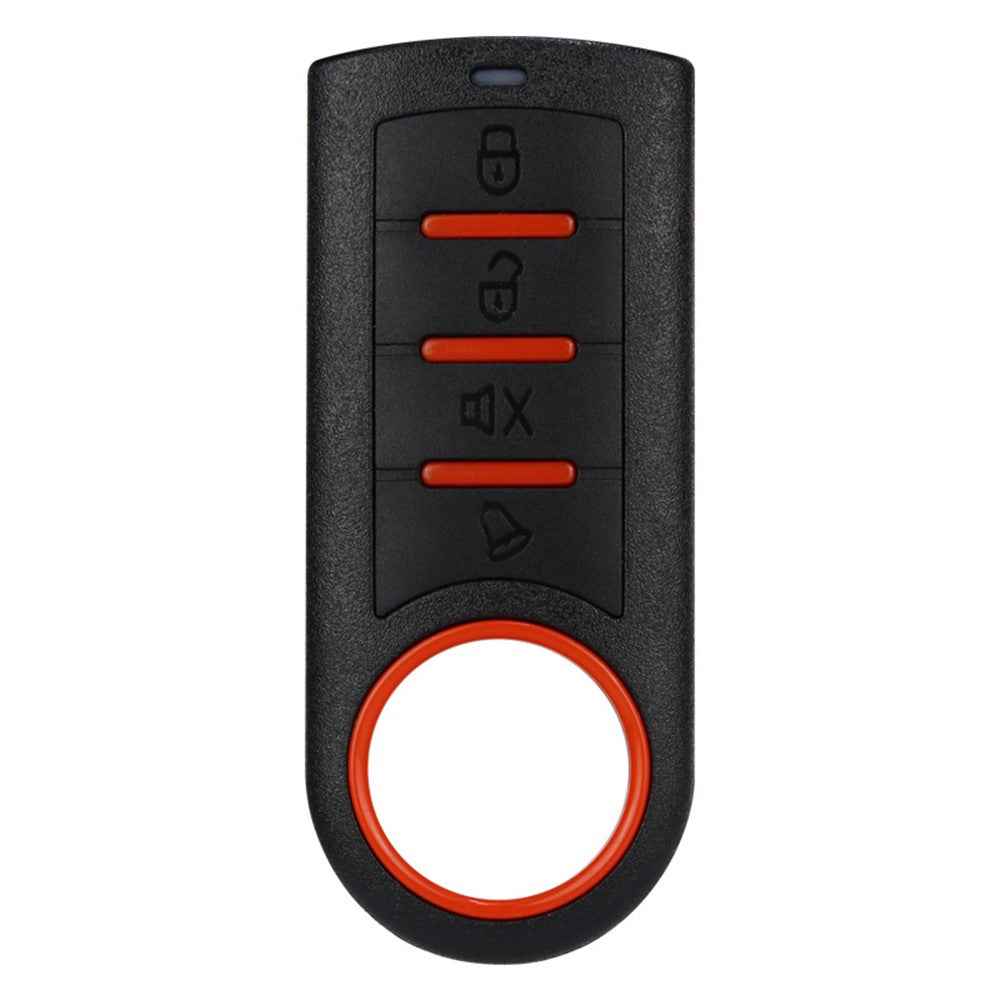

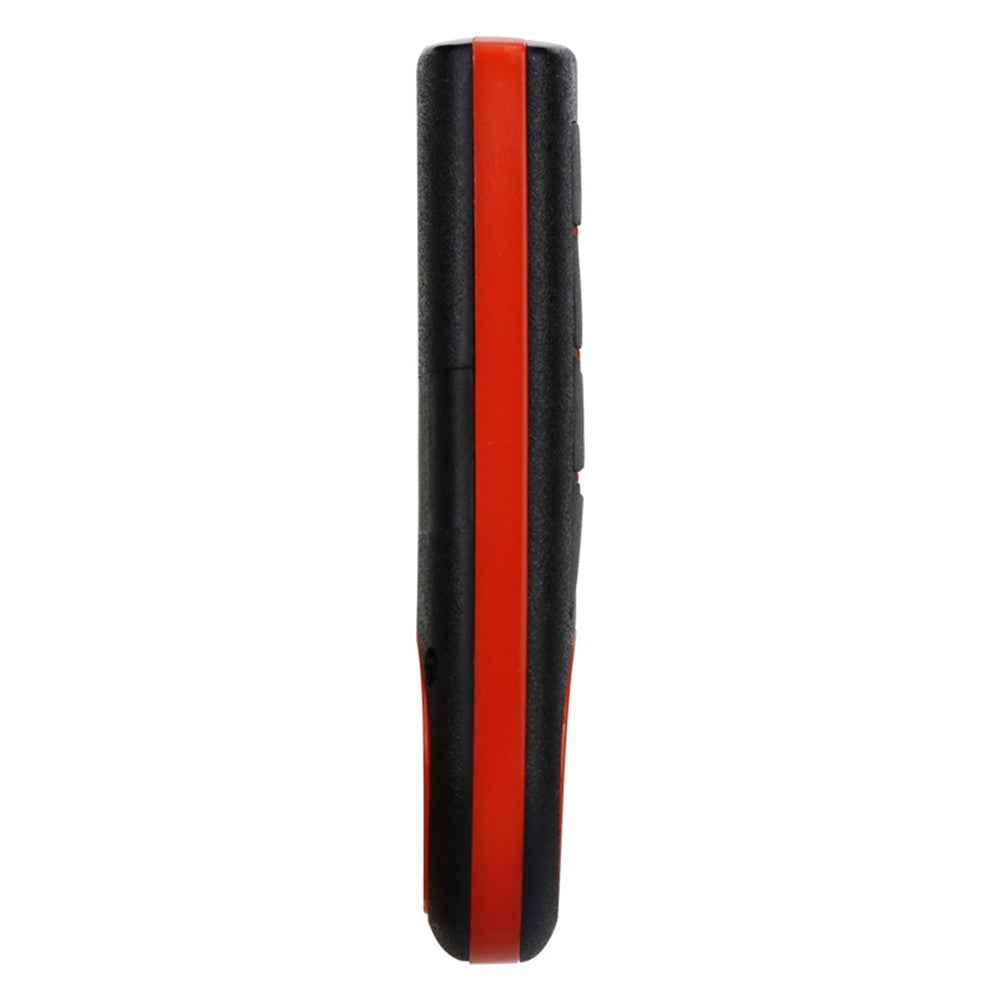

AK-K200429 433MHZ Smart Controller 4 Buttons Electric Gate Garage Door LED Light Remote Control Duplicator

• Duplicator has the function of copying the remote control

• The wireless remote control is widely used in various door and window control

• Long-distance remote control design, more convenient to operate

Specification:

• Model number: AK-K200429

• Size: 30*72*13mm

• Weight: 17g

• Modulation method: ASK modulation

• Working frequency: 433MHZ

• Working voltage: 3V button battery 2032

• Standby power consumption: less than 0.1uA

• Launch distance: 50 meters

• Working temperature: -20-70?

• Total load power: 3W

• Rated voltage range: Oscillation resistance (pulse width)

• Application scenarios: suitable for remote control of LED lights, remote control of cars and motorcycles, etc.

Code learning operation:

• Press a single button on the other remote control, and then press a single button on the copy remote control, wait until the indicator light flashes to learn the code successfully

Clear code operation:

• Long press the two buttons on the remote control at the same time, and release the left button after the indicator light flashes. Press the left button three times to clear the code successfully

Recovery operation:

• Long press the two buttons on the remote control at the same time, and wait for the indicator light to flash to restore the data bits learned before the code is cleared

Note:

• In an environment with high wireless interference, the remote control distance may be reduced

• Keep out of reach of children

• It is forbidden to use it in a humid environment, otherwise it may cause damage to the remote control
