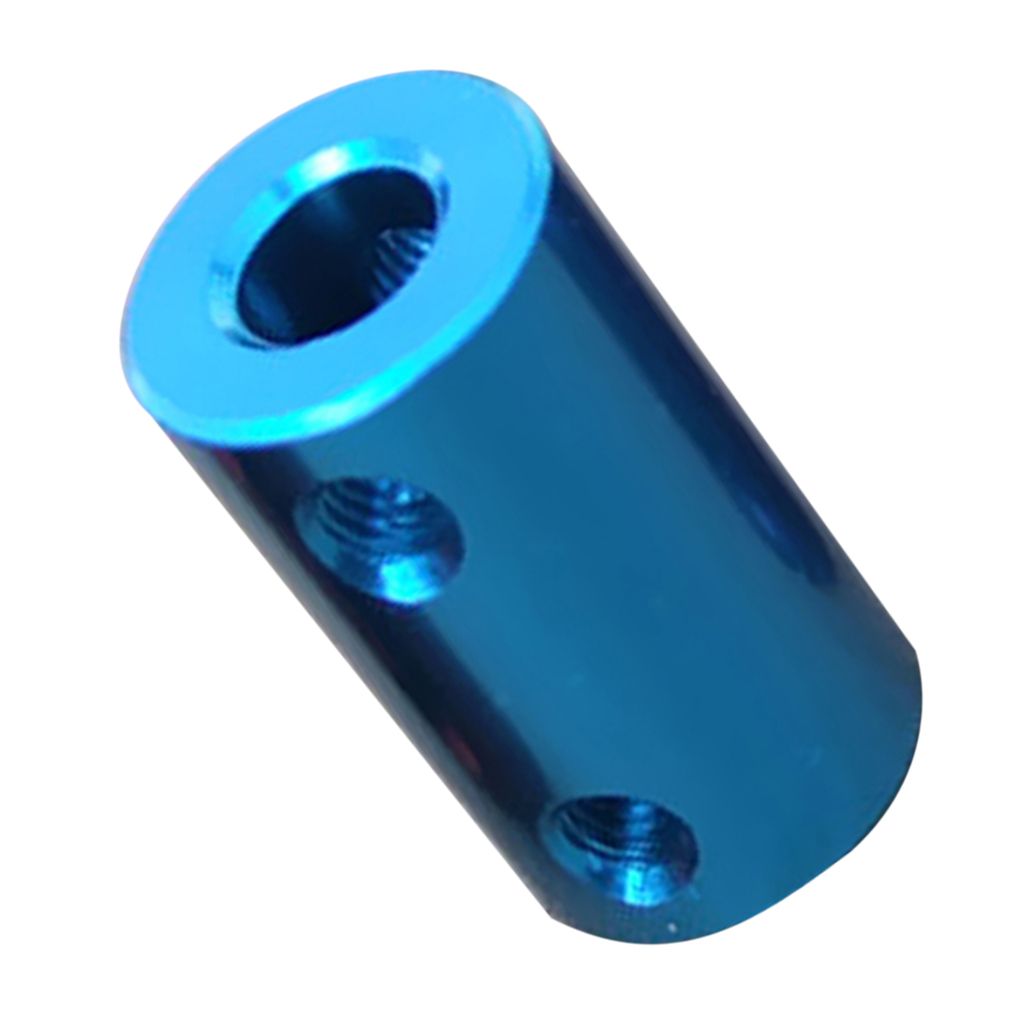

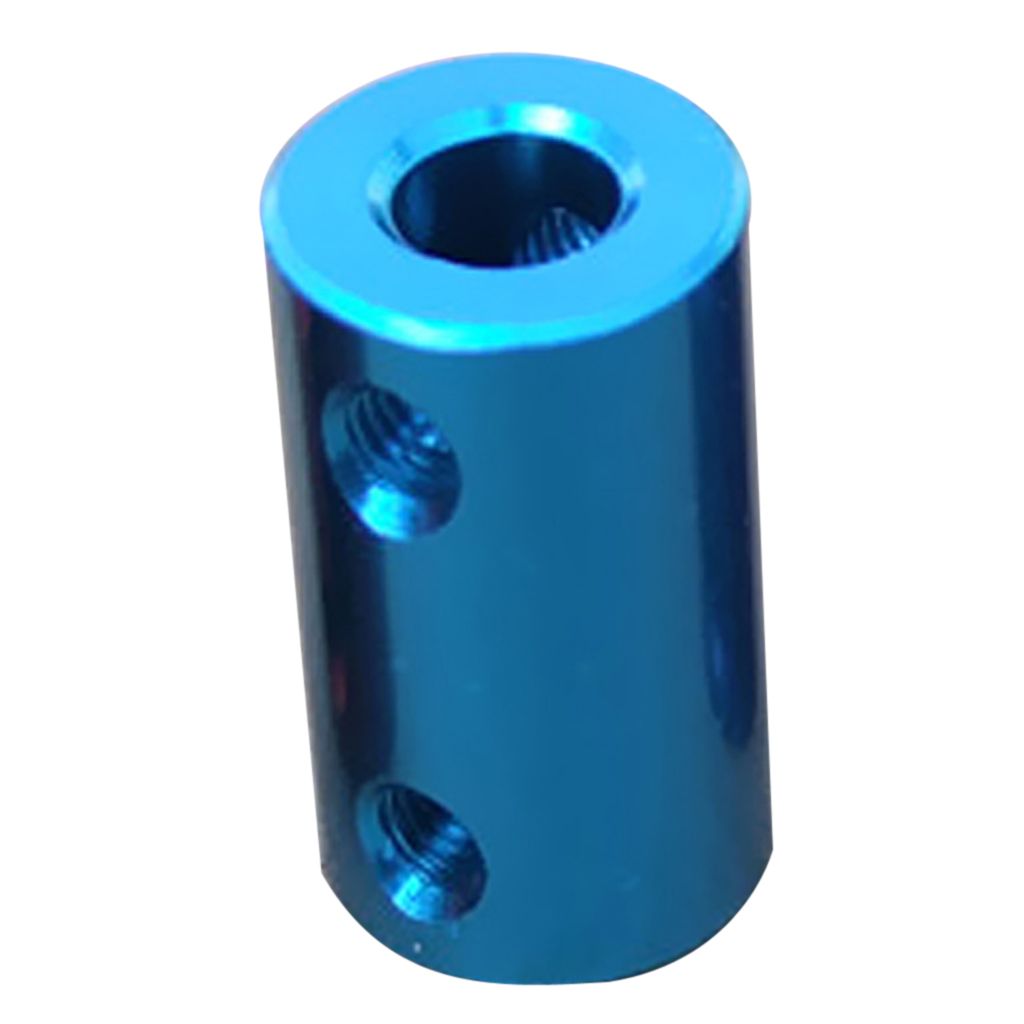

Aluminum Flexible Shaft Coupling Rigid Coupler Motor Connector 8-10mm

Description:

- Made from aluminium alloy material to reduce inertia

- Rigid coupling,high torque with rigidity,low inertia and excellent sensitivity

- No rotation gap, elastic action can make up for symmetrical angular misalignment

- Maintenance-free, oil proof and corrosion resistance

- Suitable for model car, model boat, hardware, mould, mechanical drive situations etc

Specification:

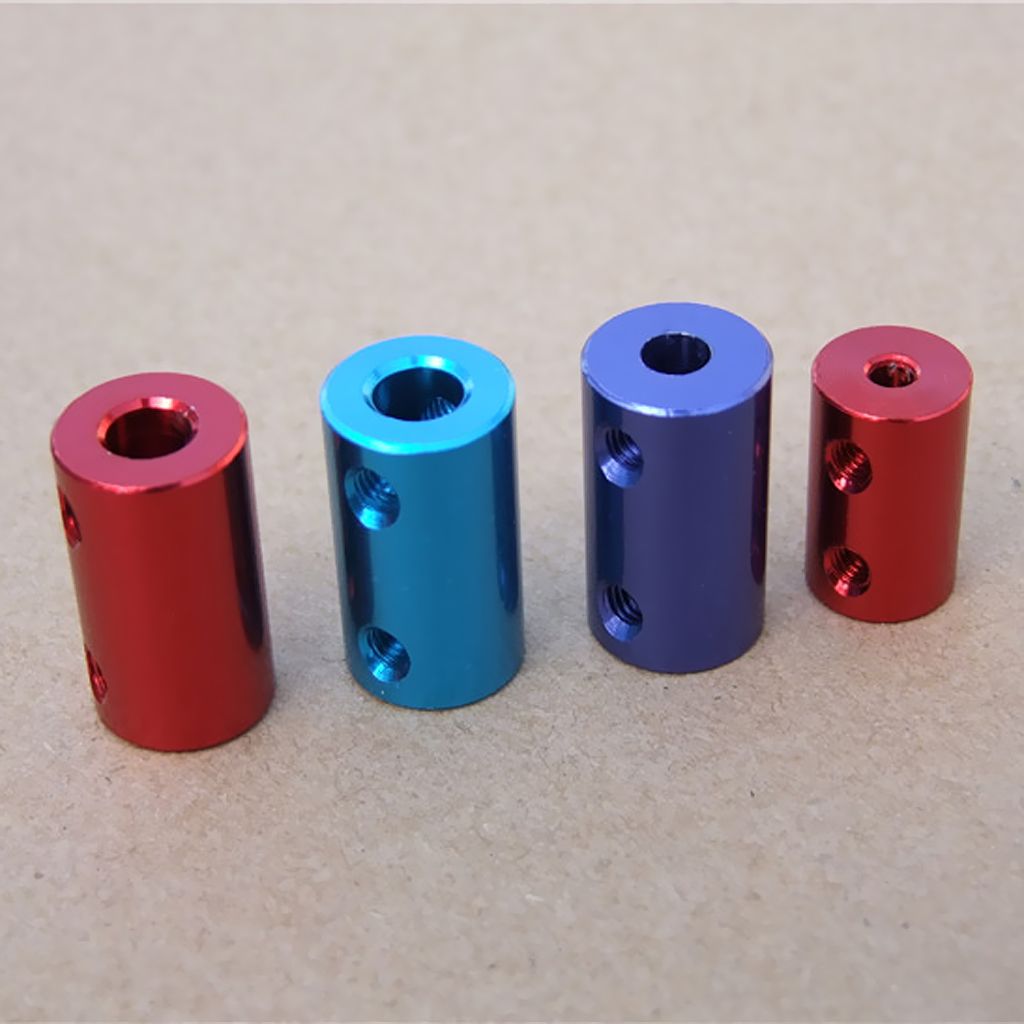

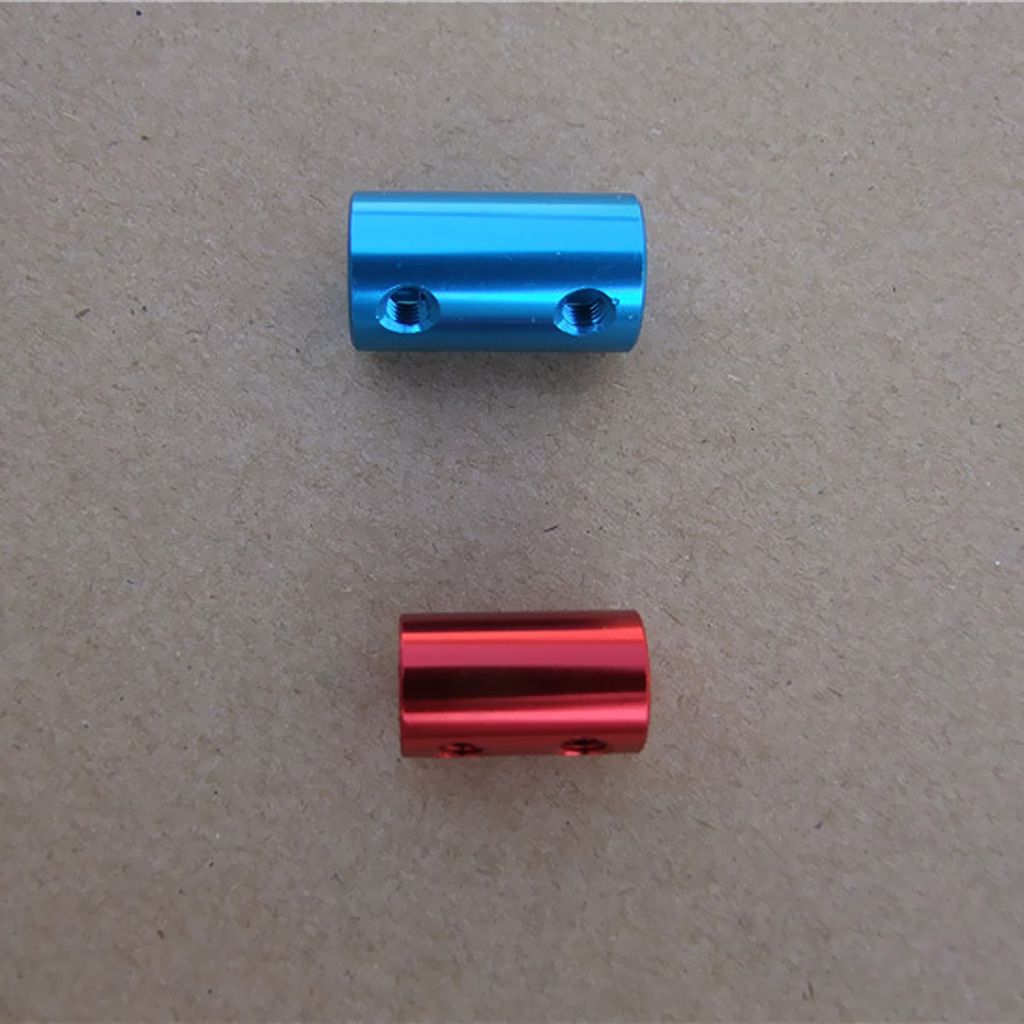

- Size (DxL): Approx. 12x20mm/ 0.47x0.79inch; Color: Dark Red

- Size (DxL): Approx. 14x25mm/ 0.55x0.98inch; Color: Dark Blue/ Water Blue

- Size (DxL): Approx. 16x25mm/ 0.63x0.98inch; Color: Water Blue

- Screw Hole Diameter:4mm

Transfer Pore Diameter:multiple specification

- Pore Diameter Tolerance:+0.02mm

- Model "5-6mm" means one end is 5mm pore diameter,the other is 6mm

Size Chart:

Model (Pore Diameter): 2-2mm, DxL: 12x20mm, Color: Dark Red

Model (Pore Diameter): 2-3mm, DxL: 12x20mm, Color: Dark Red

Model (Pore Diameter): 2-3.17mm, DxL: 12x20mm, Color: Dark Red

Model (Pore Diameter): 2-4mm, DxL: 12x20mm, Color: Dark Red

Model (Pore Diameter): 2.3-4mm, DxL: 12x20mm, Color: Dark Red

Model (Pore Diameter): 3-3mm, DxL: 12x20mm, Color: Dark Red

Model (Pore Diameter): 3-4mm, DxL: 12x20mm, Color: Dark Red

Model (Pore Diameter): 3-5mm, DxL: 12x20mm, Color: Dark Red

Model (Pore Diameter): 3.17-4mm, DxL: 12x20mm, Color: Dark Red

Model (Pore Diameter): 3.17-5mm, DxL: 12x20mm, Color: Dark Red

Model (Pore Diameter): 4-4mm, DxL: 14x25mm, Color: Dark Blue

Model (Pore Diameter): 4-6mm, DxL: 14x25mm, Color: Dark Blue

Model (Pore Diameter): 4-7mm, DxL: 14x25mm, Color: Dark Blue

Model (Pore Diameter): 4-8mm, DxL: 14x25mm, Color: Dark Blue

Model (Pore Diameter): 5-5mm, DxL: 14x25mm, Color: Dark Blue

Model (Pore Diameter): 5-6mm, DxL: 14x25mm, Color: Dark Blue

Model (Pore Diameter): 5-6.35mm, DxL: 14x25mm, Color: Dark Blue

Model (Pore Diameter): 5-7mm, DxL: 14x25mm, Color: Dark Blue

Model (Pore Diameter): 5-8mm, DxL: 14x25mm, Color: Dark Blue

Model (Pore Diameter): 6-6mm, DxL: 14x25mm, Color: Water Blue

Model (Pore Diameter): 6-7mm, DxL: 14x25mm, Color: Water Blue

Model (Pore Diameter): 6.35-6.35mm, DxL: 14x25mm, Color: Water Blue

Model (Pore Diameter): 6.35-8mm, DxL: 14x25mm, Color: Water Blue

Model (Pore Diameter): 6.35-10mm, DxL: 16x25mm, Color: Water Blue

Model (Pore Diameter): 8-8mm, DxL: 14x25mm, Color: Water Blue

Model (Pore Diameter): 8-10mm, DxL: 16x25mm, Color: Water Blue

Package Includes:

1 piece Motor Coupling

1 piece Spanner

4 pieces Screws

Note:

Please allow 1-3mm differs due to manual measurement

Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
