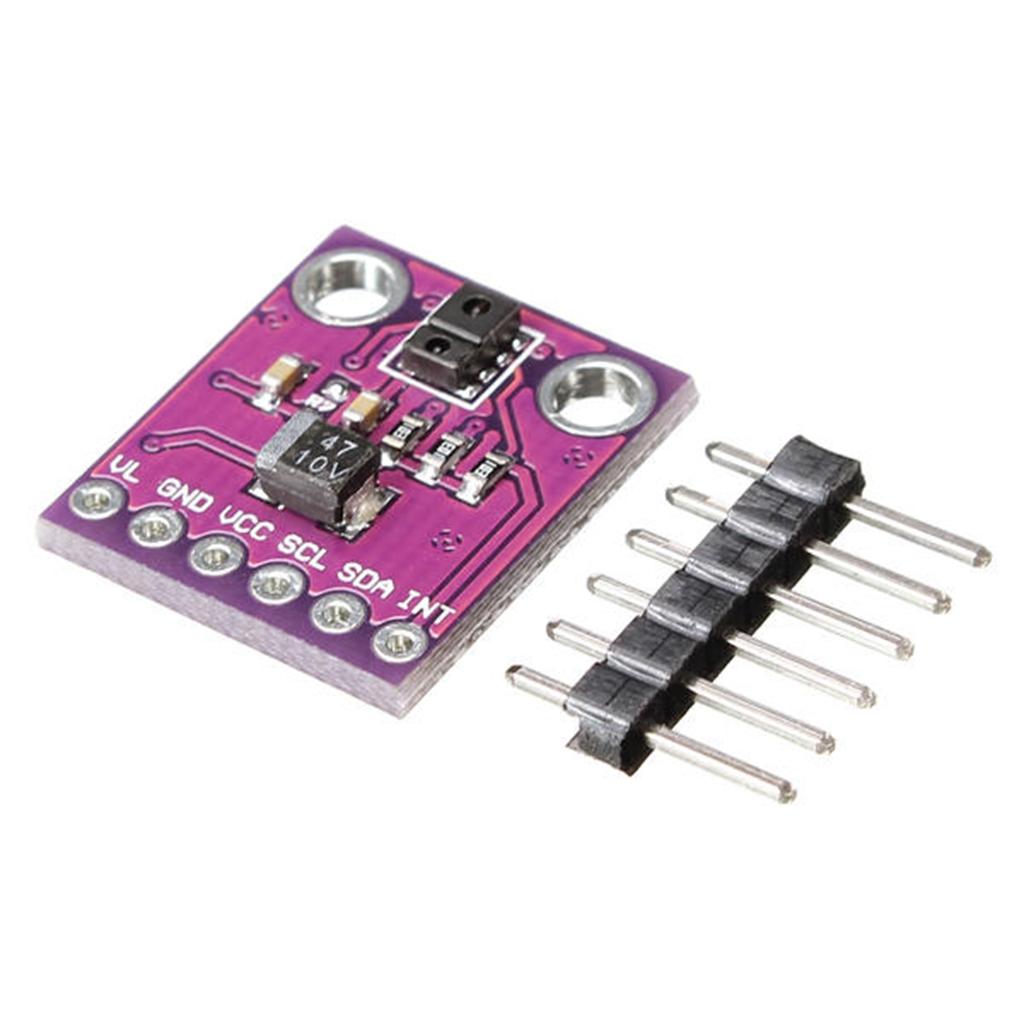

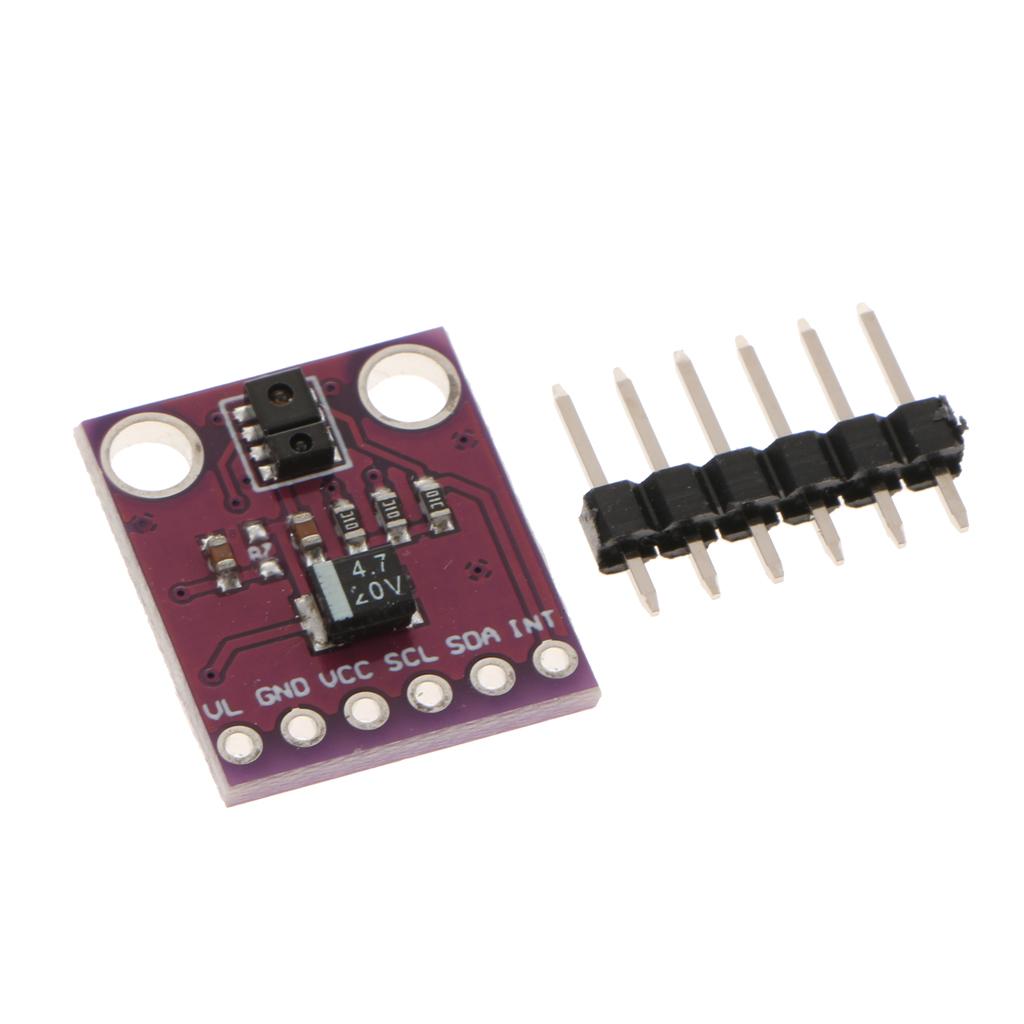

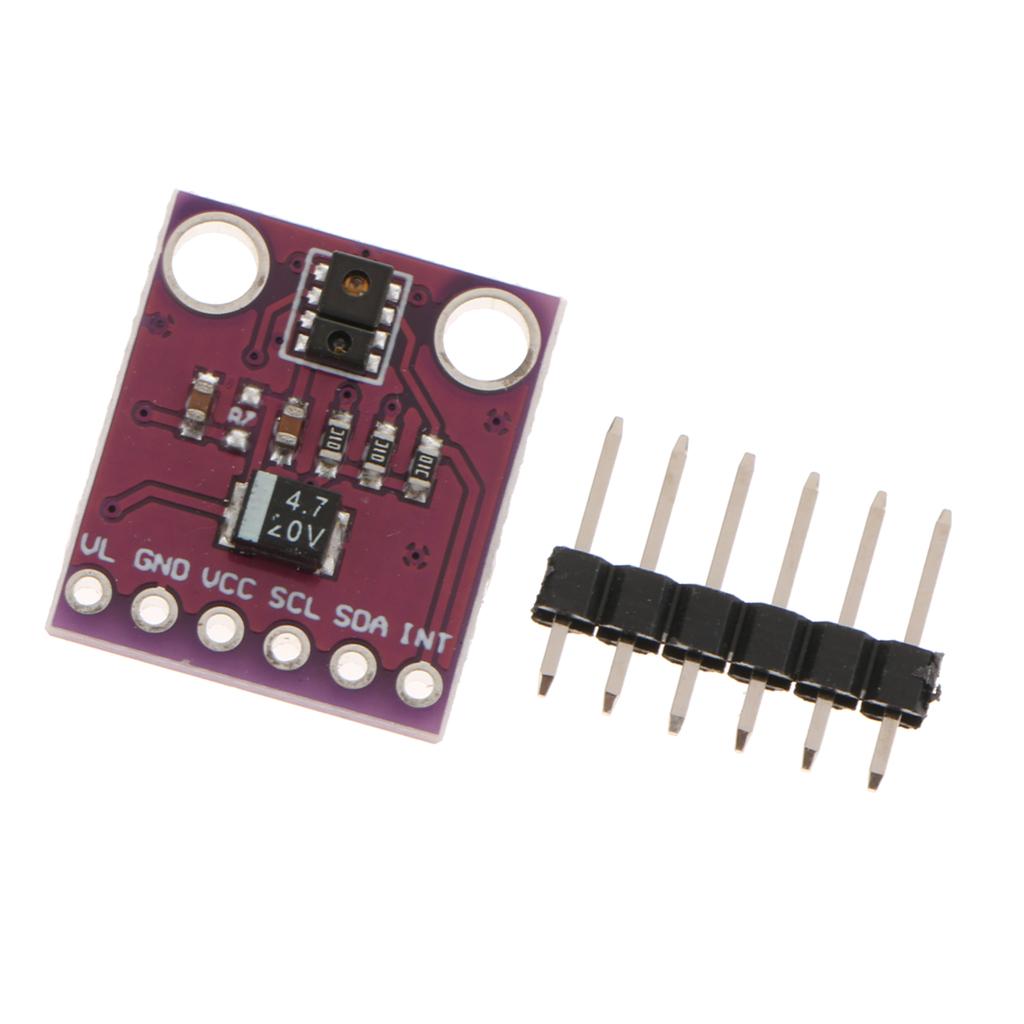

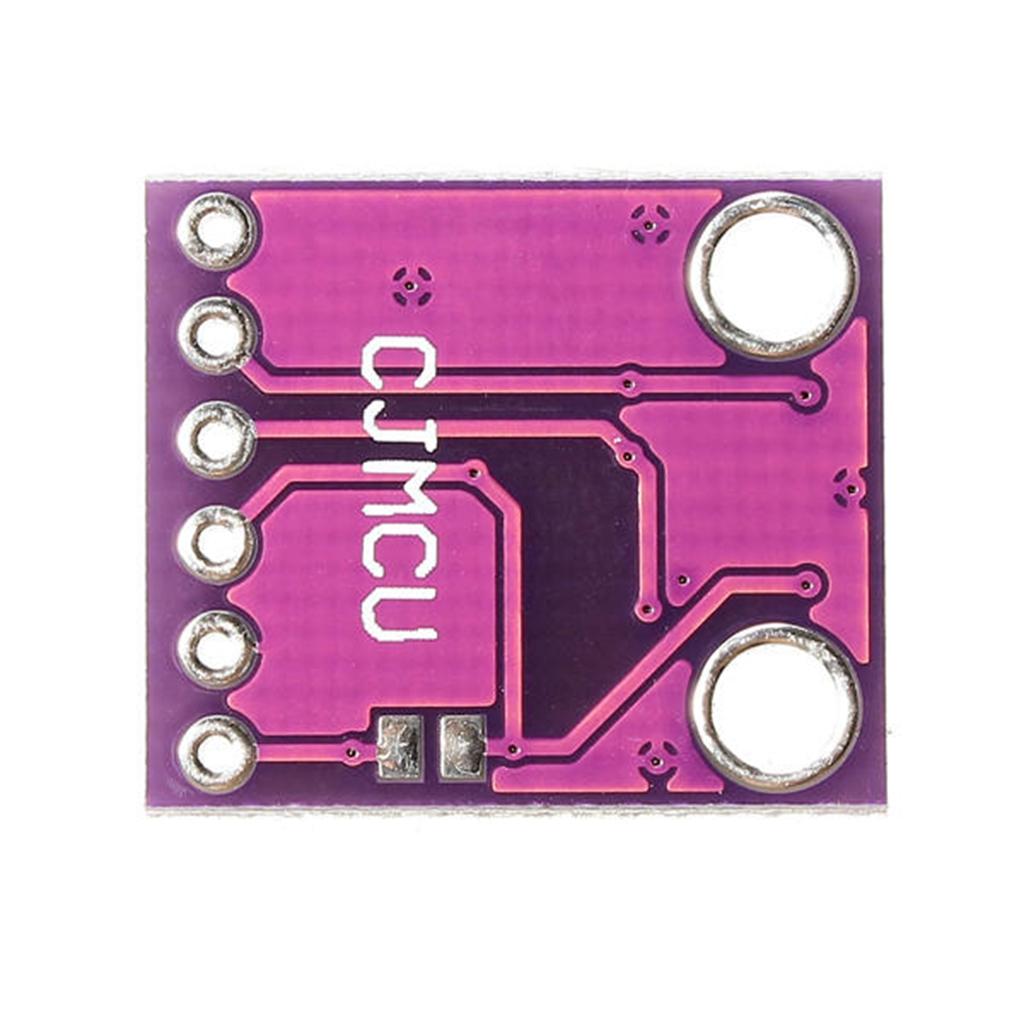

APDS-9930 Digital Proximity And Ambient Light Gesture Sensor For

Description:

Mainly uses APDS-9930 chip. APDS-9930 in a single 8 pin package can provide the ambient light sensor which is compatible with I2C interface and the infrared LED proximity sensor.
Ambient light sensor uses double light diode to approximate the visual response of low lumen human under 0.01 lux illumination, and its high sensitivity allows the device to operate in the back of dark glass. Programmable interrupt capability with upper and lower thresholds up to 16-bit resolution high sensitivity operation behind dark glass
Proximity sensor which is completely adjusted can detect 100 mm object, and exempt the factory calibration requirements of terminal equipment as well as sub-components.
From the bright sunlight to the dark room, proximity sensor's proximity detection function can operate well module added micro optical lens can provide infrared energy efficient transmission and reception, which can reduce the overall power consumption.
Optical modules integrated with ALS, infrared LEDs and proximity detectors Ambient Light Sensing (ALS) approximate human visual response

Specification:

Material: plastic + electronic components
Product detailed size: 40mmX24mm/1.57x0.94inch
Wait state power consumption : 90μA typical
Programmable range from 2.7 ms to more than 8 seconds
I2C interface compatible Up to 400kHz (I2C fast mode)
Sleep Mode Power :2.2μA typical
Adjustable light mobile phone backlight
Notebook / display security
ASutomatically enabled hands-free mode
Automatic menu pop up
Digital camera eye senso

Package Includes:

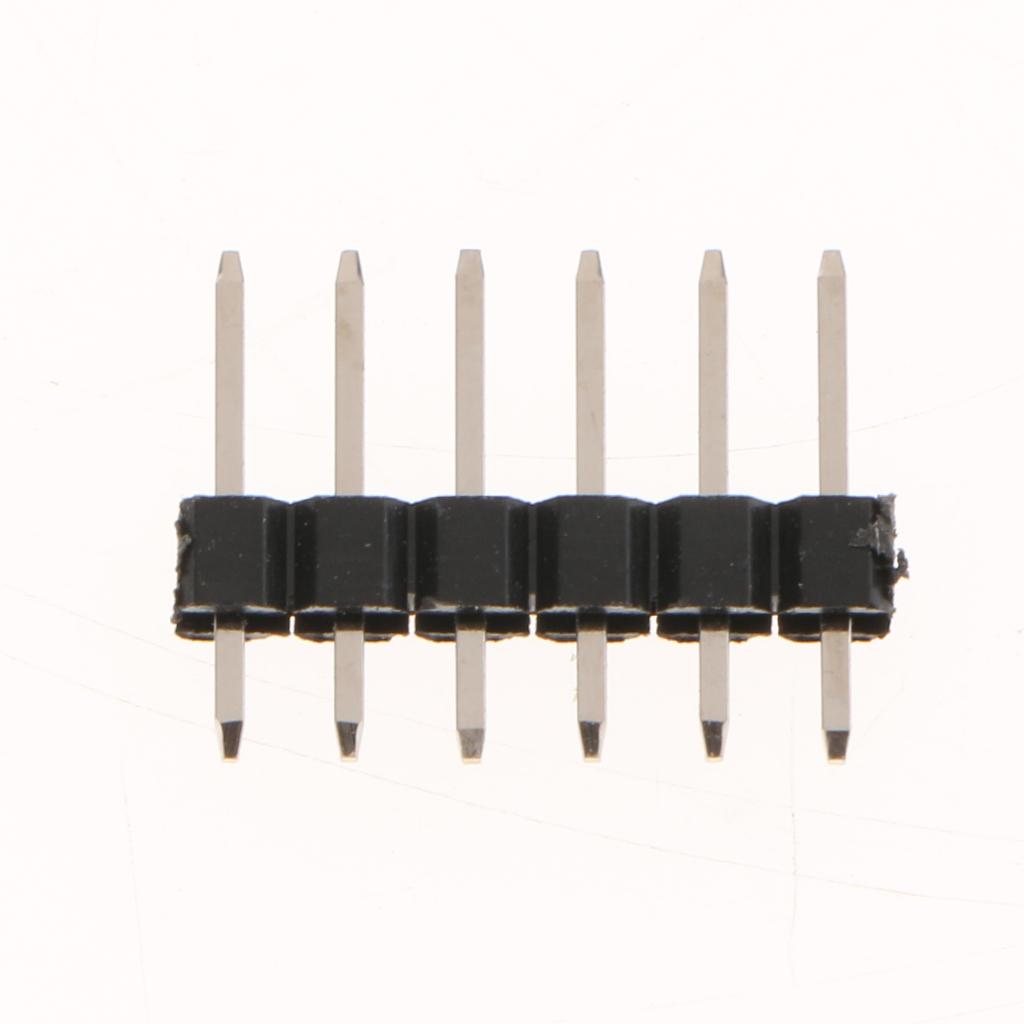

1 x APDS-9930 Digital Proximity And Ambient Light Sensor
