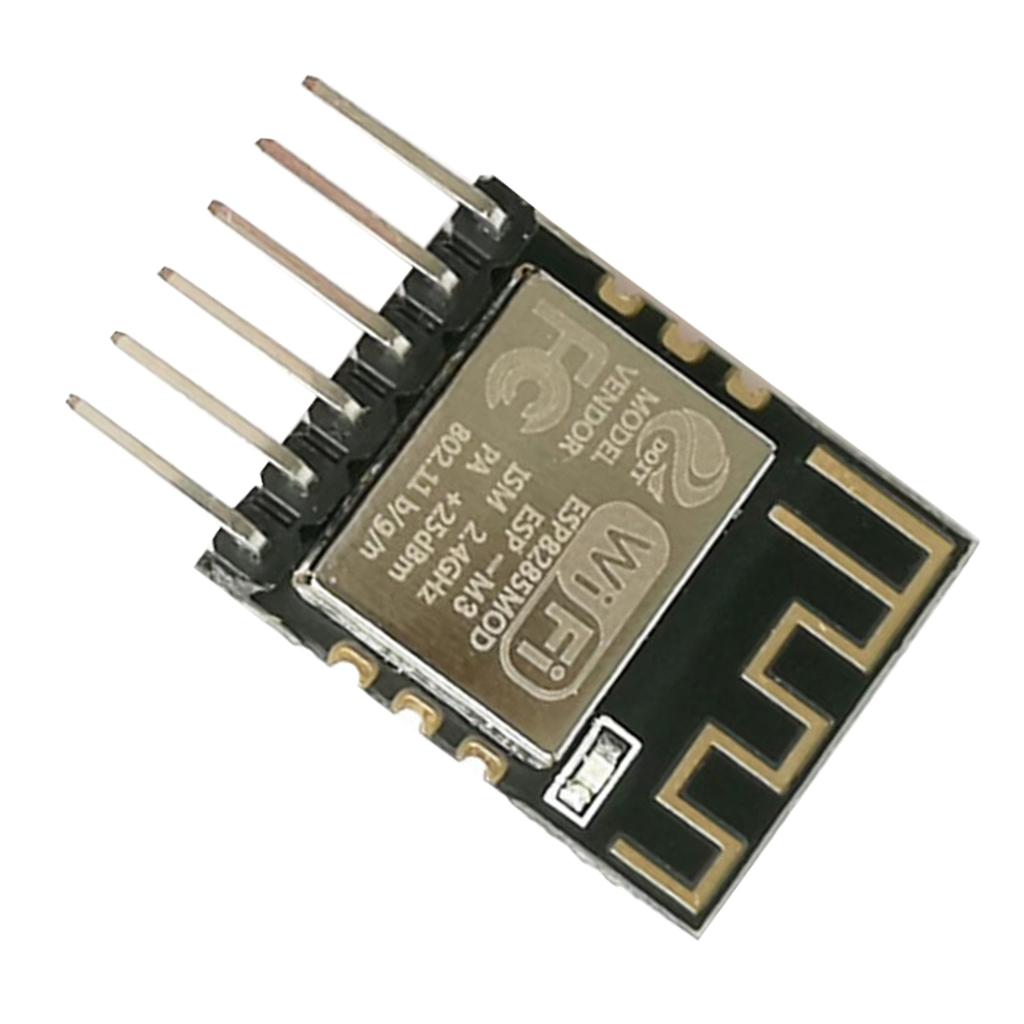

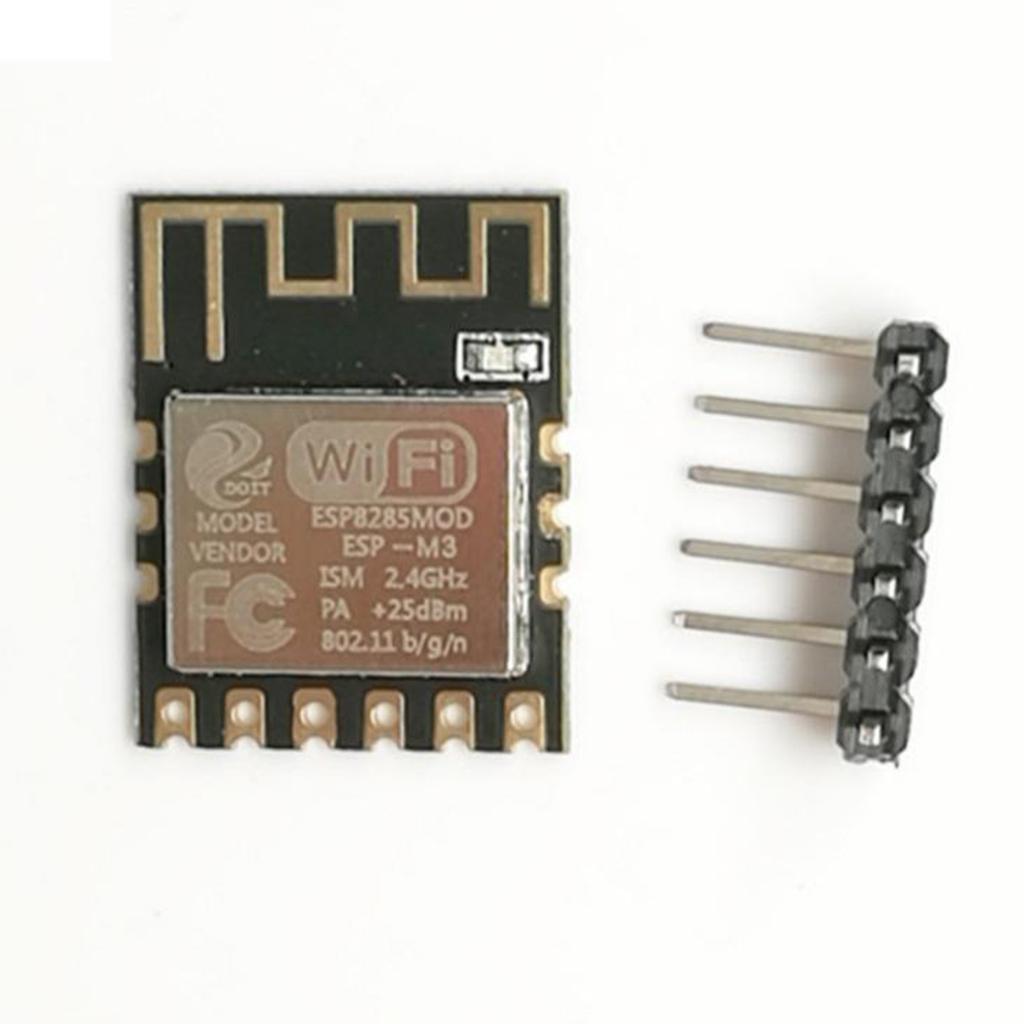

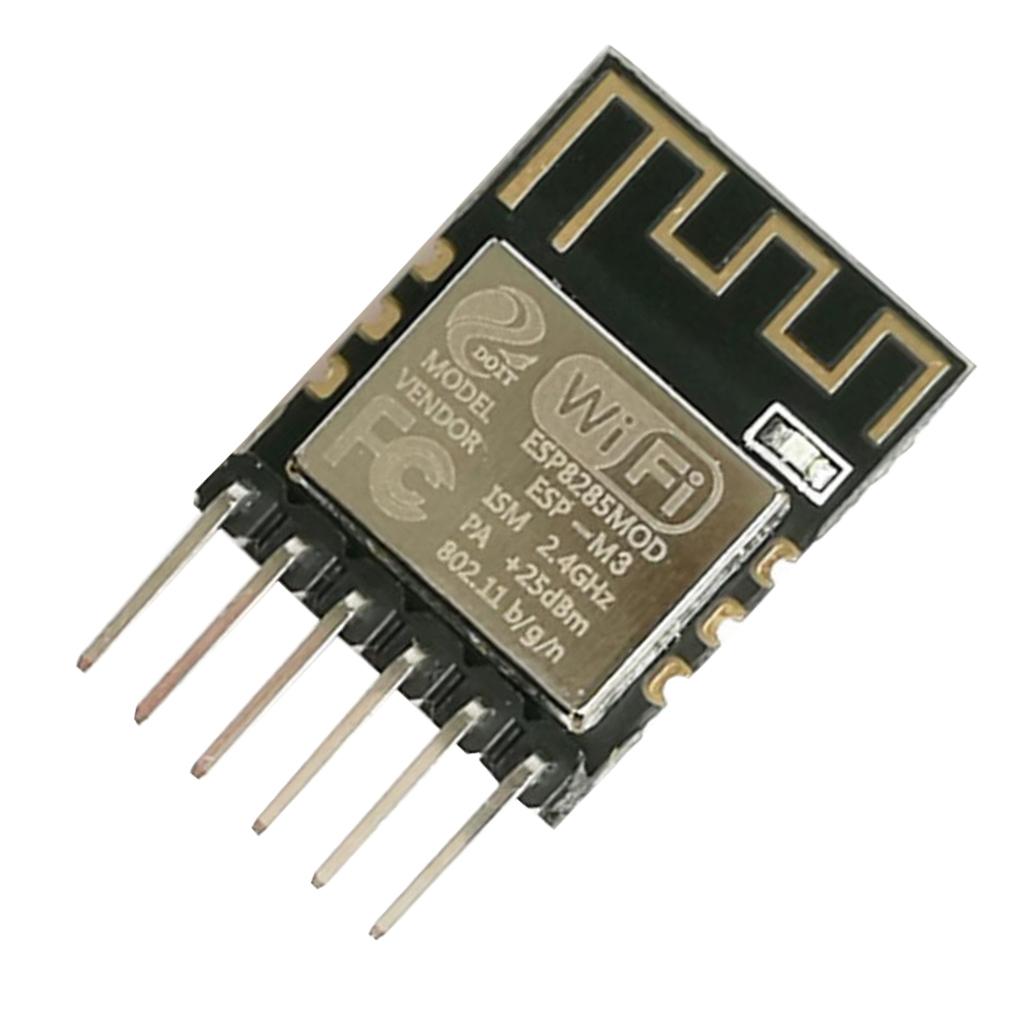

AT Firmware Extra Small ESP8285 WiFi Module ESP-M3 Serial Port Wireless

Description:

AT Firmware Extra Small ESP8285 WiFi Module ESP-M3 serial port wireless transparent transmission control module
More important, the code programmed in ESP8266 can be used for ESP8285 intactly.
Bearing high temperature up to 125℃, compared to the 85℃ for ESP8266.
ESP-M3 is encapsulated by the high performance chip ESP8285, which is equal to ESP8266 chip plus 1M Flash.
The chip ESP8285 is encapsulated a advanced Tensilica's L106 32-bit CPU.
ESP8285 has the full and complete WiFi fuction, which can used independently and alsoused as a slaver with other Hoster MCU, which can start directly from the out-built Flash.
In addition, the built-in high-speed buffer is benefit for the system performance. Especially, ESP8285 can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design.

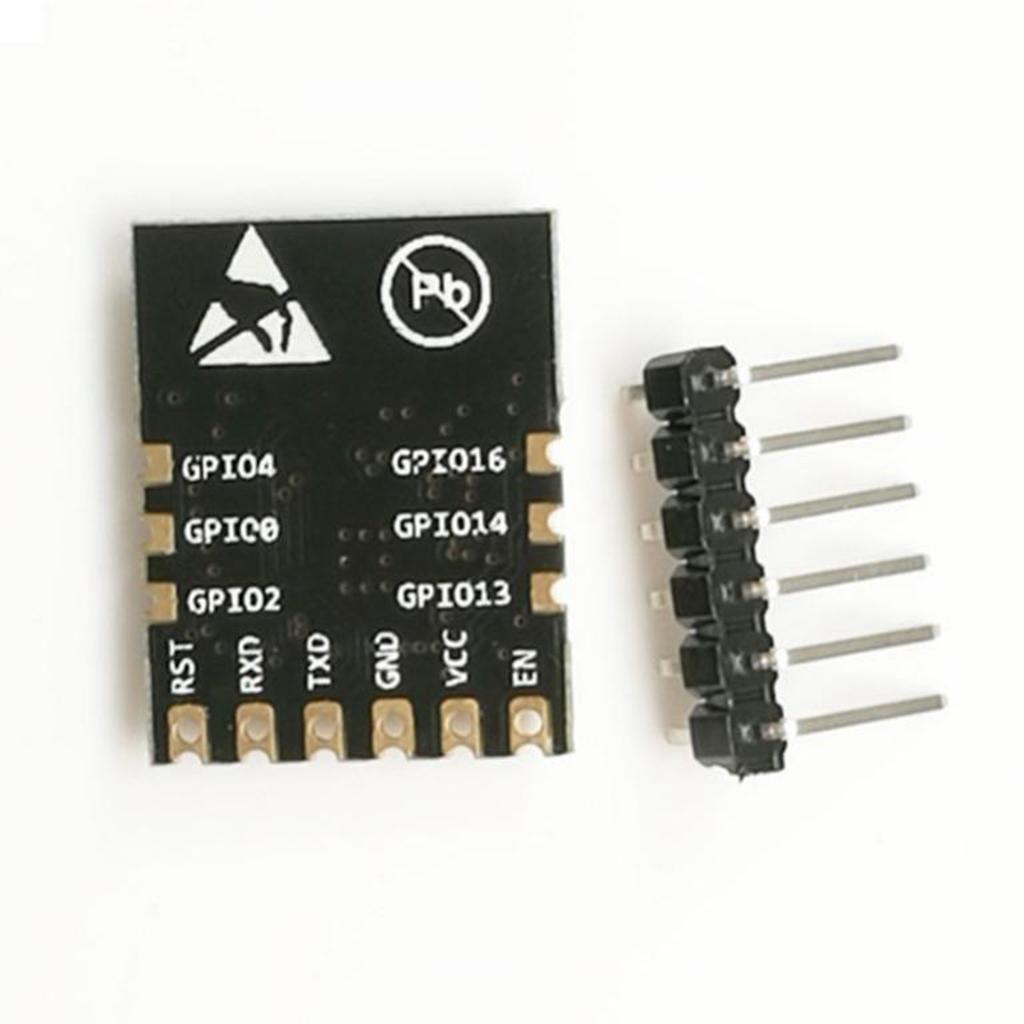

Module Interface: UART;ADC;En;wakeup pin;HSPI;I2C;I2S; GPIOs

Specification:

Size: 26.8x16mm
Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency
Supports 80MHz and160MHz, and RTOS
Built-in TCP/IP protocol
Built-in one-channel 10-bit high precision ADC
Outboard interface: HSPI, UART, I2C, I2S, IR Remote Controk, PWM, GPIO
Deep sleep current is 10uA, the cut-off current is smaller than 5uA
Wake,connect and transmission data package within 2ms
The consume power is smaller 1.0Mw (DTIM3) when at stand by status
Built in 1M byte for SPI Flash

Package Includes:

1 piece ESP8285 module
