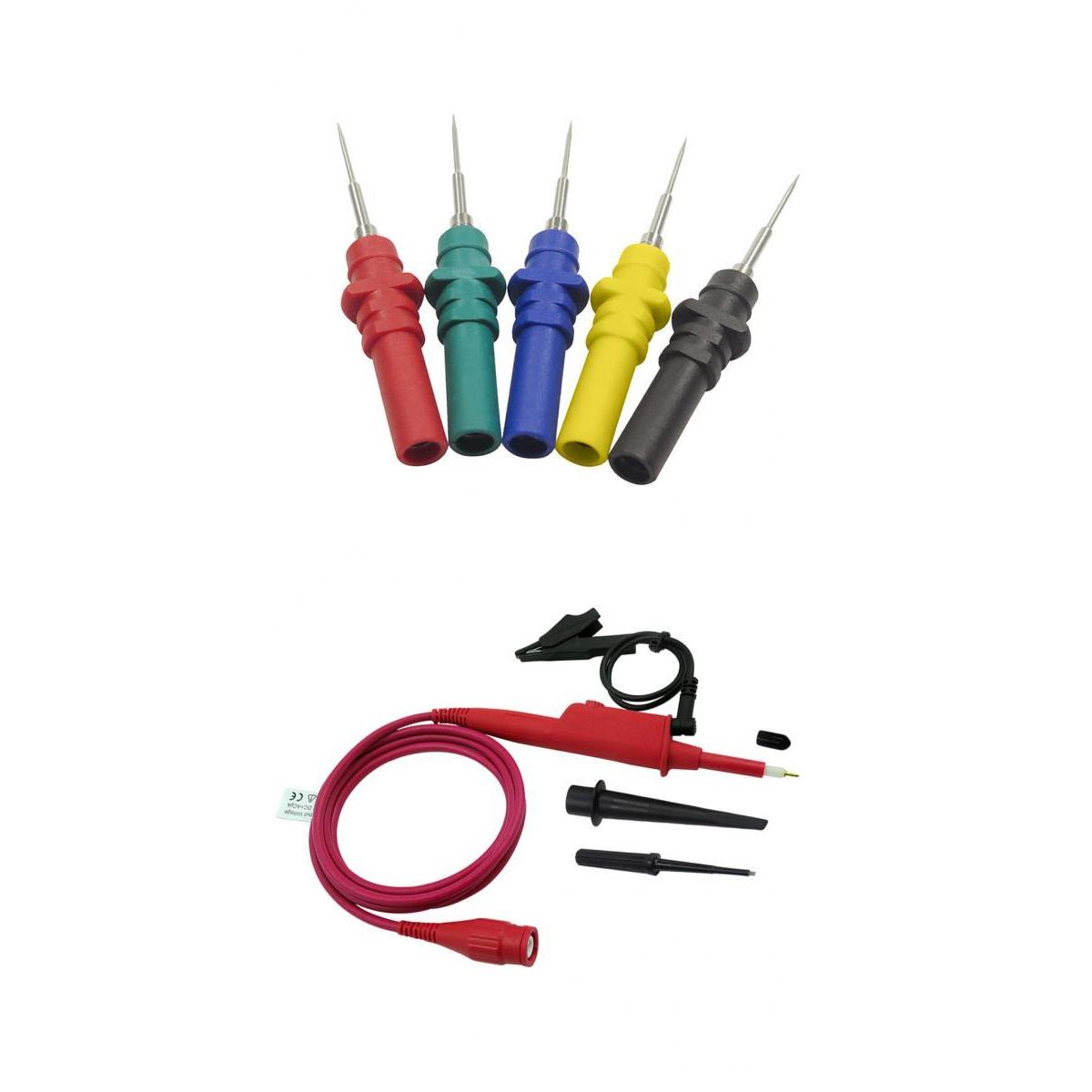

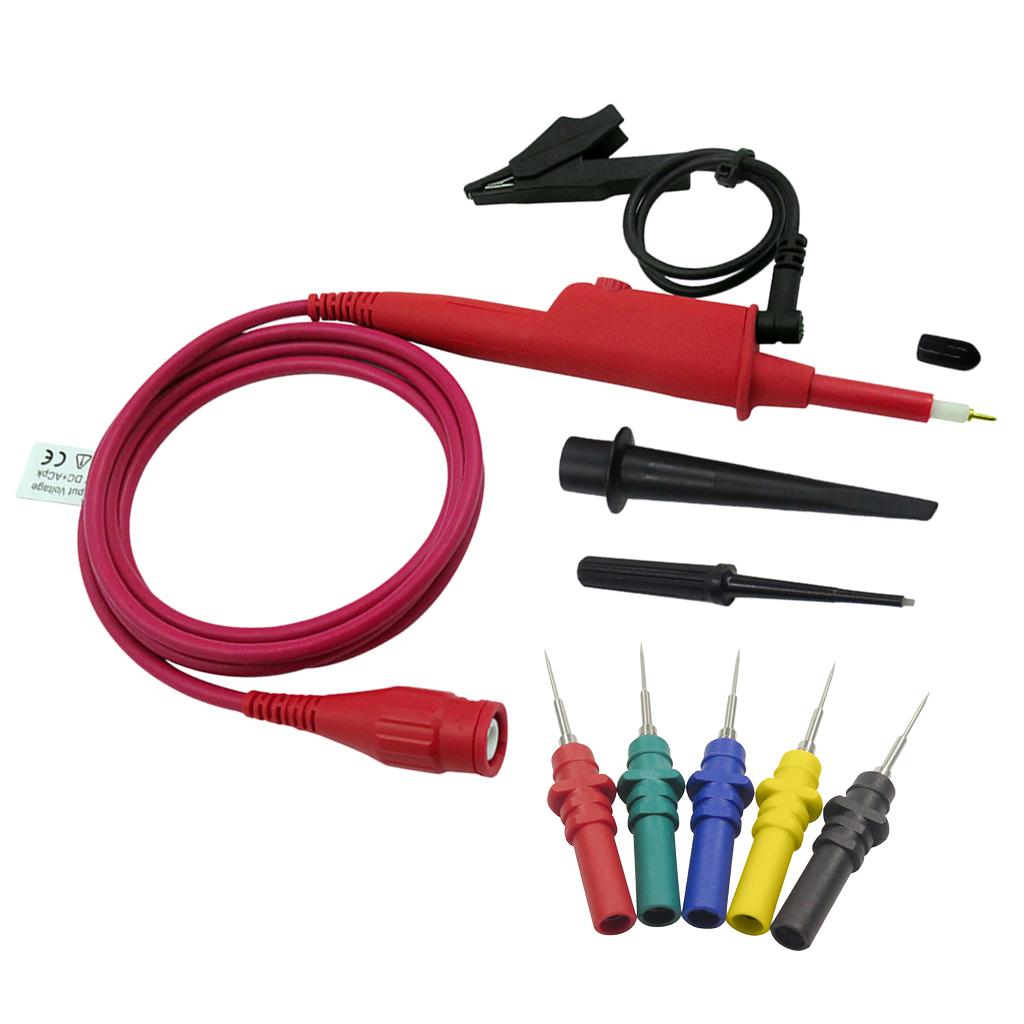

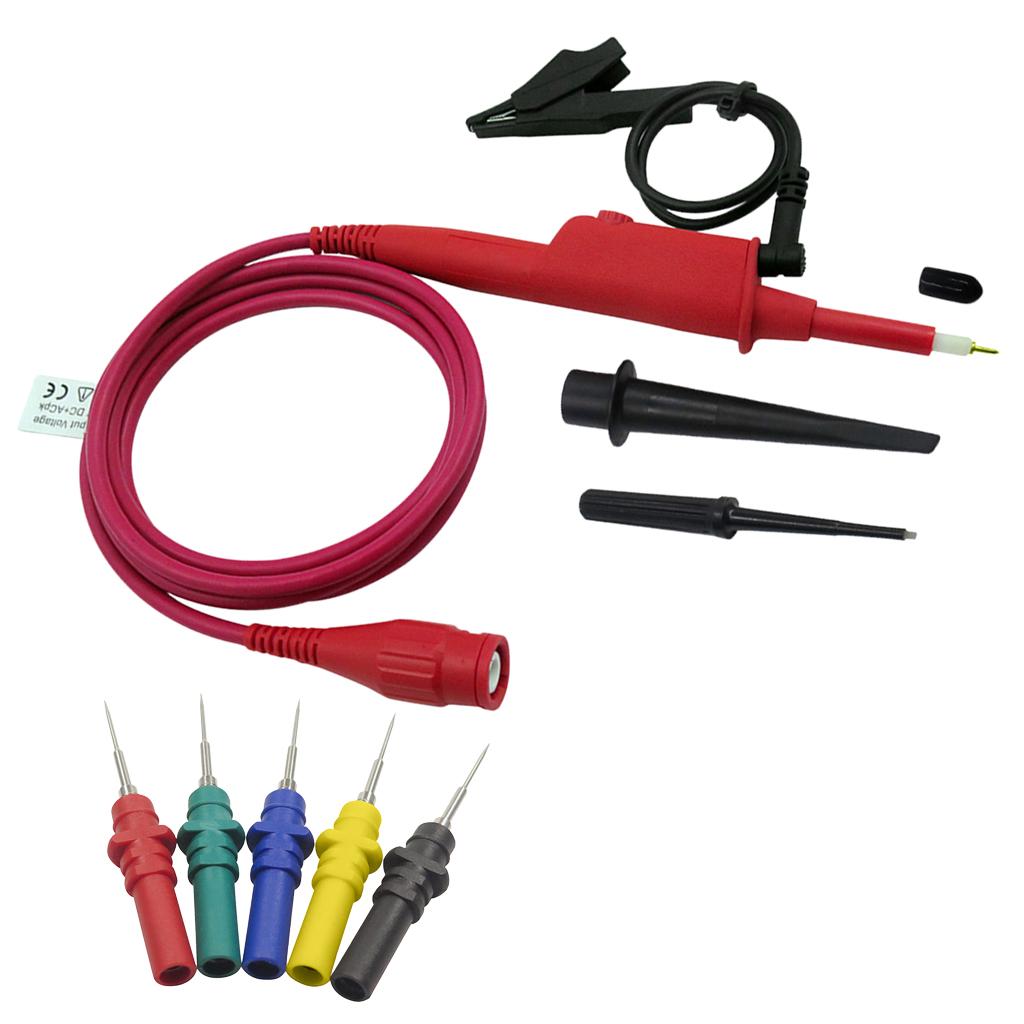

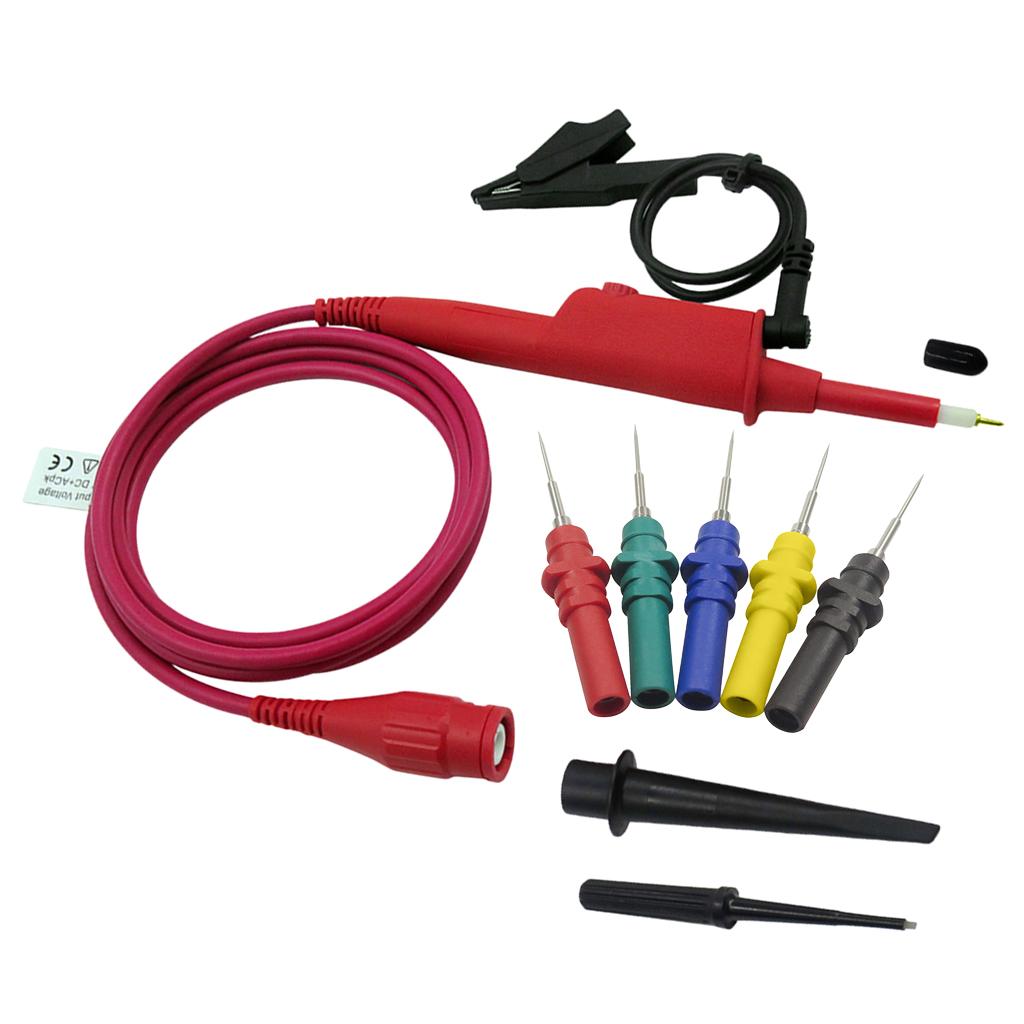

Automotive Diagnostic Test Accessories Probe +Oscilloscope Probe 100:1

Description:

-5 pieces probes and 10 pieces replacement needles: As probes, they are used for the drilling of the insulation of wires to allow for automotive electrical measurements without causing damage to the wires.
-They can be used as a pin probe of the rush to work with small circuit boards. The set of 5 probes also comes with 10 pins of replacement; there is no need to replace the entire probe.
-Its small diameter, extra pin makes it great for the perforation of the insulation on wires. It can connect with 4mm banana plug as the following picture show.
-Oscilloscope probe: Type: BNC; Bandwidth: 300MHz; Attenuation Ratio: 100:1. BNC Male: external insulation compatiable with all the BNC oscilloscope. Fully insulted grounding wire: the ground wire is closely matched with the probe body.
-Attachment hook: accessories for new design. Compensation capacitance adjust hole: square wave calibration for 1KHz. It used on an oscilloscope.

Specification:

5 pieces Probes color: Black/ Blue/ Yellow/ Red/ Green
The needles of the replacement: 10 pieces
Full length of the probe (1 piece): 65mm/ 2.56inch
The length of the pin: 37mm/1.45inch
and
Oscilloscope probe
Rise time: 1.15ns
Attenuation Ratio: Fixed 100X
Input Resistance: 100X: 100MΩ+-2%
Input Capacitance: 100X: 6.5pF
Maximum Input: 100X: 5000 Working Voltage (Vp-p)
Compensation Range: 10 to 20pF

Package Includes:

5 pieces probes and 10 pieces replacement needles
1 piece Oscilloscope probe
