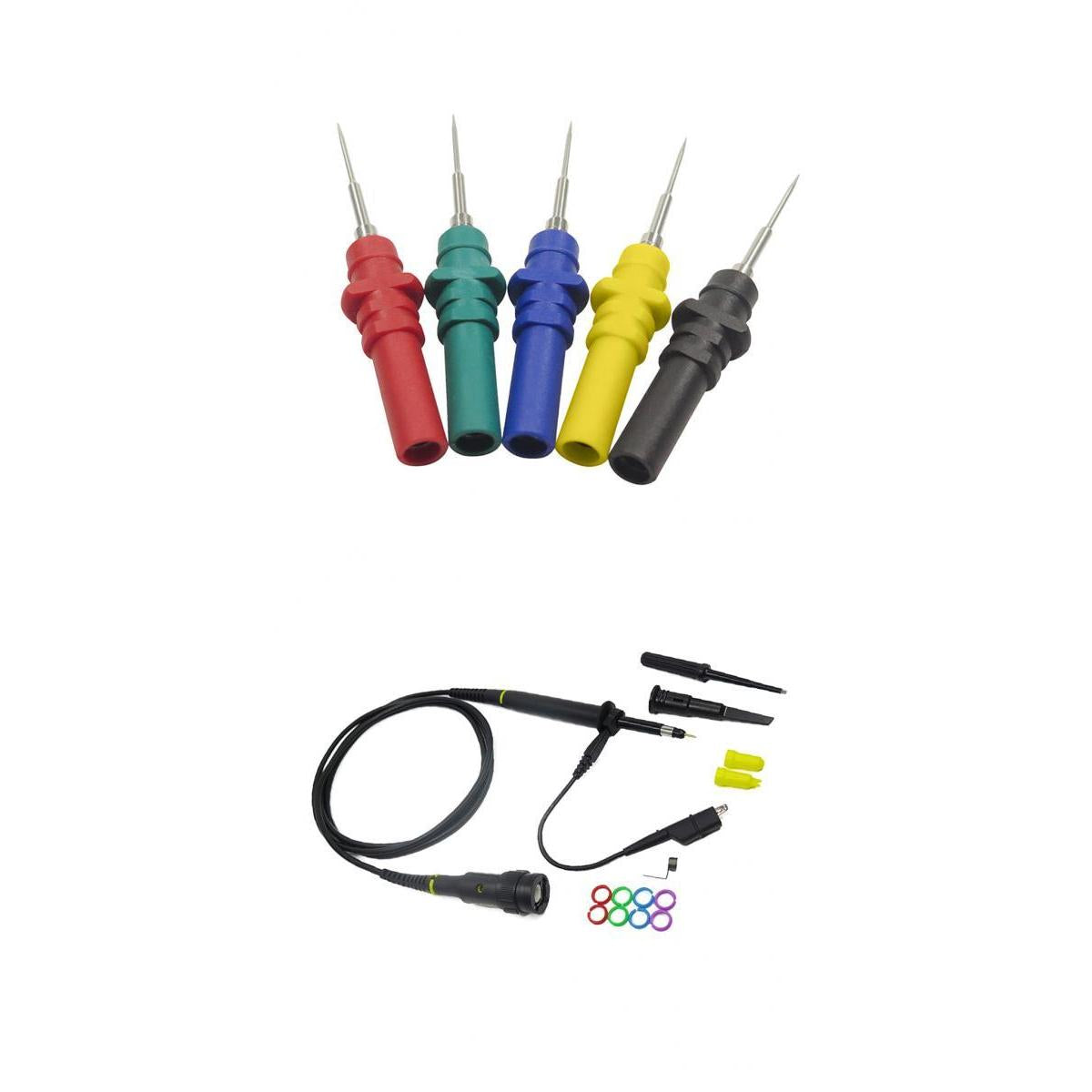

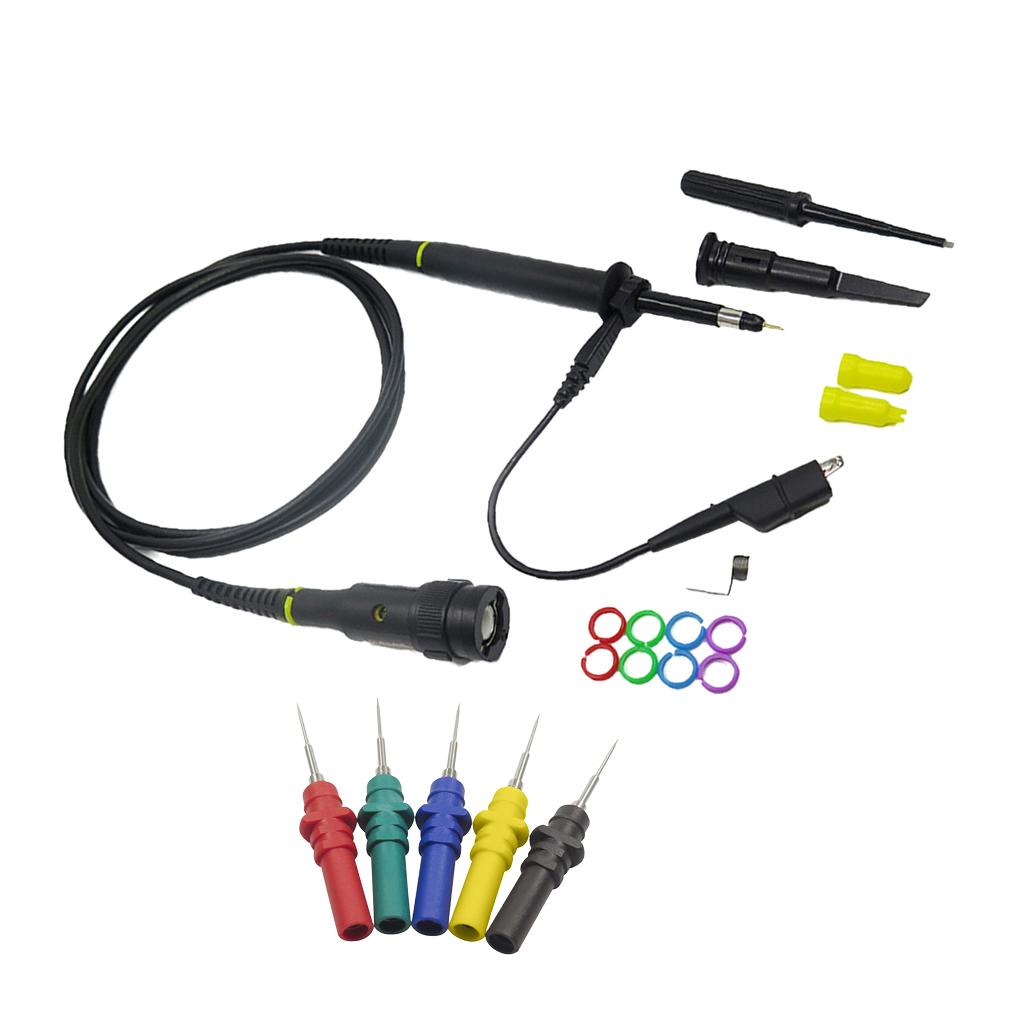

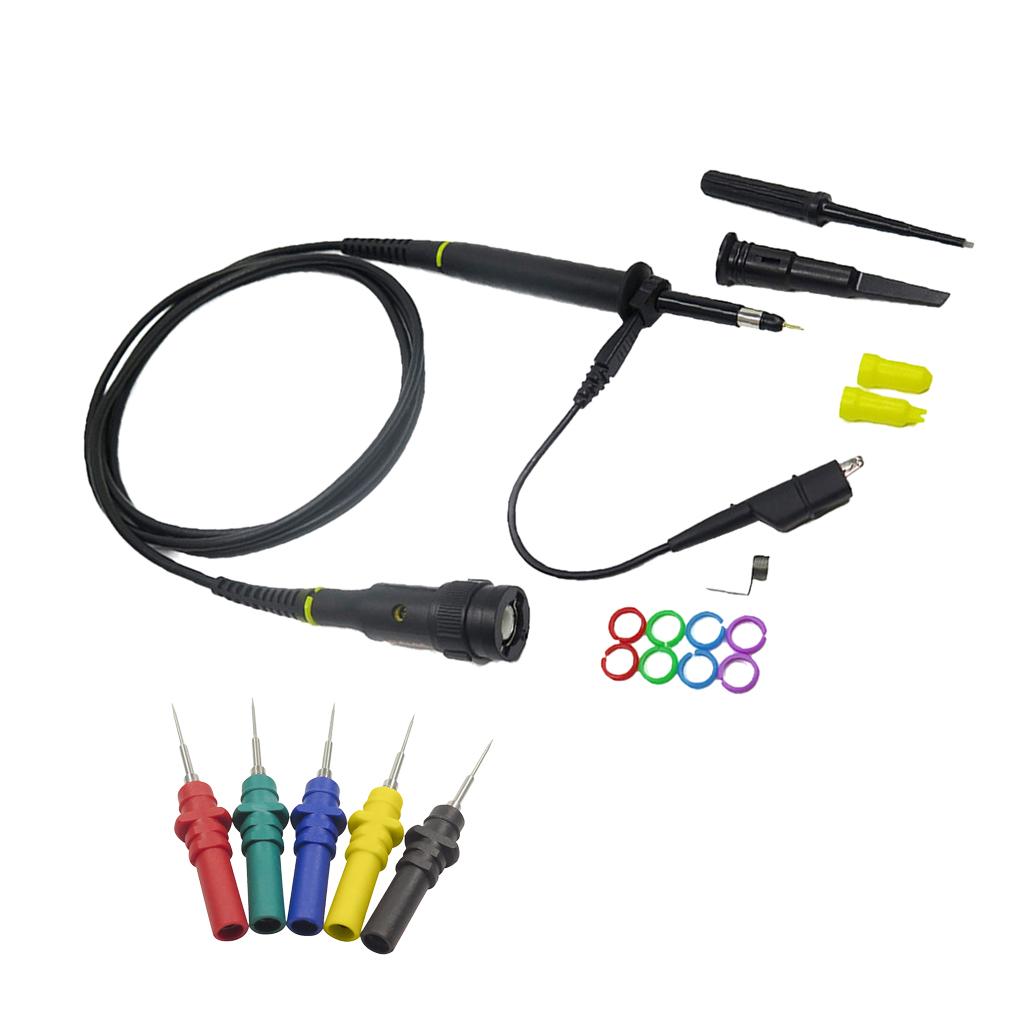

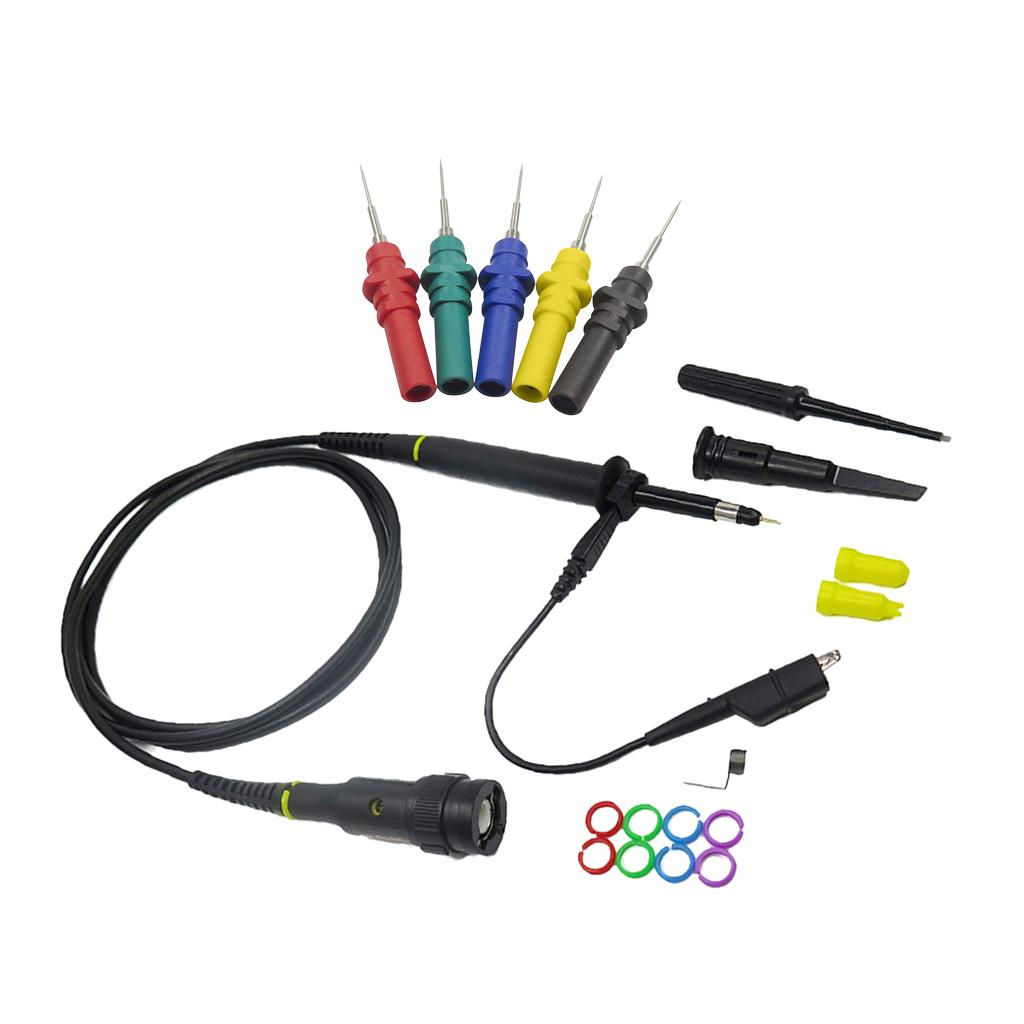

Automotive Diagnostic Test Probe Pins Set+Oscilloscope Probe BNC 200MHz

Description:

-The set of 5 probes also comes with 10 pins of replacement; there is no need to replace the entire probe. As probes, they are used for the drilling of the insulation of wires to allow for automotive electrical measurements without causing damage to the wires.
-They can be used as a pin probe of the to work with small circuit boards. Its small diameter, extra pin makes it great for the perforation of the insulation on wires. It can connect with 4mm banana plug as the following picture show.
-200MHz Oscilloscope probe: BNC Male Head: external insulation compatiable with all the BNC oscilloscope; Attenuation Ratio:1:1/ 10:1; Attachment hook: when you hear the accessory hook "da" it is installed.
-Alligator clip with earthing conductor: the fish clip is very solid. Color ring: to keep up with the over generation compared to it had increased the purple circle.
-Compensation capacitance adjust hole: the alligator clip is square ware calibration for 1KHz

Specification:

Probes color: Black/ Blue/ Yellow/ Red/ Green
The probes: 5 pieces
The needles of the replacement: 10 pieces
Full length of the probe (1 piece): 65mm/ 2.56inch
The length of the pin: 37mm/1.45inch

Oscilloscope probe 200MHz
Connector Type: BNC
Bandwidth: 200MHz
Rise time: 1.75ns
Maximum Input: 1X: 200 Working Voltage (Vp-p),10X: 600 Working Voltage (Vp-p)
Compensation Range: 10 to 35pF
Attenuation Ratio:1:1/ 10:1
Input Resistance: 1X: 1MΩ+-2% & 10MΩ+-2%

Package Includes:

5 pieces probes and 10 pieces replacement needles
and
1 piece Oscilloscope probe
