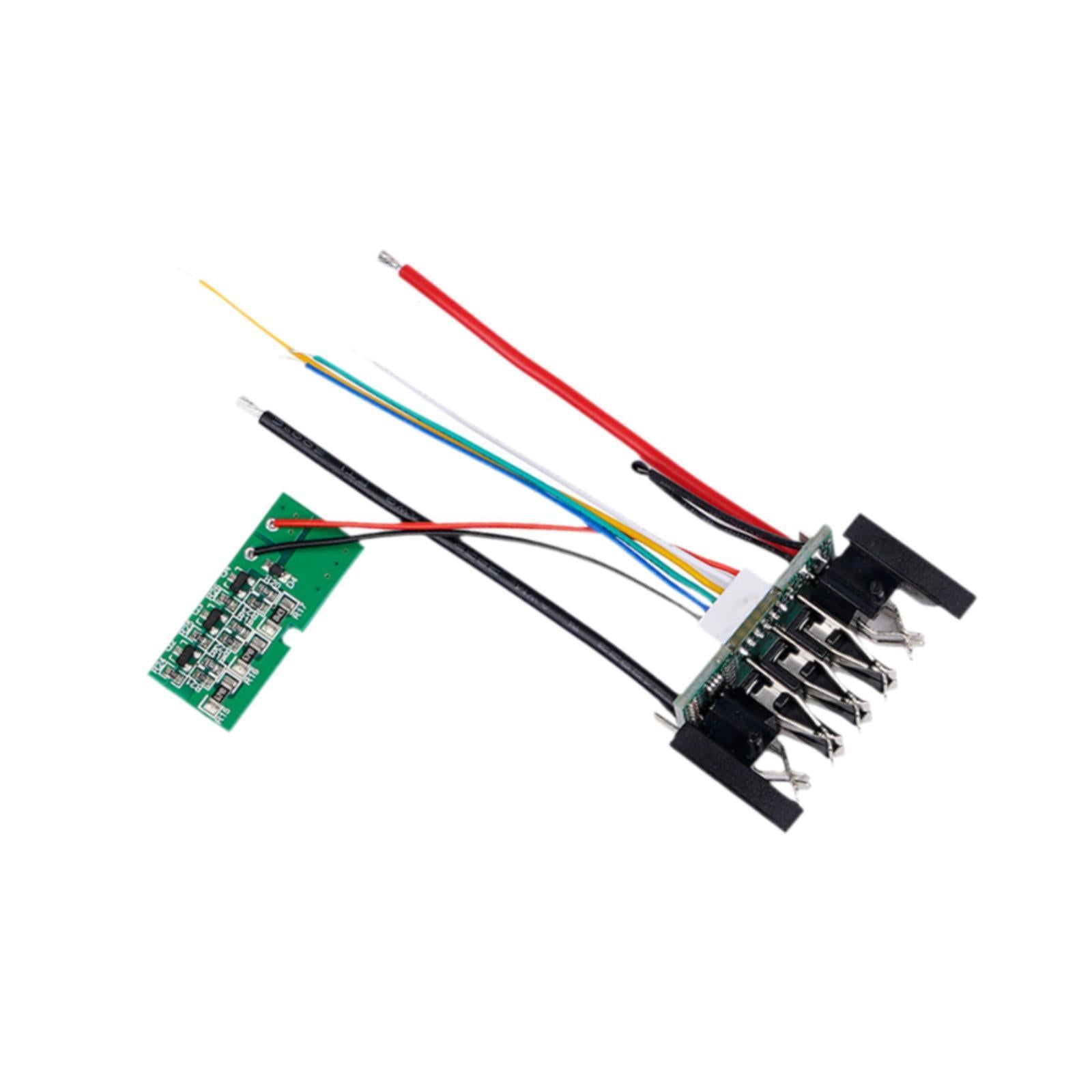

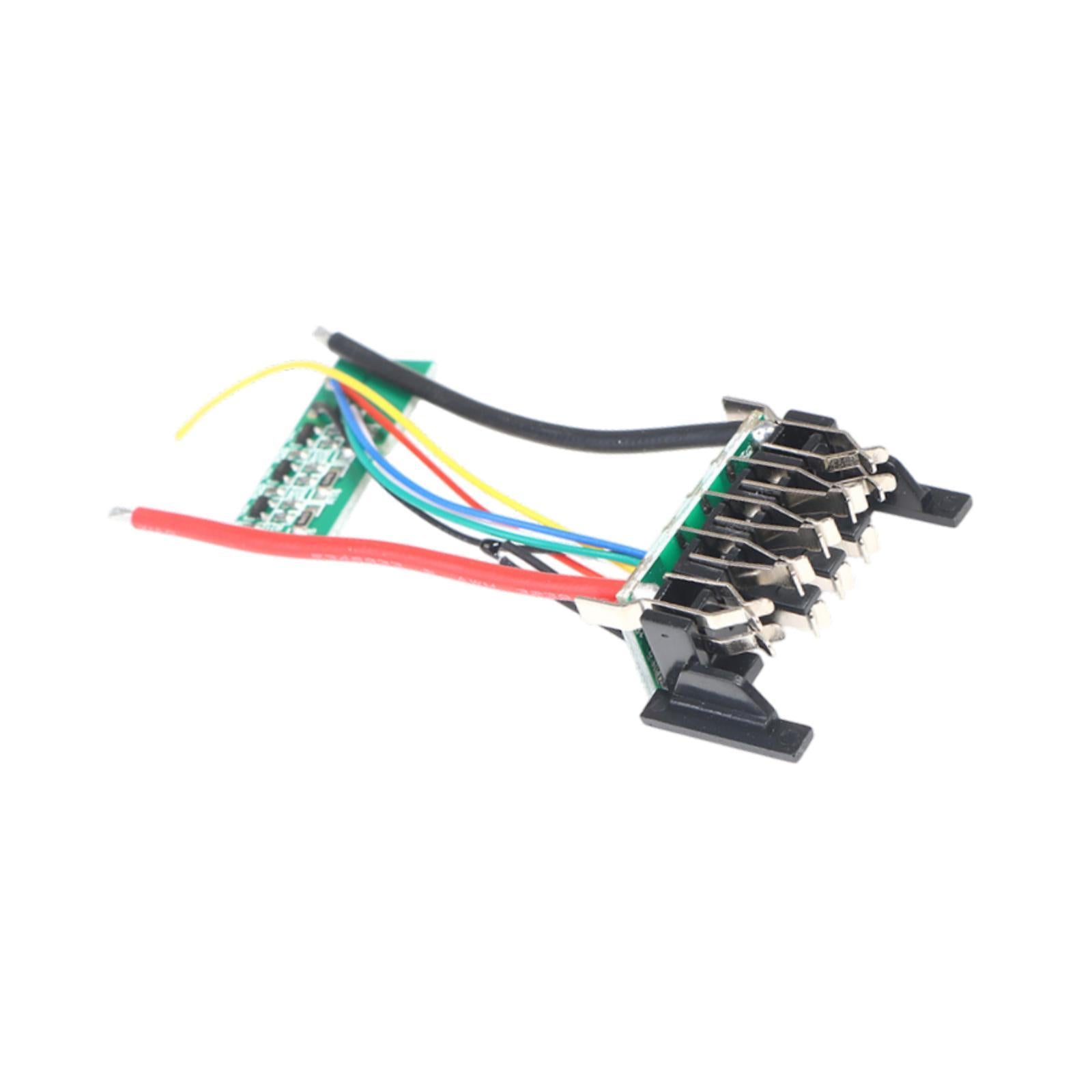

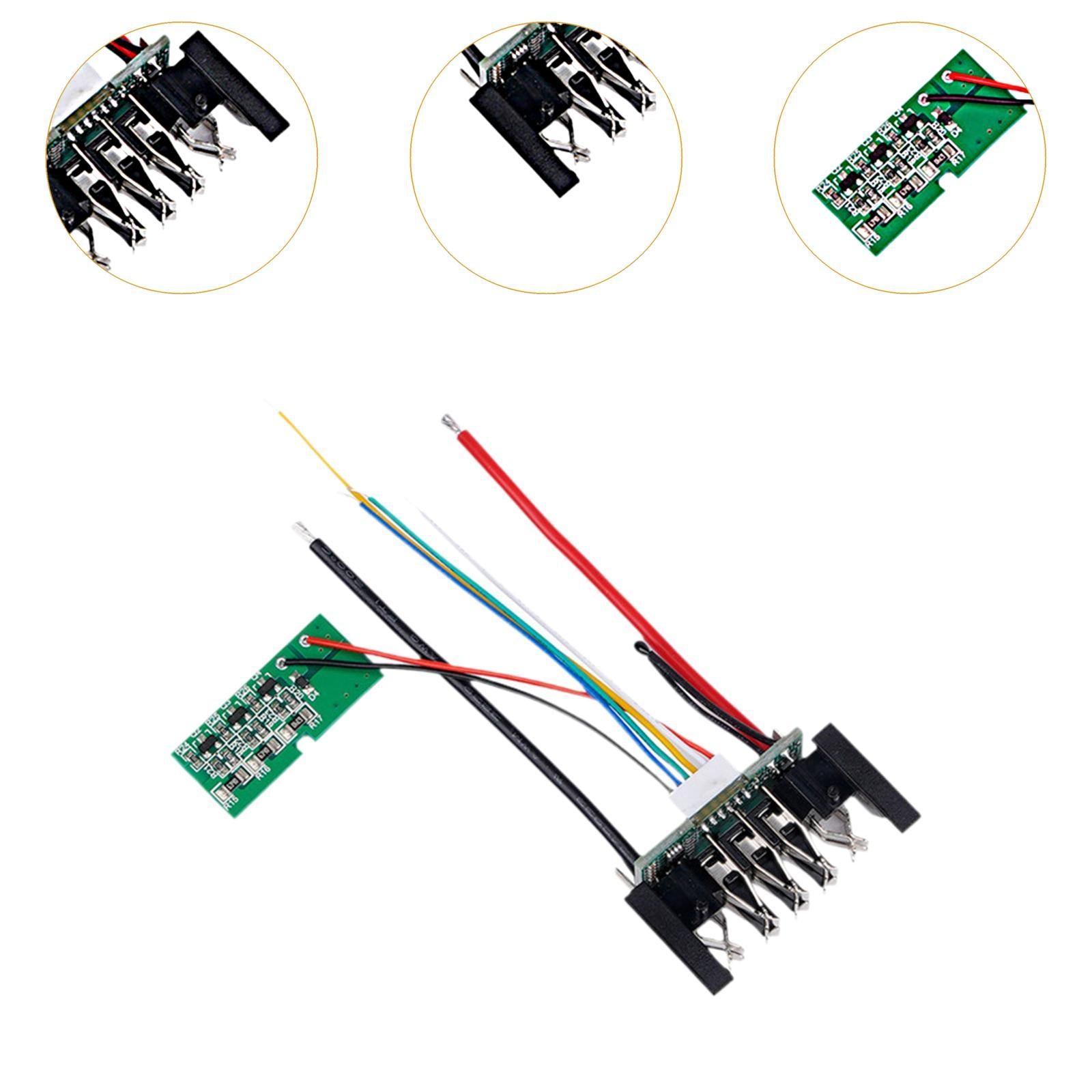

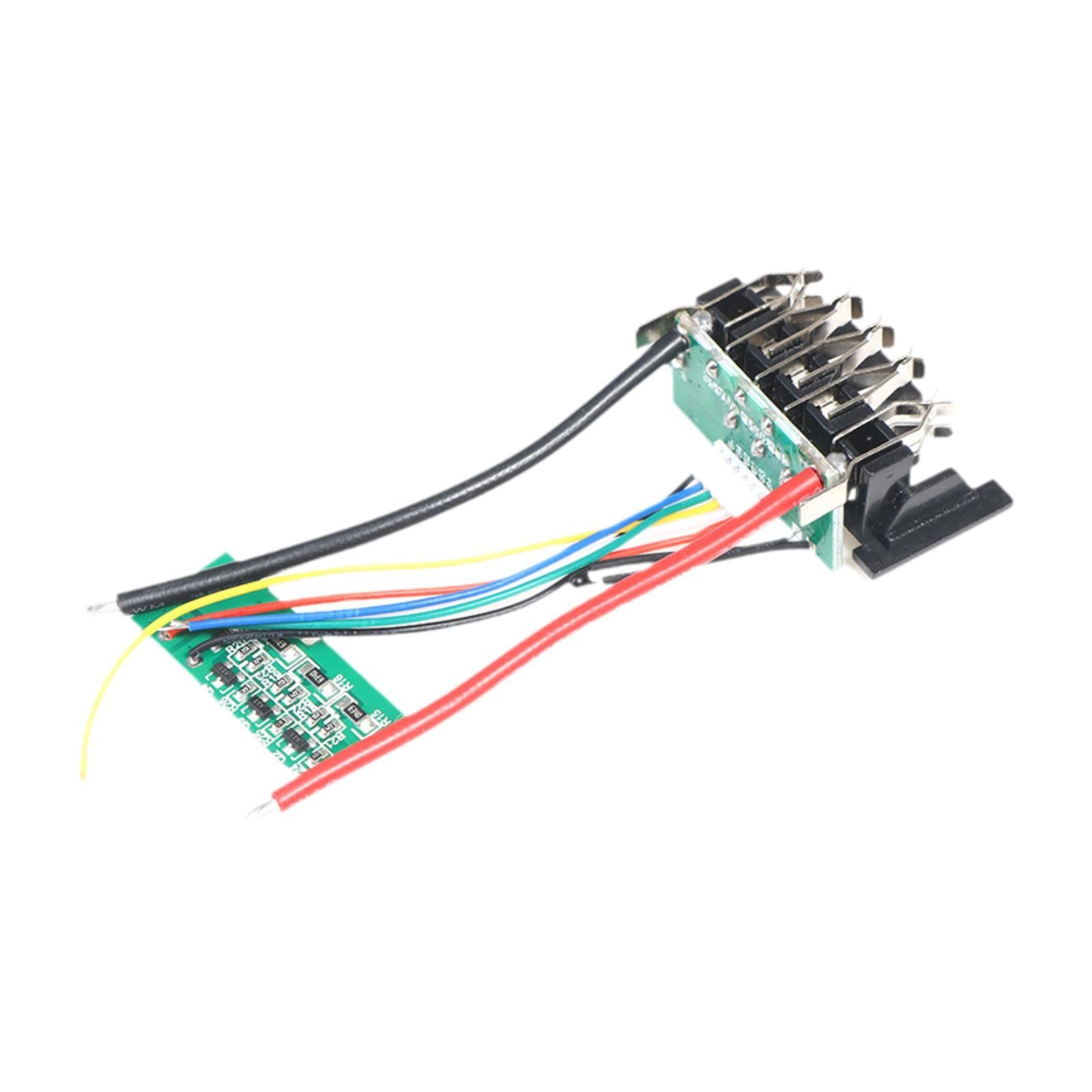

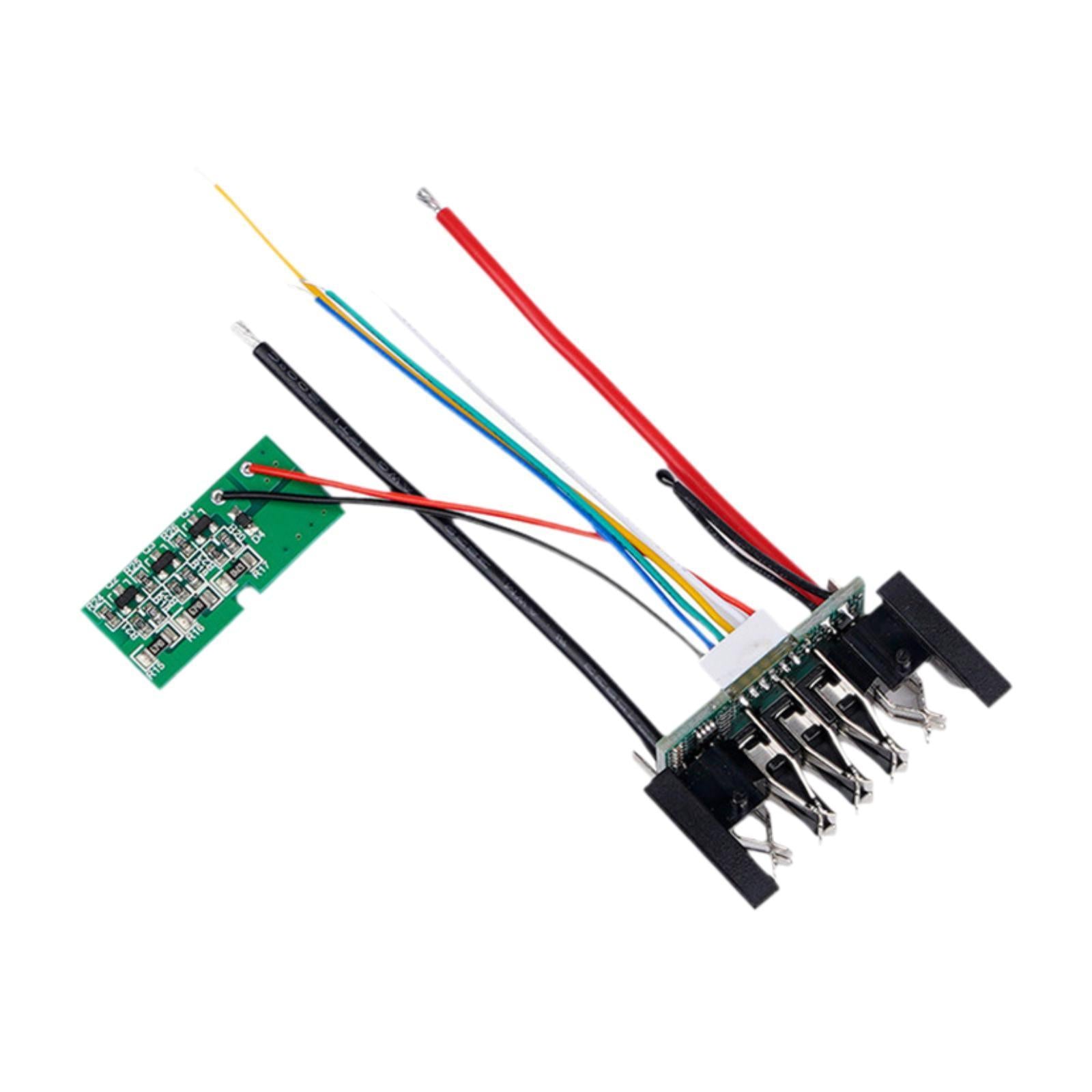

Battery Charging Protection Circuit Board for Electric Hammer Electric Drill

Description:

【Compact and Lightweight Design】: This protection board features a high precision voltage detection circuit, ensuring meticulous craftsmanship and durability while maintaining stable performance
【Comprehensive Protection Features】: Equipped with safeguard against over discharge, over current, and over charge, this board supports high charging and discharging currents for enhanced security
【Low Standby Current Consumption】: Mos transistor effectively manages battery charging and discharging with minimal standby current consumption
【Versatile Application】: Ideal for repairing and assembling battery packs, this product is designed for individuals familiar with battery performance and experienced in battery assembly
【Standard Replacement Solution】: The PCB chip board serves as a standard replacement for tool batteries, ensuring compatibility and reliability in various applications

Specification:

Material: ABS Plastic
Charging Current: 2A
Discharging Current: 20A
Overcharge Protection Current: 7A+/-3A
Over Discharge Protection Current: 33A+/-3A (Adjustable)
Overcharge Protection Voltage: 4.25V+/-25MV (Any Series)
Over Discharge Protection Voltage: 2.7V+/-80MV (Any Series)

Size Chart:

7cmx1.9cmx3.8cm/2.76inchx0.75inchx1.50inch

Package Includes:

1 Charging Protection Circuit Board

Note:

1. Please allow slightly error due to manual measurement
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item
