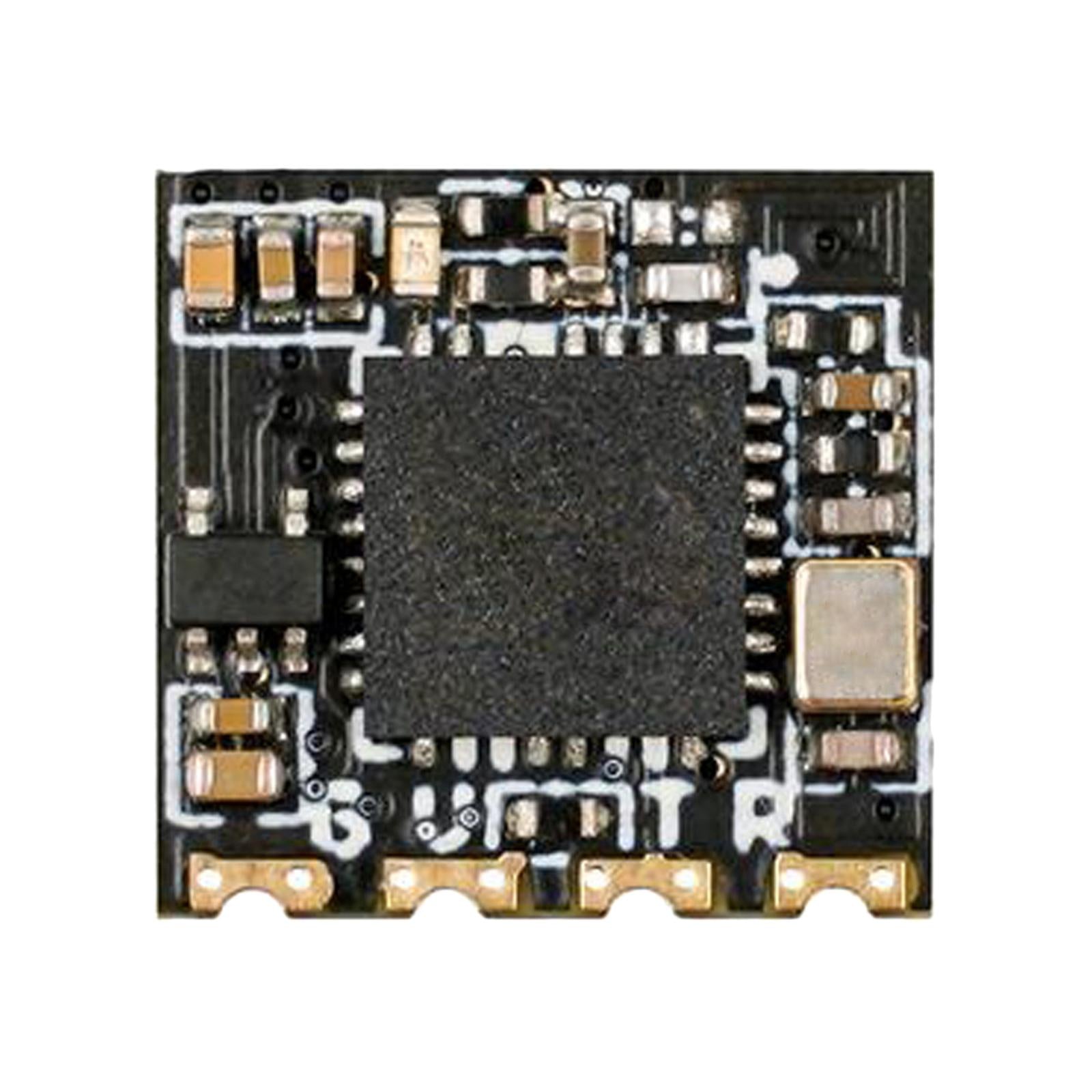

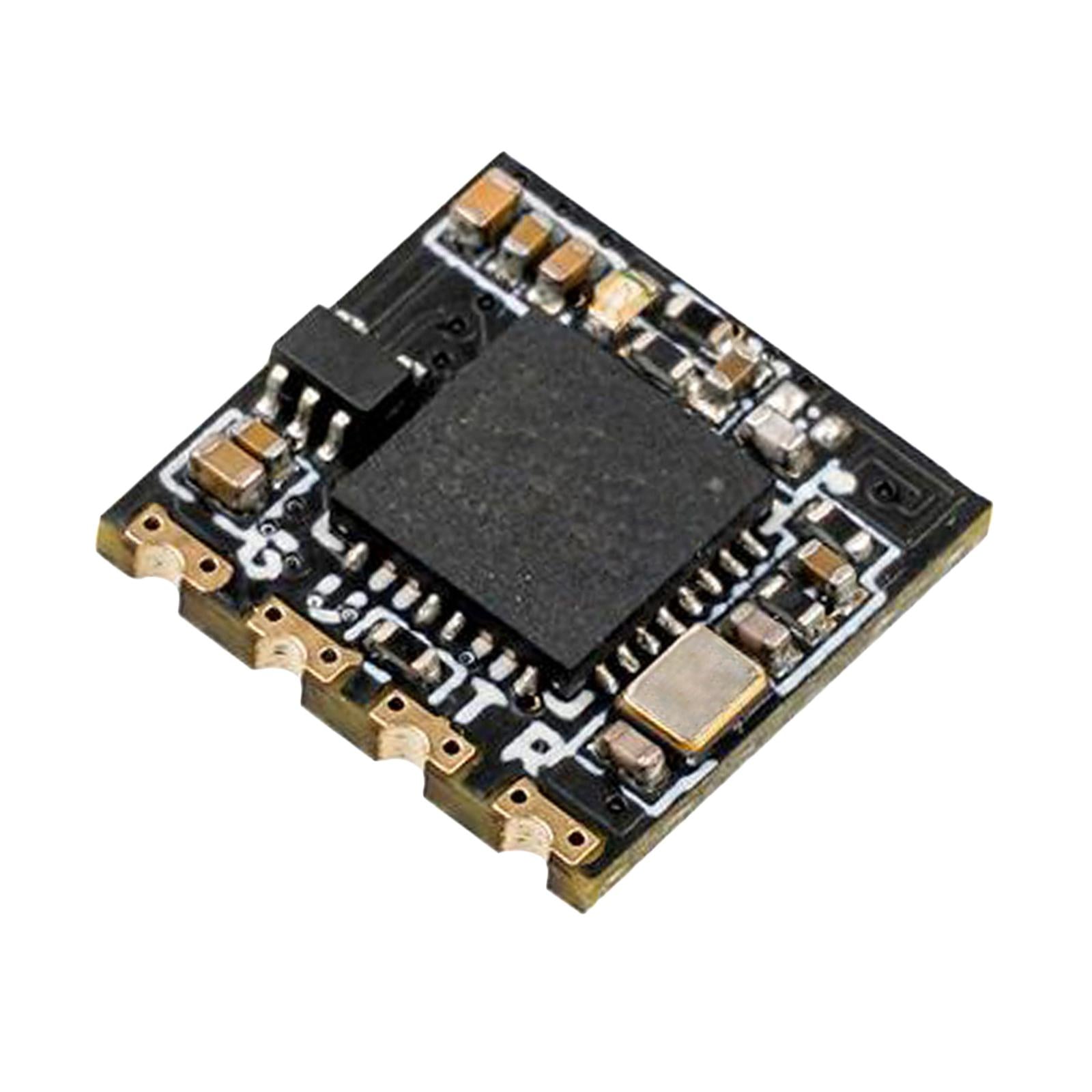

betafpvs ELRS Lite Receiver 2.4GHz Long Range for DIY RC Racing Drone Accs

Description:

ExpressLRS is an open-source RC link for RC applications. Everyone could find this project on Github or join the discussion in Facebook Group.

ExpressLRS is based on Semtech Lora SX127x or SX1280 hardware for RX and TX respectively. it aims to achieve the best possible link performance in both speeds, latency, and range. At 900 MHz a maximum of 200 Hz packet rate is supported. At 2.4 GHz a blistering 500Hz is currently supported with a custom OpenTX build. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

More and more vendors start to support the ExpressLRS radio protocol in different parts, like radio transmitter with ELRS in stock, drone with built-in ELRS receiver, ELRS TX module for JR bay, or Nano bay. betafpvs team take part in this project and provide a series of ExpressLRS components.

ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the receiver and the flight controller board. So make sure your flight controller board Support the CRSF serial protocol. Next, we use the flight controller with Betaflight firmware to show how to set up the CRSF protocol.

Specification:

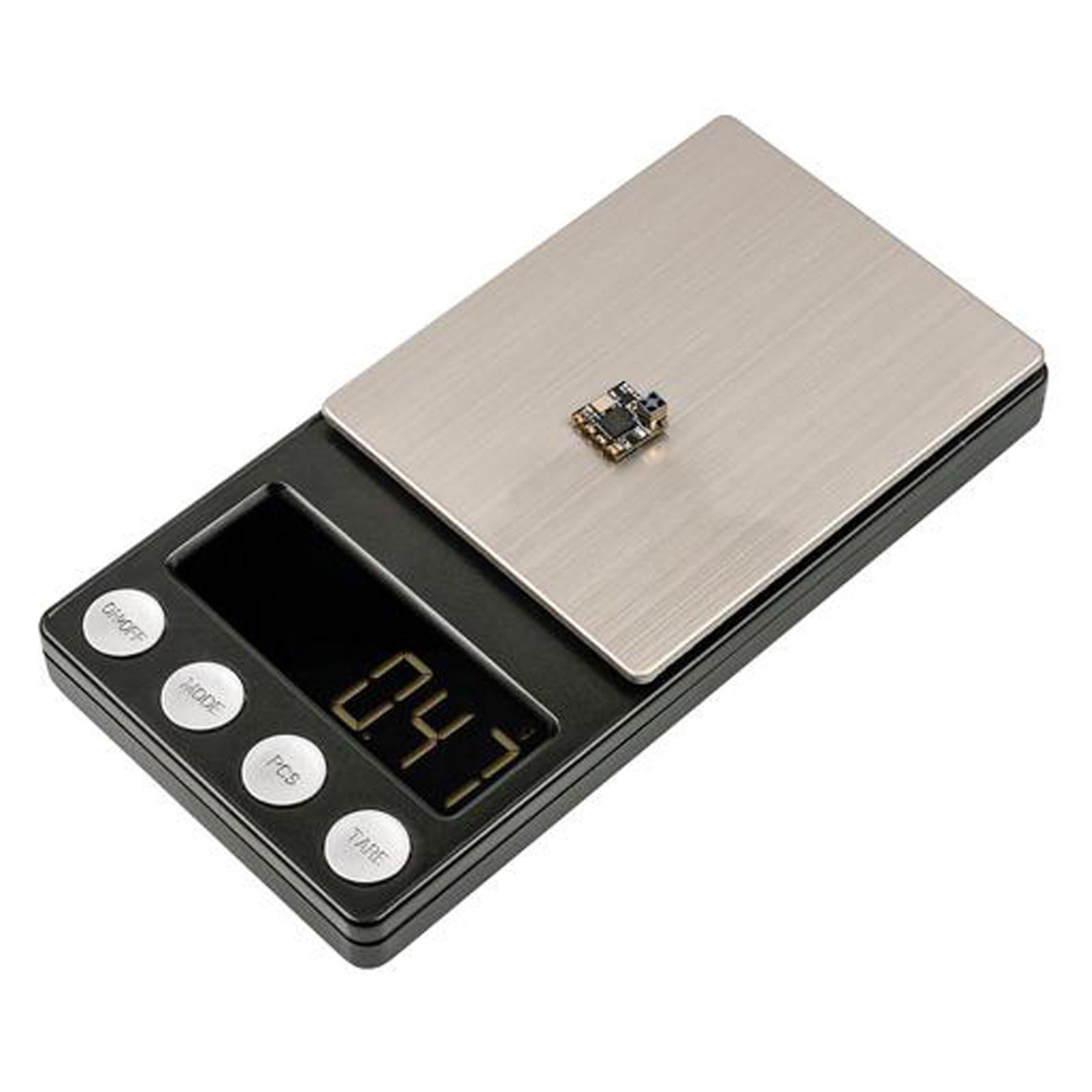

Weight: 0.47g (with SMD ceramic antenna)
Size: 10mm*10mm/0.39x0.39inch
Telemetry power: 17mW
Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM
Input voltage: 5V

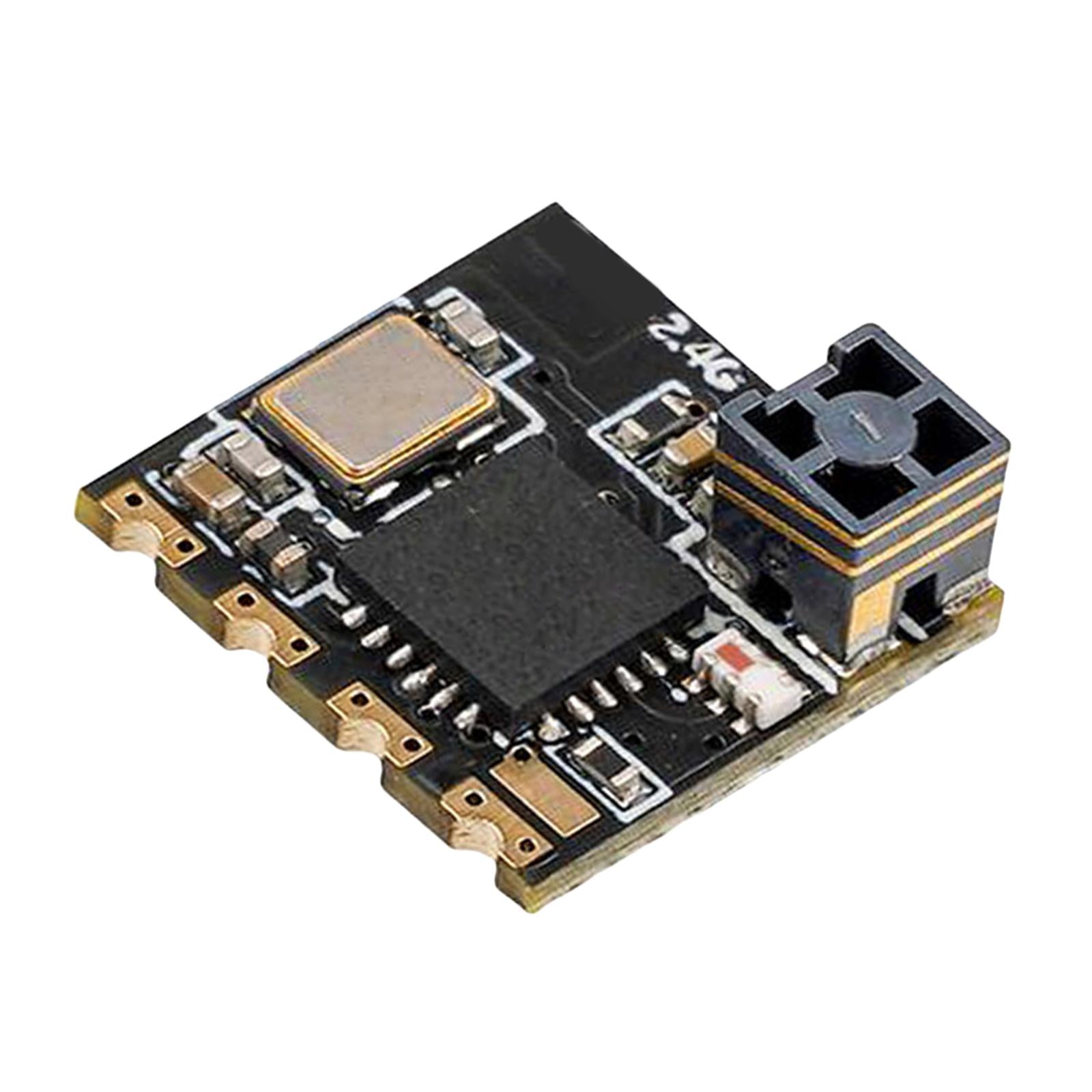

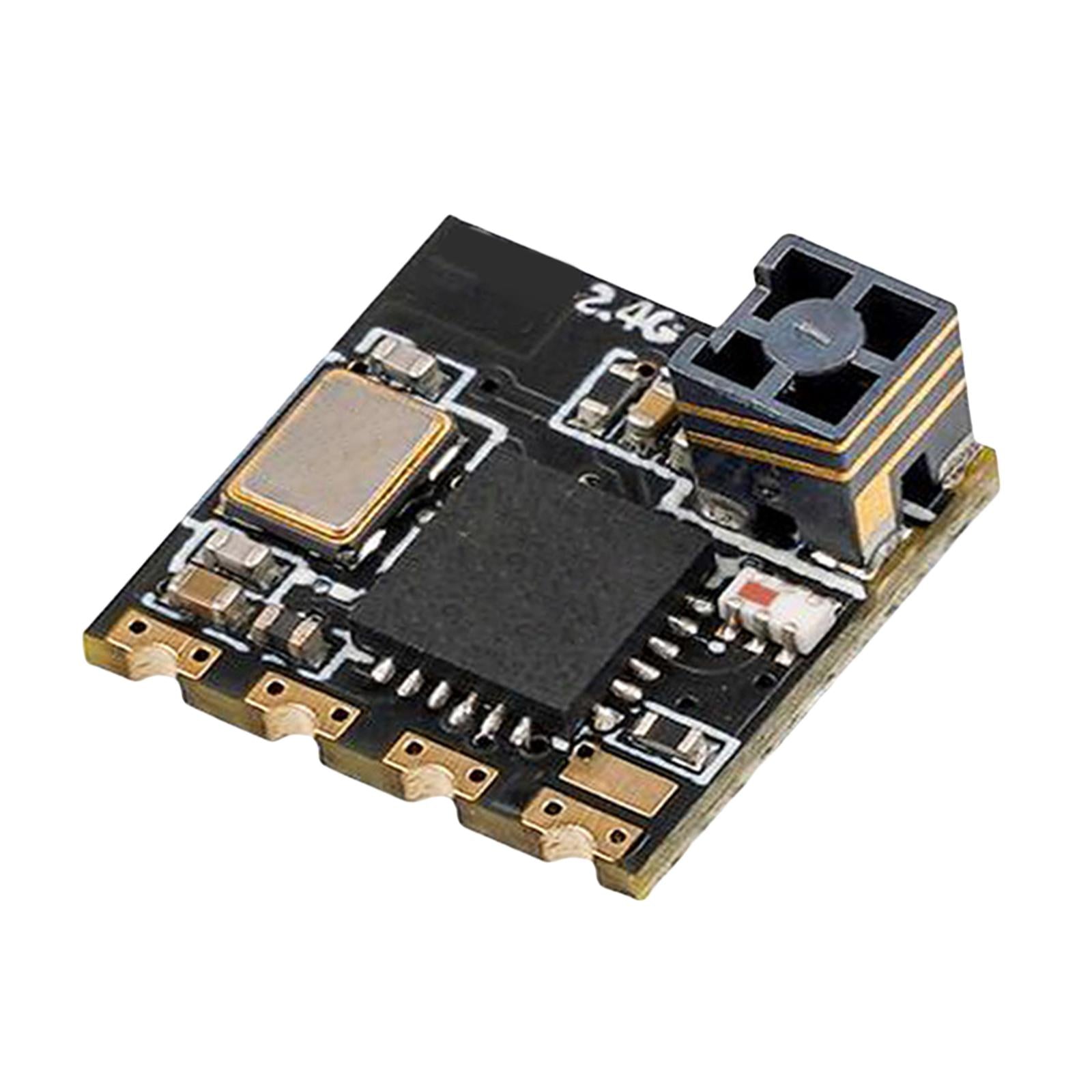

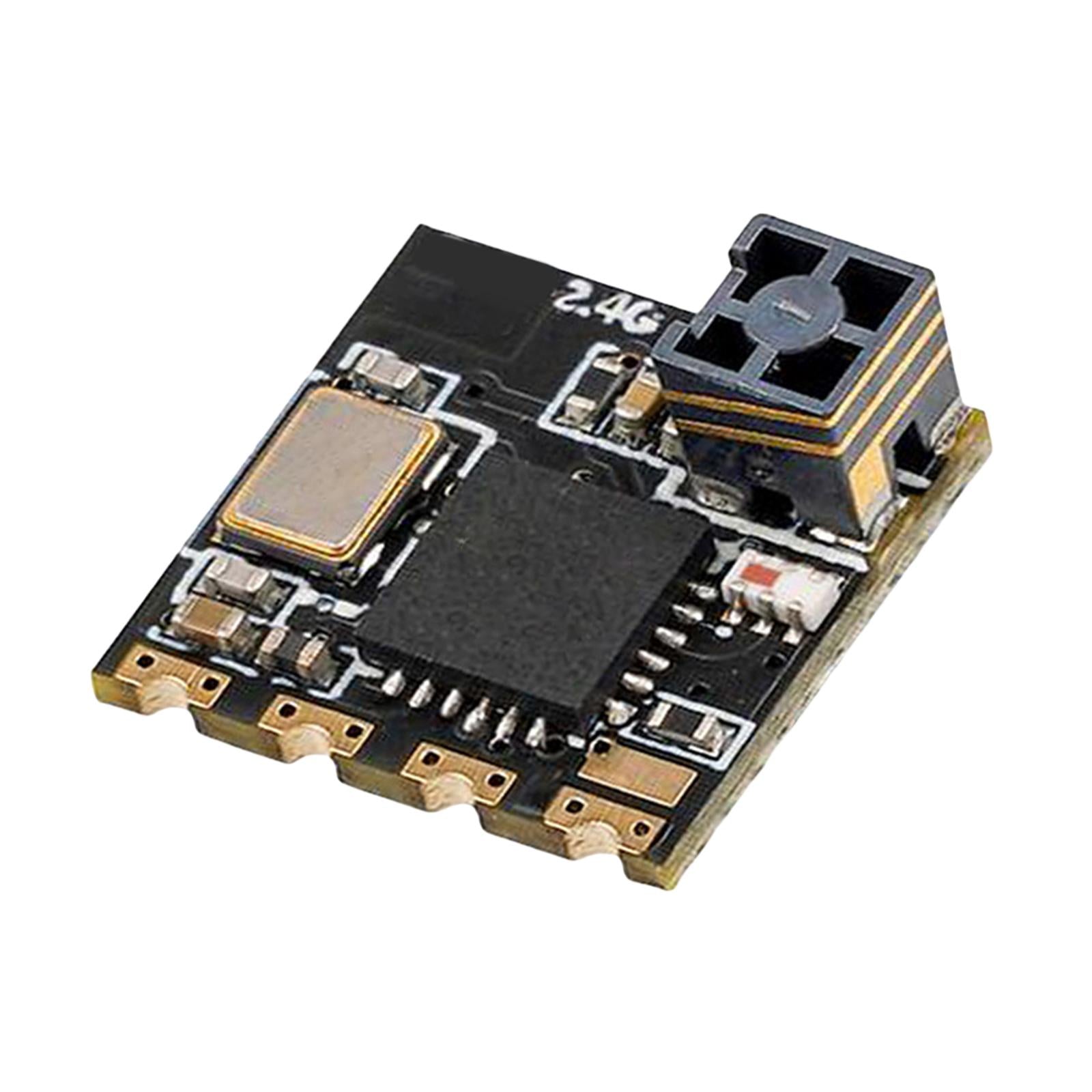

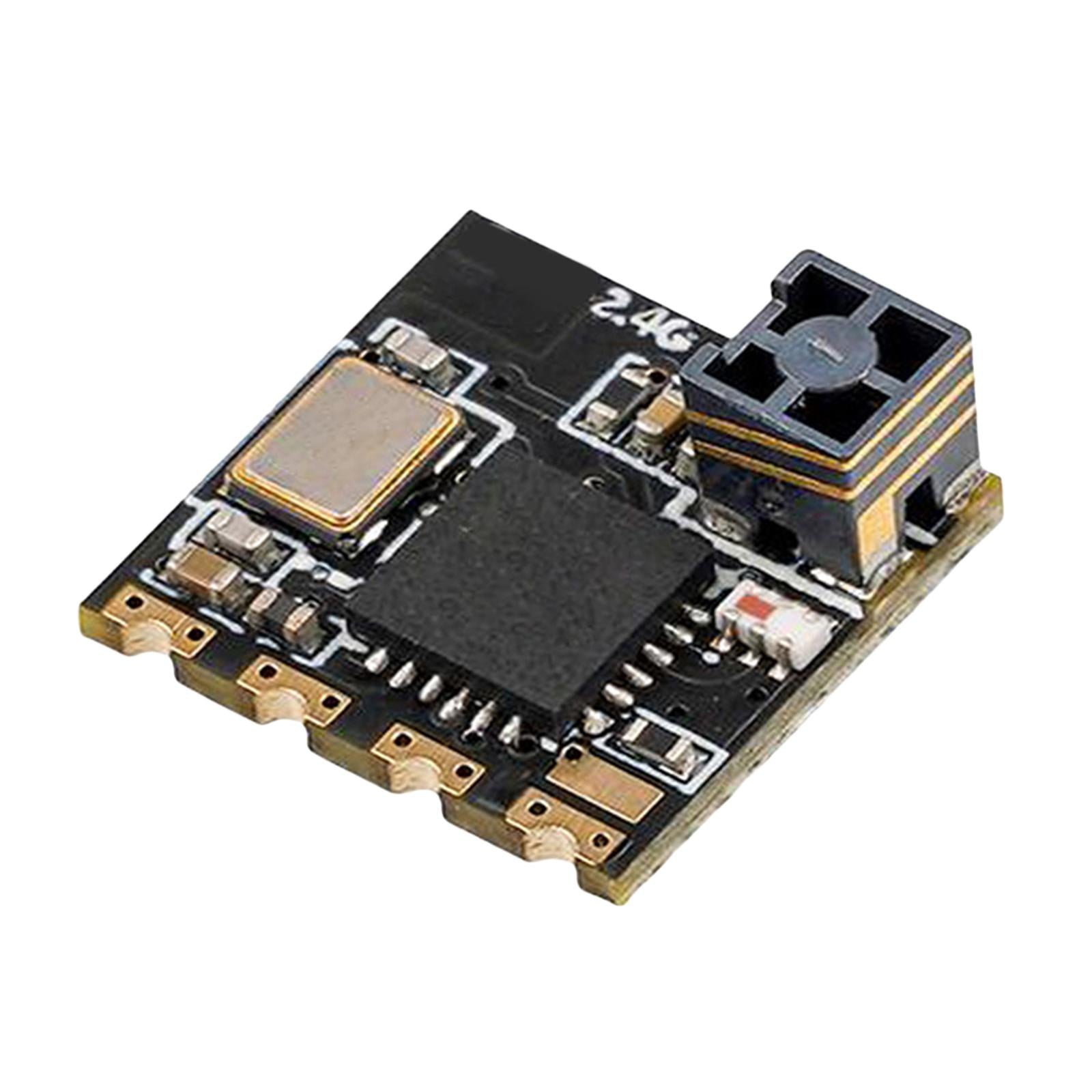

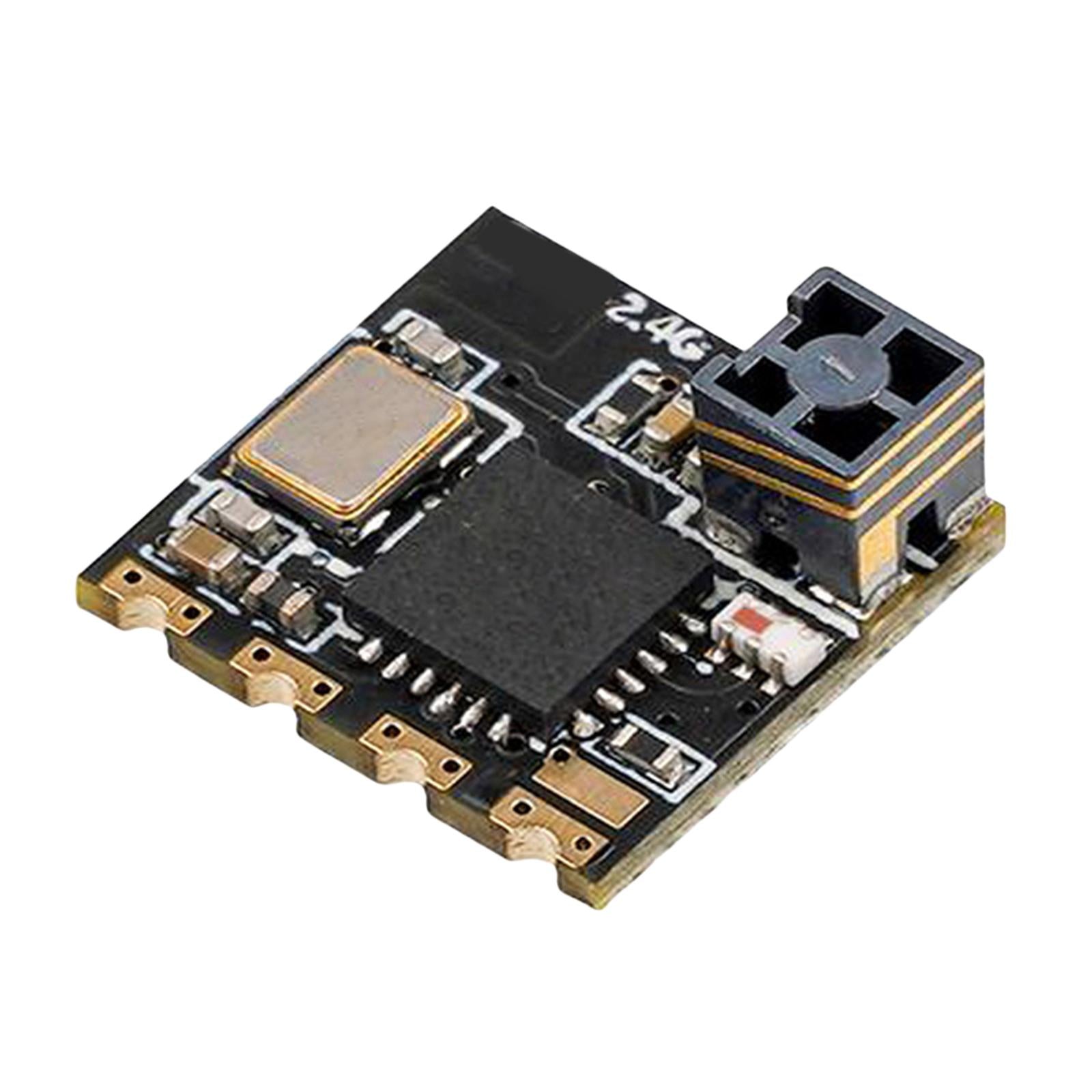

Antenna: Integrated SMD ceramic antenna

Package Includes:

1 or 2 or 4* betafpvs ELRS Lite receiver
2 or 4 or 8* Spare shrink tube
4 or 8 or 16* 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)
