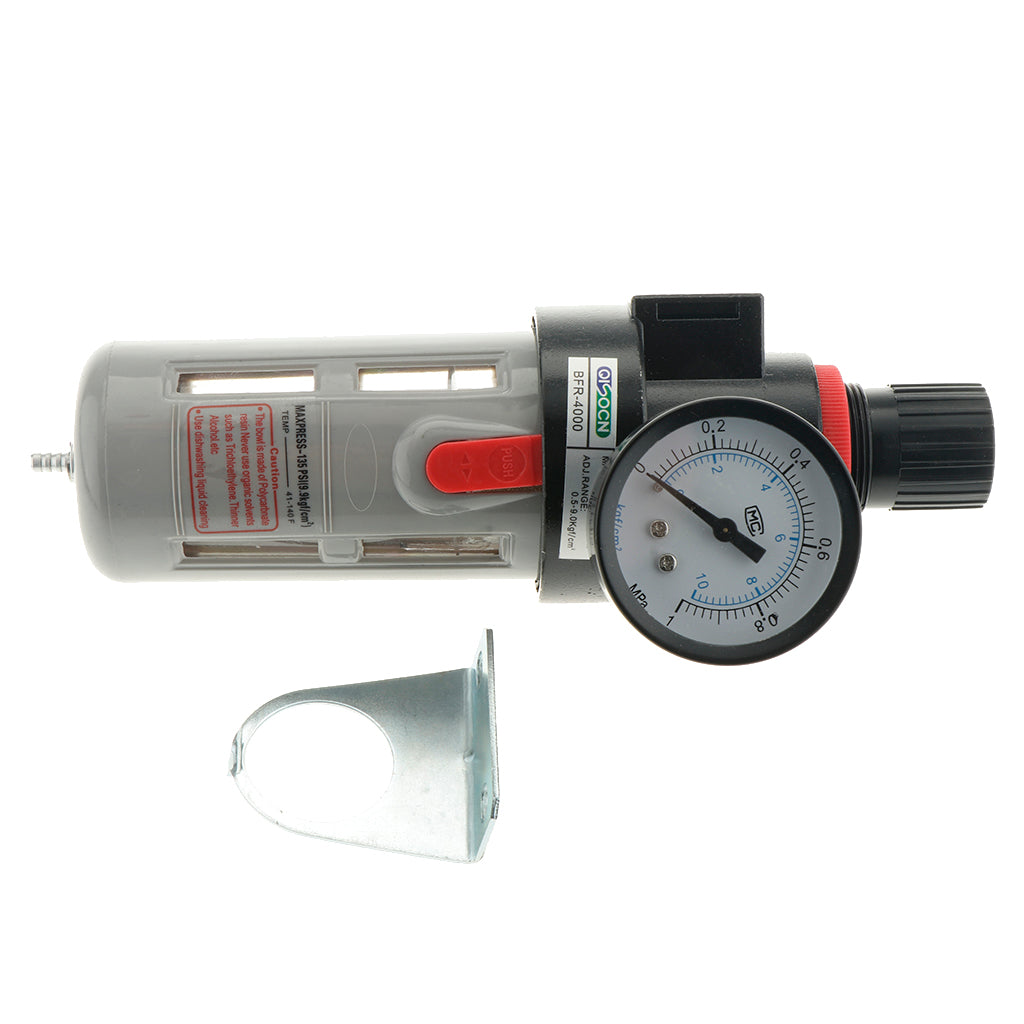

BFR4000 Air Compressor Filter Water Separator Tools Water Pressure Gauge

Description:

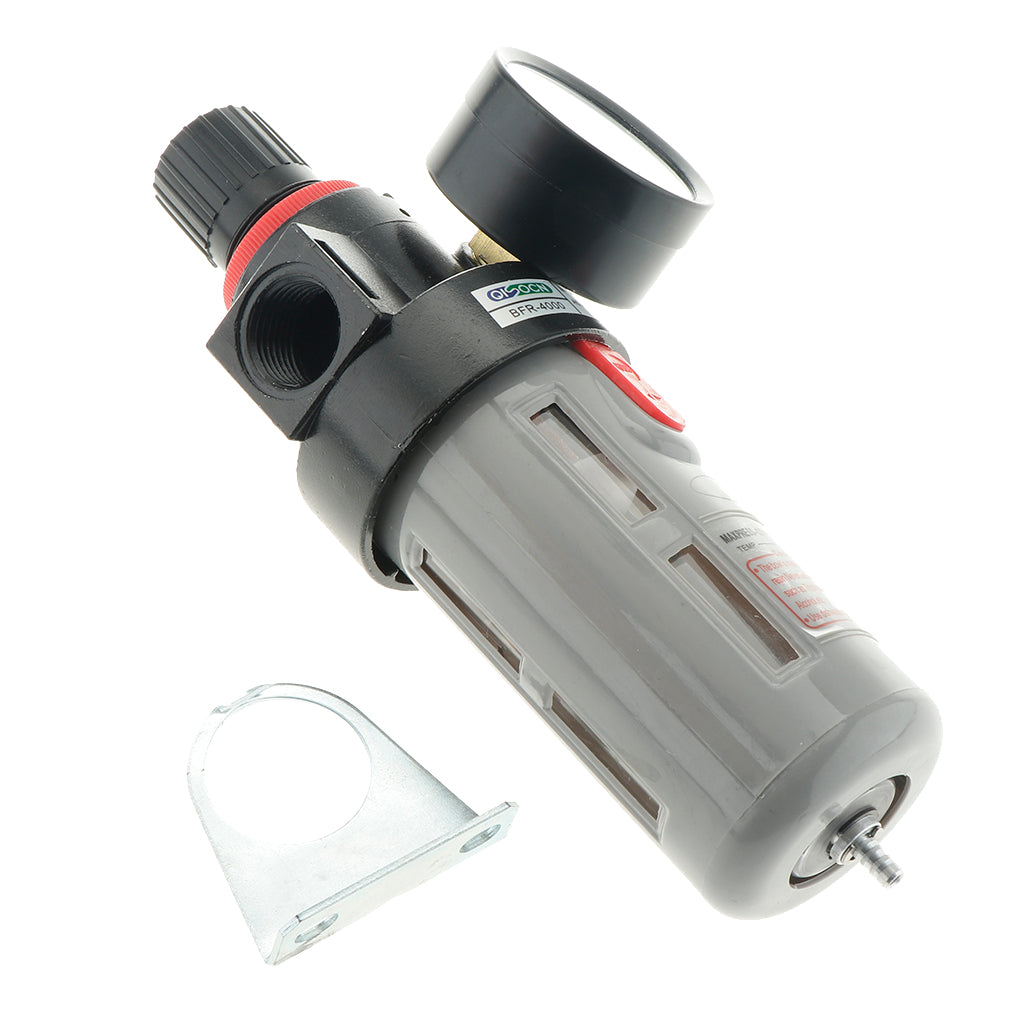

Air Filter Regulator:

Regulator valve adopts balanced inlet structure.
Widely used for pneumatic tool and components.
Help filter liquid and foreign particles from compressed air line.
With the advantages of stable pressure, high precision, and quick reaction.
Filter adopts novel vane design with high division efficiency and differential pressure discharge device.

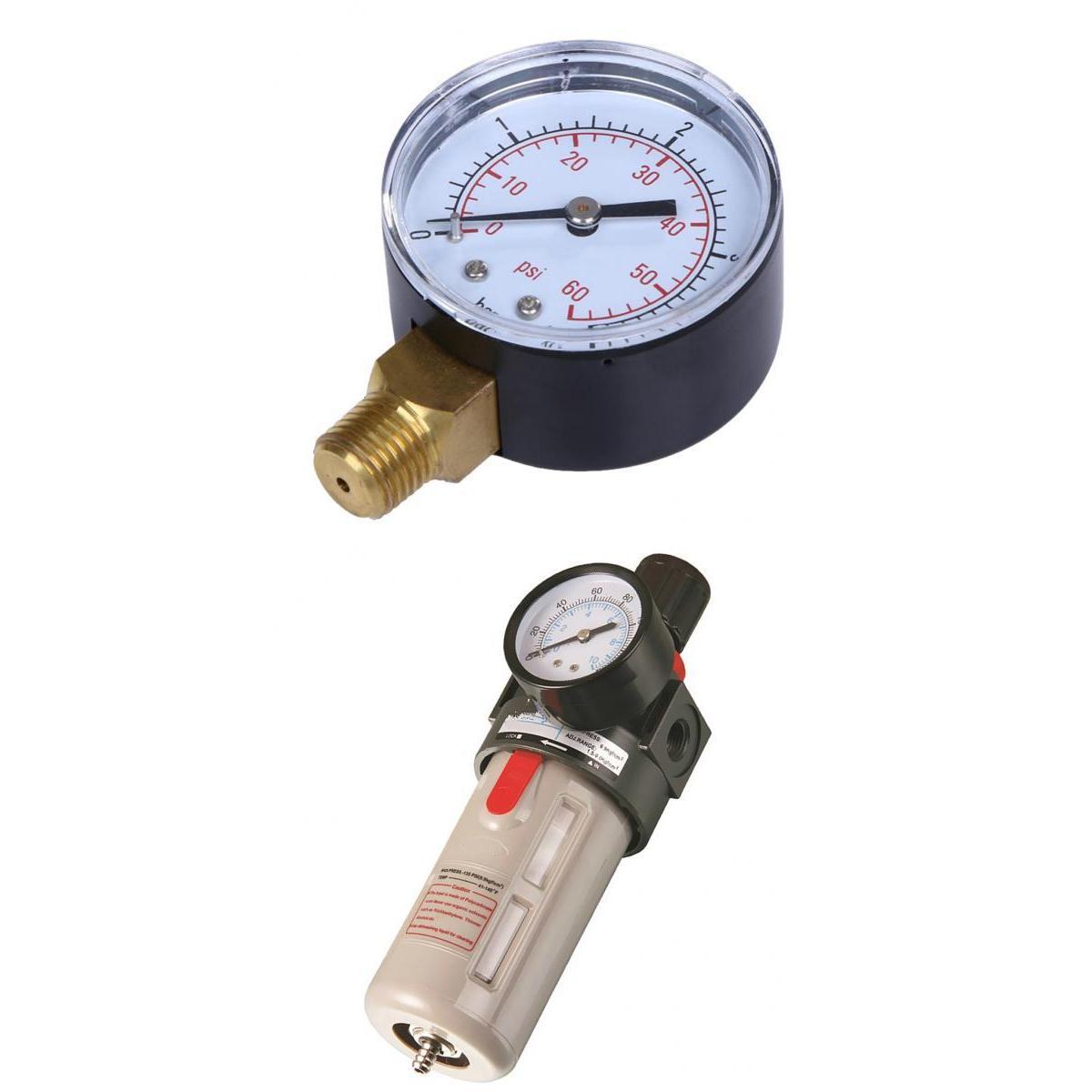

Pressure Gauge:

This pressure gauge with stable performance, has double scale for bar/psi measurement
50mm dial plate, clear number markings for easy readings
This air compressor hydraulic pressure gauge features a 2" face and 1/4" NPT side mount
Its measurement range is 0~60psi or 0~4bar
A chrome steel gauge with chrome steel bezel, metal outer case, well protect the inner accessories

Specification:

Air Filter Regulator:

Material: Aluminum Alloy

Color: Black

Operating Fluid:Air

Caliber Size: Approx. 1/2"

Filter Accuracy: 40μm

Working pressure range: 0.05~0.85Mpa(7-121Psi)

Extreme Service Pressure: 0.95Mpa(135Psi)

Guaranty with Stand: 1.5Mpa(213Psi)

Operating temperature range:5℃~60℃

Water Treatment Capacity Cup: 60CC

Pressure Gauge:

Material: Stainless Steel
Measurement:0~60psi / 0~4bar
Dial Plate Diameter: 50mm/ 1.97inch
Size: Approx. 5x7x2.76cm/ 1.97x2.76x1.09inch
Connection: 1/4" NPT Thread

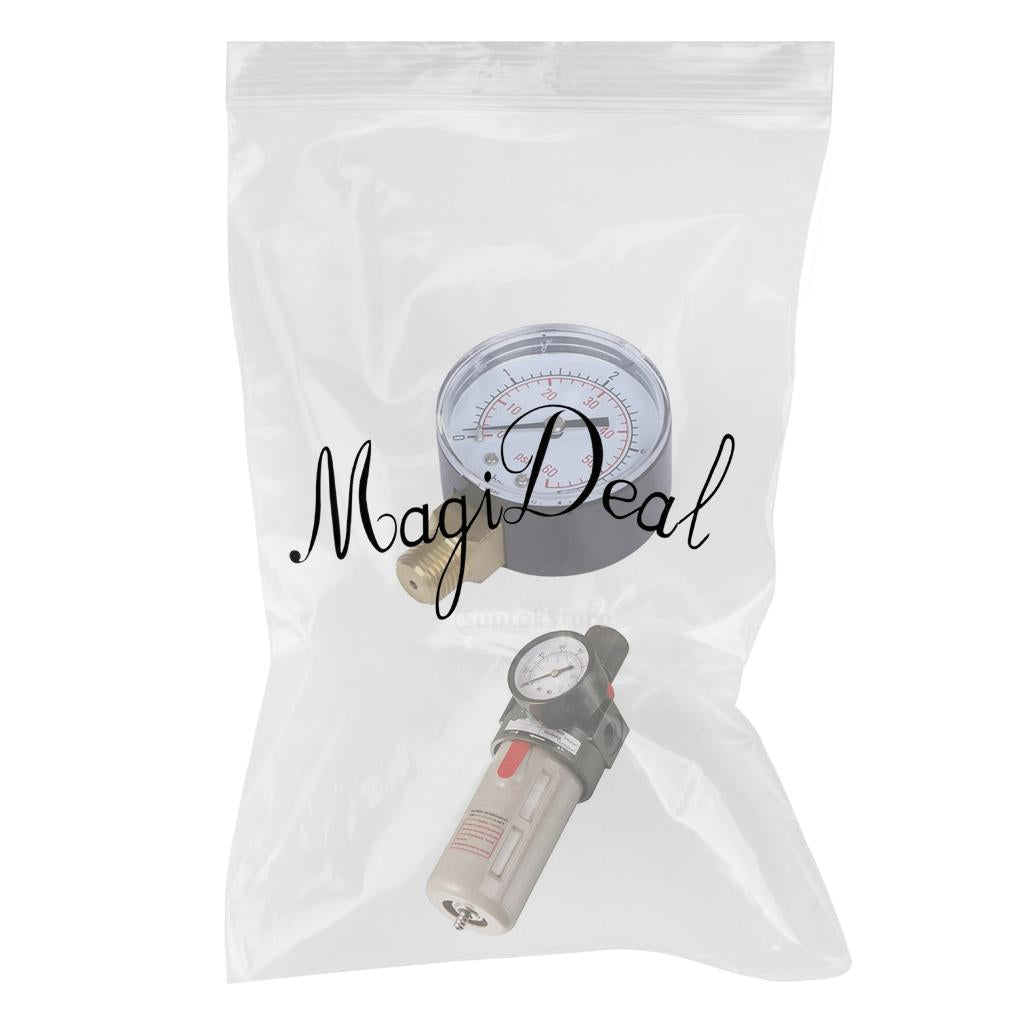

Package Includes:

1 piece BFR4000 Air Filter Regulator

1 piece Pressure Gauge
