Boat Digital Water Level Gauge+200mm Liquid Water & Fuel Level Gauge Sensor

Description:

Water Level Gauge:

316L stainless steel for long-term use even in acid-base,humid environment.

IP67 waterproof and dust-proof grade.

Stepper motors used for full range of steeping gauges,great feature with its less power consumption, longer life,higher precision, etc.

With curved glass( with anti-fog function)

There is a snap together with the harness connector, for best and firmly connected , in order that the gauges could work even in strong vibration.

Liquid Level Sensor:

Simple and easy to use.
High performance,stable and reliable.
Simple and stronge structure, advanced corrosion resistance.
High quality fuel level sender Economical level sensing solutions.
Suitable for boat, truck, RV, generators/gen set, bus and marine field.

Specification:

Water Level Gauge:

Part Number: 800-00214

Model: PEW2-BS-0-190

Bezel: Chrome 316L

Installation diameter: 52mm / 2 inch

Signal: 0-190ohm

Range: 0-100%

Working volt:9-32VDC

Operating current: ≤60mA

Operating temperature: -30~+75℃

Storage temperature: -40~+85℃

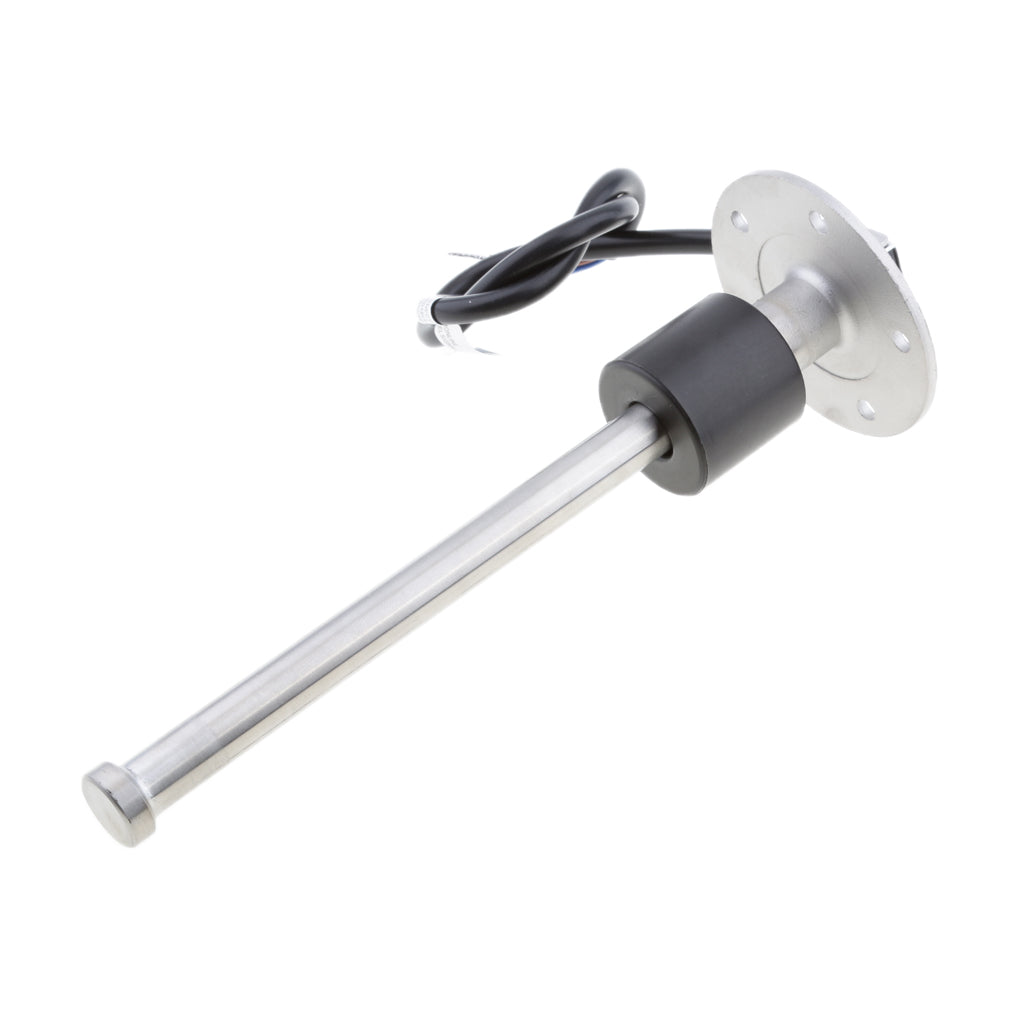

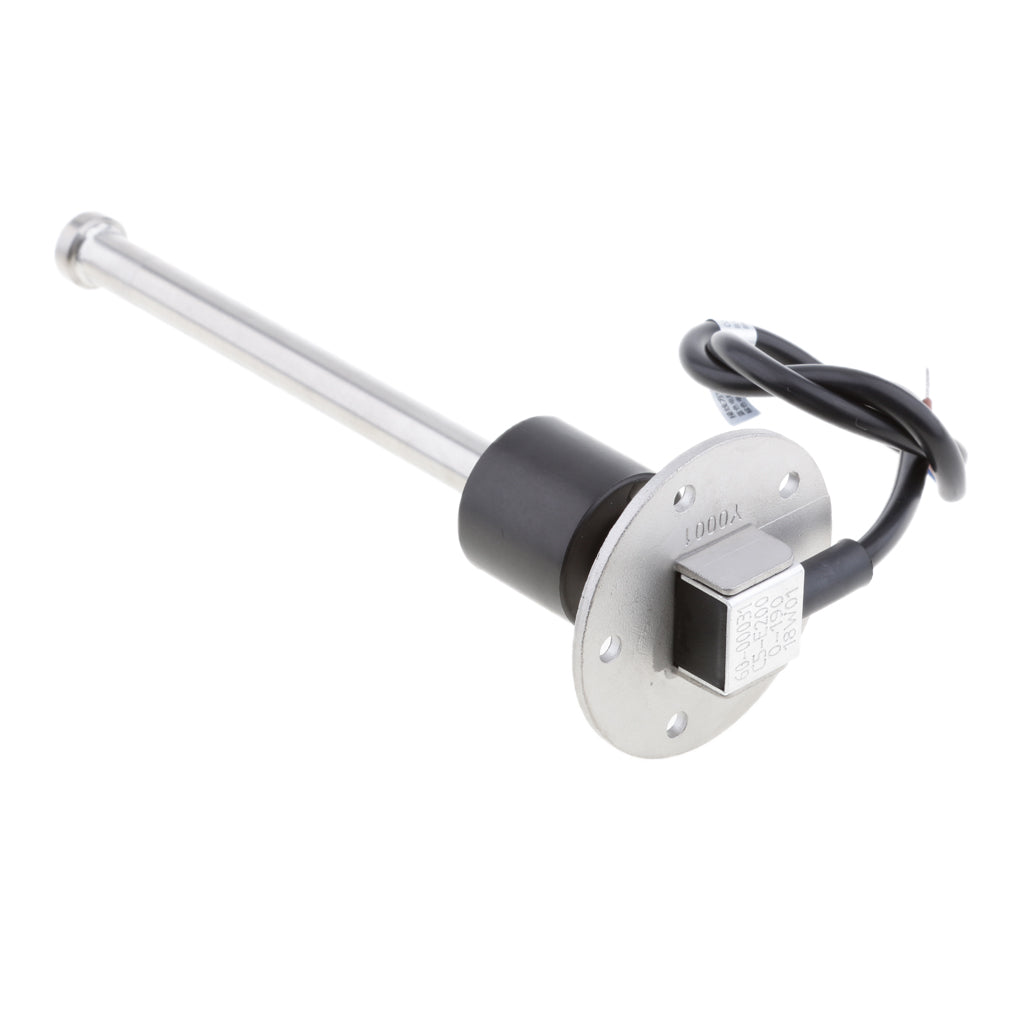

Liquid Level Sensor:

Cable Length: Approx. 40cm / 15.7 inch

Product Length: Approx. 20 cm / 7.9 inch

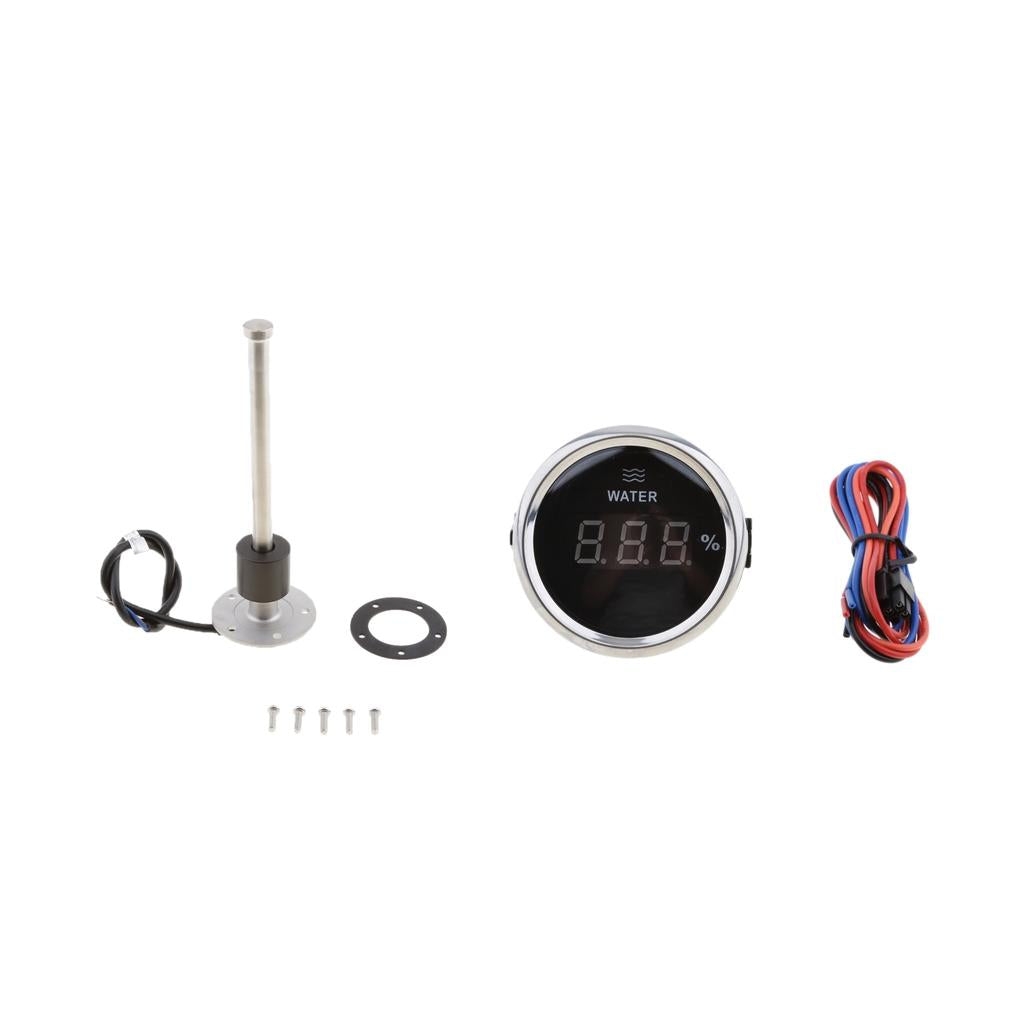

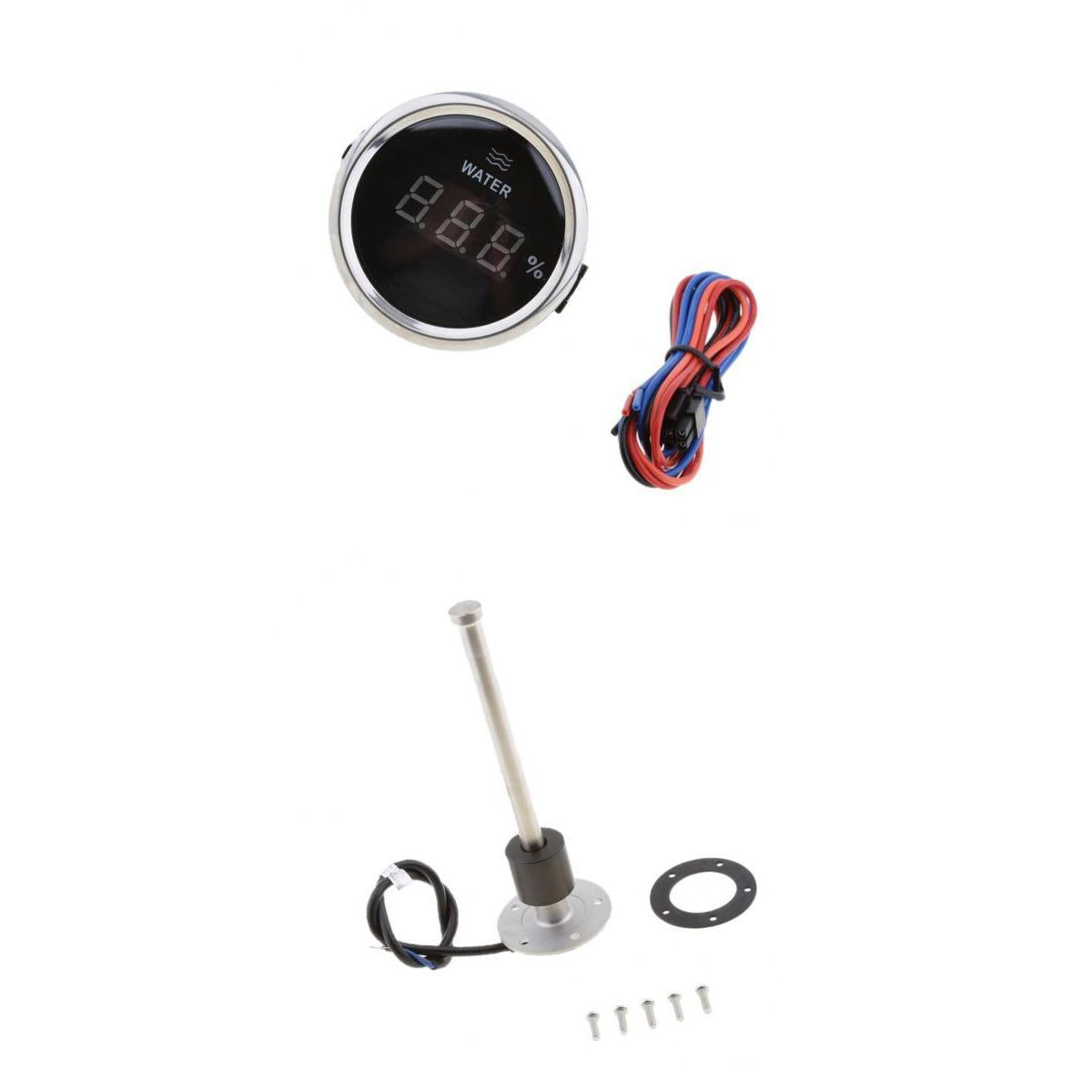

Package Includes:

1 Piece Digital Water level gauge

1 Piece Fuel Water Level Sensor Kit
