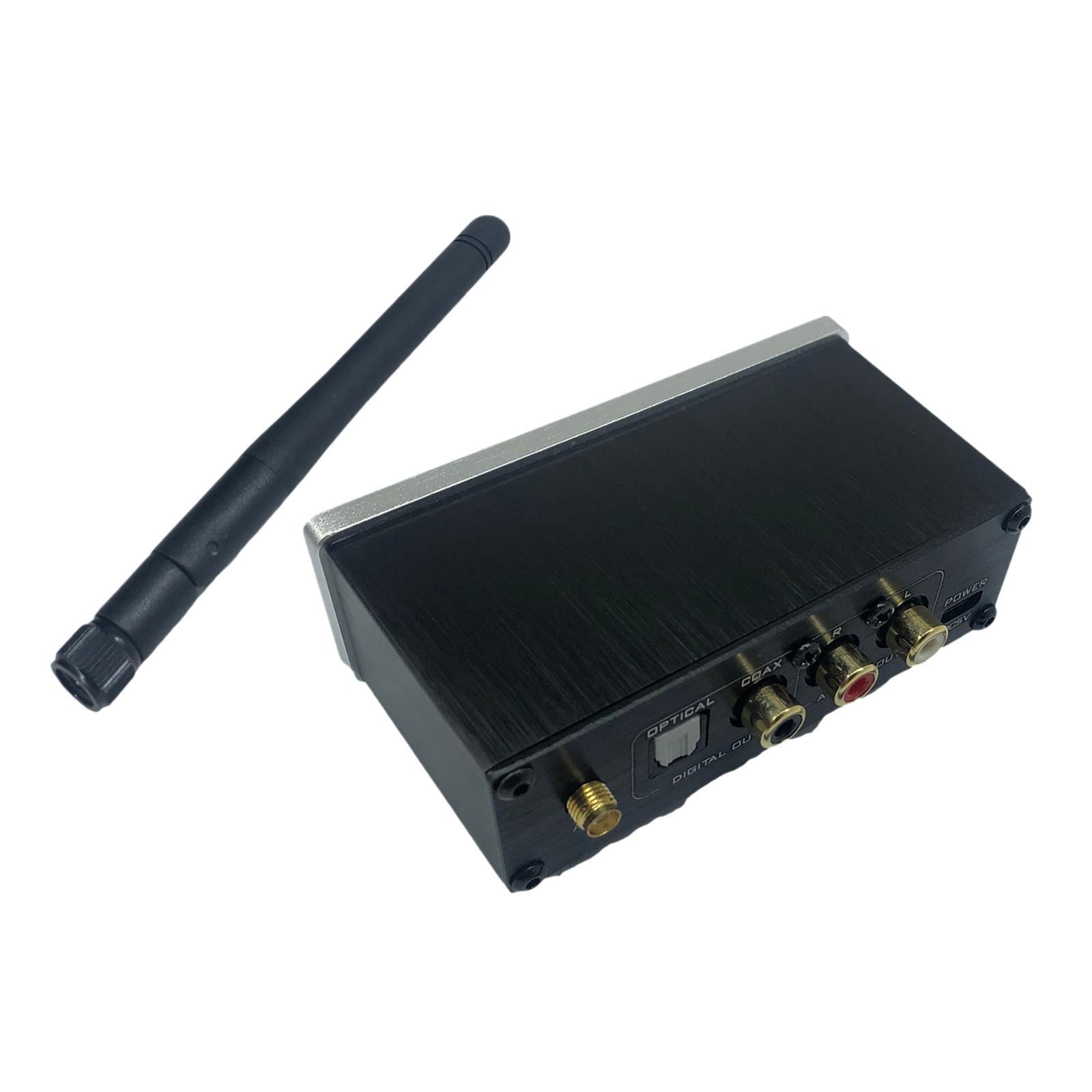

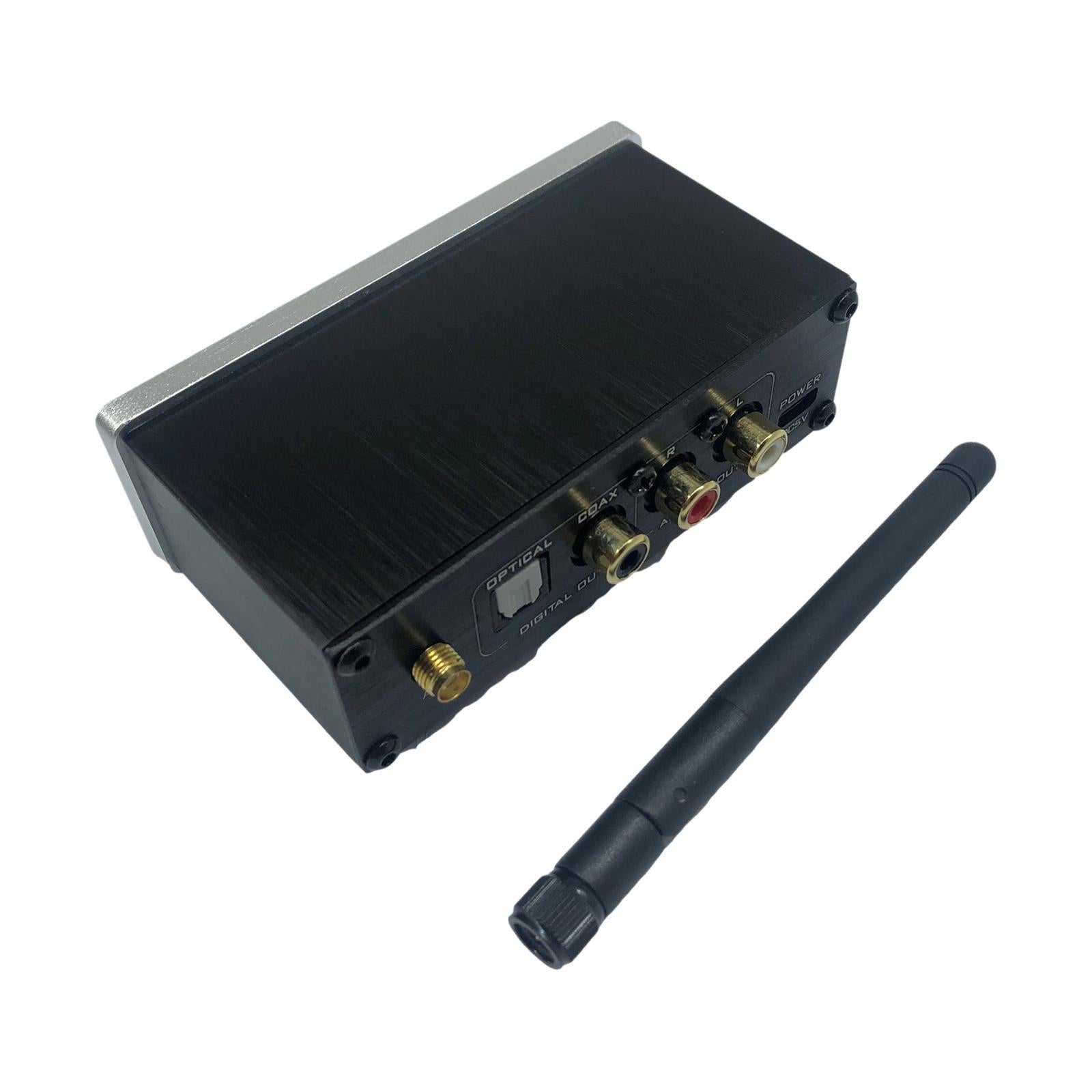

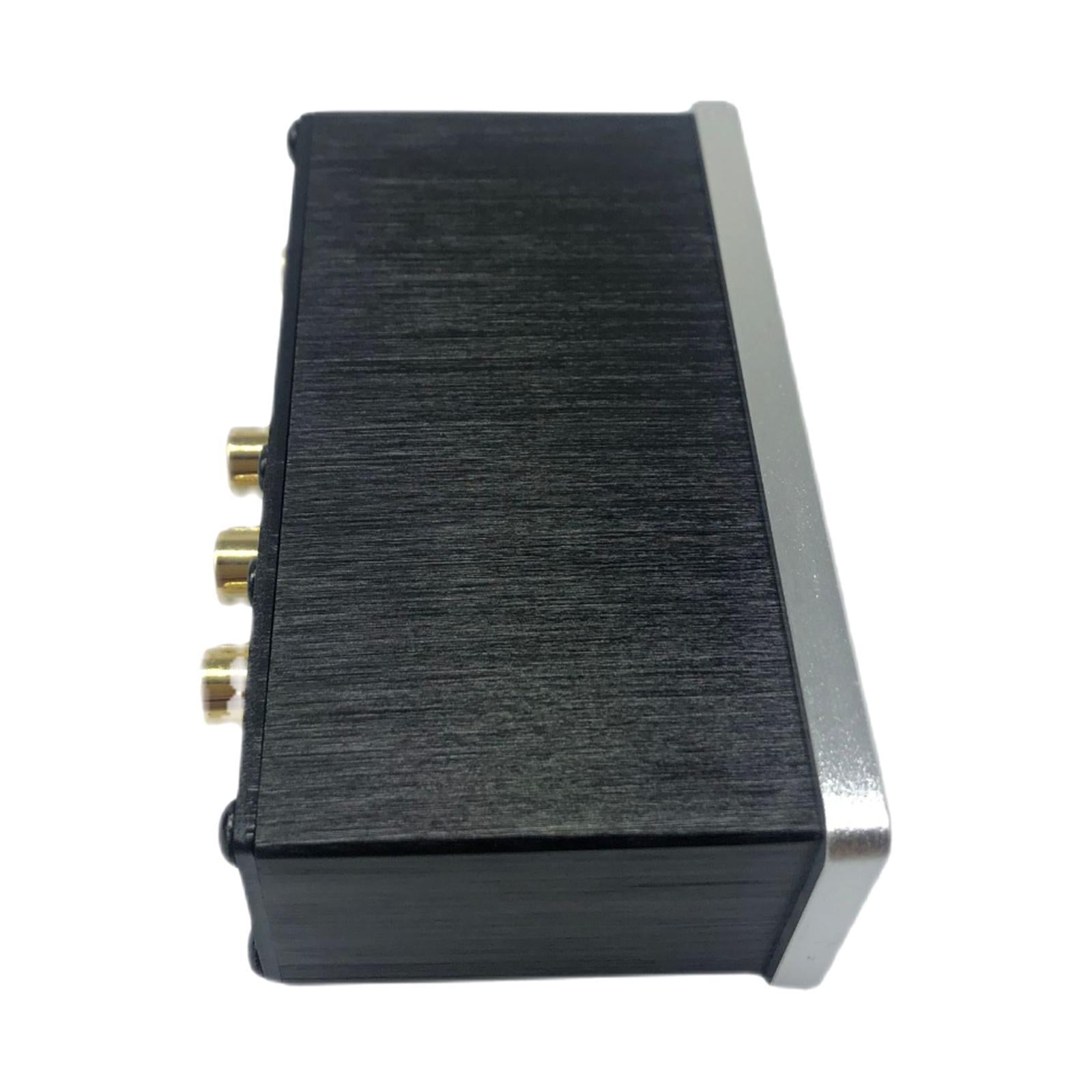

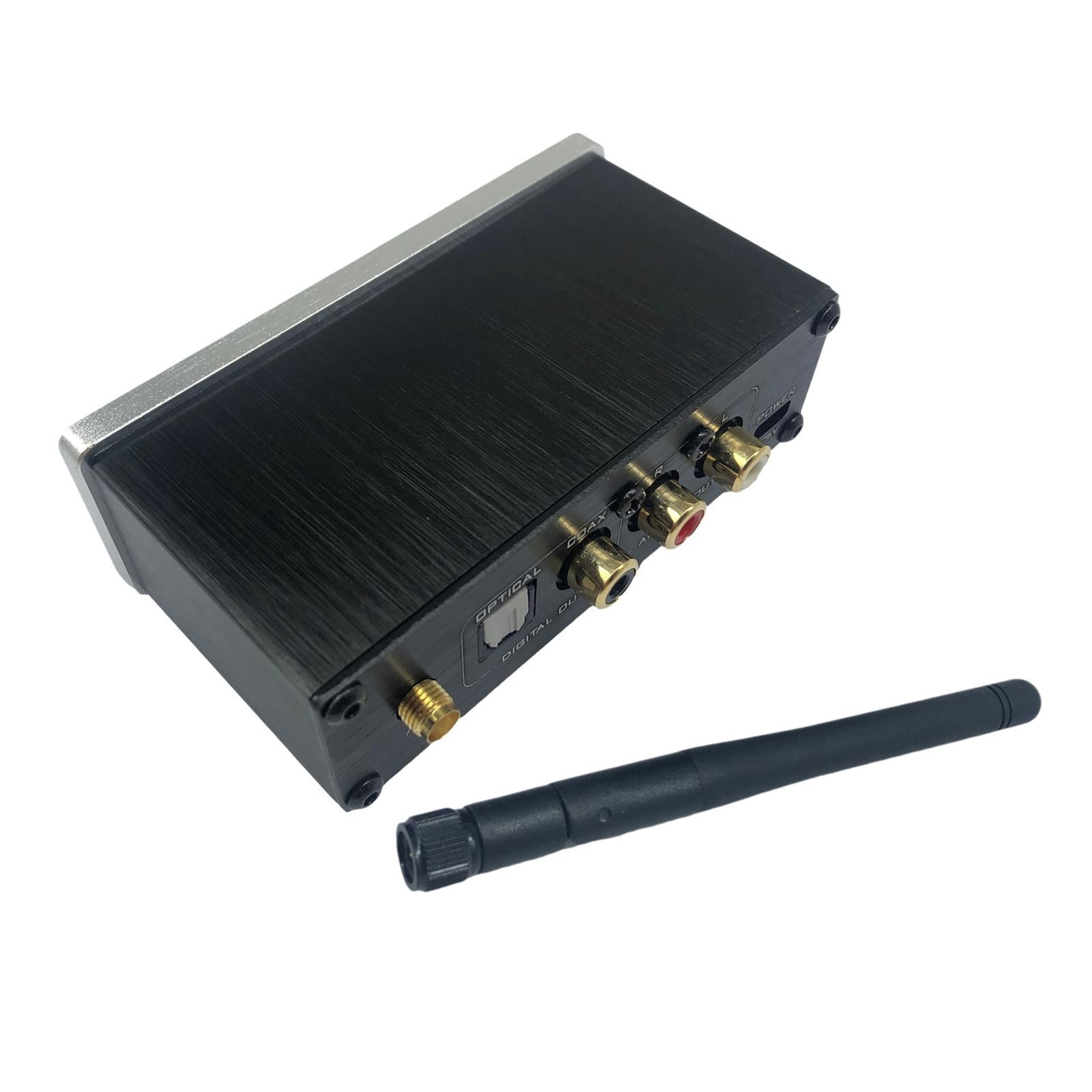

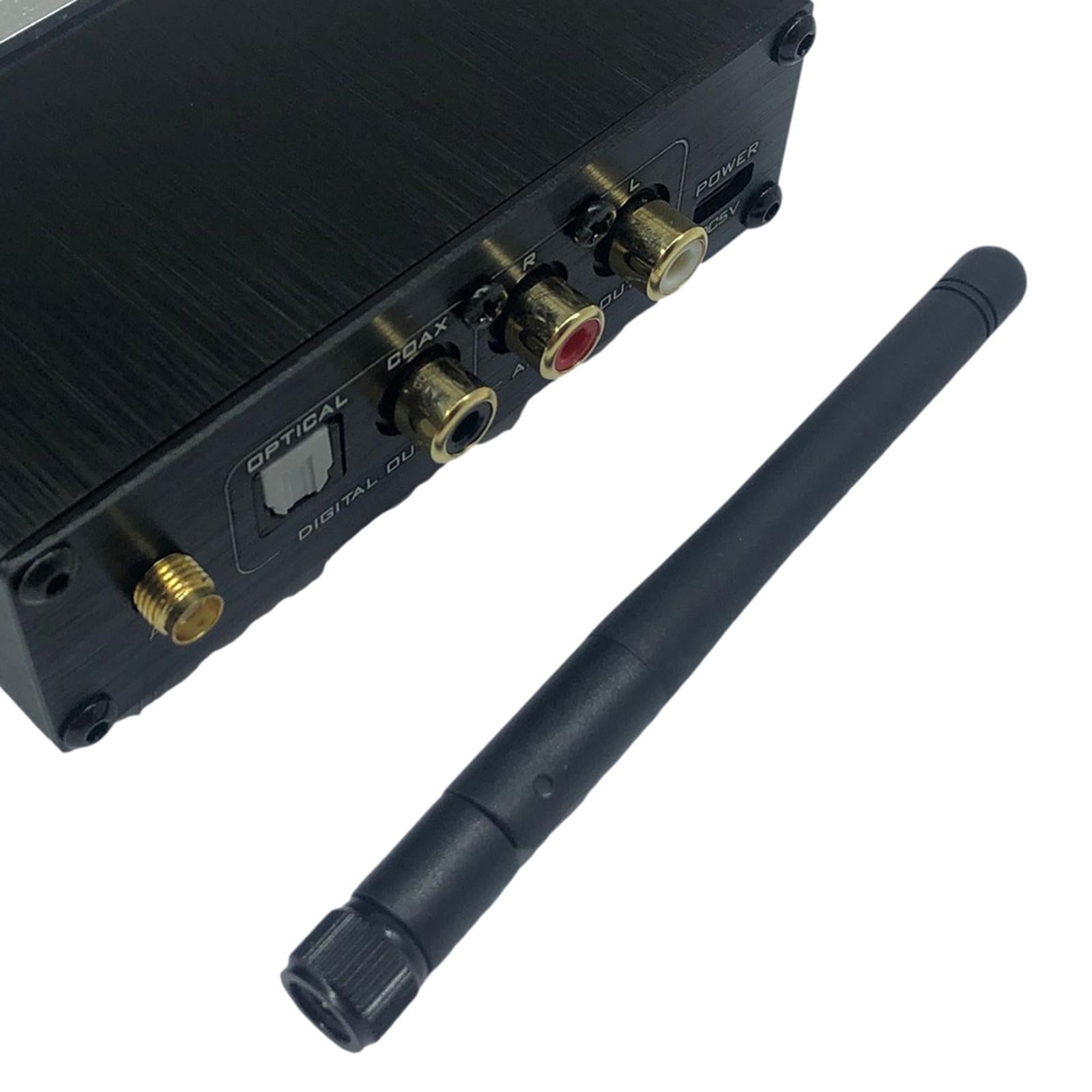

BTS1 CSR8670 4.0 Bluetooth Receiver Amplifier APT-X Support Fiber Coaxial

Description:

Using CRS's Bluetooth module CSR8670,support APT-X lossless format, close to the scene. Fidelity
With analog output and digital output: I2S signal through the analog output Texas Instruments Texas Instruments fever-level DAC chip PCM5102A (dynamic 112DB) decoded with multi-level LDO regulator, tantalum capacitors, WIMA fever, the United States DALE fever without feeling Resistance to make its best performance; optical coaxial output before the digital shaping plastic waveform perfect, coaxial output also uses a digital transformer isolated output,
Power interface using common MICRO USB interface DC5v power supply, and then through the filter makes the power supply ripple lower, making the sound quality
Bluetooth encryption technology, the first pairing of the long press the power button, you can enter the pairing mode pairing, the back will automatically remember your phone or computer's Bluetooth, automatically connect back, no need to pair again
Humanized man-machine interface, Bluetooth status indicator, analog output indicator

Specification:

Type: Bluetooth audio receiver
Bluetooth module: CSR8670 4.0
Support: APT-X lossless
Input Interface: Bluetooth (only input method)

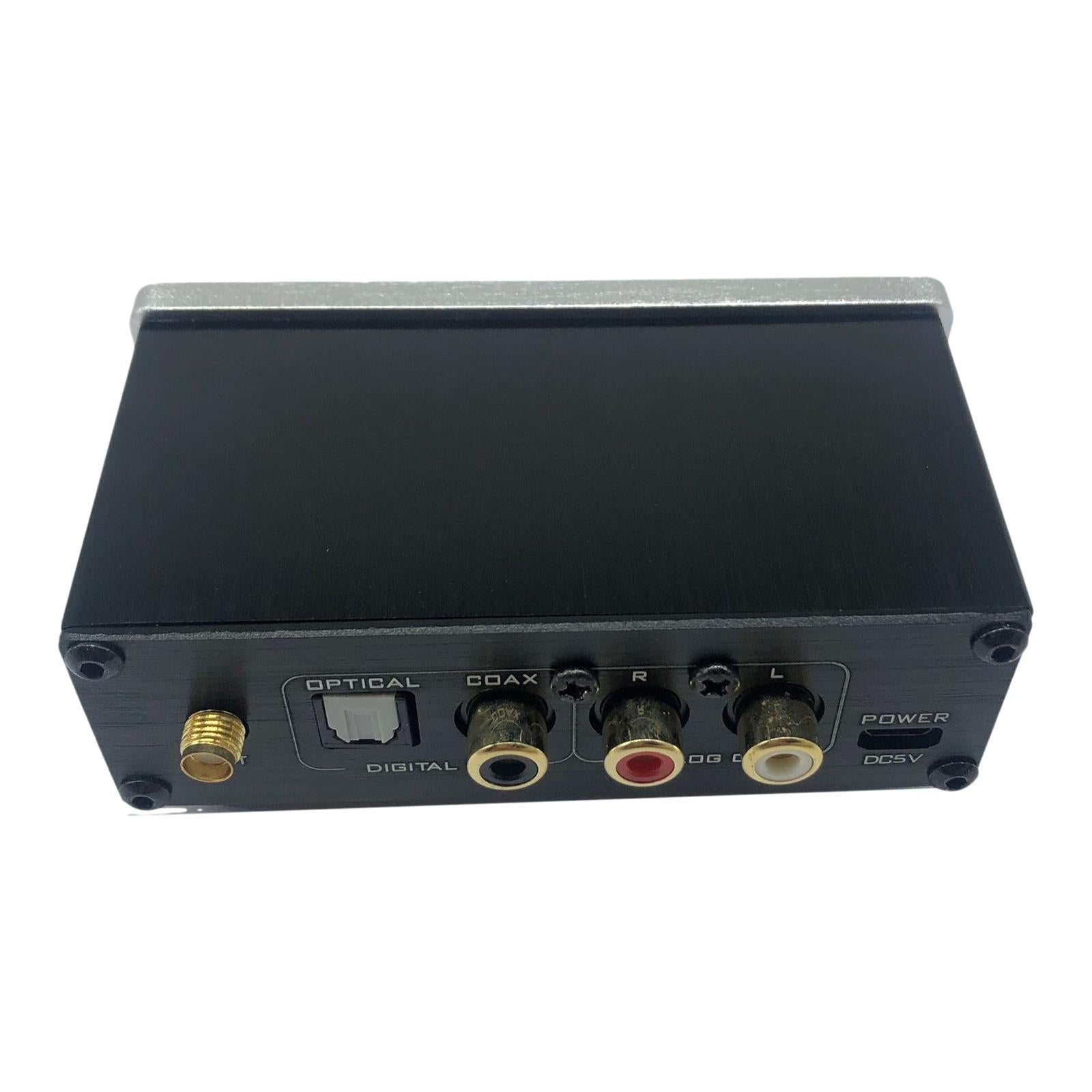

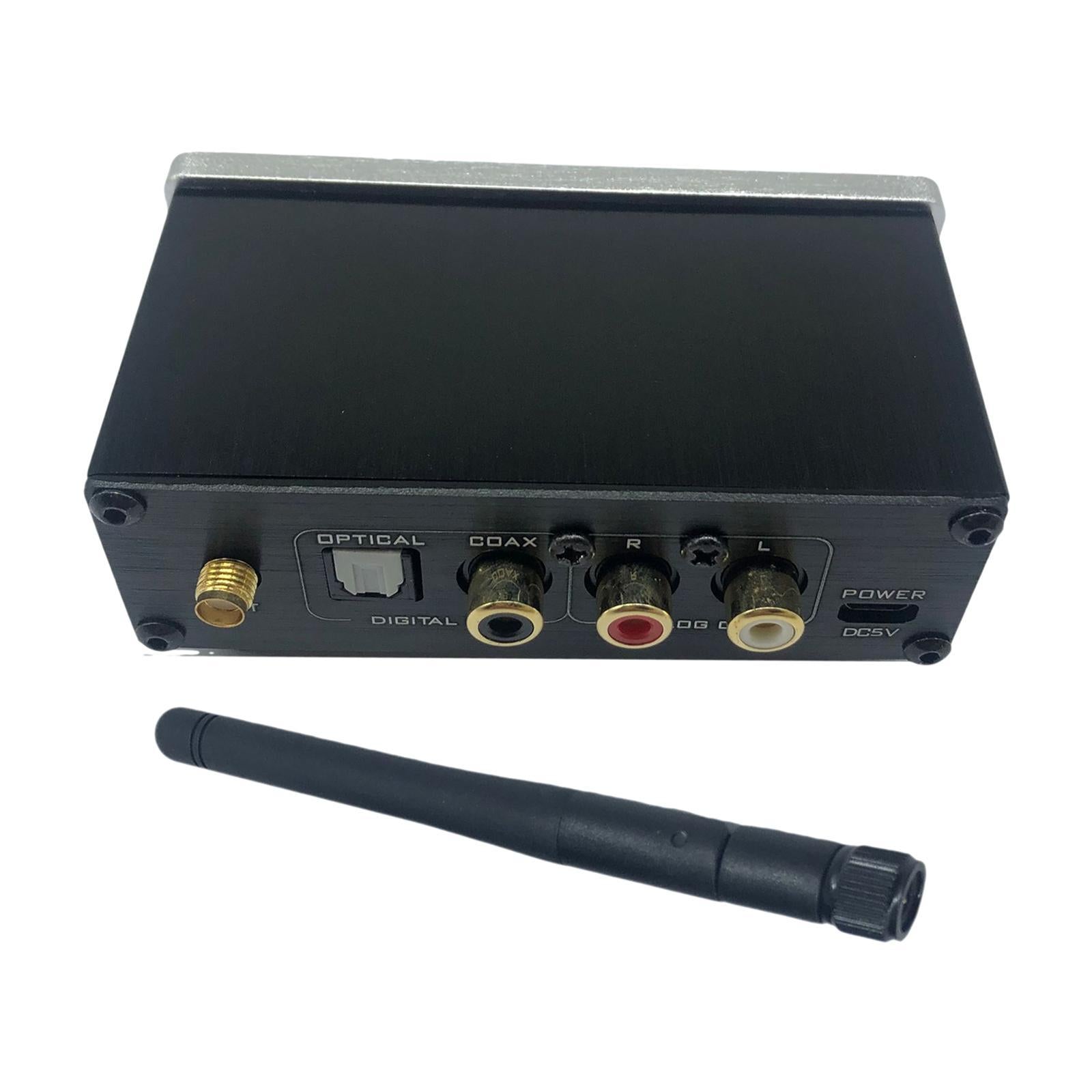

Output Interface: Optical Coaxial Analog RCA
Power supply: DC5V (Connect the USB charging cable to the DC charging port of BTS1, the USB power supply port of other devices such as USB plug-in 5v, or a USB adapter.)
Signal to noise ratio: 100DB
Sampling rate: 44.1k
Bluetooth version: 4.0
Product color: Black
Transmission distance: more than 10 meters
Size: approx.98 x 33 x 55mm/3.9 x 1.3 x 2.2 inch

Package Includes:

1x Bluetooth Receiver
1x Antenna
