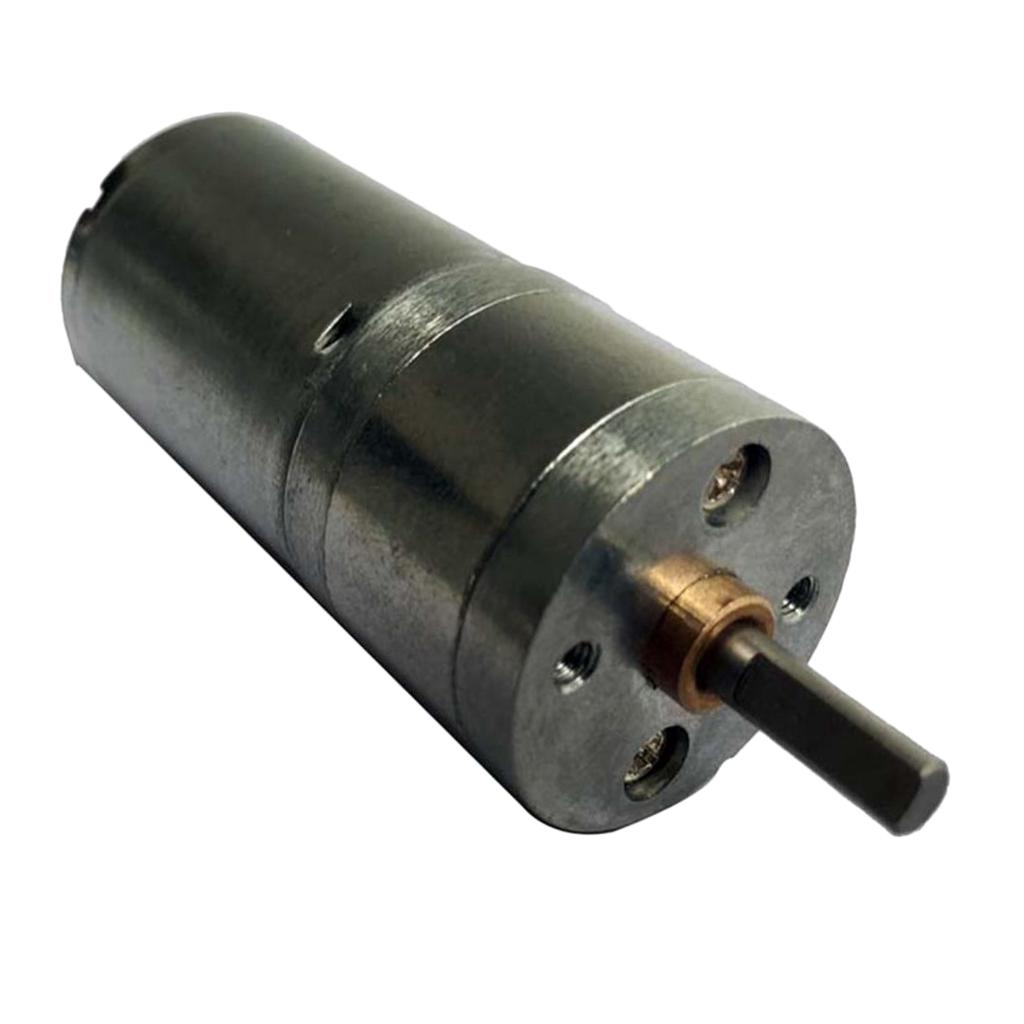

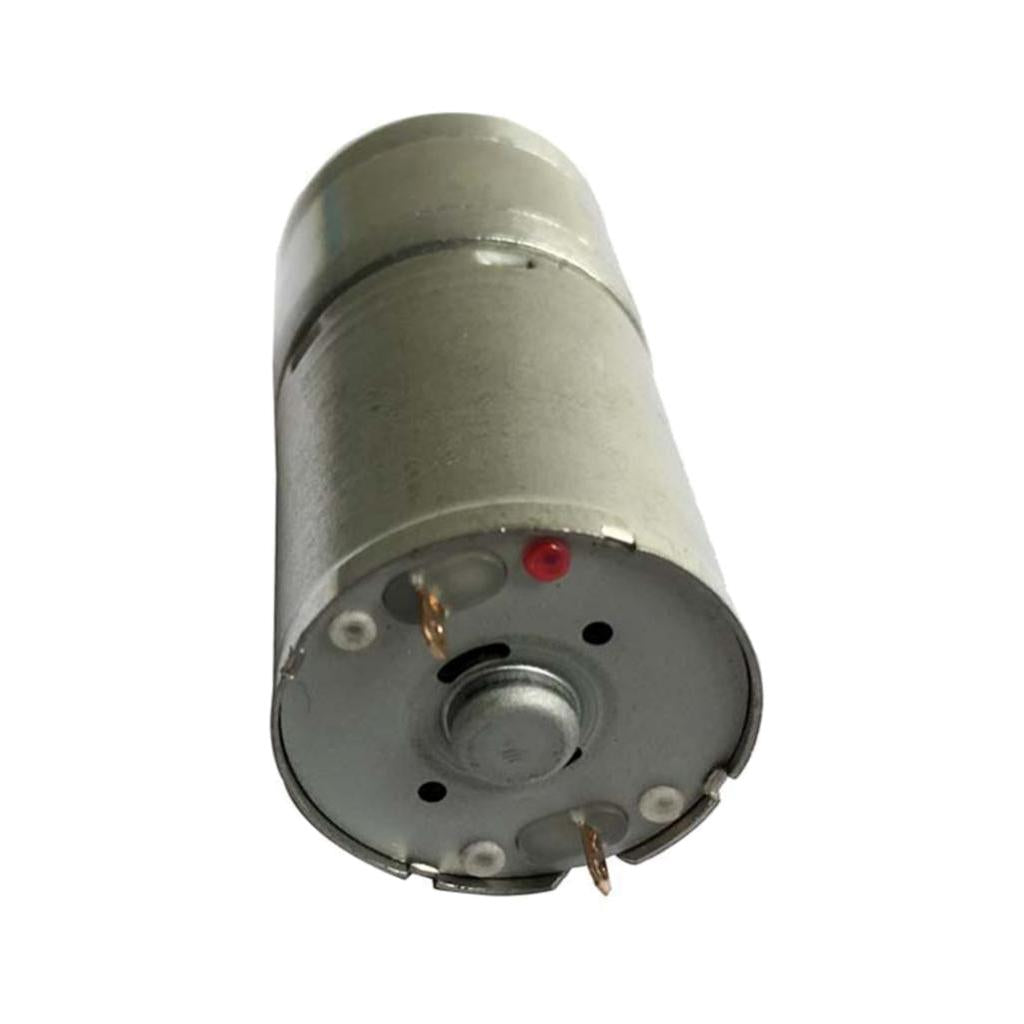

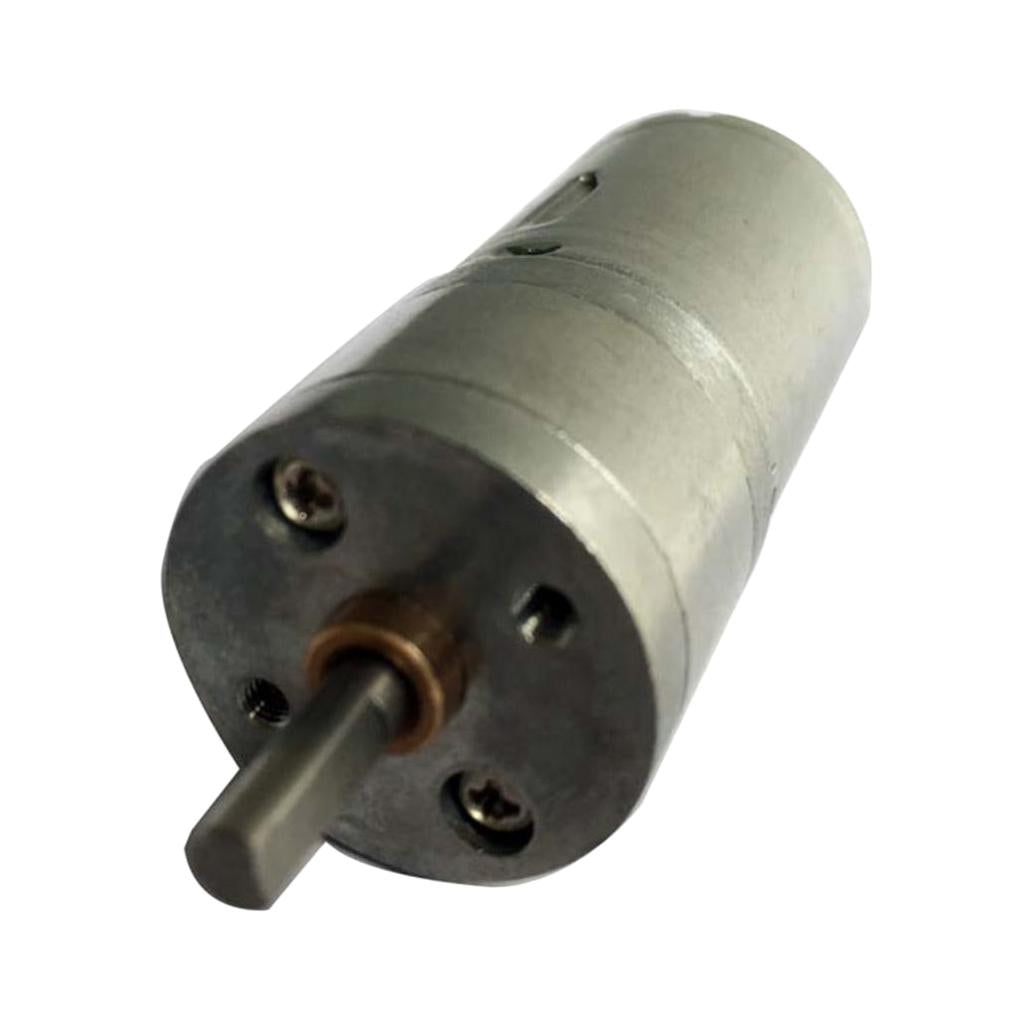

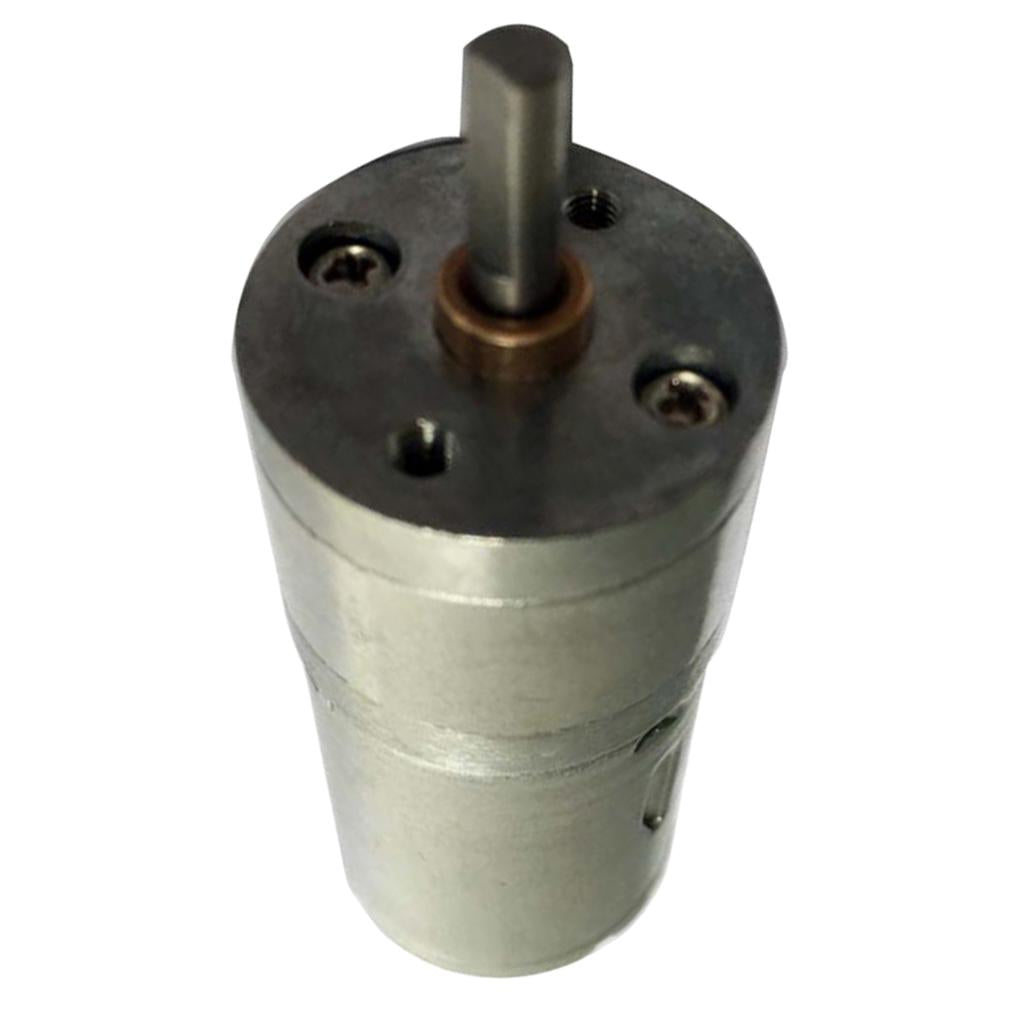

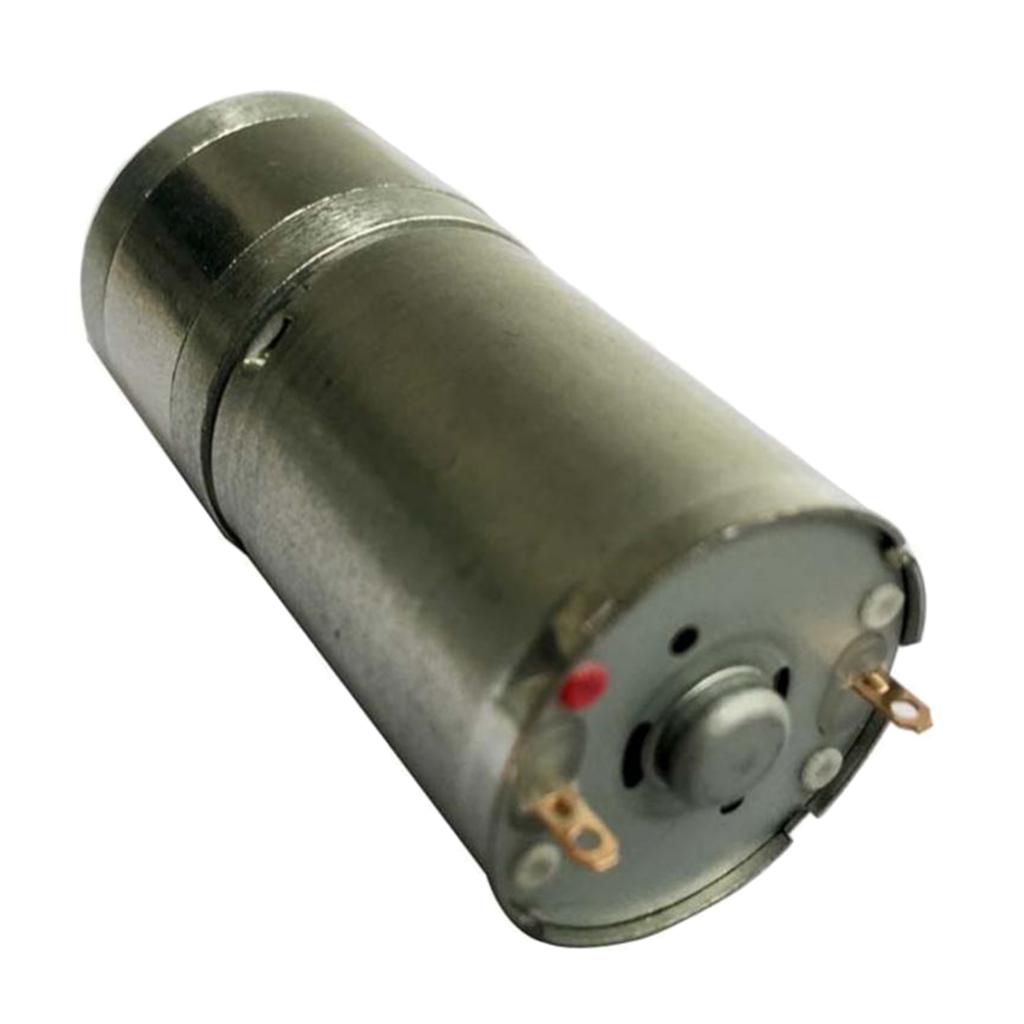

CGM-25GA-370 12V Motor DC 320 RPM PHI 4mm Deceleration High Torque Motors

Description:

Galvanized surface treatment, high-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the motor body. With precision winding technology, the geared motor power instant increased by 30%.
D SHAPED OUTPUT SHAFT Using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.
POSITIVE-NEGATIVE ROTATION You also can adjust the speed, but the motor speed can only be reduced, can not be raised. Low noise and high torque, such as 10rpm can drive 15 kilograms.
Applications: Boat, Car, Electric Bicycle, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, faucet, safe, wet towel dispenser, vending machines, automatic monitoring and other modern art.
Feature: -Motor rotation can be changed by changing the wiring-connection. -Motor will be self-locking when the power goes out. -The reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.

Specification:

Material: Alloy
Product detailed size: total length: 68mm/2.68inch, diameter 25mm/0.98inch
Vooltage:12V DC
RPM: 320RPM
Current:0.55A
Diameter:25mm
Height(excl, shaft):68mm
Shaft length: 9.5mm
Shaft diameter:4mm
Weight: 180g
Torque:13kg.cm
Stall current:4.8A
Max power:load 7 kg.cm/215rpm/3.1w/0.58A
Max effective point:load 4.0kg/cm/235rpm/2.5w/0.58A

Package Includes:

1 Piece 12V DC motor
