Chuango Radio frequency 315MHz PIR-700 PIR Motion Sensor

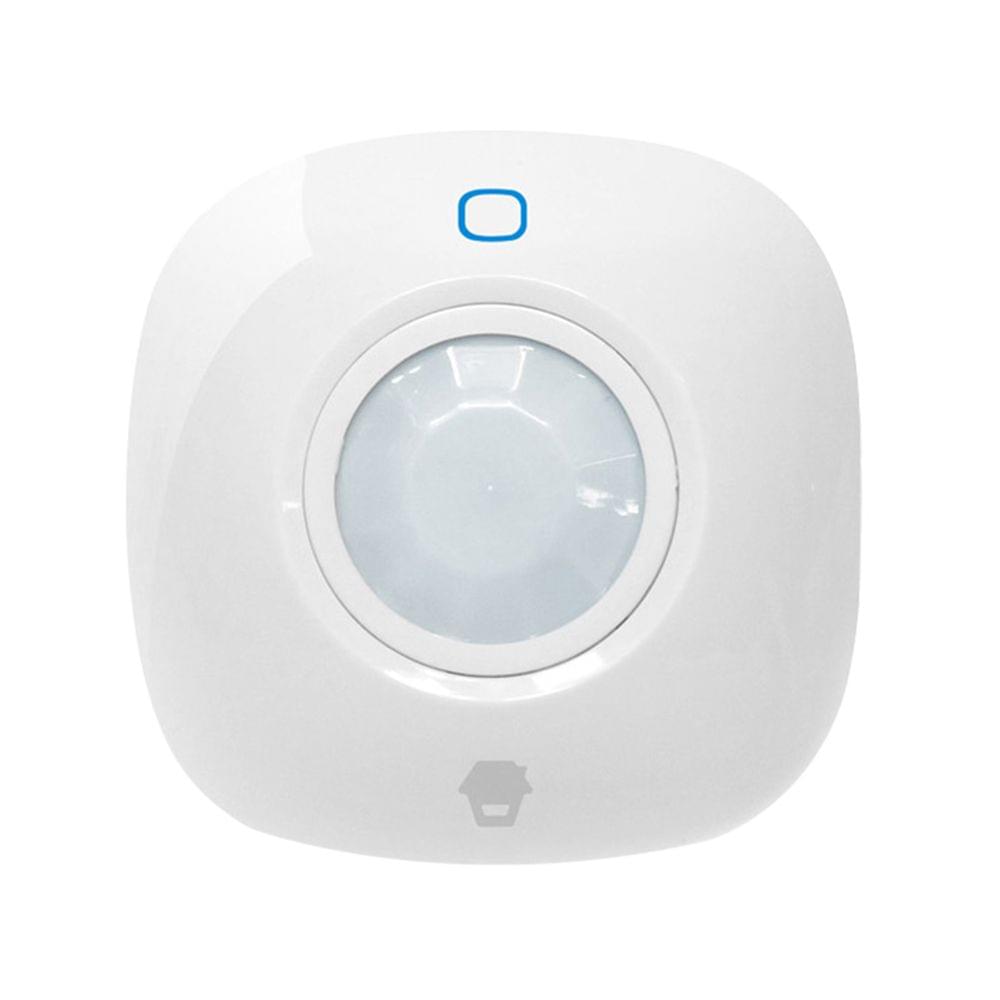

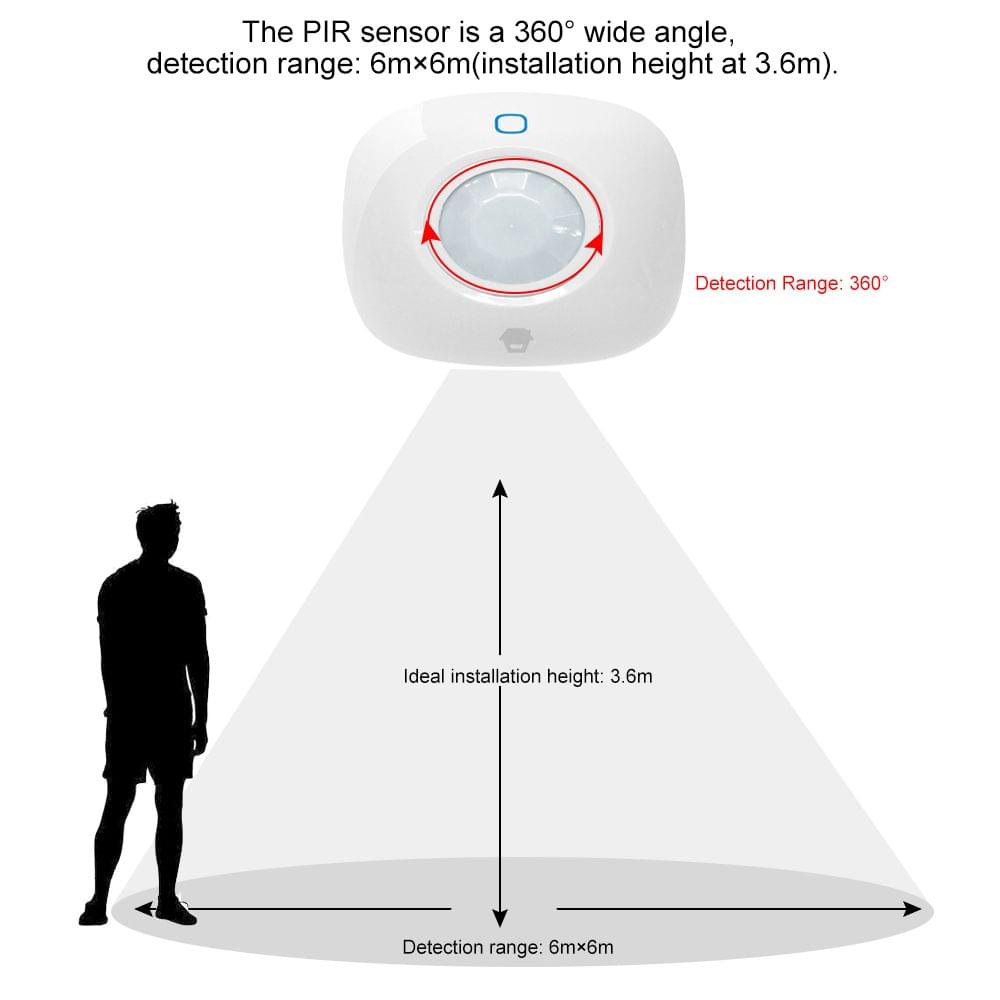

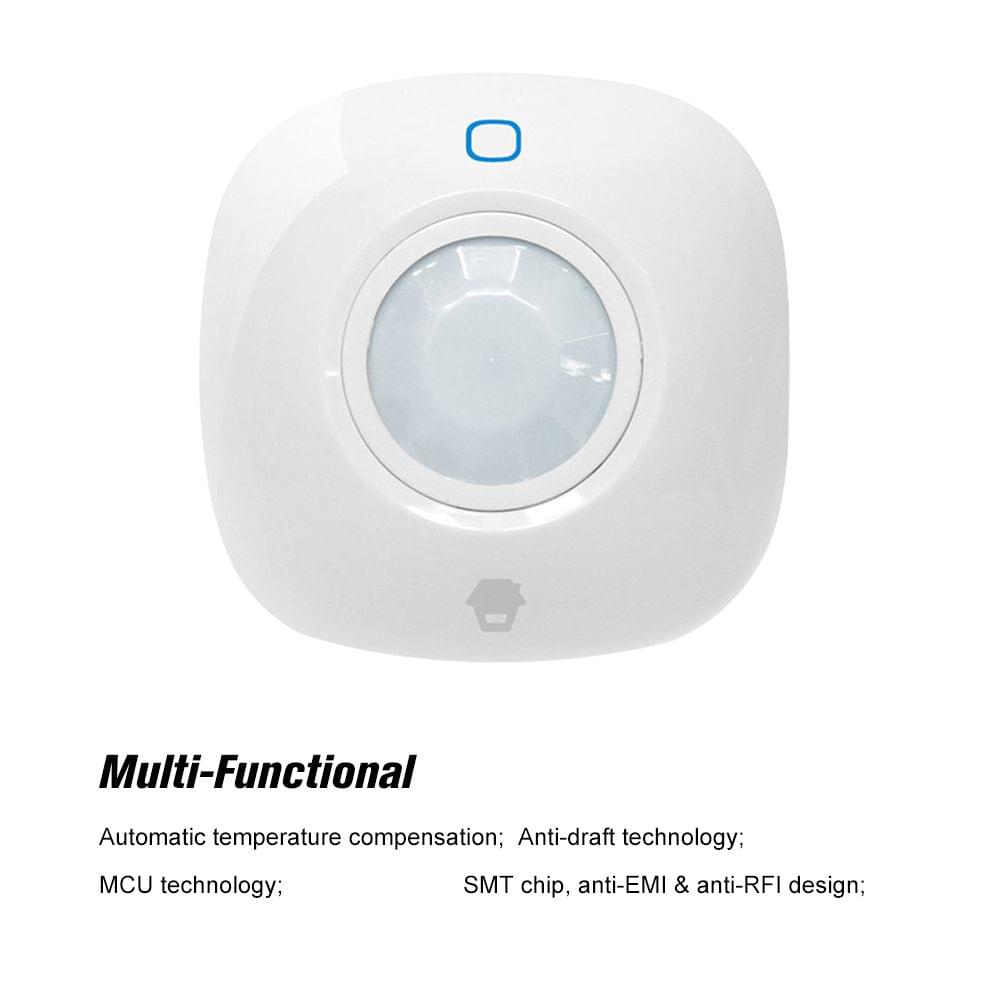

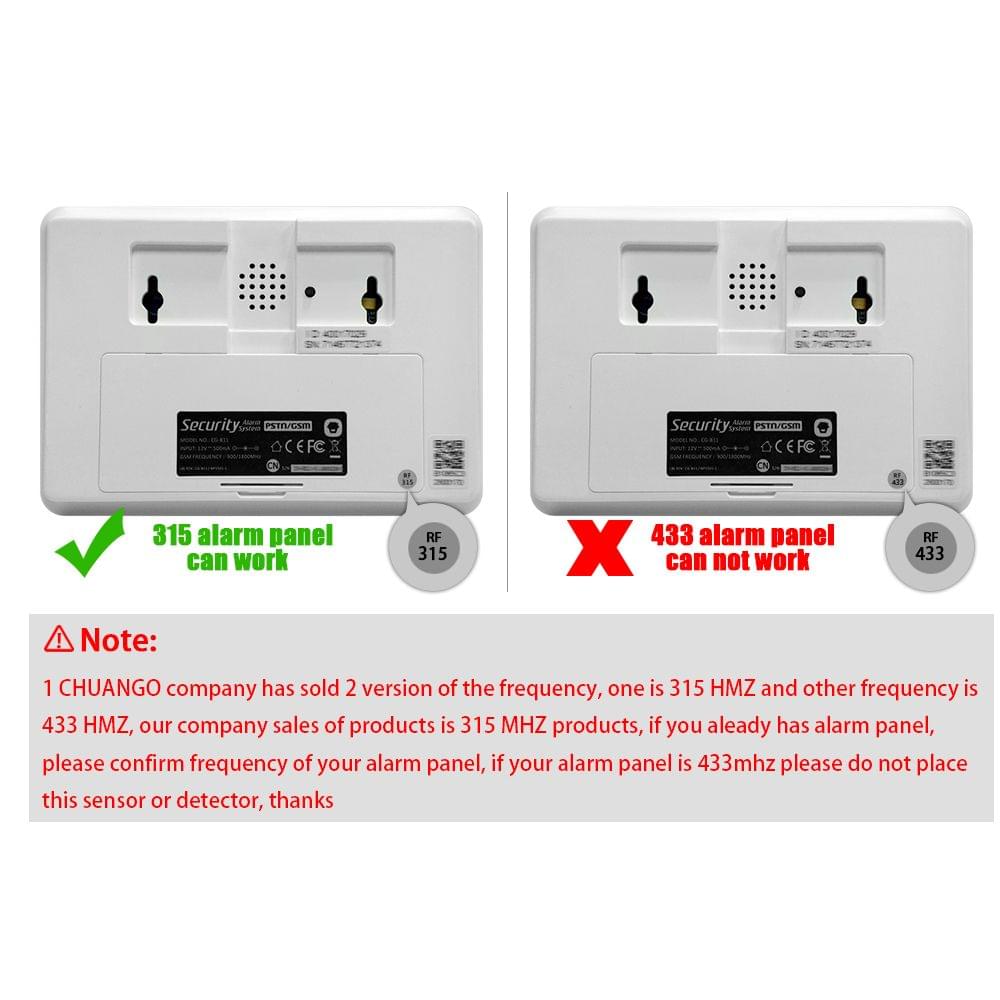

Note: It can only work with Chuango 315MHz G5/A11/B11/H4 Plus alarm system can't work with 433MHz alarm system.Overview:This product is a 315MHz 360 wireless ceiling mounting passive infrared detector exquisite design easy installation. Fit for the locations of the apartment building factory office hotel balcony window door corridors etc. Imported high-end infrared sensor SMT chip technology anti-EMI anti-RFI design temperature compensation etc. can be integrated with Chuango 315MHz alarm host.Features:*Automatic temperature compensation and anti-draft technology.*MCU technology to prevent all kinds of false alarms. With high catch performance.*The PIR sensor is a 360 wide angle detection range: 6m6m(installation height at 3.6m).*It can detect for tiny variations in the environment caused by human body movements and effectively minimizes false alarms.*Easy to set up on a ceiling it works well in banks warehouses and all family settings with a 360-degree effective range.Specifications:Power Supply: DC 3V 2*AA LR6 1.5V Battery (included)Static Current: 50uAAlarm Current: 9.5mAInstallation Height: 2.5-6mDetection Scope: Dia. 6m/360(when installation height is 3.6m)Transmitting Distance: 80m (in open area)Radio Frequency: 315MHzHousing Material: PC+ABS PlasticOperation Condition: Temperature: -10C~+55CRelative Humidity: 80% (non-condensing)Item Size: 90 * 90 * 36.8mm (L * W * H)Package Information:Package Size: Approx. 16 * 11 * 5cm / 6.3 * 4.3 * 2inPackage Weight: Approx. 187g / 6.6ozPackage List:1 * Wireless PIR Motion Sensor
