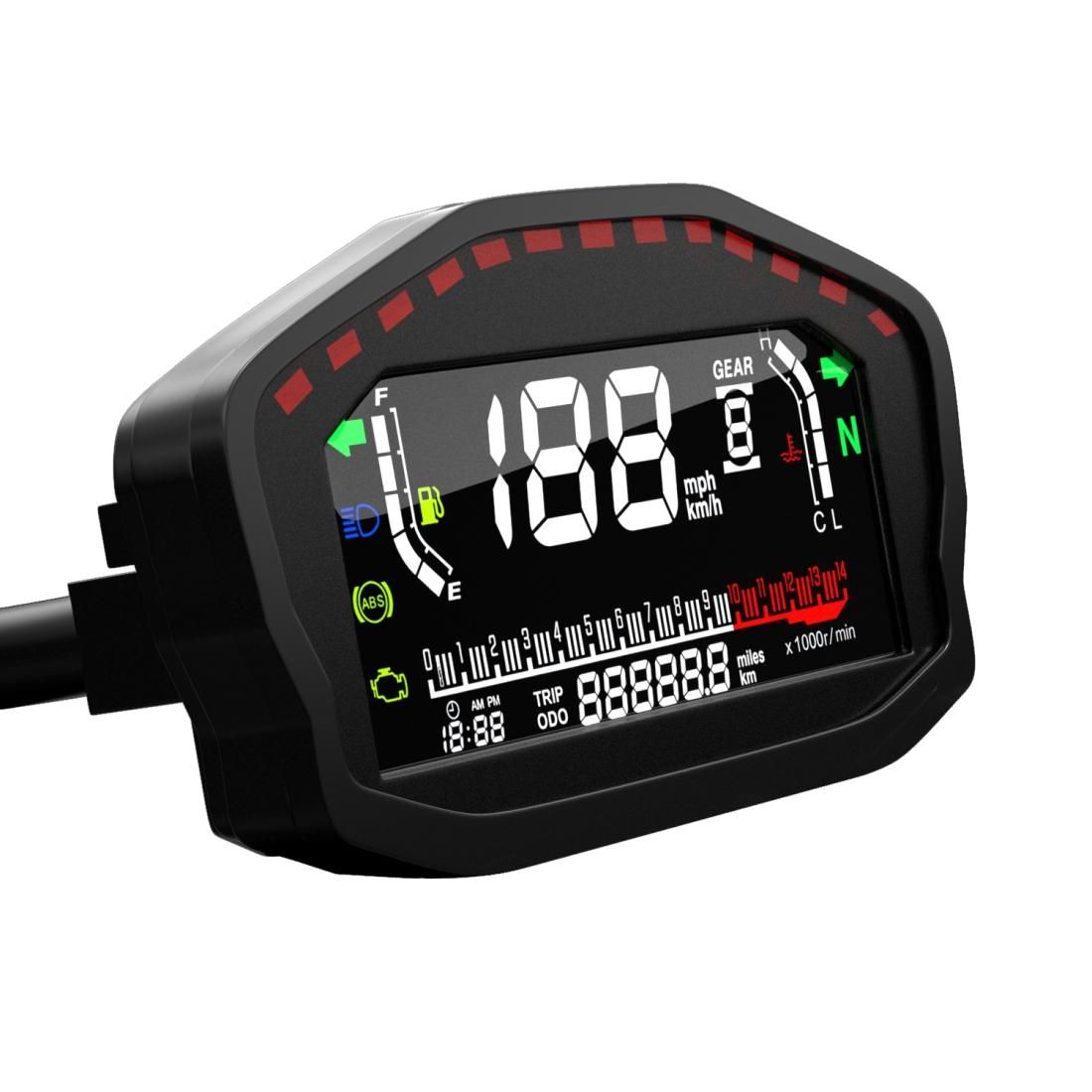

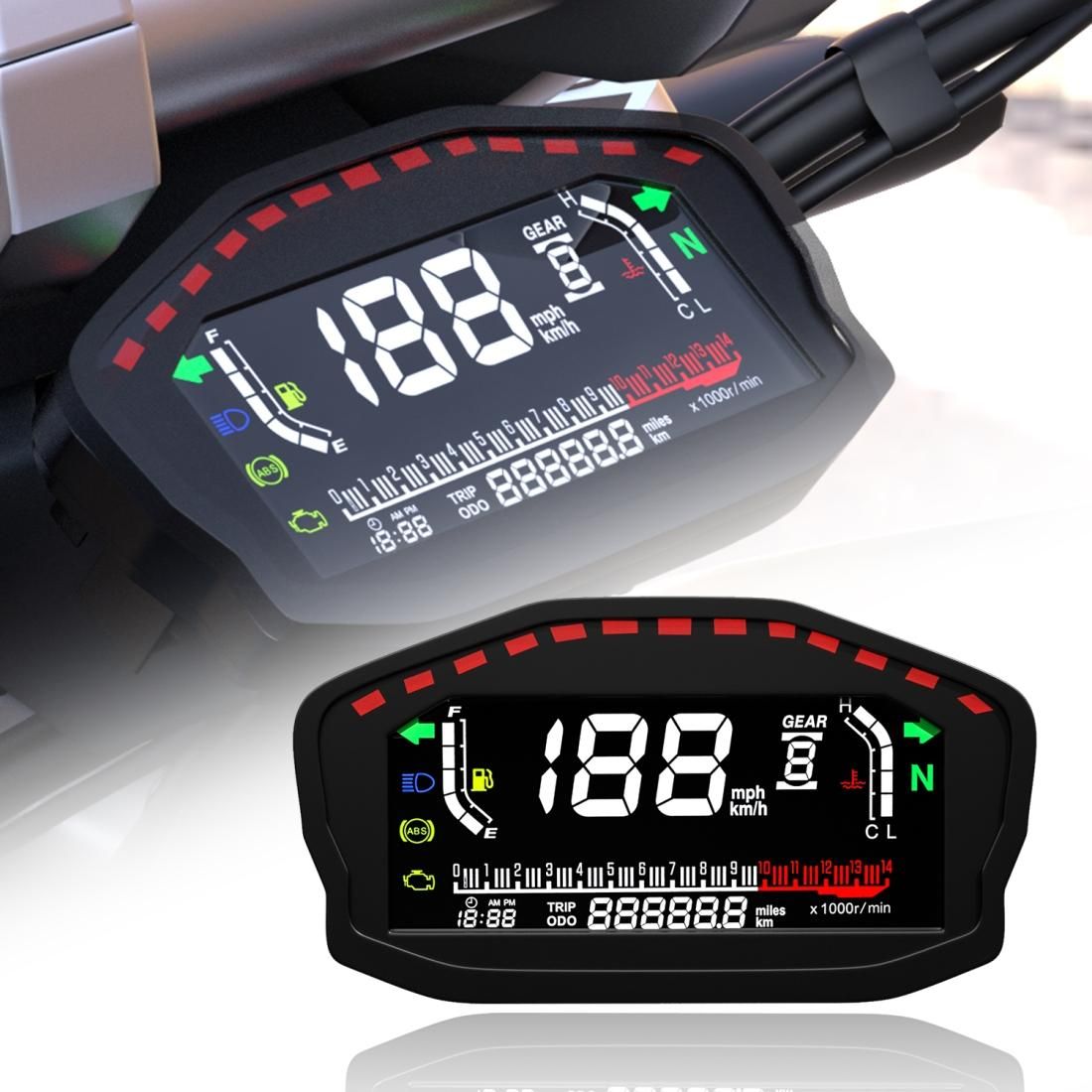

1. Input voltage: DC12V 2. Product line length: 58CM 3. Features include (speedometer, tachometer, fuel gauge, water temperature gauge), clear LCD screen, large viewing angle, soft vision, and relieve eye fatigue 4. Left and right turn signals: display the position of the vehicle turn signals. Usually in the off state, when the owner turns on the turn signal, the indicator light will light up in the corresponding direction 5. Gear (N, 1-6 gear display function, no need to add a gear locator) 6. Material: ABS environmental protection material
Key function: A. Short press the button to switch between total (ODO) and subtotal (TRIP). B. In the total (ODO) interface, press and hold the button for 8 seconds to switch between metric and imperial systems. The default is metric. After switching, it can be saved even if the power is completely cut off; C. In the subtotal (TRIP) interface, press and hold the button for 4 seconds to clear the subtotal D. In the total (ODO) interface, press and hold the button for 4 seconds to release, enter the clock setting, the hour will flash, the second will not flash, short press the button to increase 1, and long press the button for 3 seconds to switch to the minute second flash, second If the point does not flash, press and hold the button for 3 seconds to save and exit or automatically save and exit without operation for 10 seconds. E. Oil alarm: When the oil alarm light is on, switch to the total (ODO) interface, press and hold the button for 8 seconds, the oil light is off, and the next round of counting starts.
Background parameter setting: 1. Press and hold the button first, then open the electric door lock, 5S enter the back door setting, divided into 6 interfaces 2. Interface 1: Tire circumference value is set. The first digit of 188 of the speed display is displayed as 1. The total display is C-1850, 1850 means that the default tire circumference is 1850mm, thous
