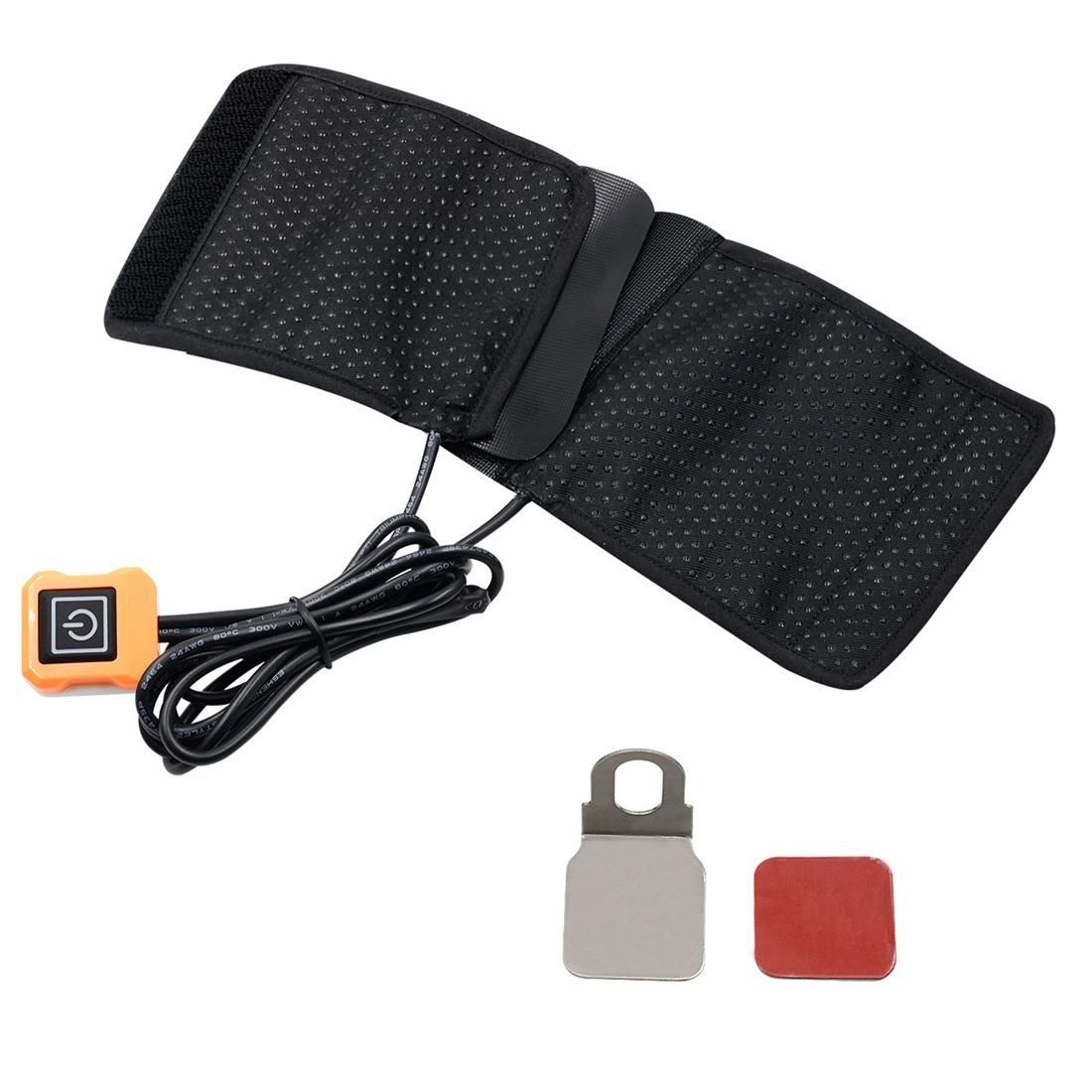

1. Cable length: 66CM (heating sheet to switch), 55CM (switch to electric door lock) 2. Product material: composite fiber heating wire + black non-woven fabric, (L bracket) stainless steel 3. Input voltage: DC12V 4. Power: high-end 16W, mid-range 12W, low-grade 8W 5. Installation method: 3M glue fixed, L bracket lens holder fixed 6. Waterproof and flame retardant, more uniform and stable heating, more comfortable feel 7. Built-in intelligent temperature control chip, three-stage temperature adjustment, intelligent temperature control is more secure 8. Fast heating in 10 seconds, large heating area 9. The heating piece is fixed by hook and loop fastener, convenient and quick 10. Net weight: 72G

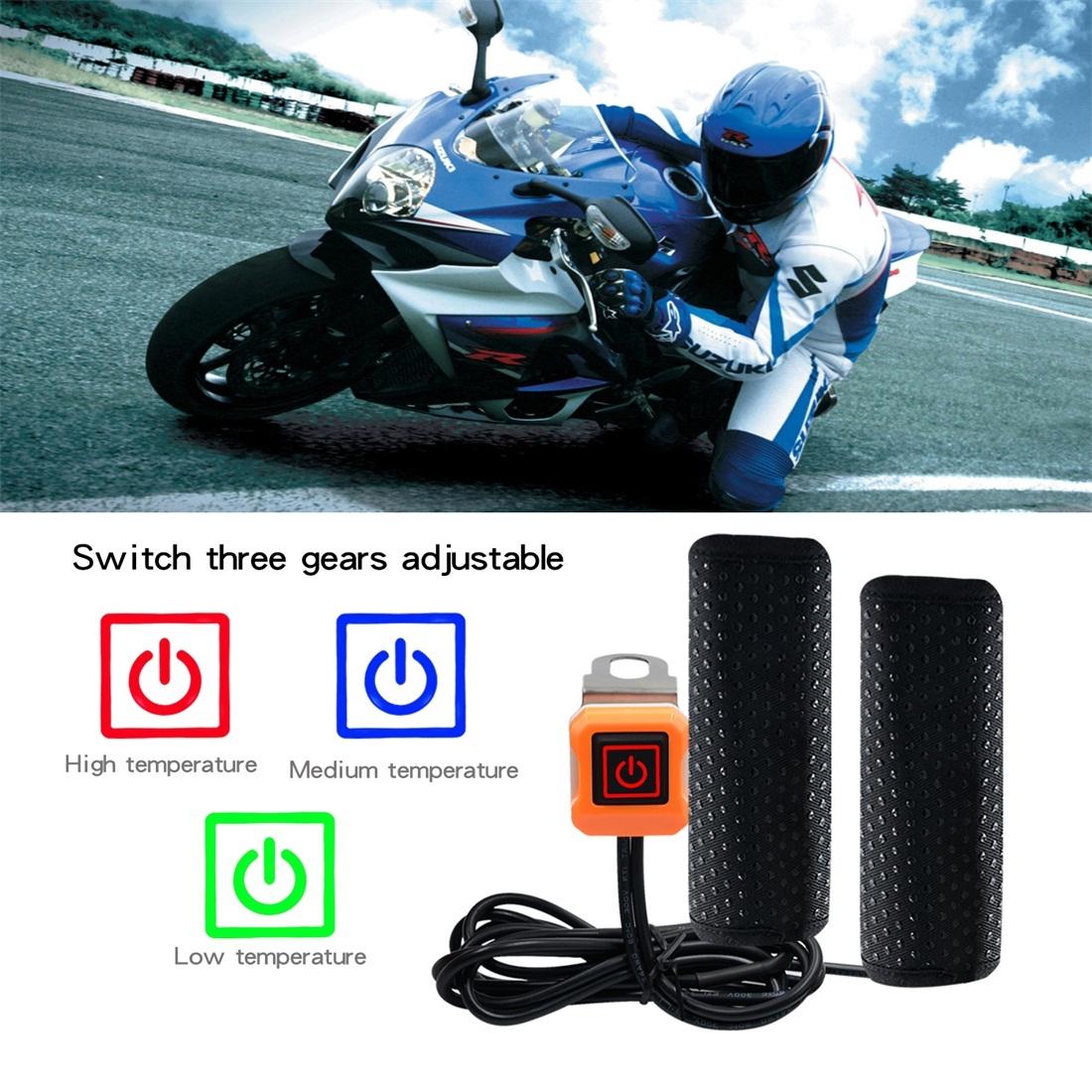

Instructions: 1. Power on: the red light, blue light, and green light each flash once and then go out. 2. Click on the key: switch gear 3. Working status: the indicator light is always on (high-grade: red light is always on, mid-range: blue light is always on, low-grade, green light is always on) 4. Press and hold the key for 3 seconds: enter standby mode or shut down
Wiring method: 1. Connected to the electric door lock (behind the key) of the motorcycle, the red wire is connected to the positive output wire of the electric door lock, and the black wire is connected to any negative pole or ground on the car. [This method is suitable for those who do not want to use the standby state but are easy to forget. Cheers who turn off the switch] 2. Connected to the positive and negative positions of the battery, red is connected to the positive electrode of the battery [+], and black is connected to the negative electrode of the battery [-]. Because this electric heater handle has added the function of automatic shutdown on standby, even if the battery has forgotten to turn off the switch, just turn on In standby mode, you do not have to worry about running out of batteries (it is recommended to turn on the
