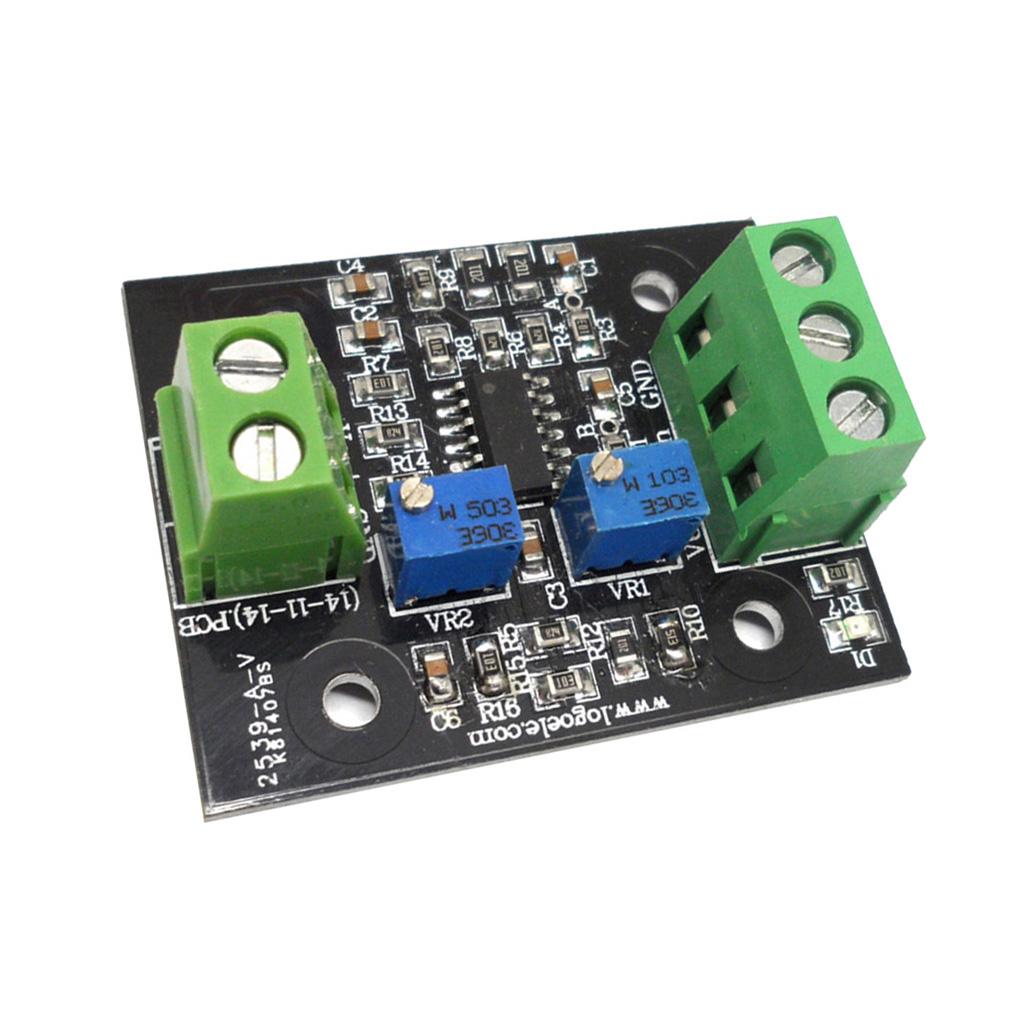

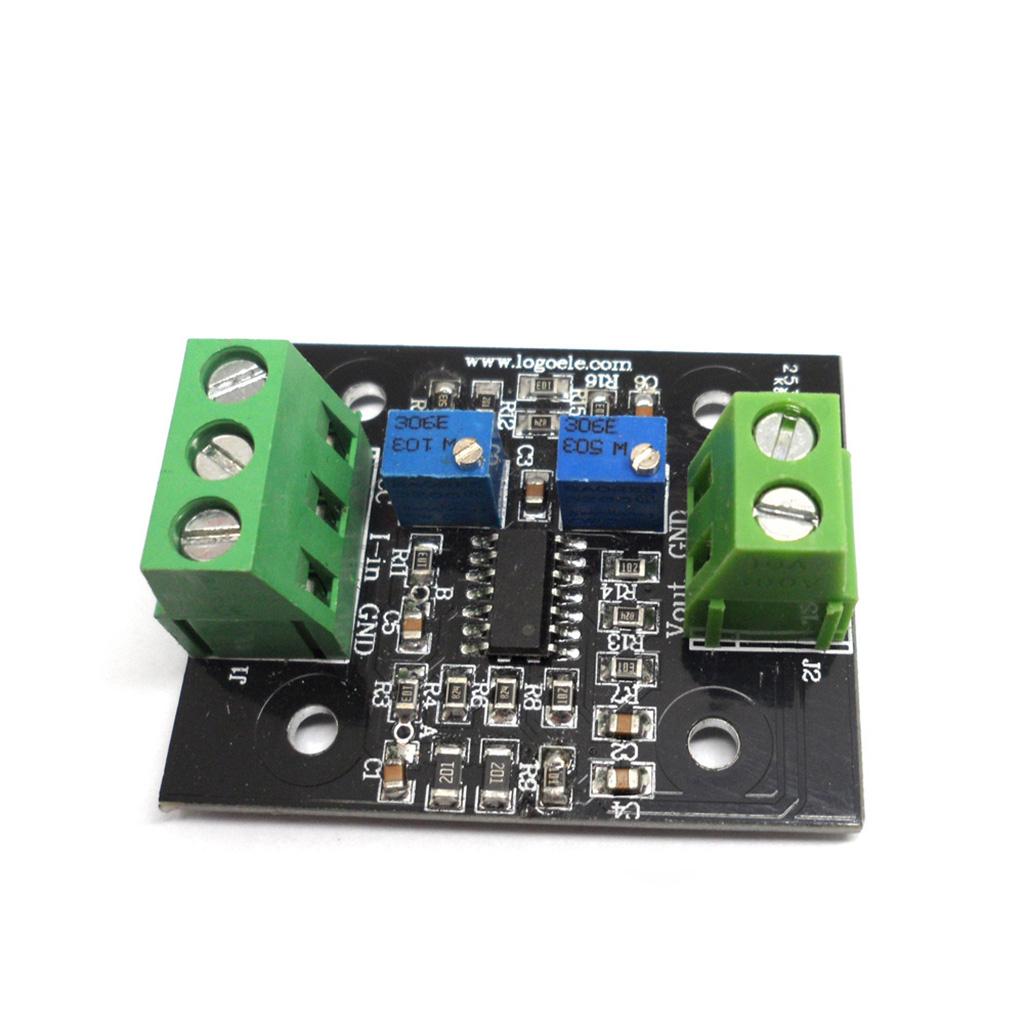

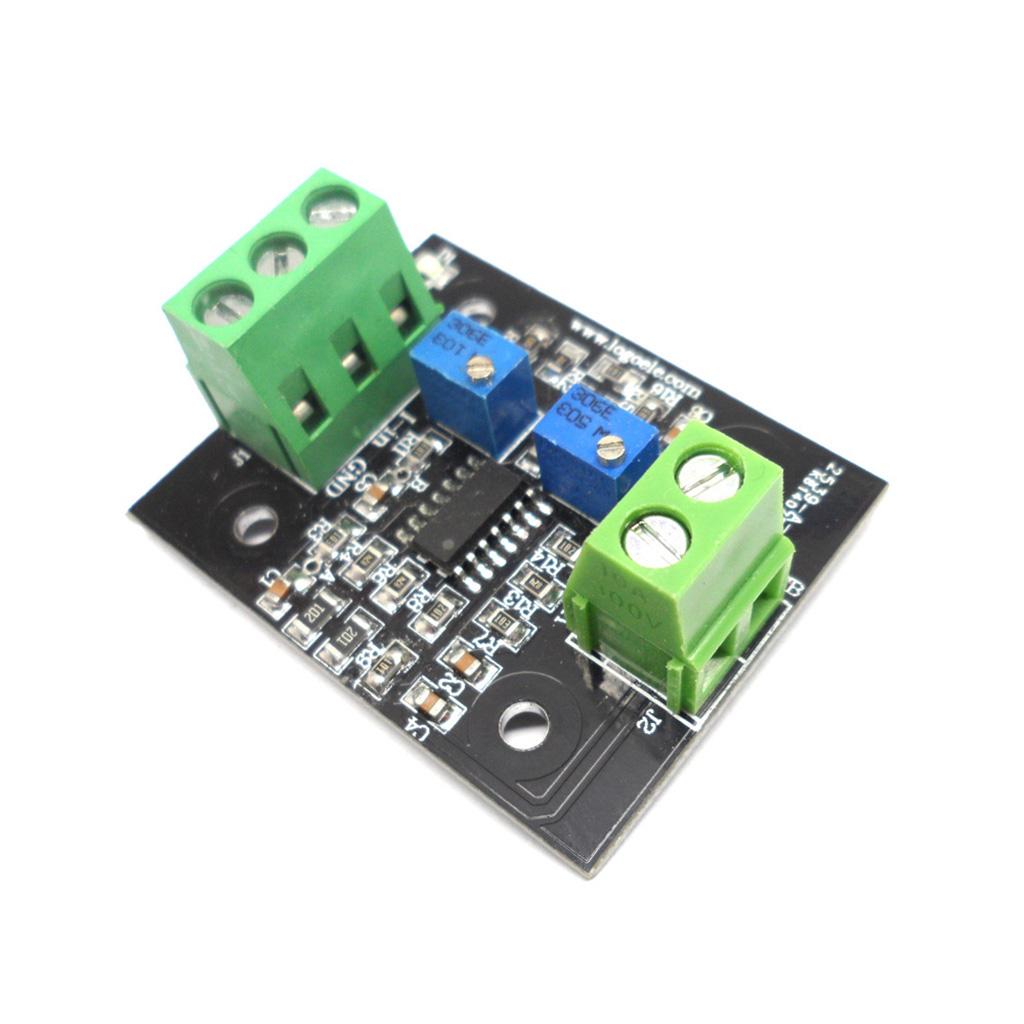

Current To Voltage 4-20mA Conversion Sensor Module Board 4-20mA To 0-10V

Description:

The working voltage: 12-24V
The input current: 4-20mA
The control mode: input current is converted to a corresponding voltage

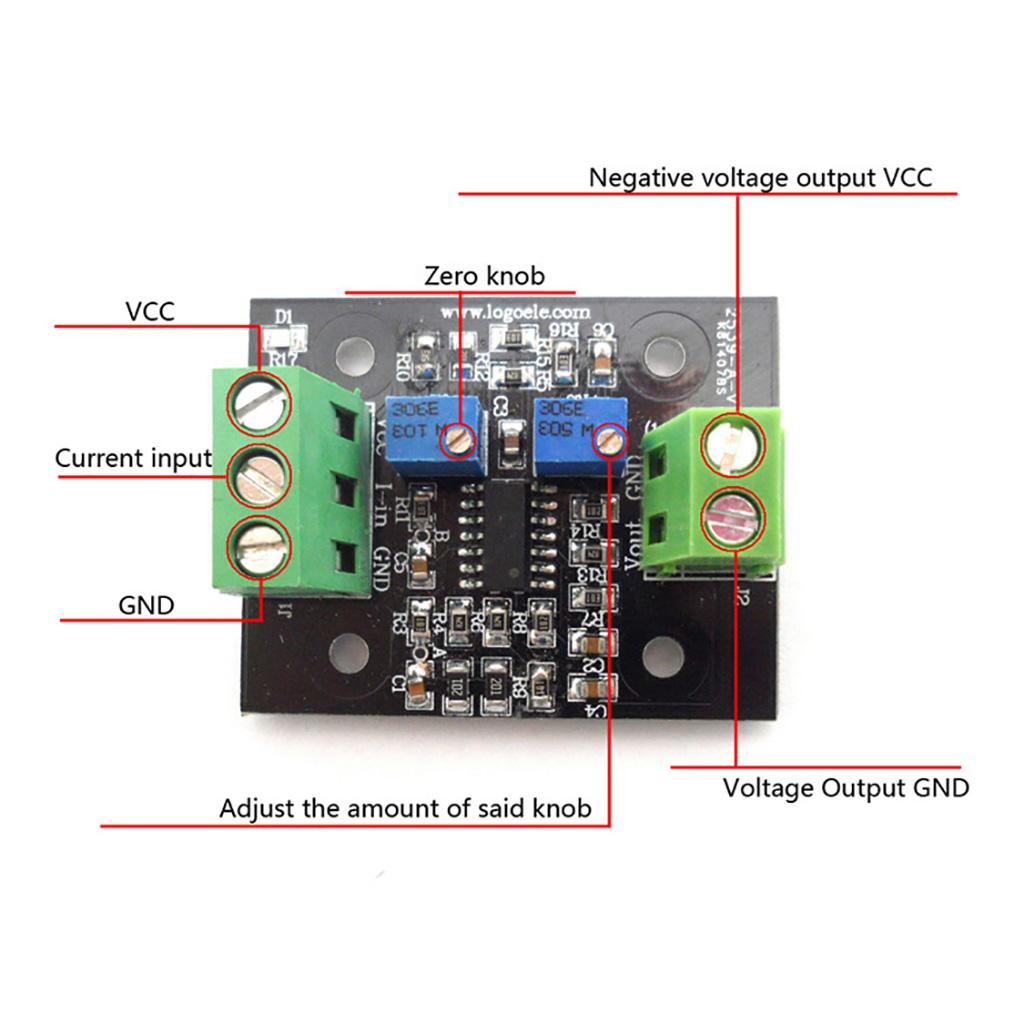

Can three-wire or four-wire transmitter current is converted into a voltage
With the isolated nature (not optically isolated), 4-20mA current power generated can not be the same module power supply (no common ground), it can be the same power supply (common ground)
Mainly used in industrial control and many sensor applications.

Specification:

Material: mixture
Model: 4-20mA To 0-15V
The module dimensions: 35 x 43 x 35mm/ 1.38 x 1.69 x 1.38inch
The output voltage: 0-15V

Model: 4-20mA To 0-10V
The module dimensions: 35 x 43 x 16mm/ 1.38 x 1.69 x 0.63inch
The output voltage: 0-10V

Model: 4-20mA To 0-5V
The module dimensions: 35 x 43 x 16mm/ 1.38 x 1.69 x 0.63inch
The output voltage: 0-5V

Model: 4-20mA To 0-3.3V
The module dimensions: 35 x 43 x 16mm/ 1.38 x 1.69 x 0.63inch
The output voltage: 0-3.3V

Package Includes:

1 Piece Current To Voltage Sensor Module
