Description:
100% brand new and high quality
Suitable for anti-theft alarm, remote control electric doors and Windows, signal control, industrial control, the electric control circuit of lifting equipment etc.
Remote control switch module relay contact output independently, suitable for direct control of all kinds of load
Signal can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance. Max range is up to 164ft/50m with no obstacle
Extremely easy to setup, learn, relearn and control(please refer to introduction). Stable and reliable performance, high receive sensitivity
Specification:
Main Material: ABS Plastic
Working Voltage: DC 12V
Output Current: ≤10A
Working Temperature: -40℃—+80℃
Operating Frequency: 315Mhz
Control Range: 50m / 54.5 Yards
Overall Size of Switch: approx. 81 x 37 x 20mm / 3.18 x 1.45 x 0.78 Inch
Overall Size of Controller: approx. 88 x 63 x 15mm / 3.46 x 2.48 x 0.6 Inch
Size Chart:
Learning Method:
Press the learning button 3 seconds, the indicator lights off, then you press any buttons of the remote control to transmitter signal, it means studying successfully when the indicator flash 3 times until the indicator light on.
Remove code:
Press the learning button about 8 seconds, the indicator turns on to off to on, it means the information that you keep have been removed successfully.

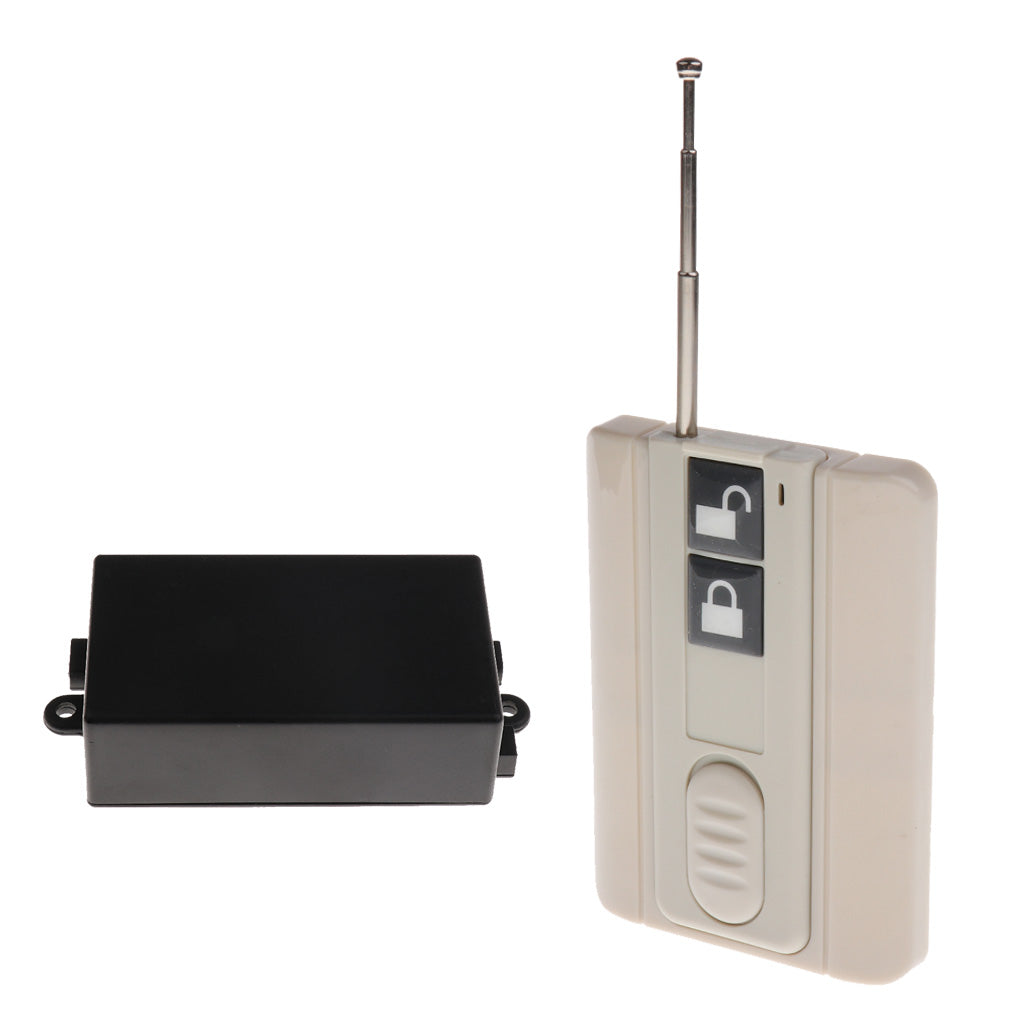

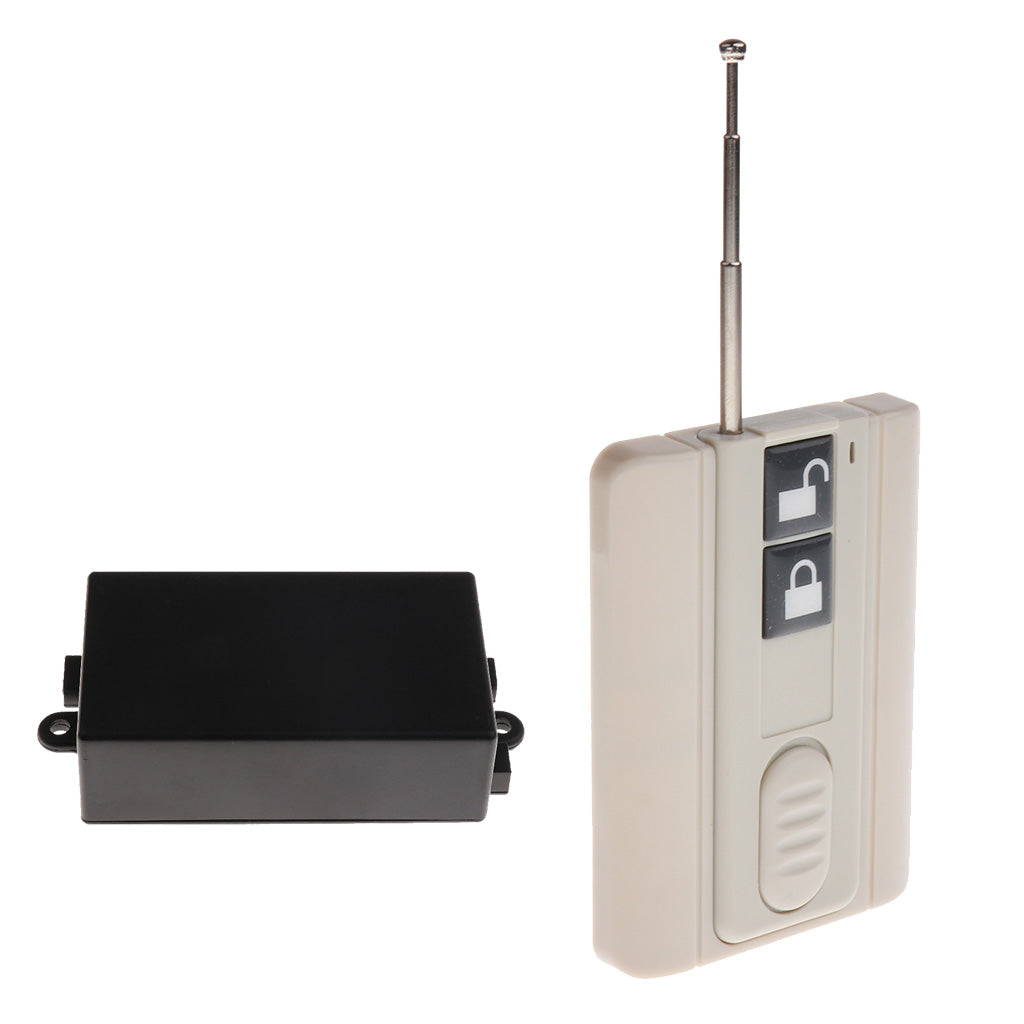

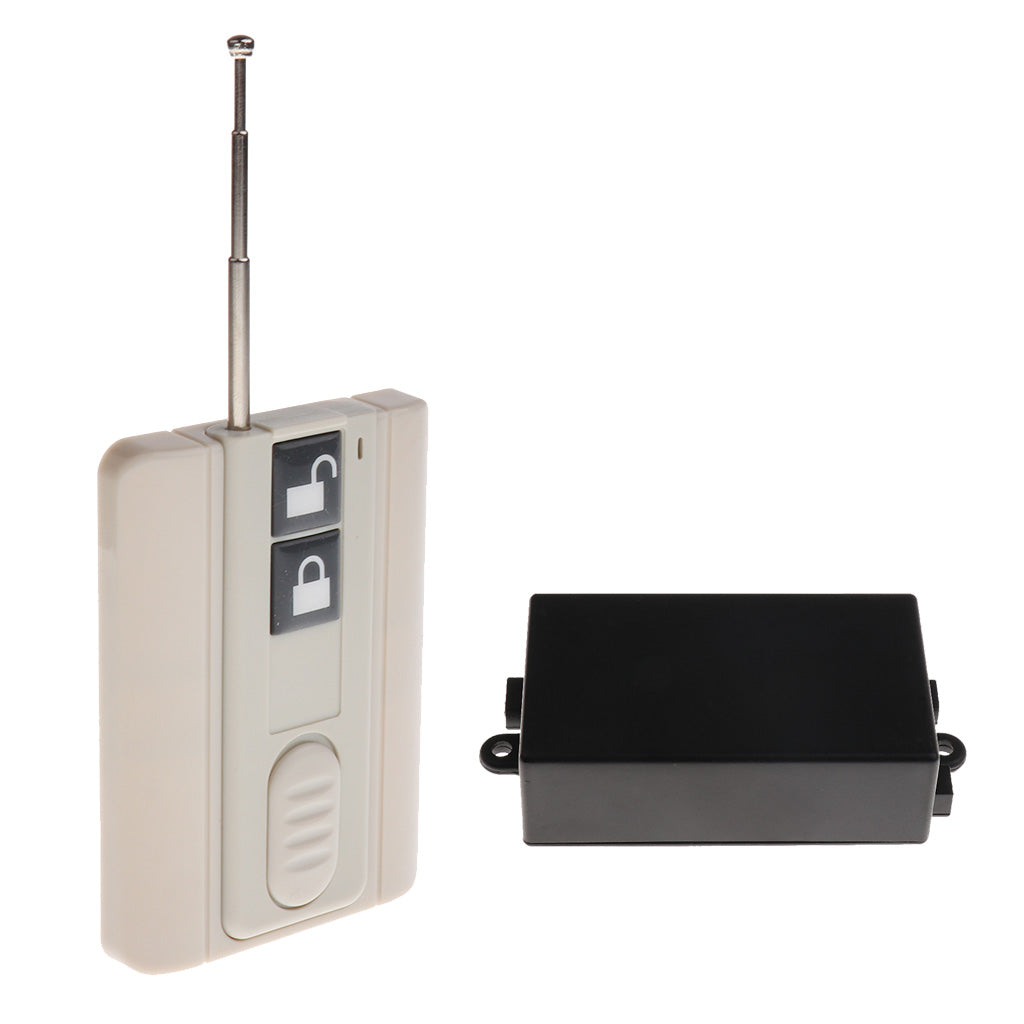

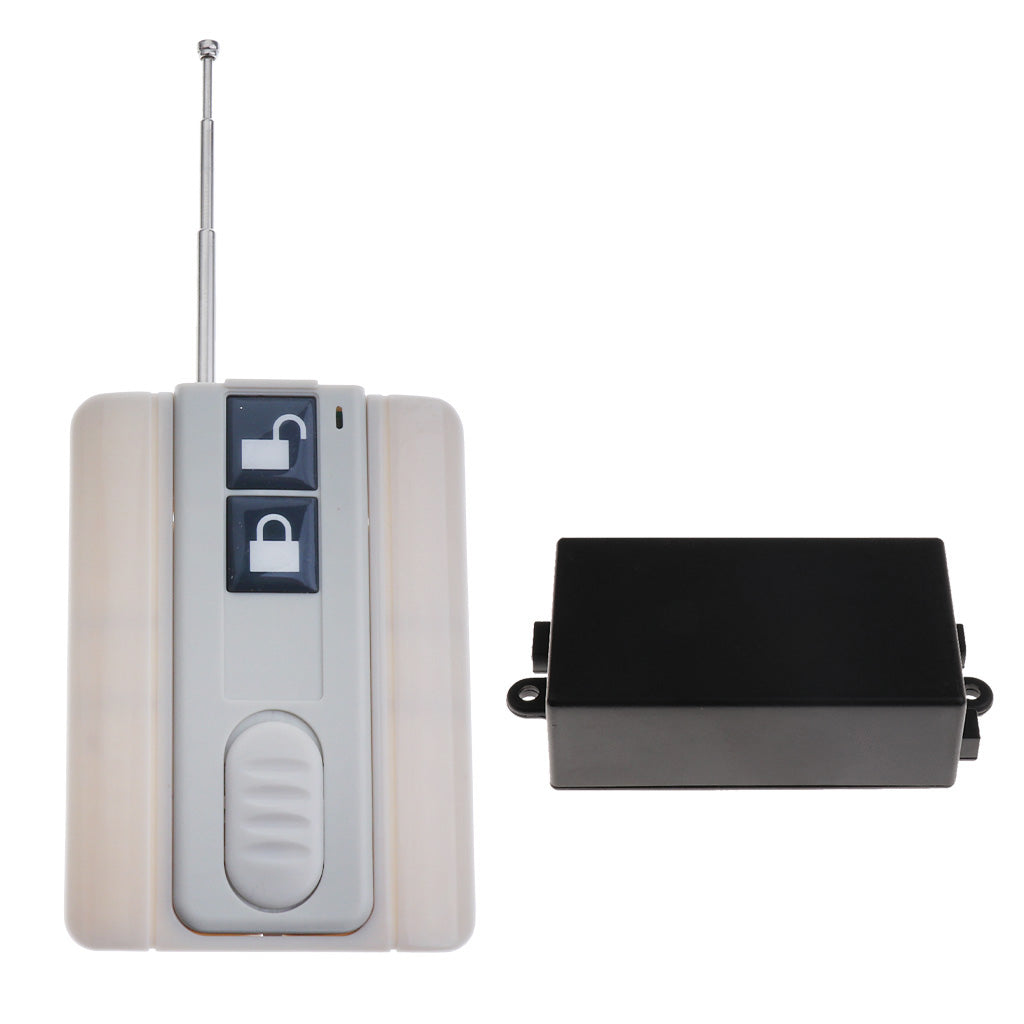

Package Includes:
1 Piece Remote Control Transmitter
1 Piece Receiver Module
