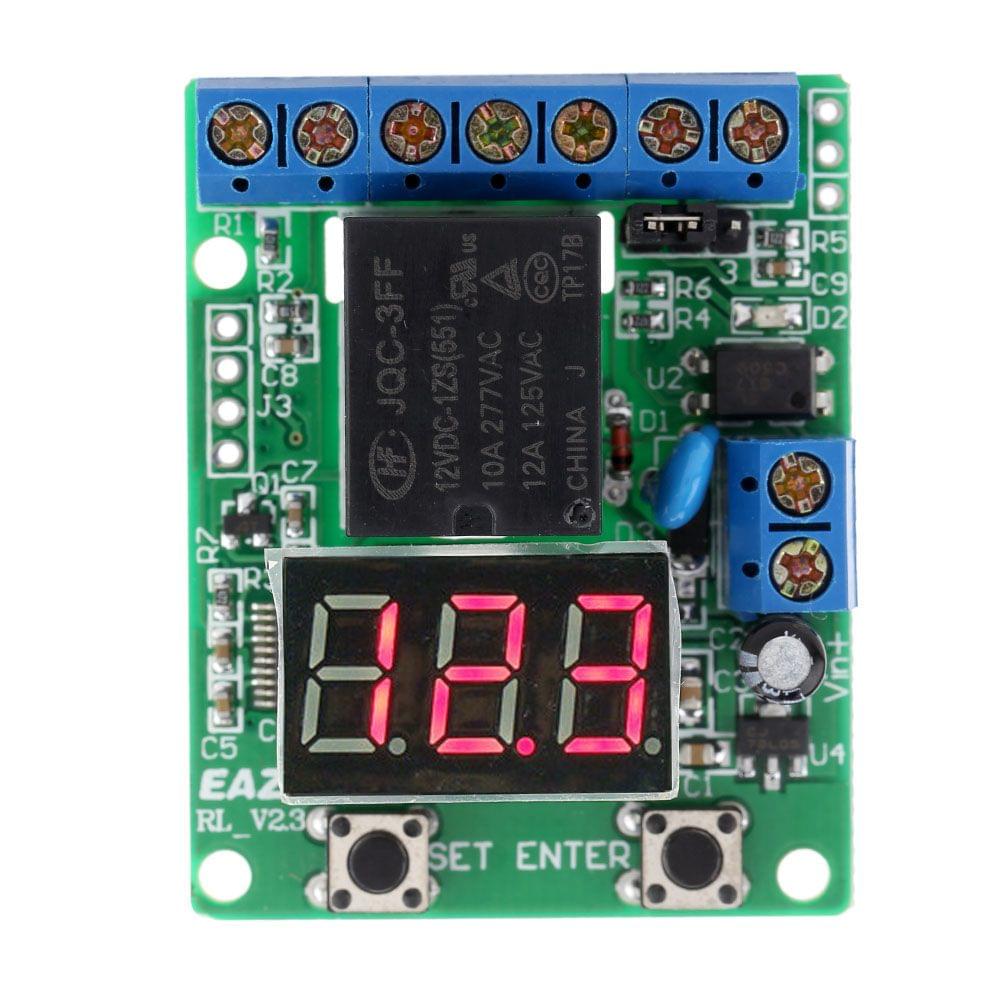

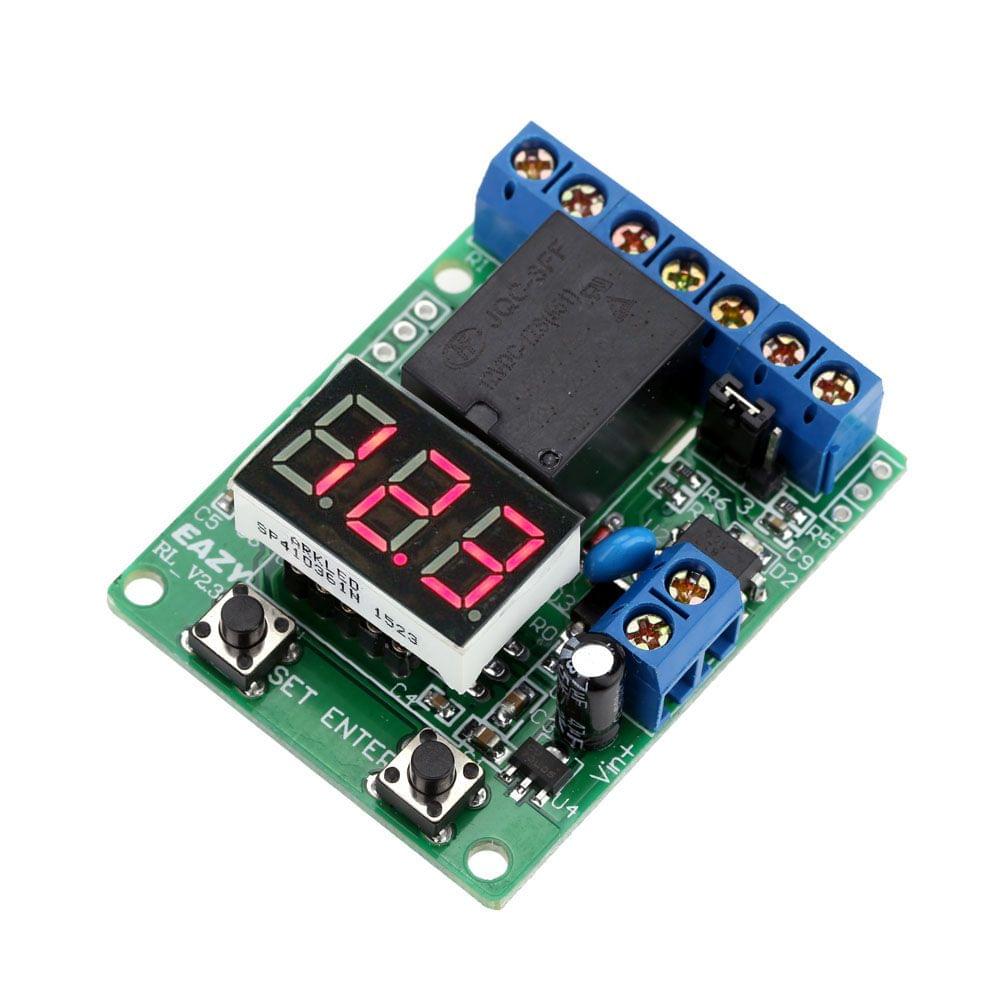

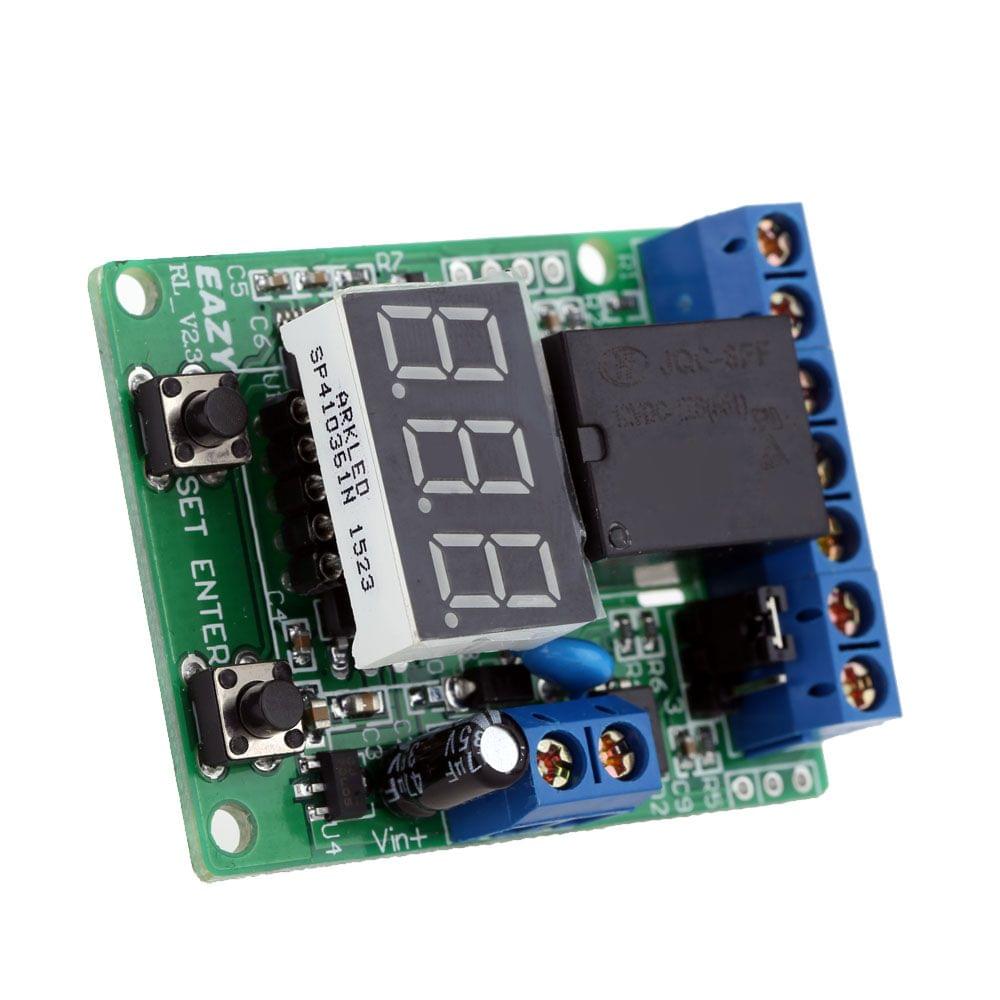

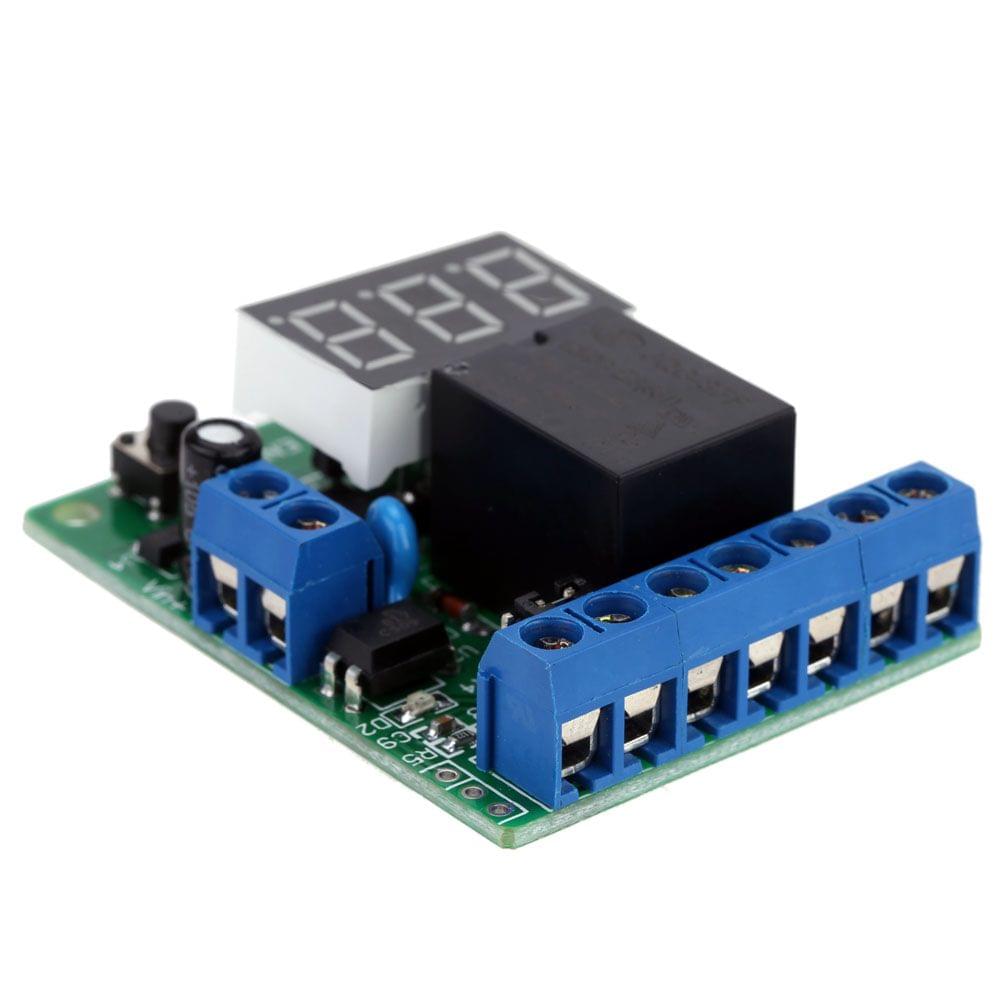

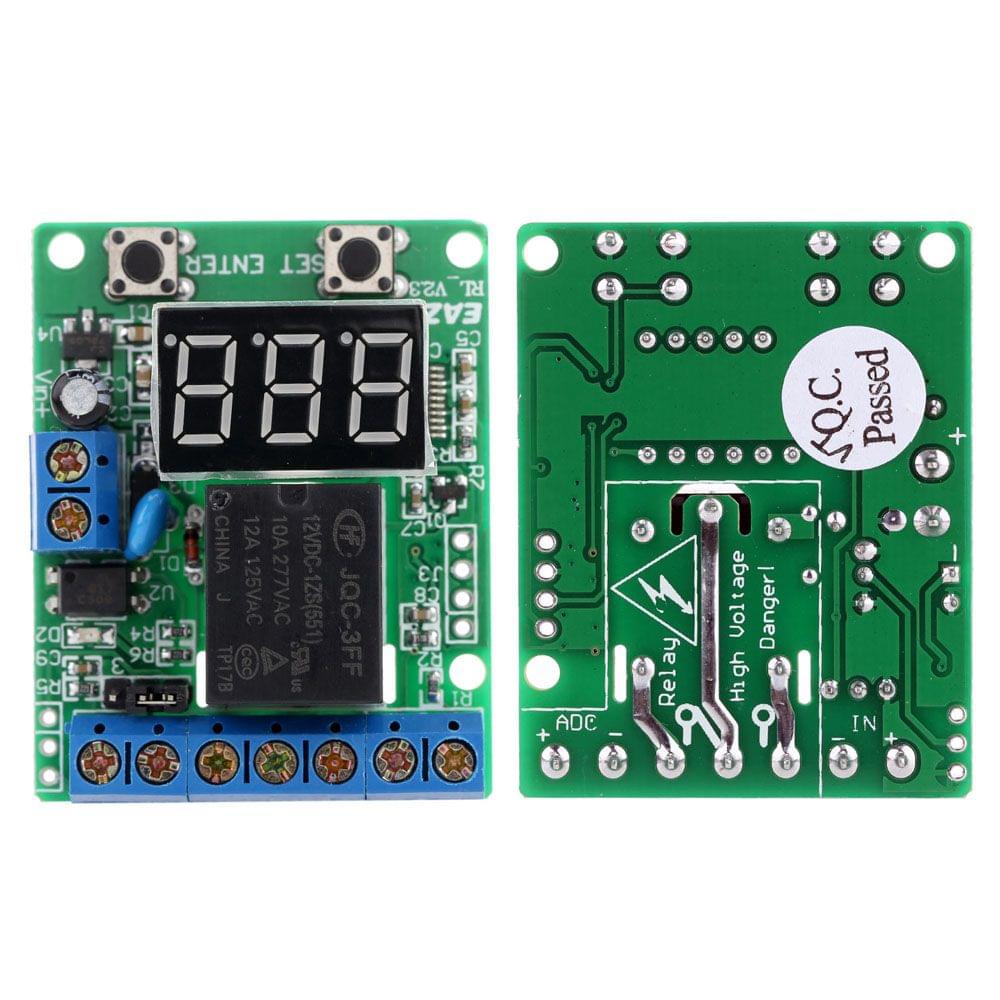

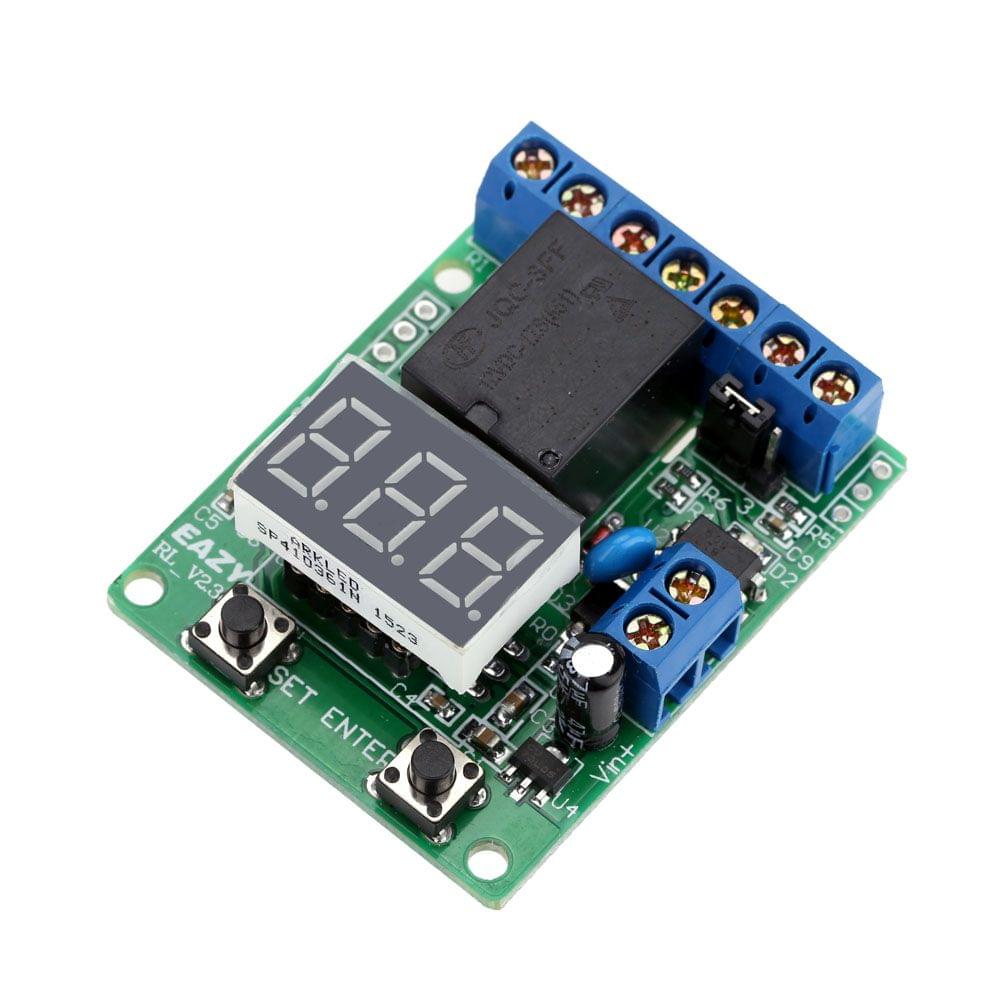

DC 12V Voltage Detection Charging Discharge Monitor Test

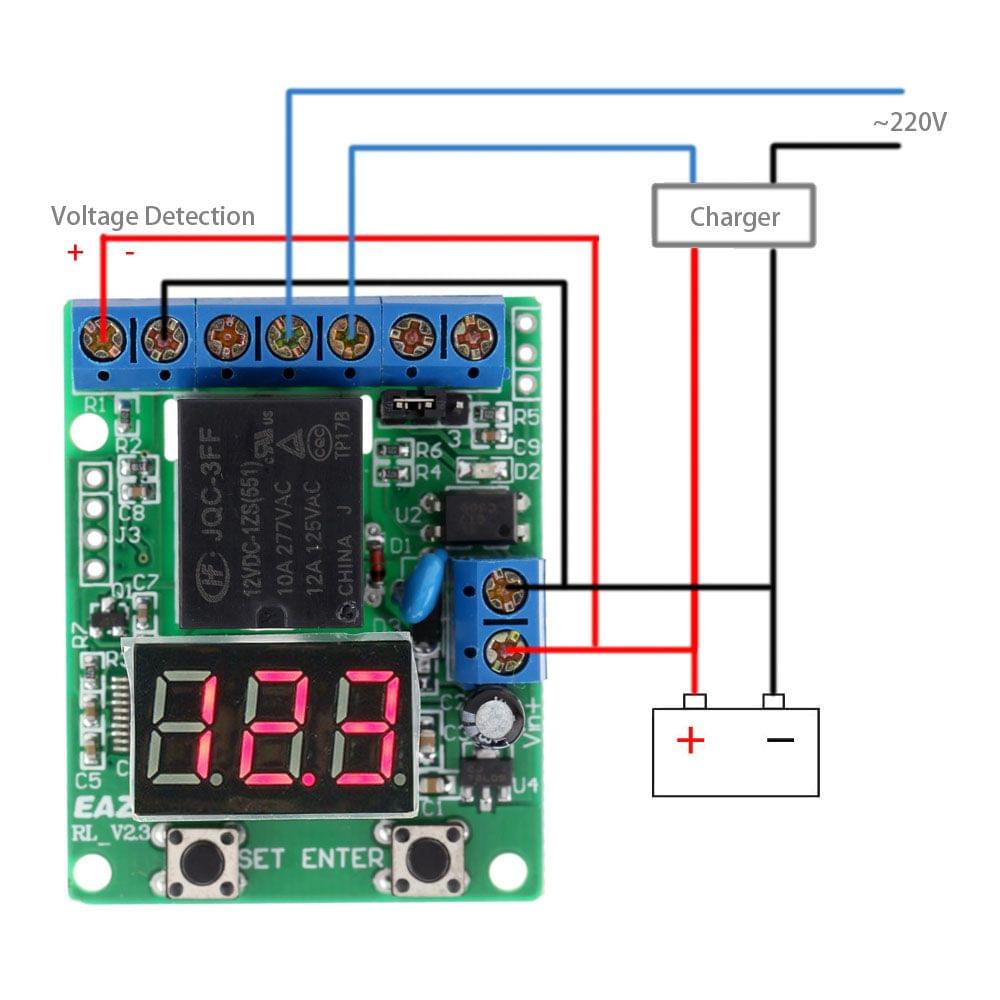

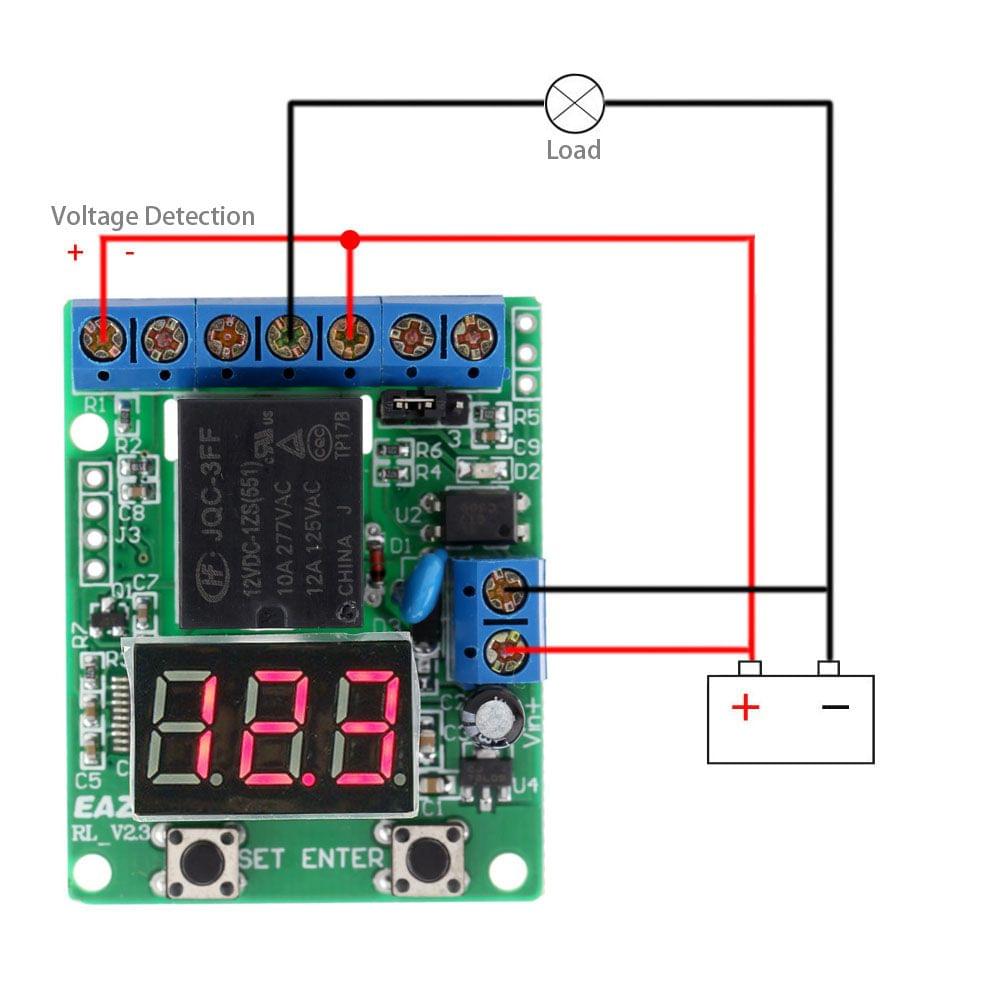

Features:Digital display DC voltage detection control the relay output.Adjustable voltage limit: 0-99.9V.When the measured voltage is lower than the lower limit or higher than upper limit value the relay works.Can be used for voltage detection switch battery over/under voltage protector or discharge meter.Notice:The relay control panel features single mode voltage detection function.Max. trigger current is 10A(AC 277V DC 30V) please don't connect it with load over DC 30V.This relay module is not suitable for lithium battery discharge.Polarity for voltage detection can't be connected reversely user should connect the wire after power off.Specifications:Relay Voltage: DC 12VWorking Power: DC 10-16VVoltage Detection Range: DC 0-99.9VError: +/-0.1VTiming Range: 0-999 minutes cycleA set of transformations(normally open/normally closes)Contract Load: 10A/277V AC 10A/30V DCContract Resistance: 100m??1A-6V DC?Mechanical Durability: 10 million timesElectrical Durability: 100 000 times (10A-250V AC)Standby Current: 16mA 12V Digital Display Closed Smallest 6mA/12V Relay Timely 45mA/12VWorking Temperature: -40-85CDimension: 50 * 40 * 20mmWeight: 27g / 0.95ozPackage List:1 * Relay Switch Control Module
