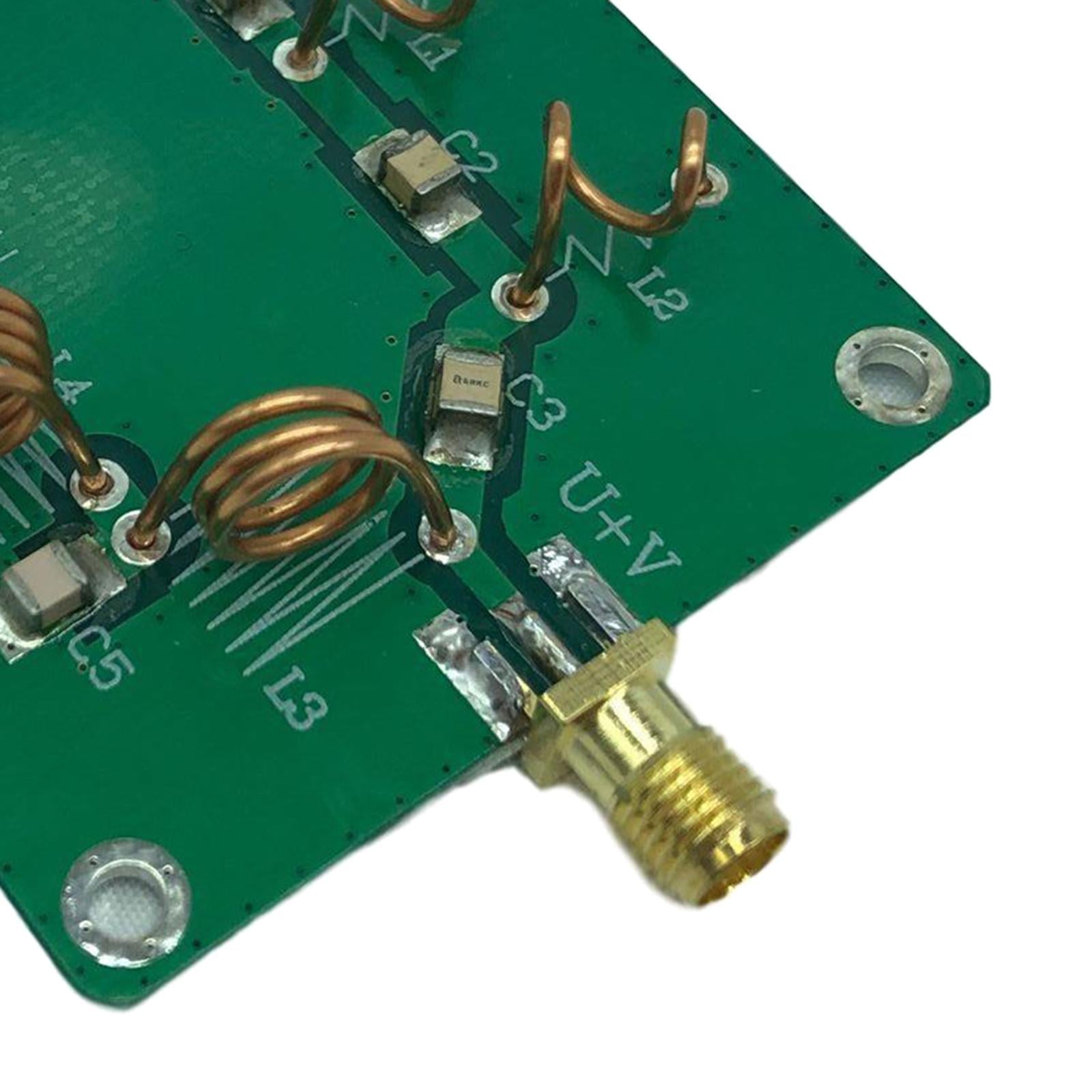

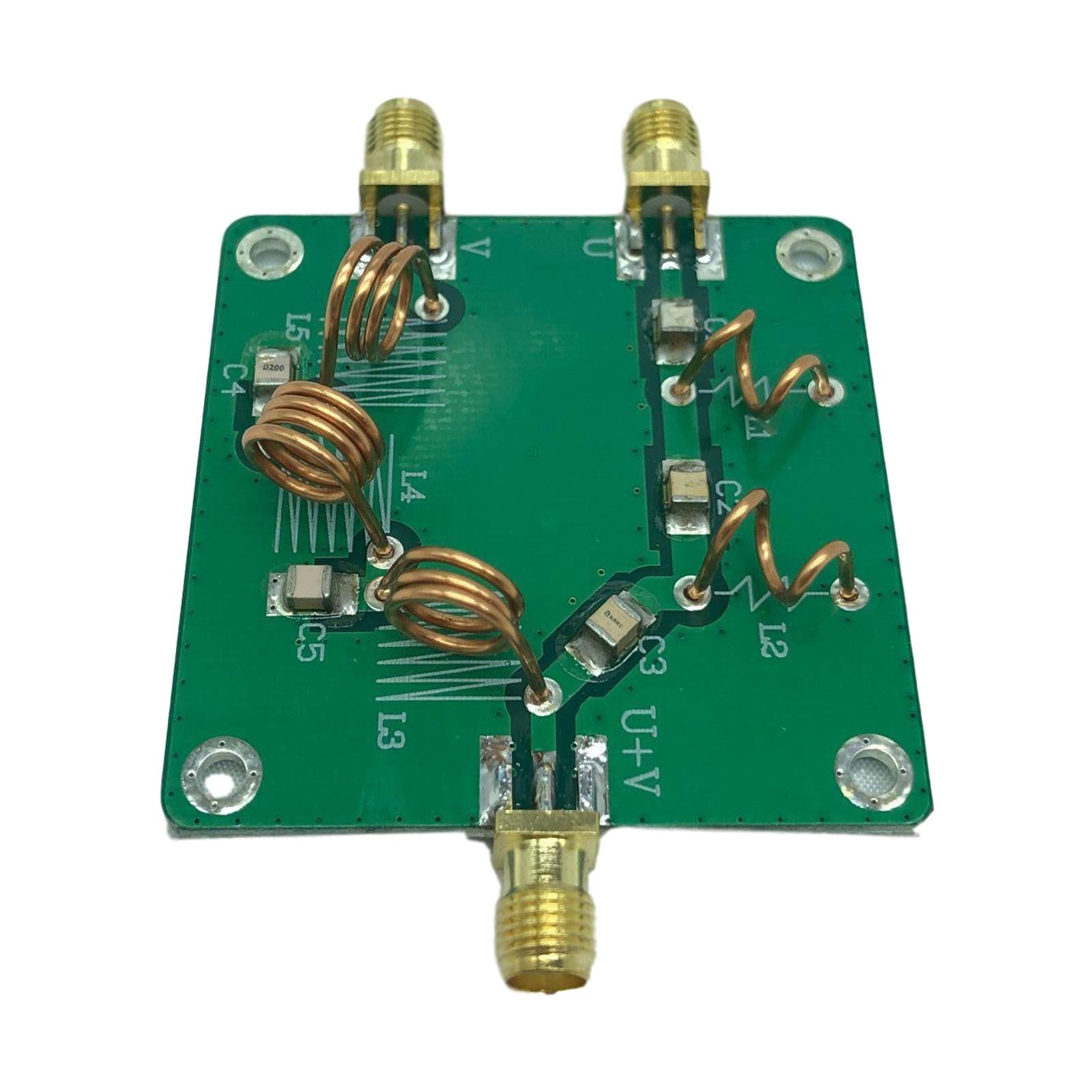

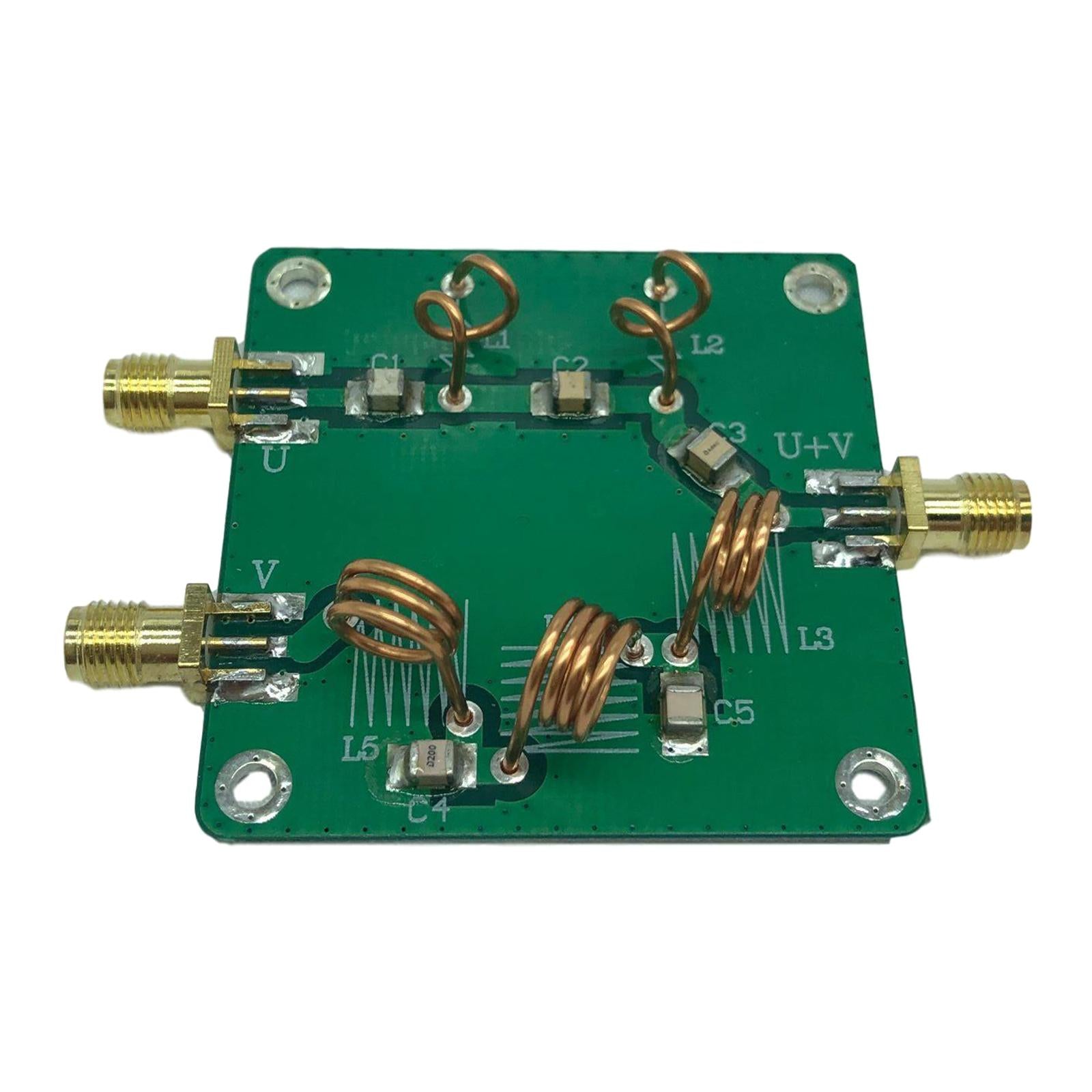

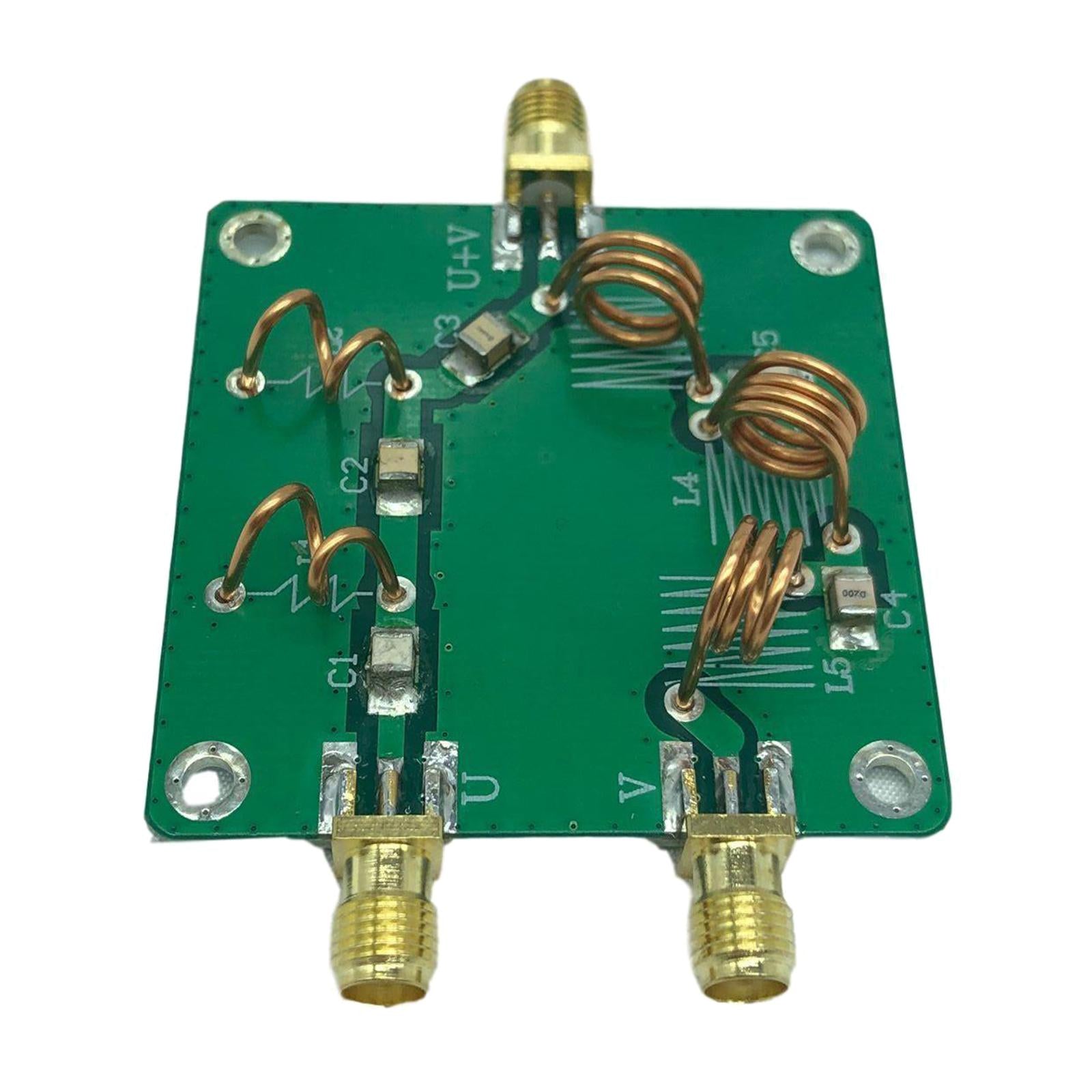

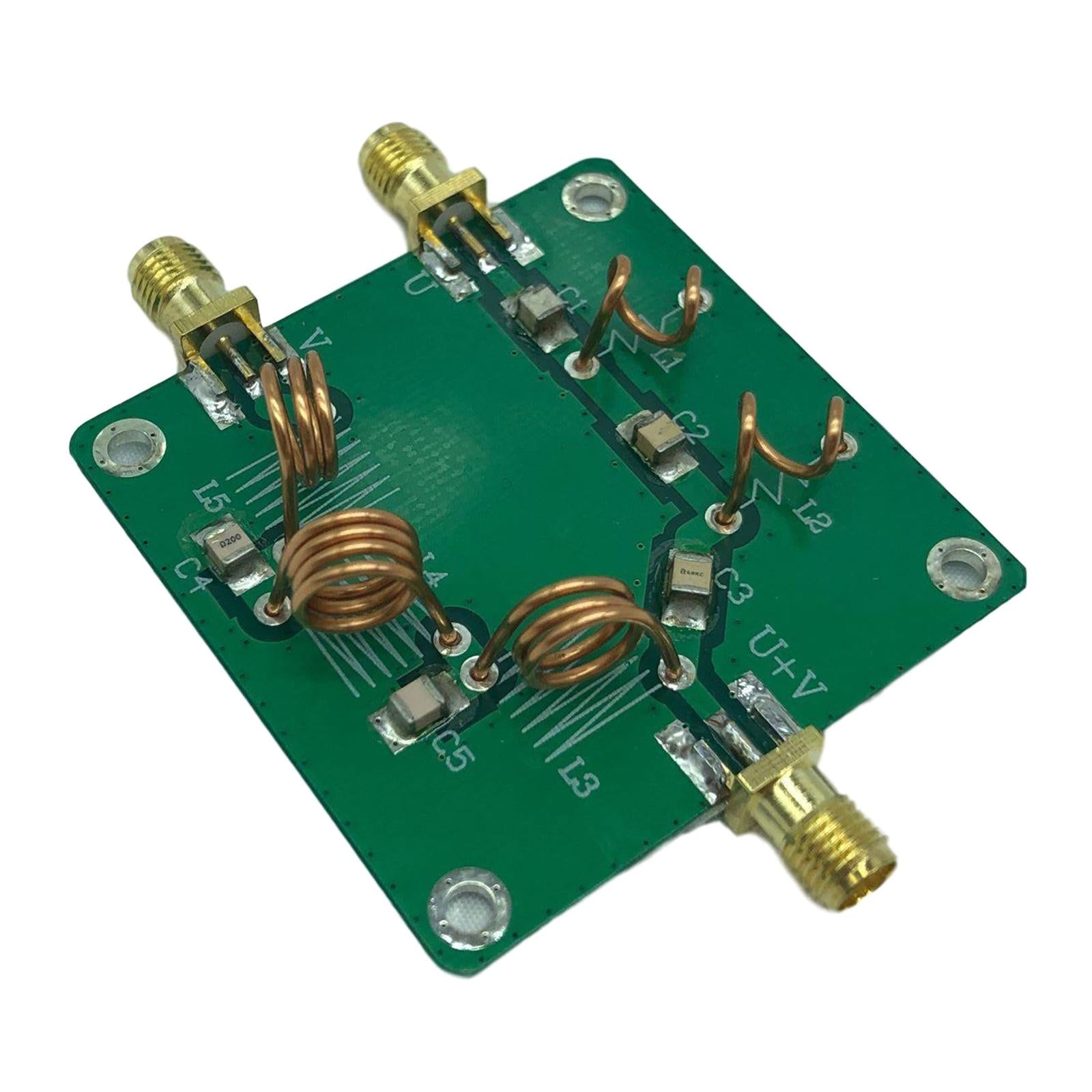

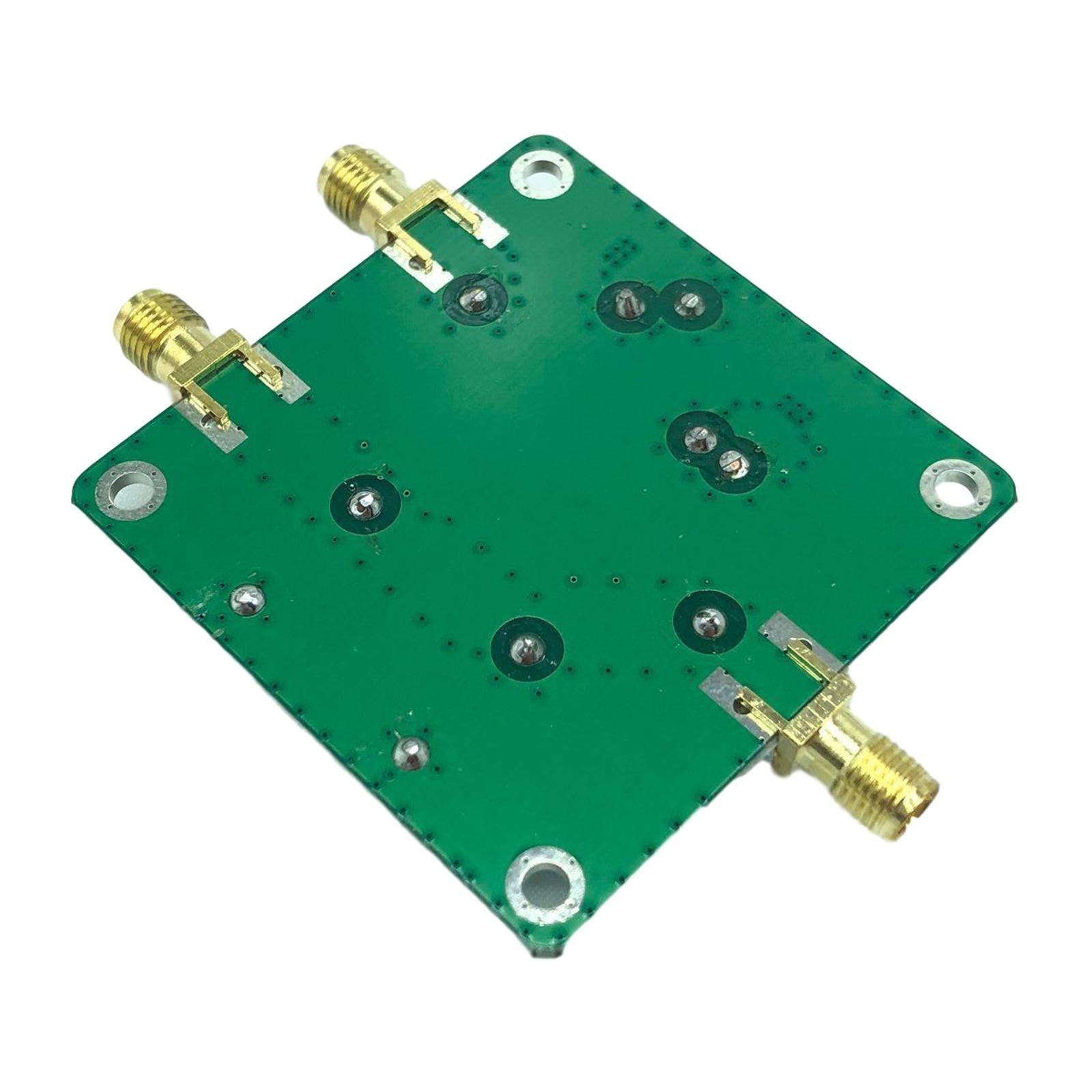

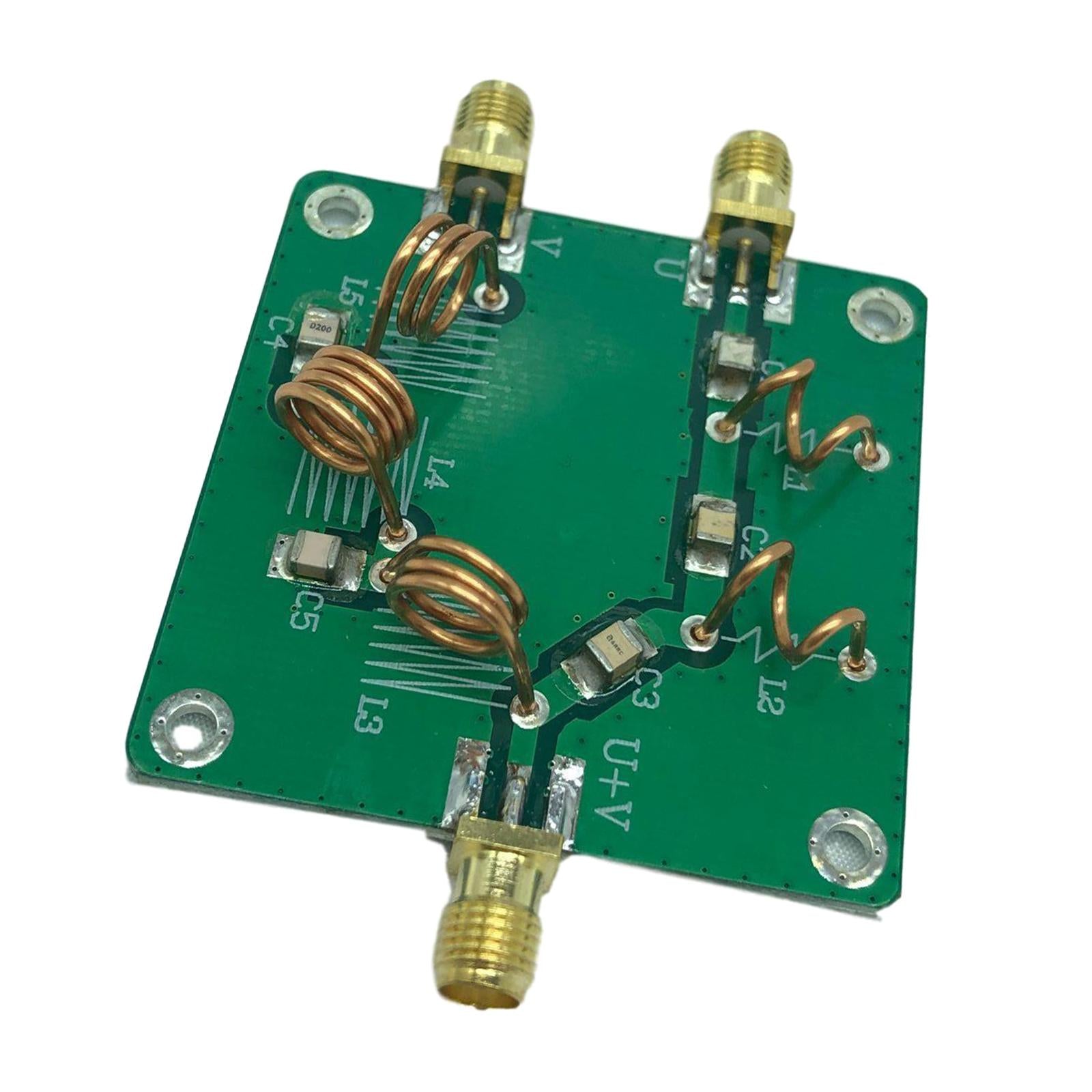

DC-185MHZ 350-560MHZ UV Combiner UV Divider LC Filter Antenna Combiner Board

Description:

UV Combiner Splitter LC Filter RF Signal Antenna Combiner
This passive module is used to synthesize U and V segment radio frequency signals into channel, or separate the U and V common channel signals into two independent channels, so as to share a transmission cable, or two channels of signals share UV dual-band antenna.
Suitable for UV differential conversion link or relay station, etc.
The components adopt imported high-power high-voltage capacitors specially for radio frequency, with the features of low loss and large power capacity.
Size: 50x50mm/1.97x1.97inch (excluding connectors)

Specification:

Working frequency: V segment DC-185MHZ, U segment 350-560MHZ
Insertion loss: V segment:<0.2dB, U section: <0.3dB
Standing wave ratio:<1.5
UV isolation: >45dB
Power capacity: 200W (using imported power capacitors)
Connector form: SMA-K (standard female, outer screw and inner hole)
Connection method: U: Connect U segment signal, V: Connect V segment individual signal
U+V: Connect U-segment and V-segment collinear signals
Weight: 18g

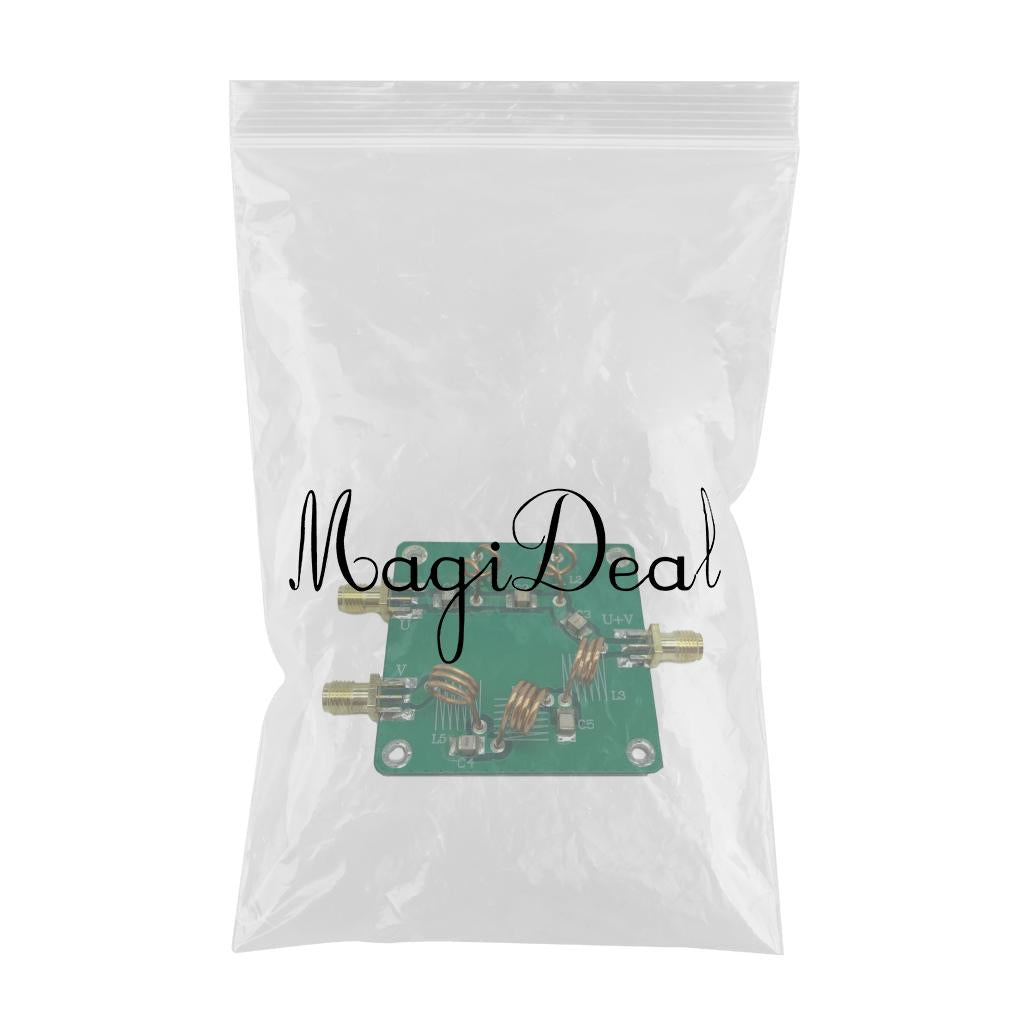

Package Includes:

1 Piece UV Splitter Module
