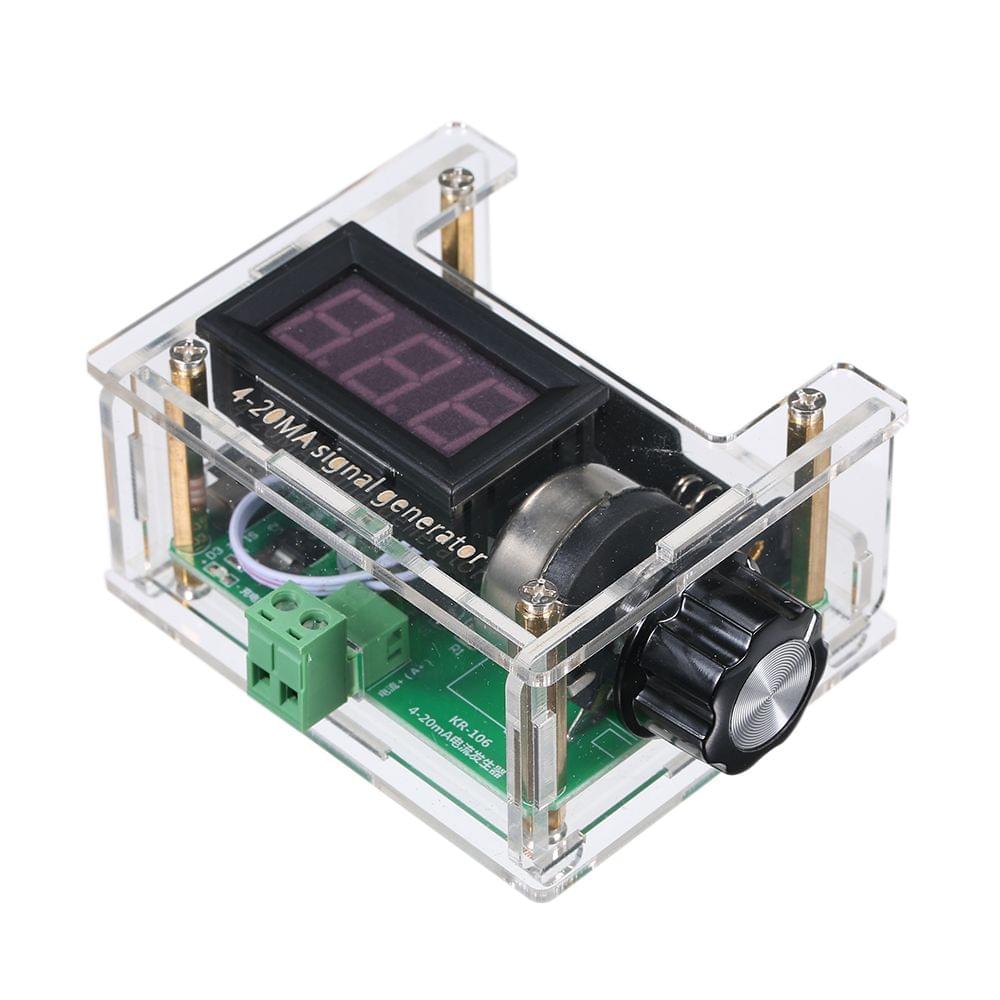

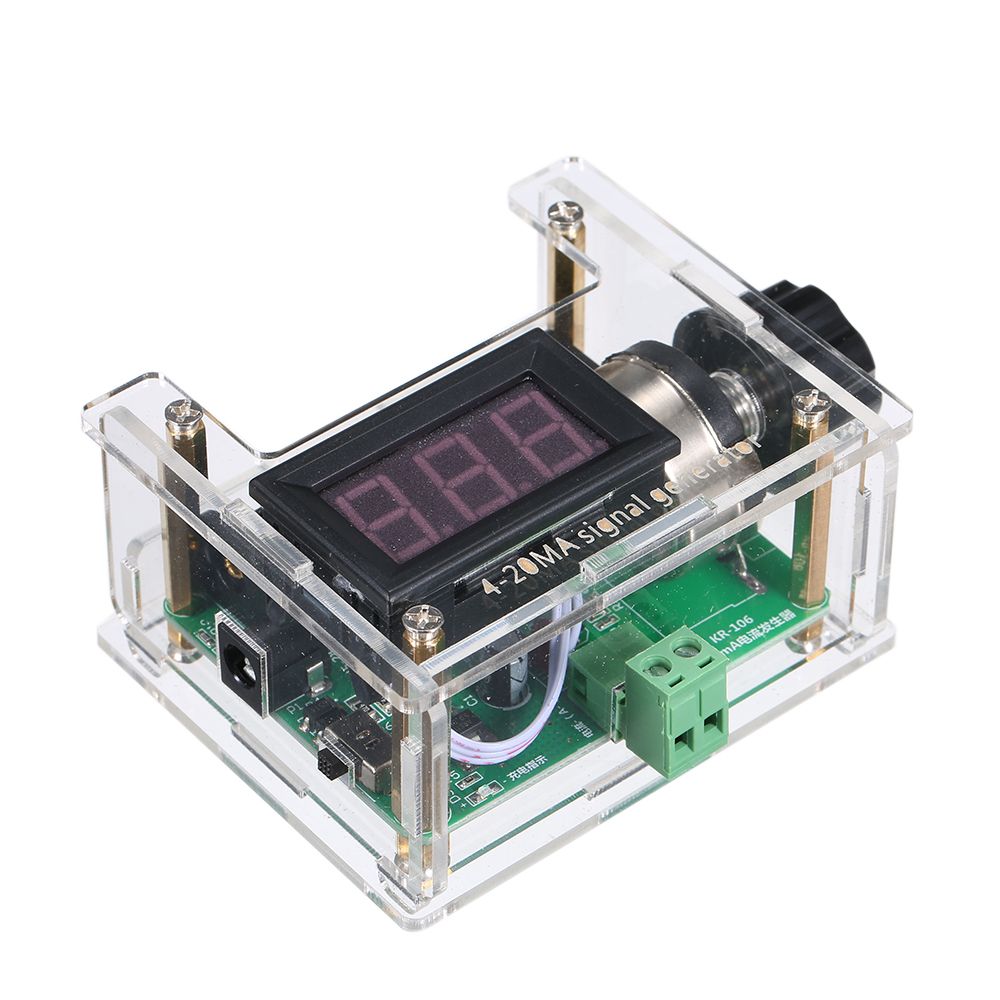

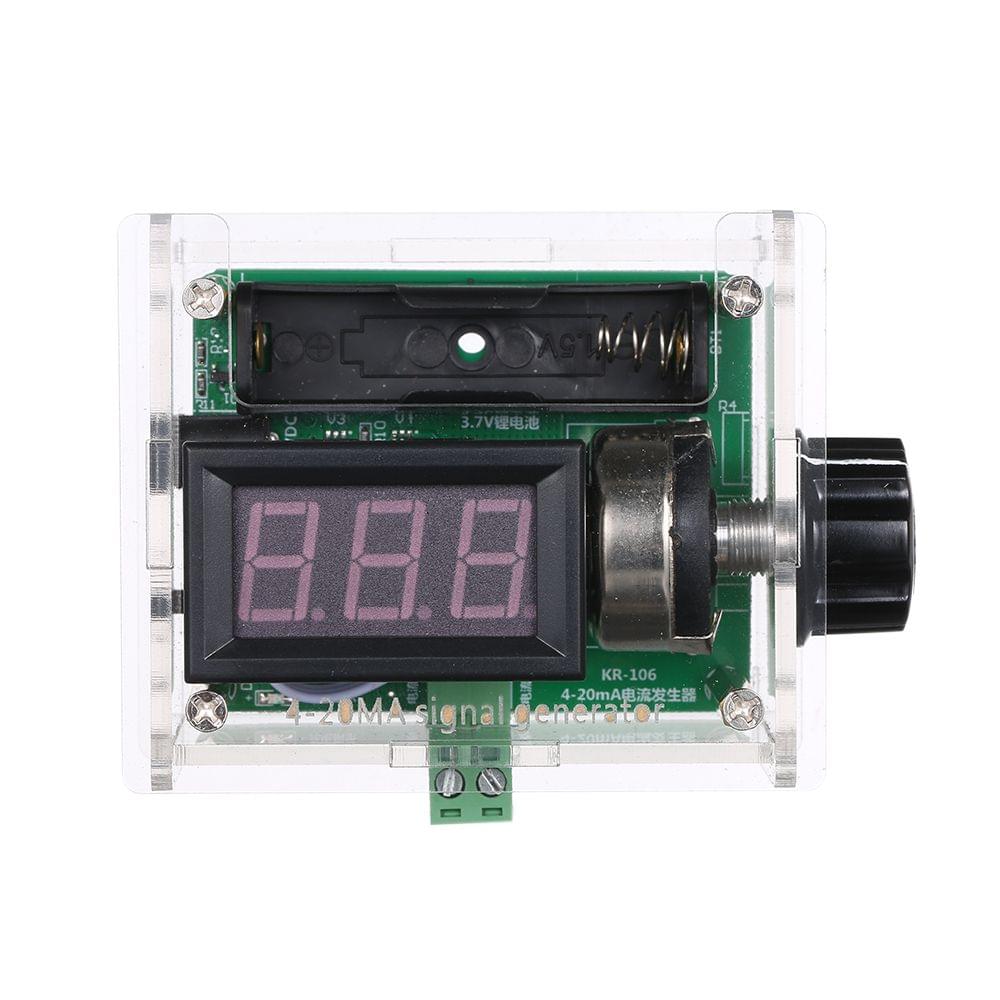

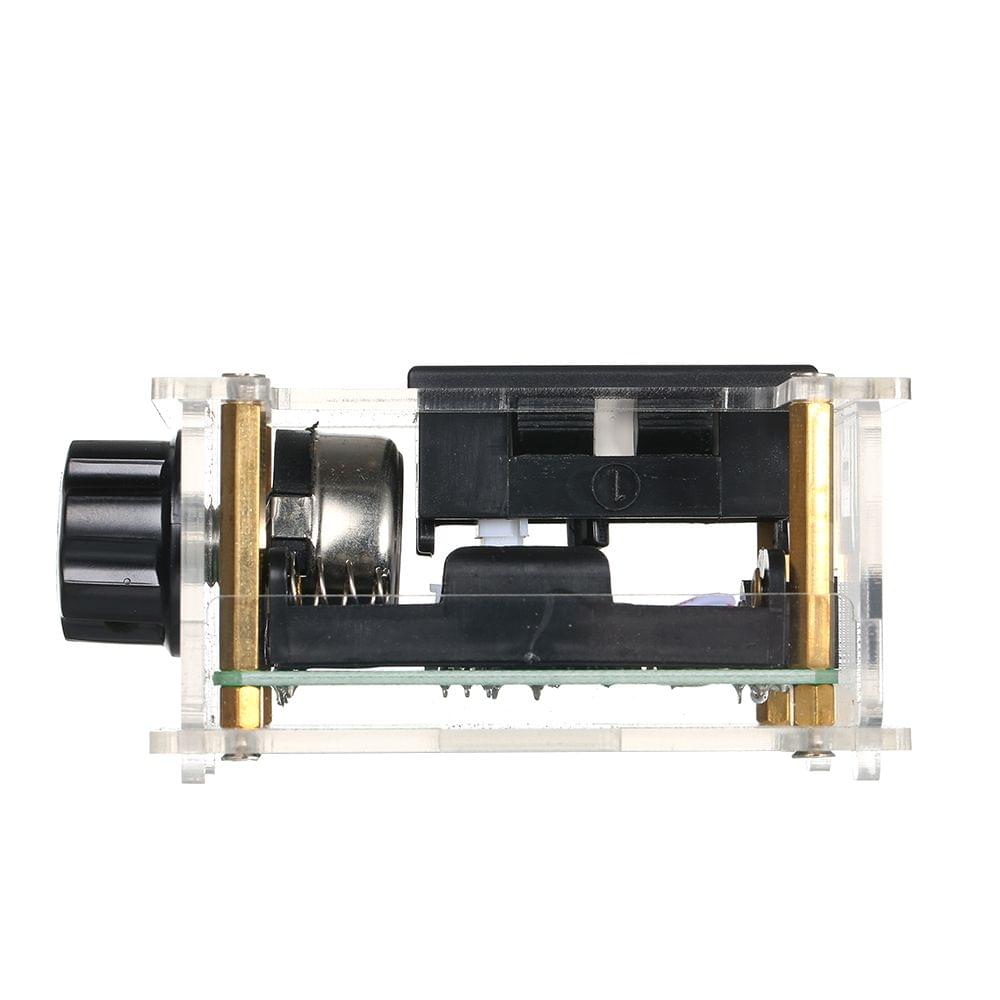

DC 5-28V 4-20mA LED Digital Signal Generator Handheld

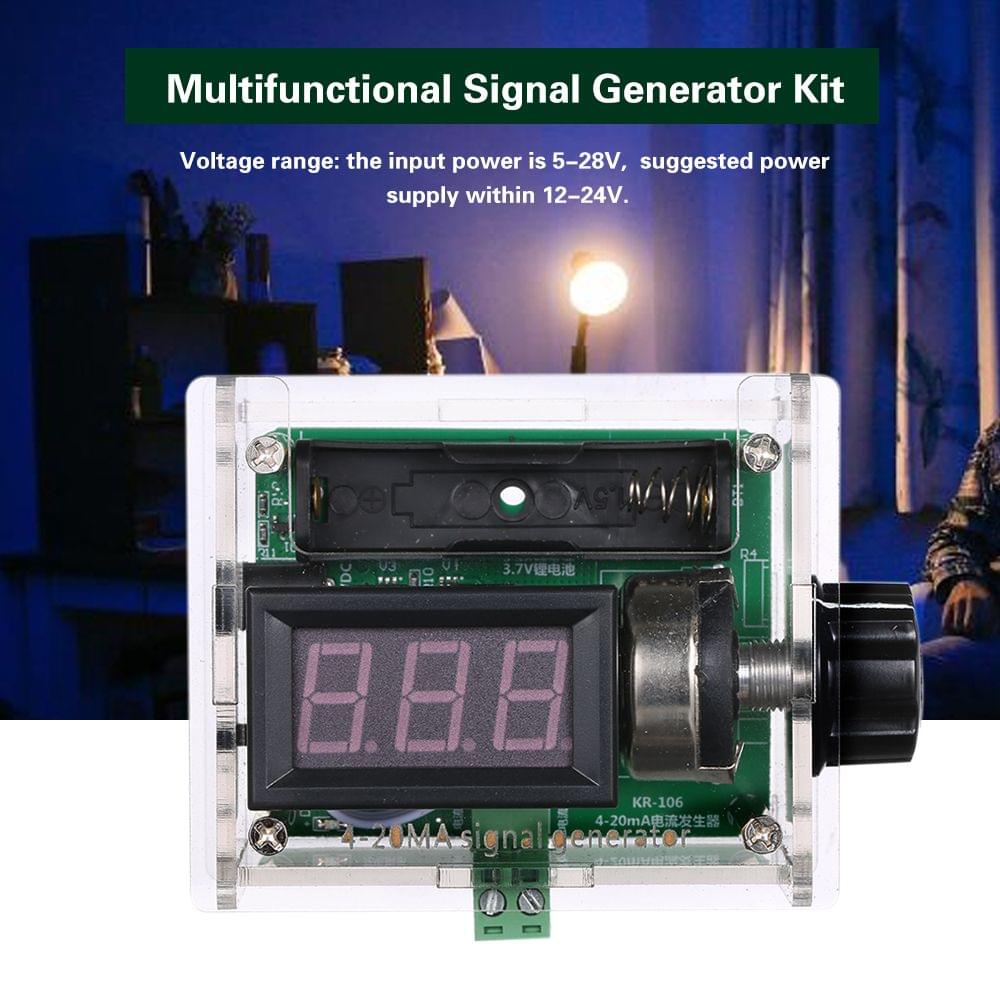

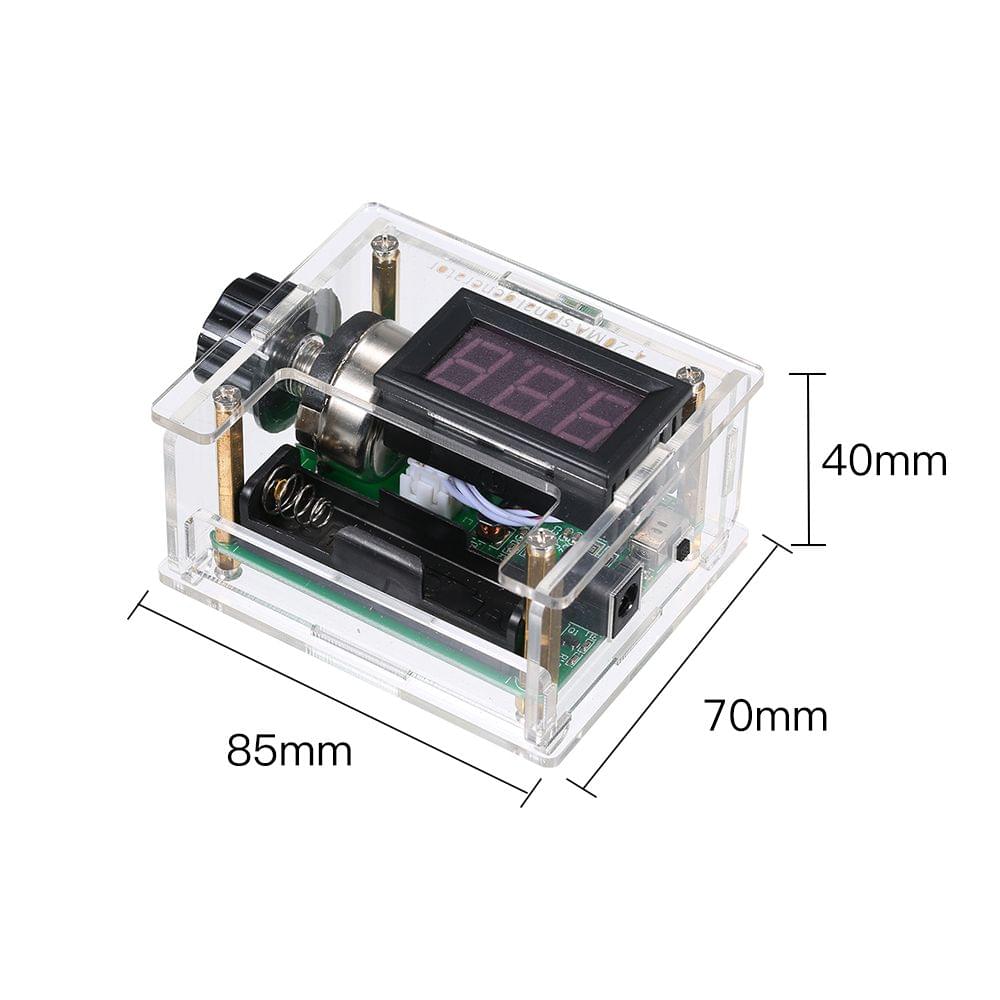

Multifunctional signal generator kit is able to generate ampere and voltage by one module. Easy to use and operate with knob operating design. Can be used in signal source generation valve regulation PLC debugging instrument test etc.Features:Voltage range: the input power is 5-28V suggested power supply within 12-24V.Easy to use and operate with knob operating design.4-20mA current output can be generated by manually adjusting.Output signal will immediately responded and stay constant after adjusting.With input voltage reverse connection protection protect the device well.Bright and clear LED digital display screen is perfect for monitoring output current and voltage.Can be used in signal source generation valve regulation PLC debugging instrument test etc.Specifications:Current: 0-20mABattery: 3.7V rechargeable lithium battery(Not included)Item size: 85 * 70 * 40mm / 3.35 * 2.76 * 1.57inPackage size: 150 * 130 * 60mm / 5.91 * 5.12 * 2.36inItem weight: 136g / 4.80ouncesPackage weight: 200g / 7.05ouncesAbout the output impedance matching problem of the current generator:1. The internal resistance of the output signal must meet the following requirements:According to the formula: I=U/R (current = voltage divided by resistance). So your power voltage divided by your signal internal resistance is equal to the maximum current that your signal receiver can generate. In addition our current generator has a certain internal resistance.2. Here's the formula:Supply voltage/(signal impedance of the customer+internal resistance of our current generator)=constant current output.Since the power supply of our module is 4-35V voltage the constant flow current generated by the module will not be sufficient if the supply voltage is low and the internal resistance of the customer is larger.3. Here is a signal matching requirement for our module:* Power supply is 24V the signal impedance 1000?* Power supply is 12V the signal impedance 500?* Power supply is 5V the signal impedance 200?If the internal resistance of your signal is higher than the above parameters you can improve the supply voltage or reduce the signal internal resistance to lve the problem of insufficient current supply of the constant current source.Please kindly note that the supply voltage cannot be increased to more than 28V.Note:The product supports 3.7V rechargeable lithium battery but not support dry battery.Package List:1 * Signal Generator
