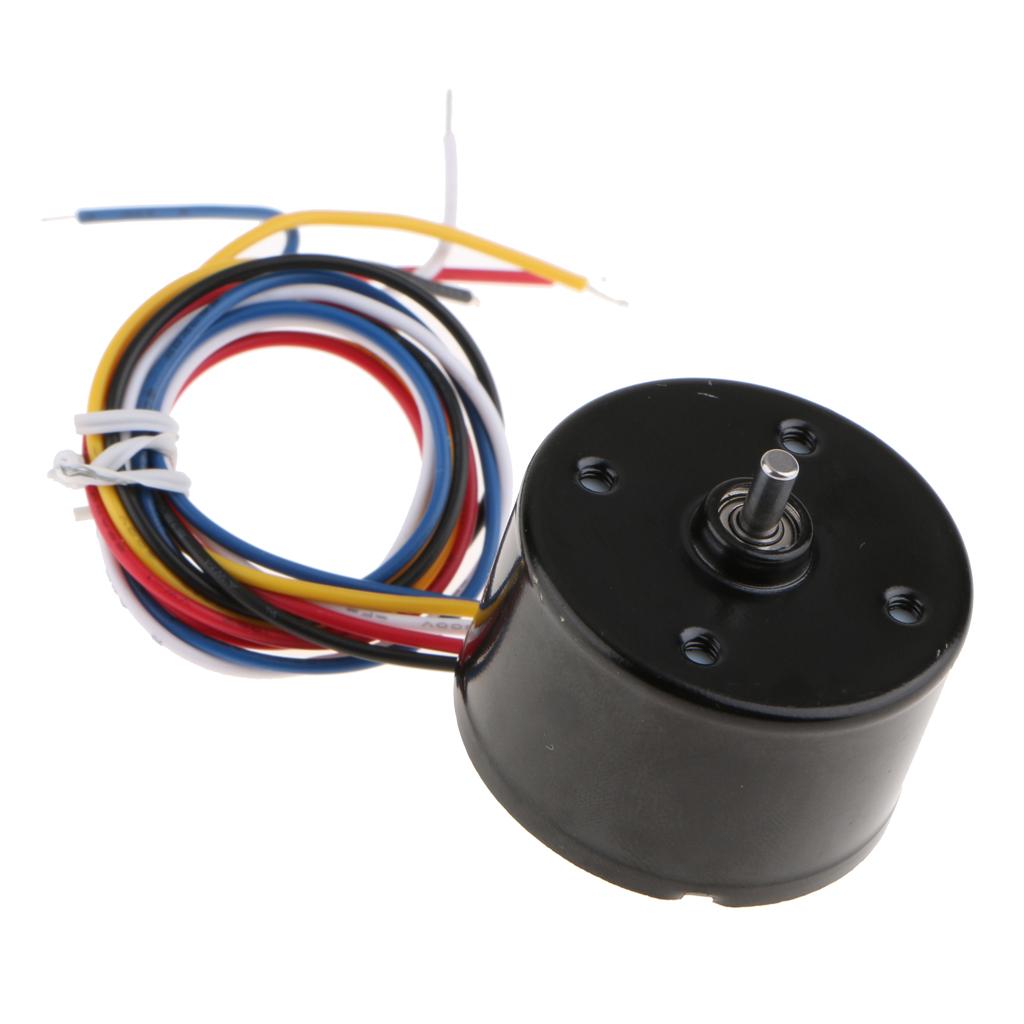

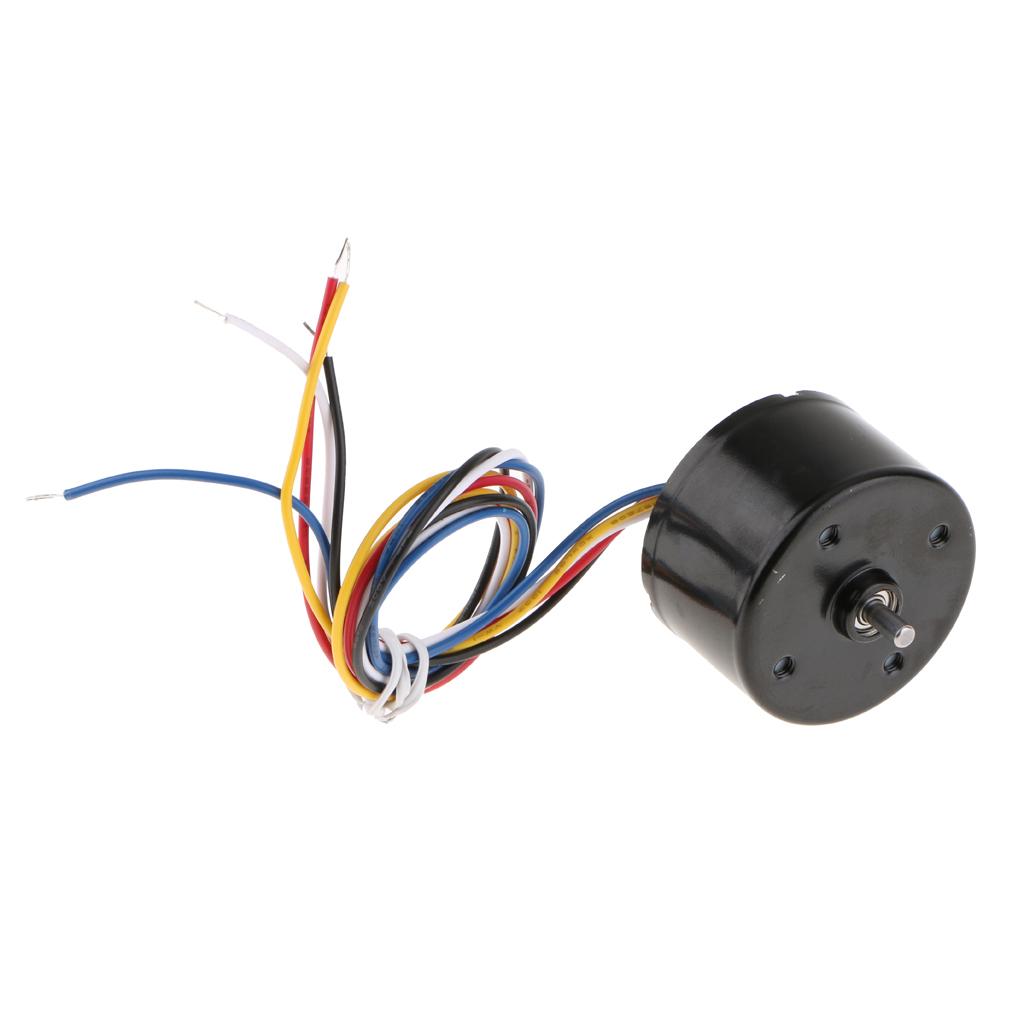

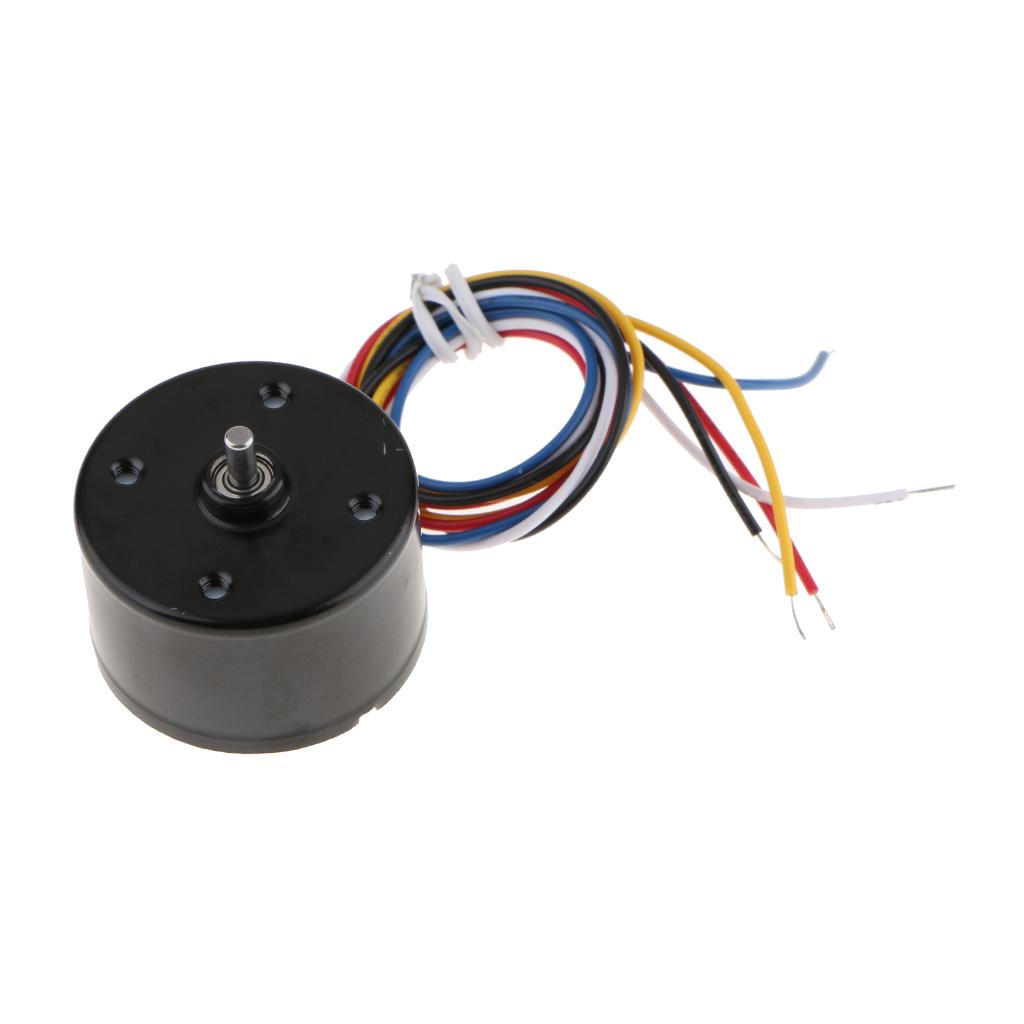

DC Brushless Motor Signal Speed Detection PWM Controller 12V 3000RPM

Description:

High reliability, no directional spark, low mechanical noise.
It has been widely used in many fields, such as aircraft model, all kinds of instruments, household appliances and electric cars.
Mini size, high torque and durable for use.
Voltage: 12V
No-load speed: 3000RPM
Diameter: 35mm
Height: 25mm
Shaft Length: 9mm ; Shaft Diameter: 3mm

Specification:

Method of connecting wire
Red line: Connect the power positive pole
Black line: Connect the power negative pole
White line: CW/CCW control line, When disconnecting, the motor turns in one direction, connecting the negative pole with the black line, and the motor changes direction.
Blue line: PWM Speed control line, Connect 0-5v pulse width governor
Yellow line: FG signal line

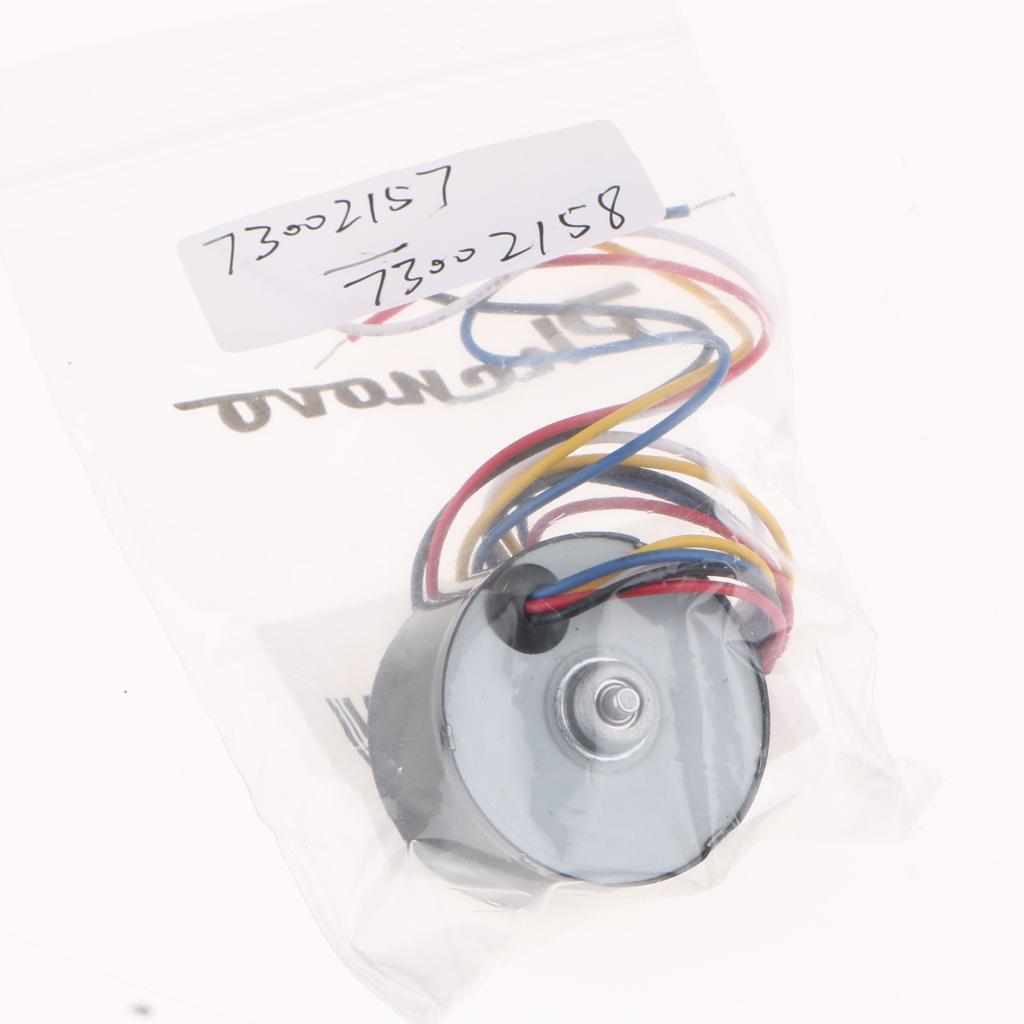

Package Includes:

1 Piece DC Brushless Motor

Note:

Color maybe slightly different due to different monitor.
The above size is measured by hand, please allow slightly difference. Thanks !
