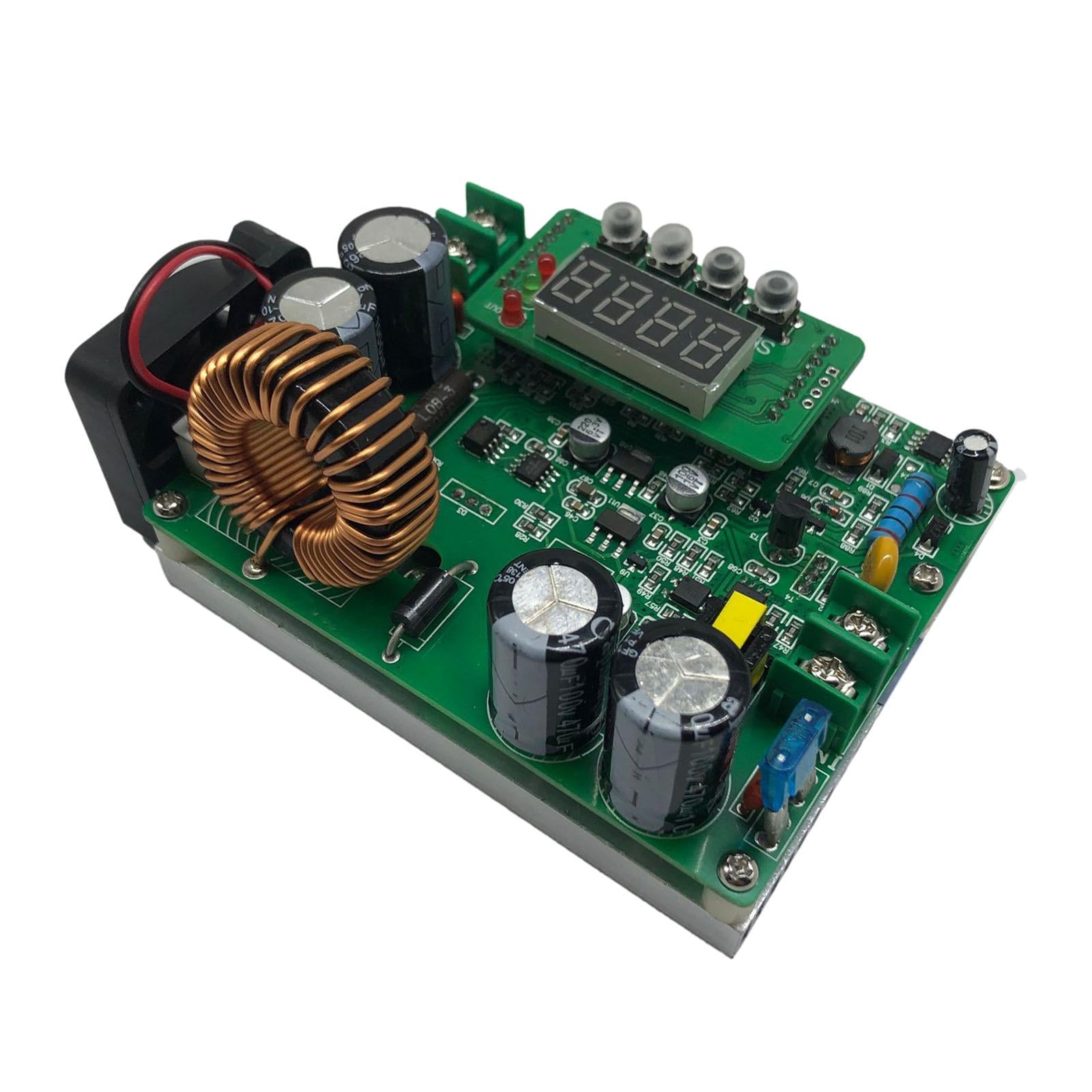

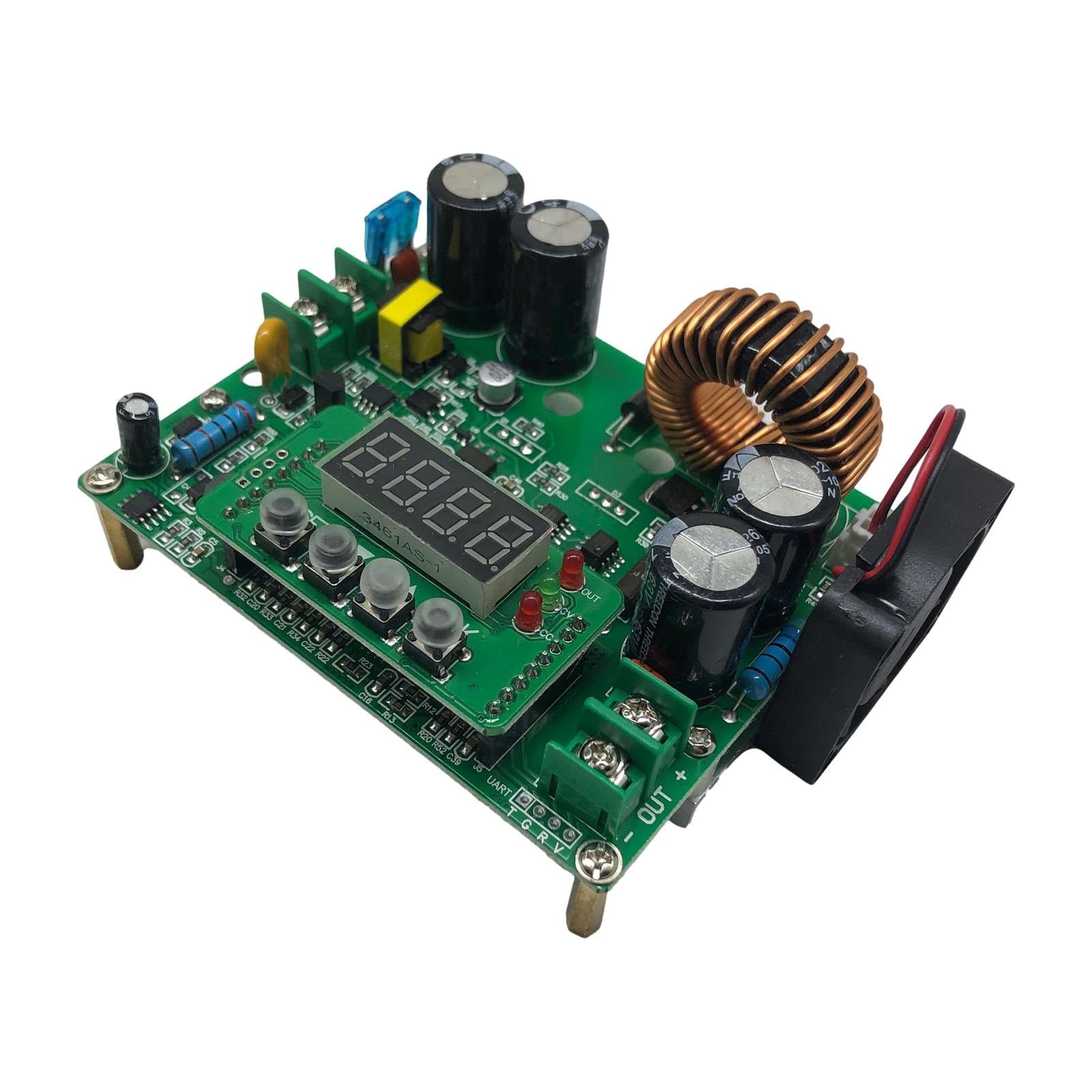

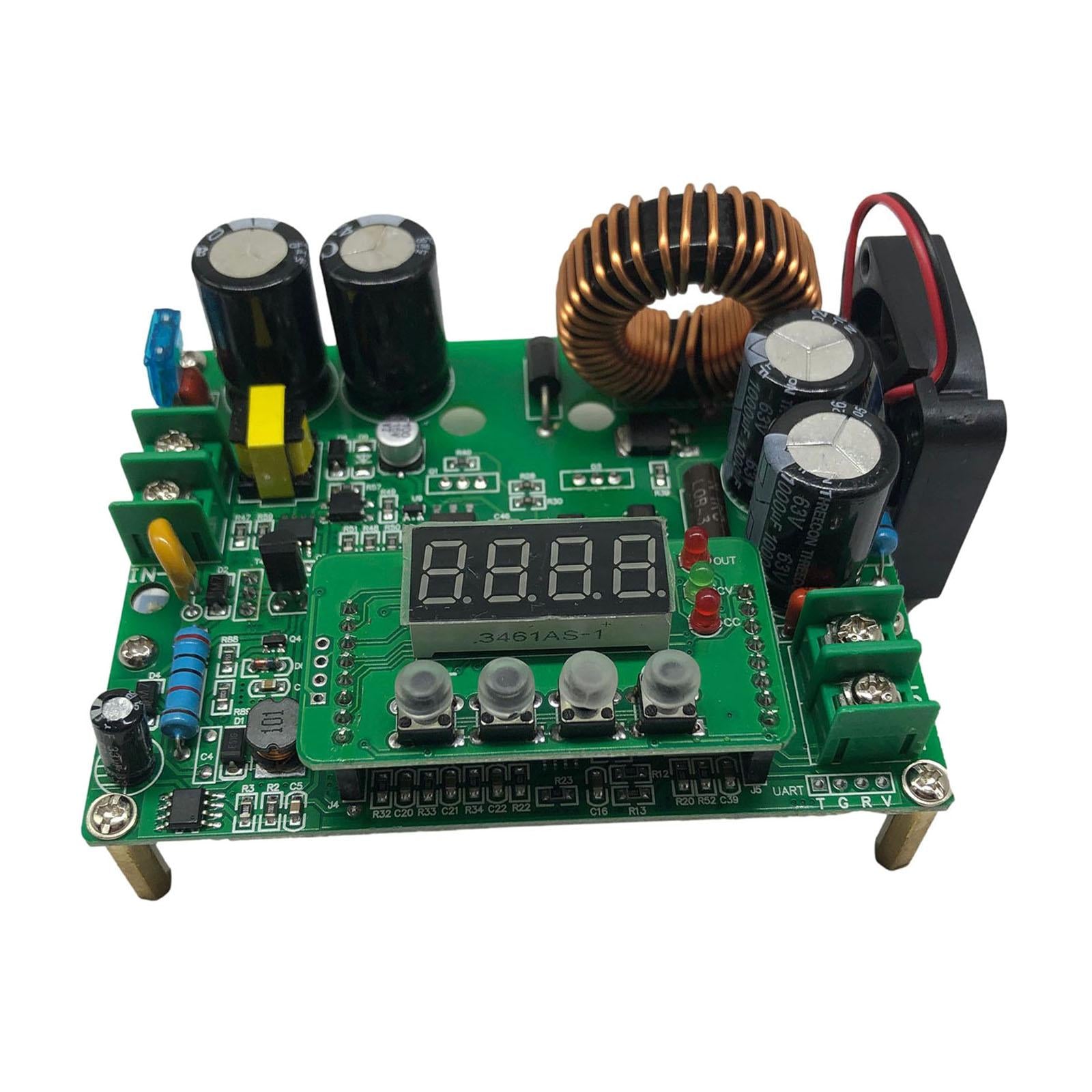

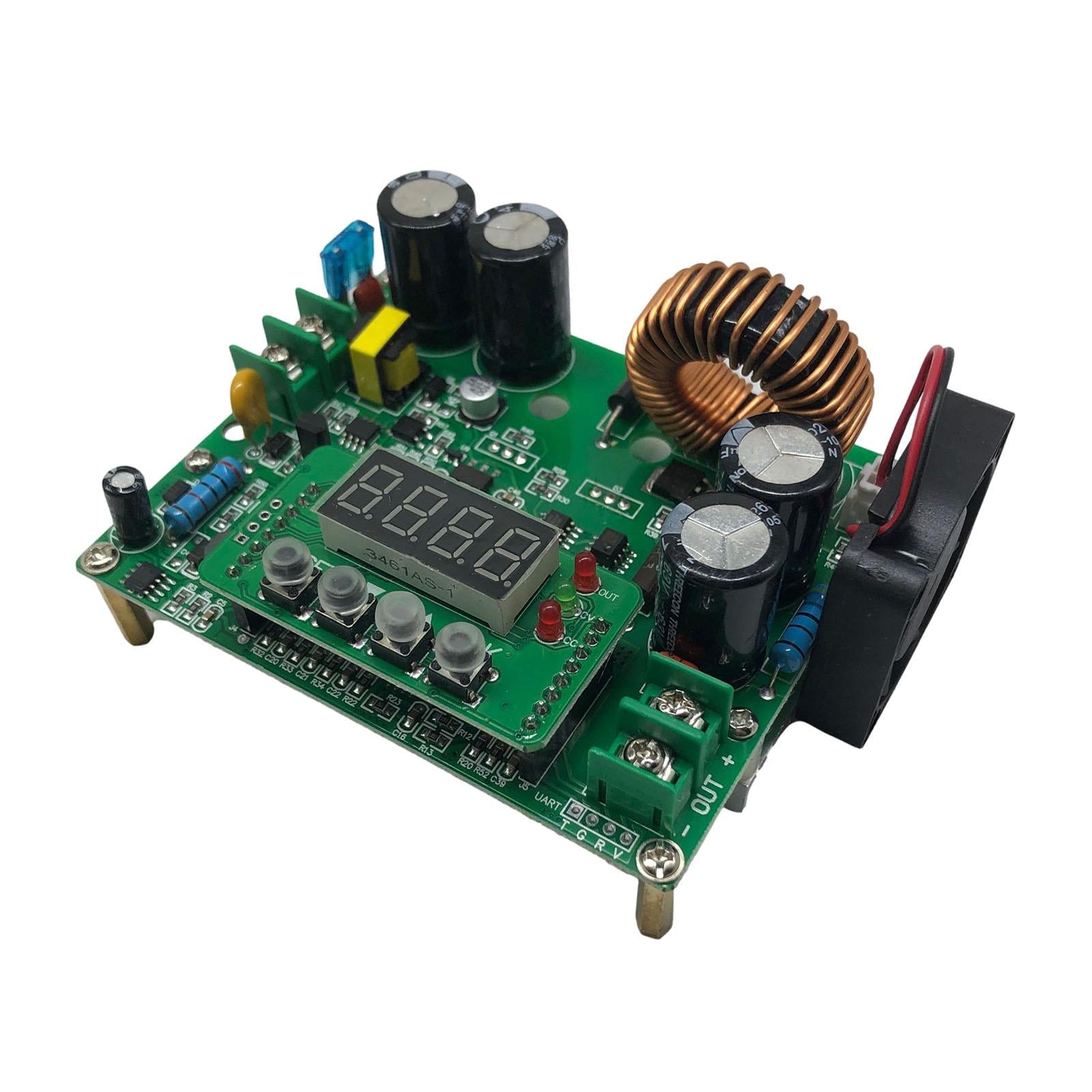

DC Buck Module Adjustable Voltage Regulator Volt Adapter DC-DC LCD DKP6012

Description:

Using advanced microprocessor, the button can accurately adjust the output voltage and current; using 4-digit high-brightness digital tube, the output voltage, current, capacity, and time can be displayed in real time.
It can be set to output automatically after power-on; it can output at constant voltage and current; it adopts high-quality power devices and cooperates with the CV and CC loops formed by peripheral precision op amps, which greatly improves the performance of the module.
The parameter adjustment buttons can be locked to prevent misoperation from adjusting the output voltage and current parameters. It can communicate with single chip microcomputer or computer through the reserved port, which is convenient for secondary development.

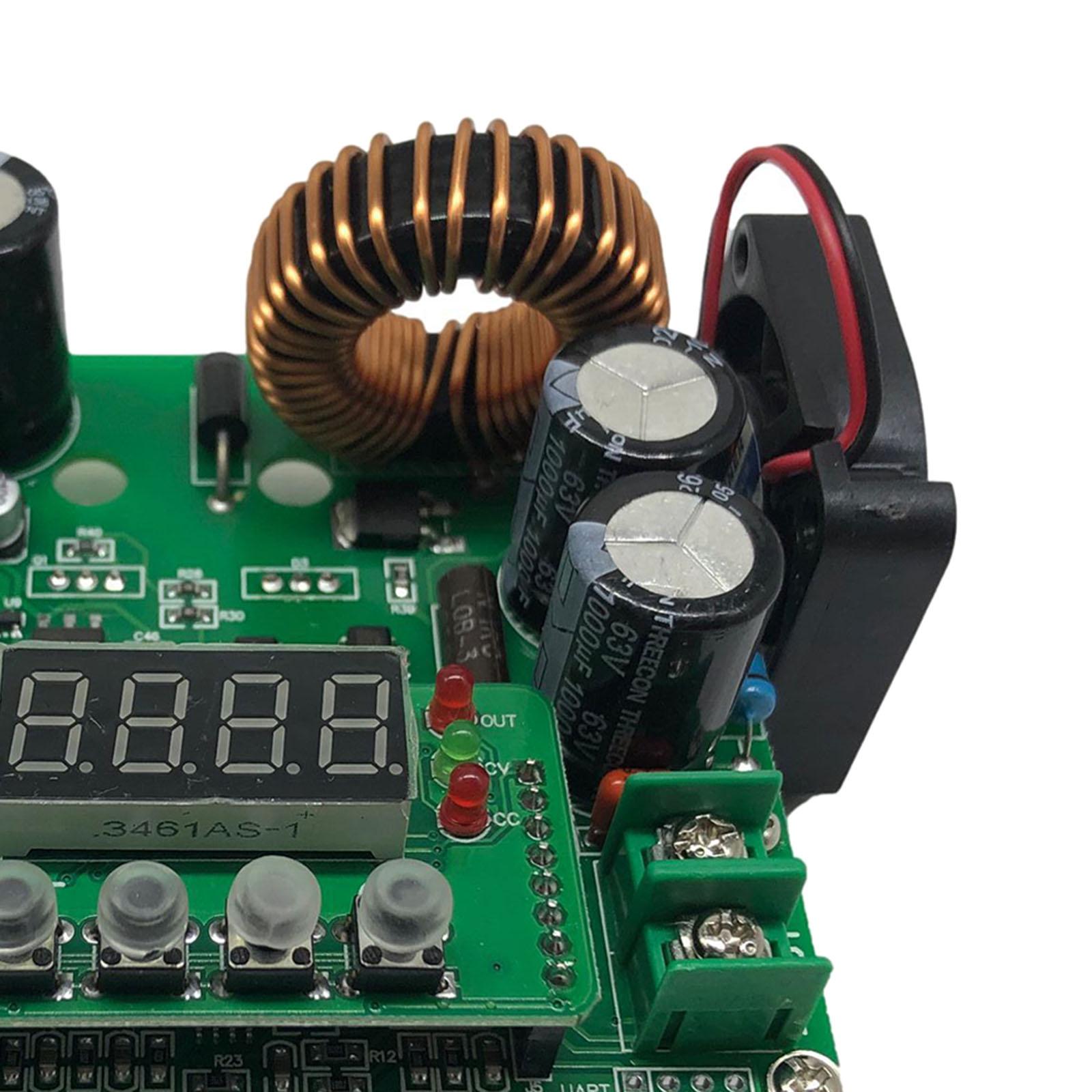

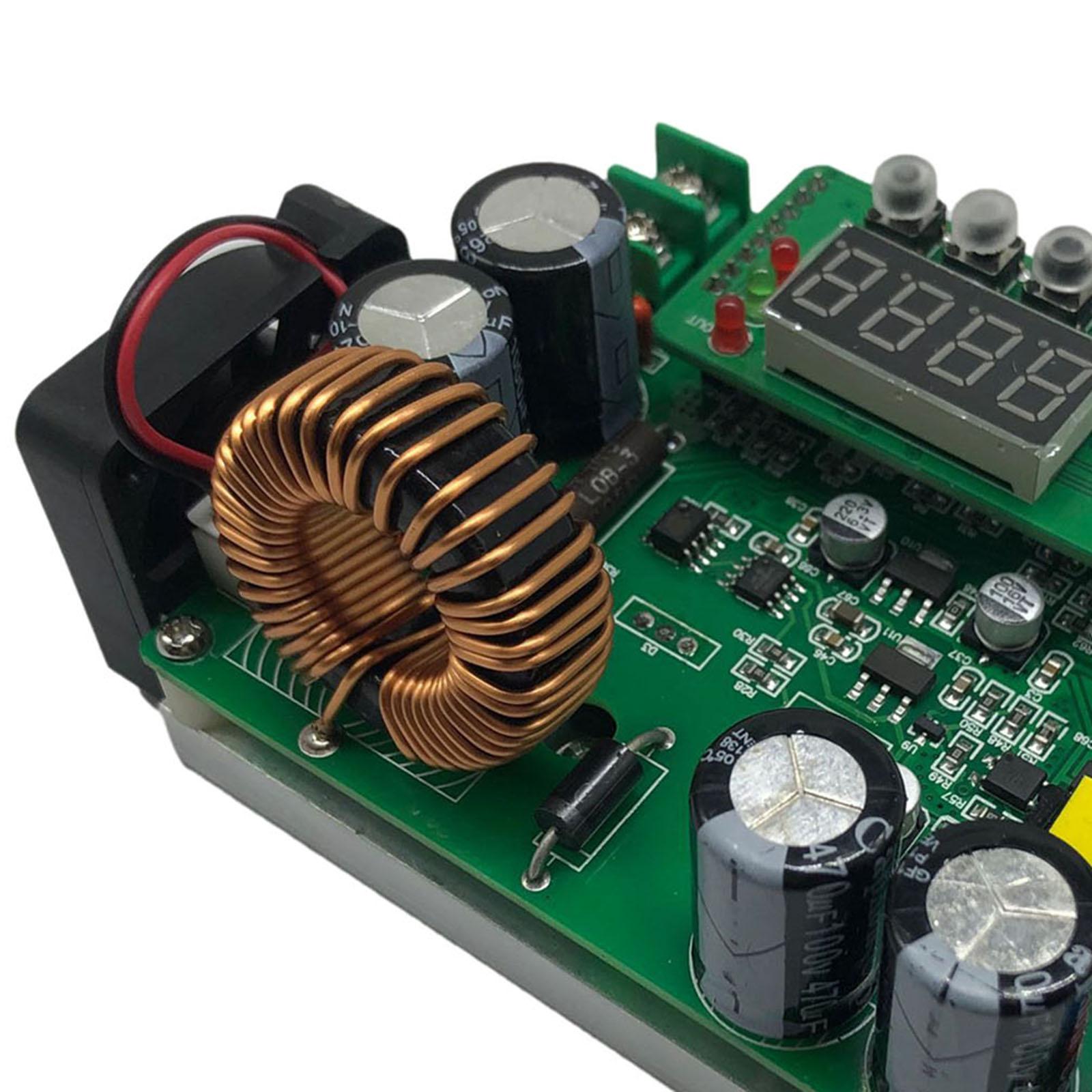

Using two 0.8mm double-wire winding high current inductors, the input uses two 470uF/100V electrolytic capacitors, the output uses two 1000uF/63V electrolytic capacitors, with a fan for heat dissipation, low temperature rise, and very good output voltage quality.

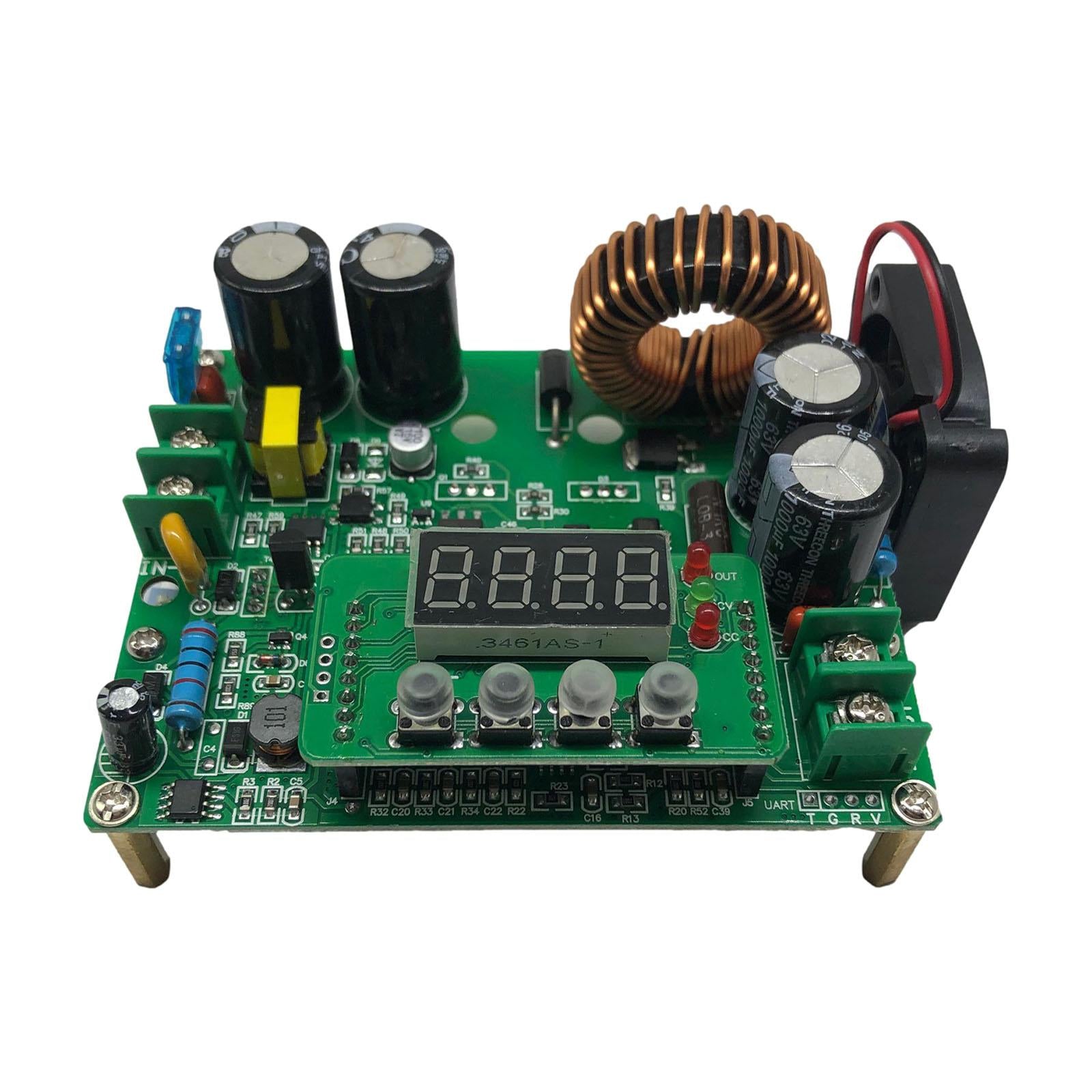

Full digital display, convenient and easy to use; the module is equipped with working status indicators, which are output OUT, constant voltage CV, and constant current CC indicators, which can check the working status in real time.

Specification:

Material: Metal
Input Voltage Range: 10V-75V
Output Voltage Adjustment range: 0-60V
Output Current Adjustment range: 0-12A
Output Power: 0-720W
Output Voltage Setting Resolution: 10mV
Output Current Setting Resolution: 10mA

Size Chart:

101×75×48mm/3.98×2.95×1.89inch

Package Includes:

1 Piece Voltage Regulator
1 Piece Color Box

Note:

1. Please allow slightly error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
