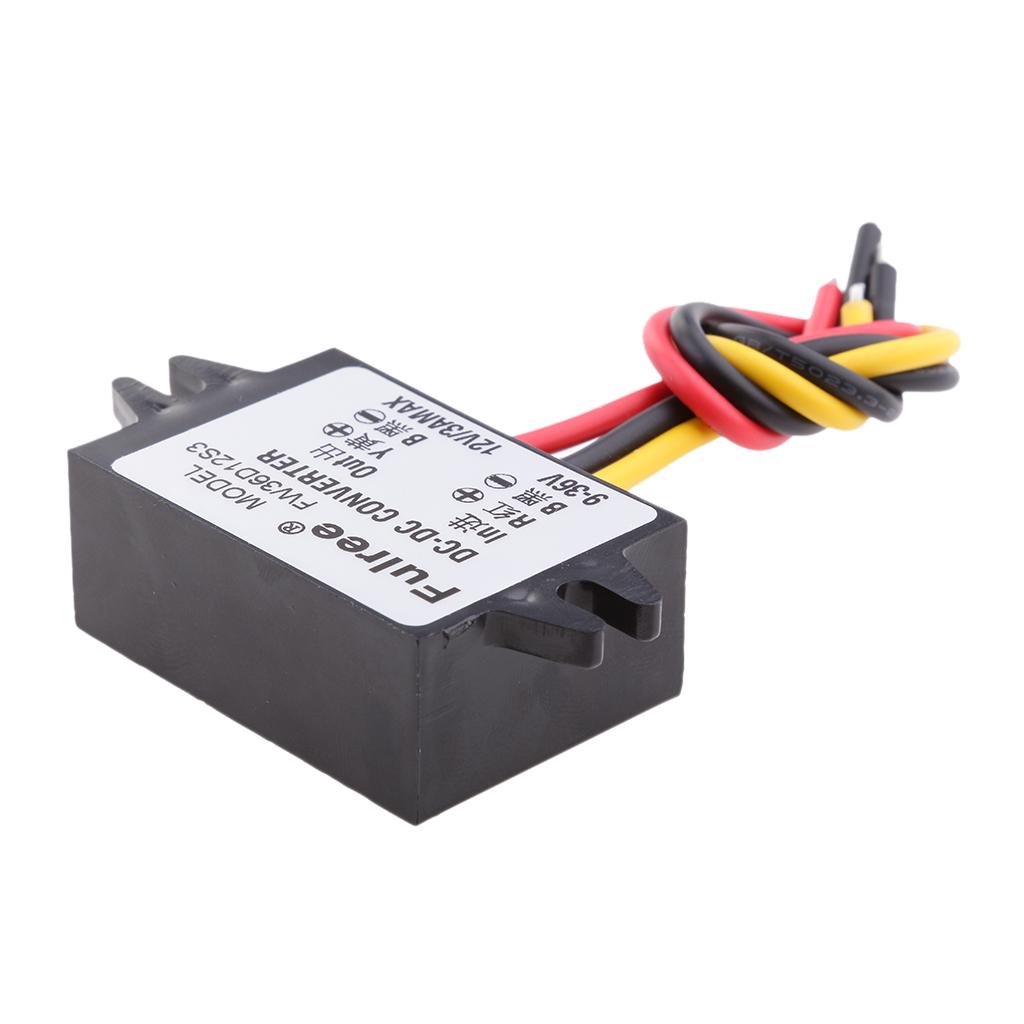

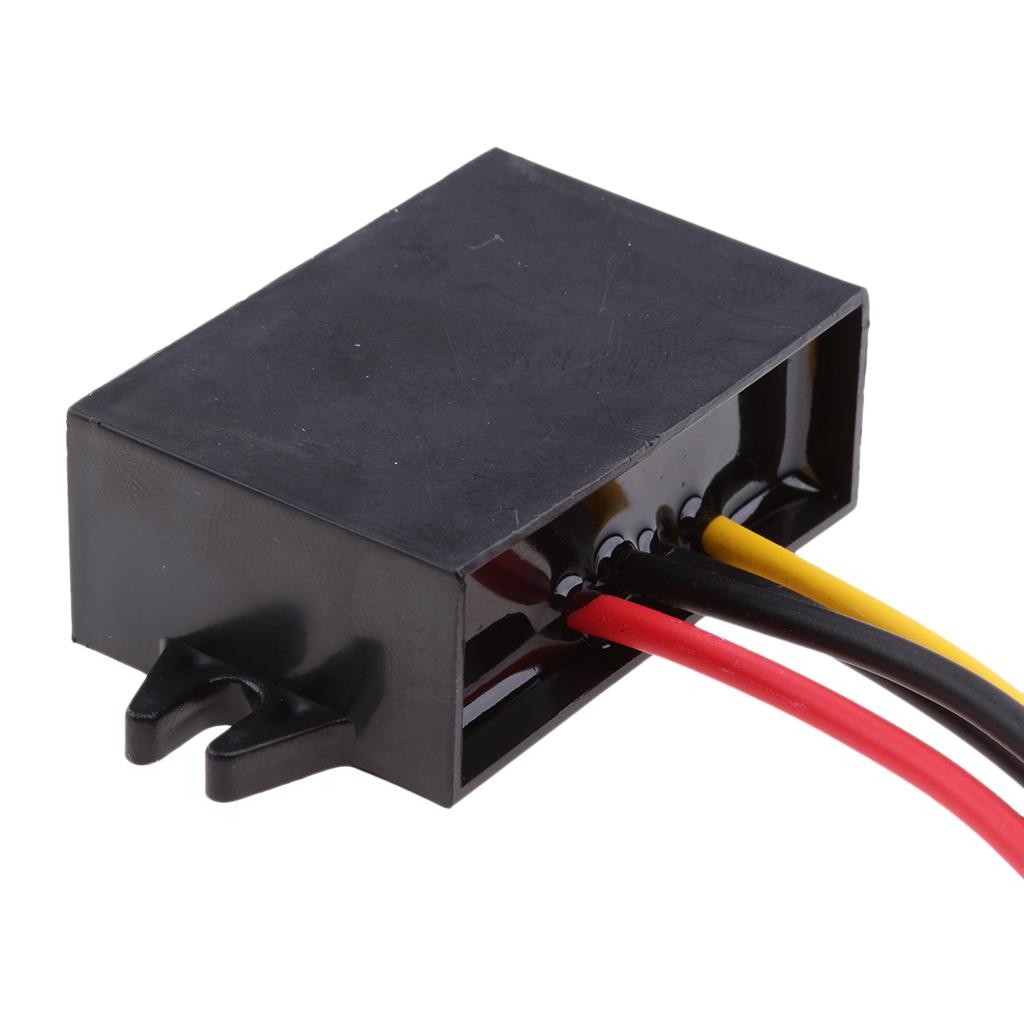

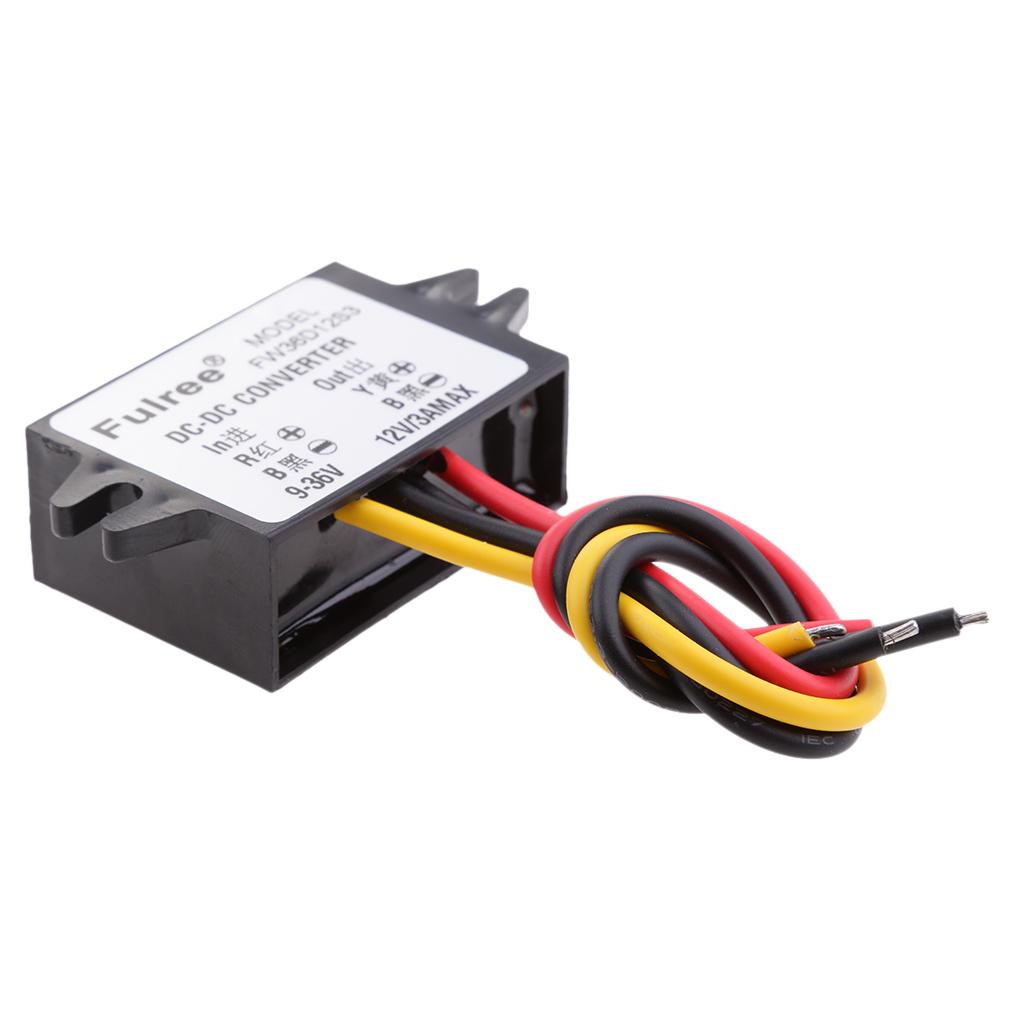

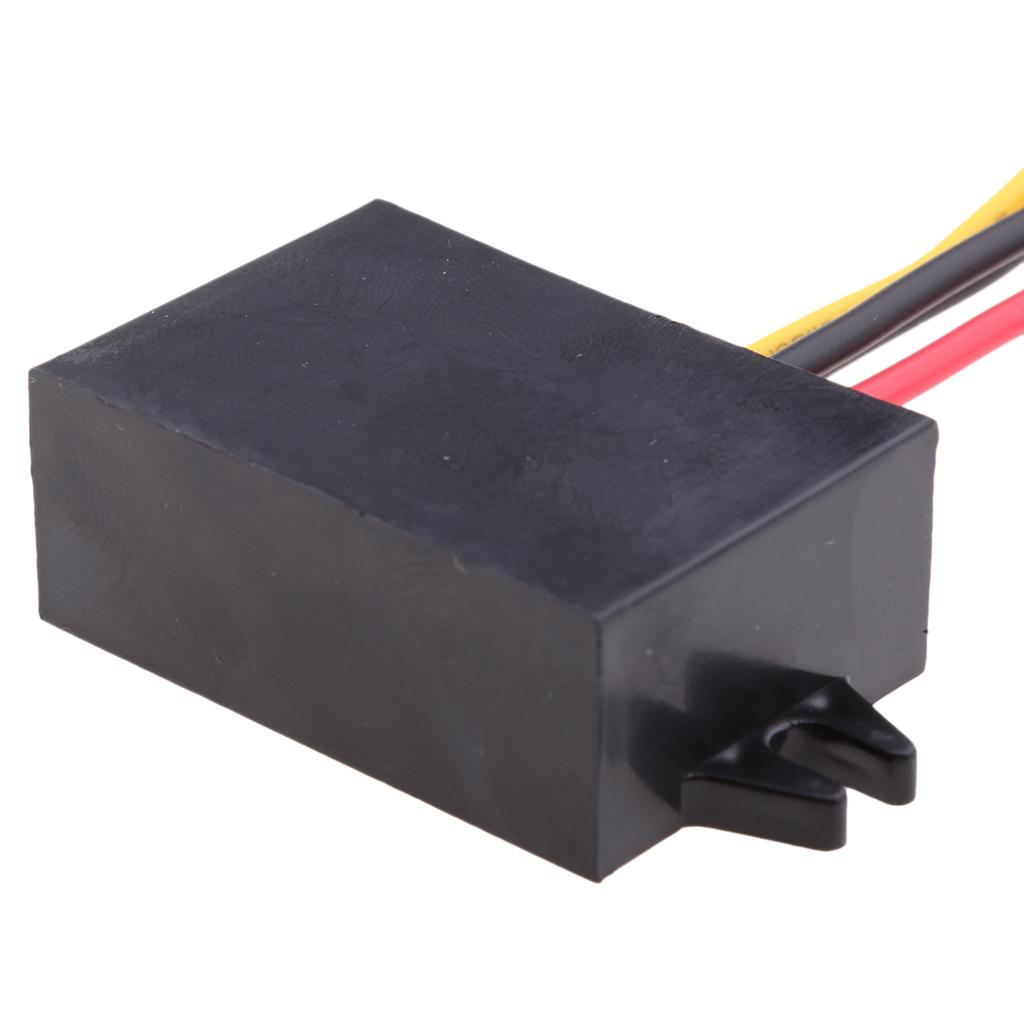

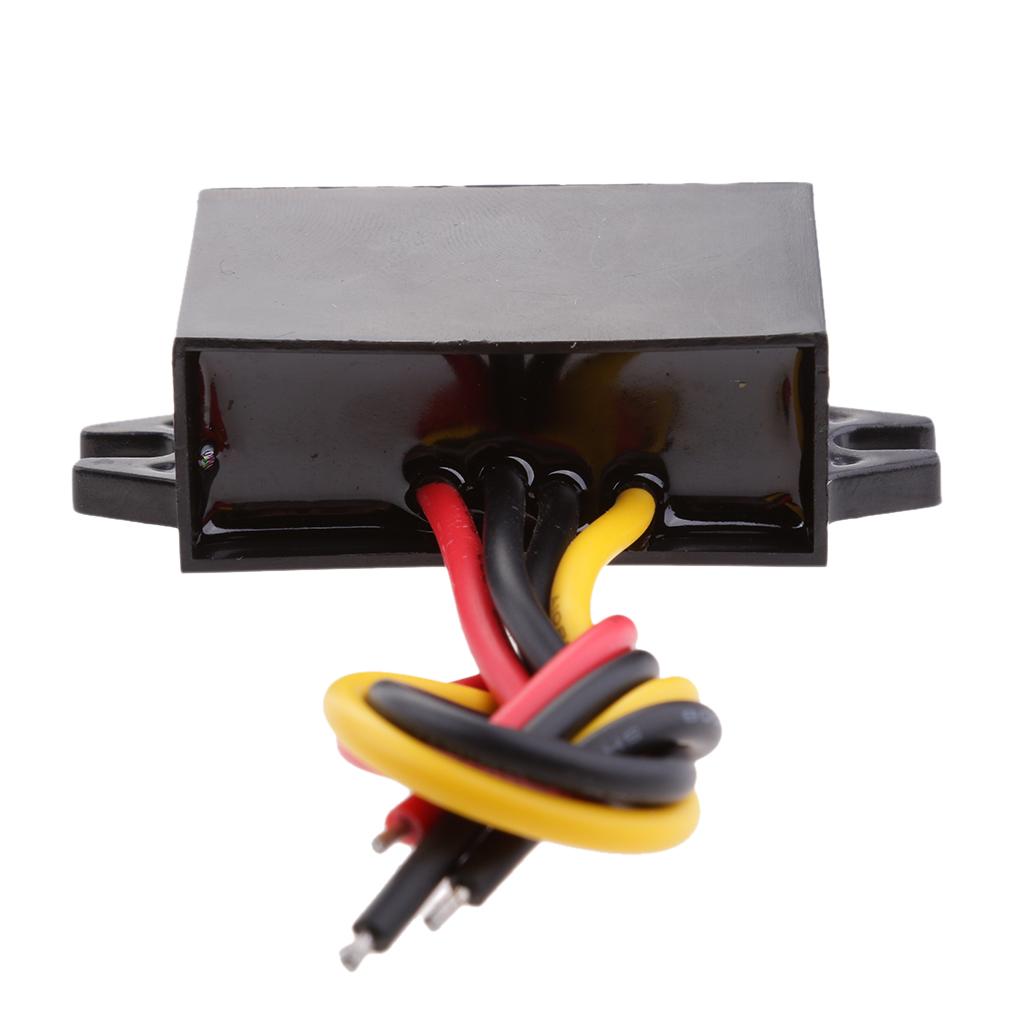

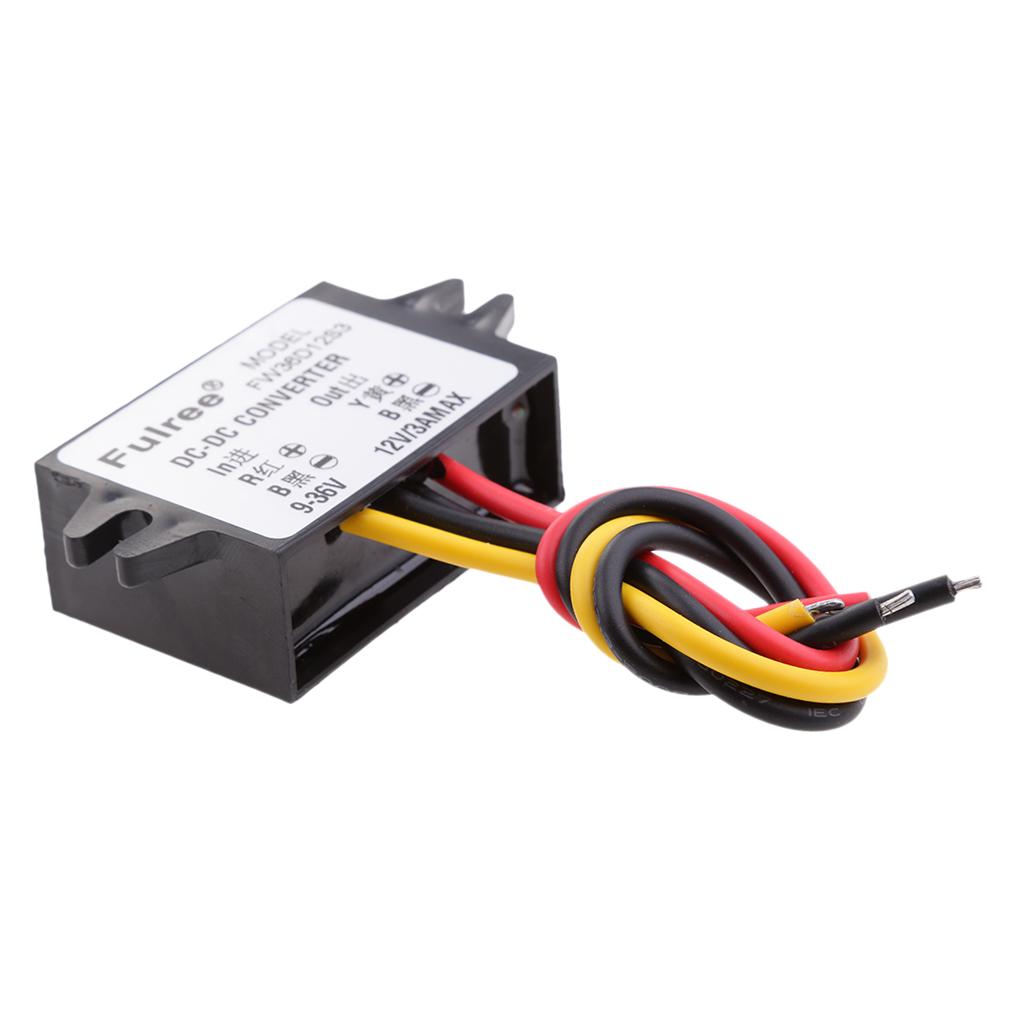

DC12V/24V to DC 12V 3A Buck Voltage Regulator Module Converter

Description:

Over 96% power conversion efficiency.

Provides reliability and a stable performance.

Compact and lightweight, shock-proof, aluminium unit.

Built-in over-voltage, under-voltage, overload, over-heat and short circuit protection

ideal for use in a wide range of applications including vehicles, security systems, equipment, telecommunications etc.

Specification:

Input voltage: DC 12V/24V/36V(Voltage Wide 9V-36V)

Output voltage: DC 12V

Output current: 3A, 36W

Transfer efficiency >93%

Ripple: 40MV, Power: 25MA

Industry grade converter, operating temperature: -40°C ~ +85°C

Wire lengths: 130mm-140mm

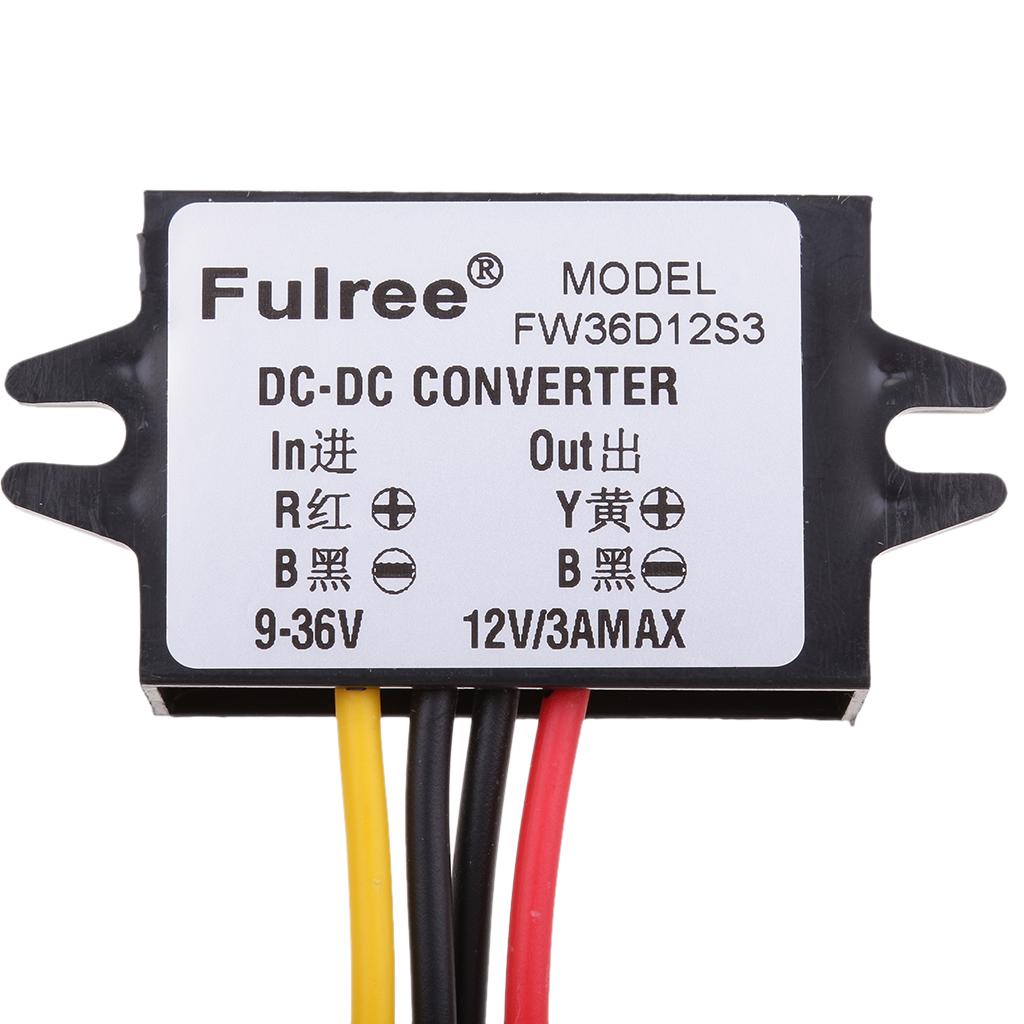

Wire Color: Red/Black for Input, Yellow/Black for Output.

Dimensions: 46 x 32 x 18mm (1.8 x 1.3 x 0.7")

Construction: die-cast aluminium casing, Epoxy sealed potting.

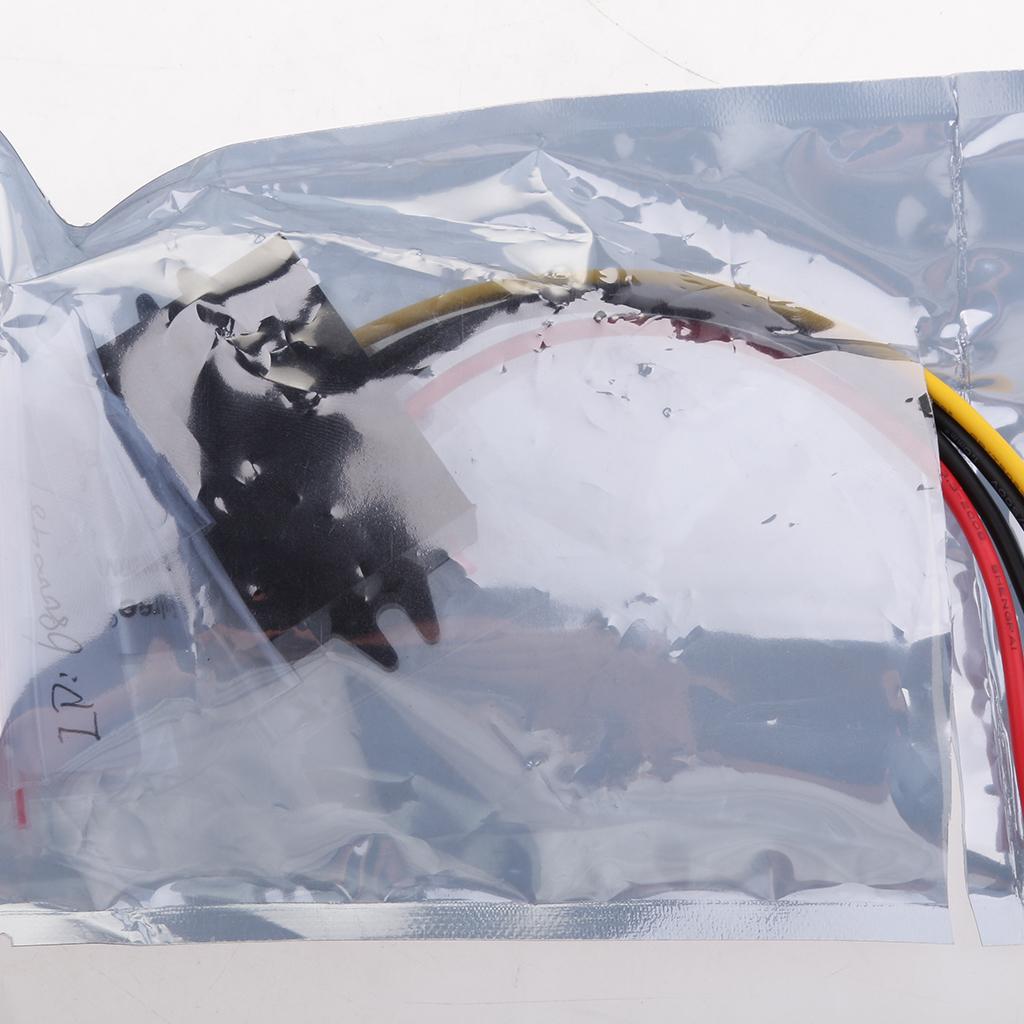

Package Includes:

1 Piece DC/DC Converter
