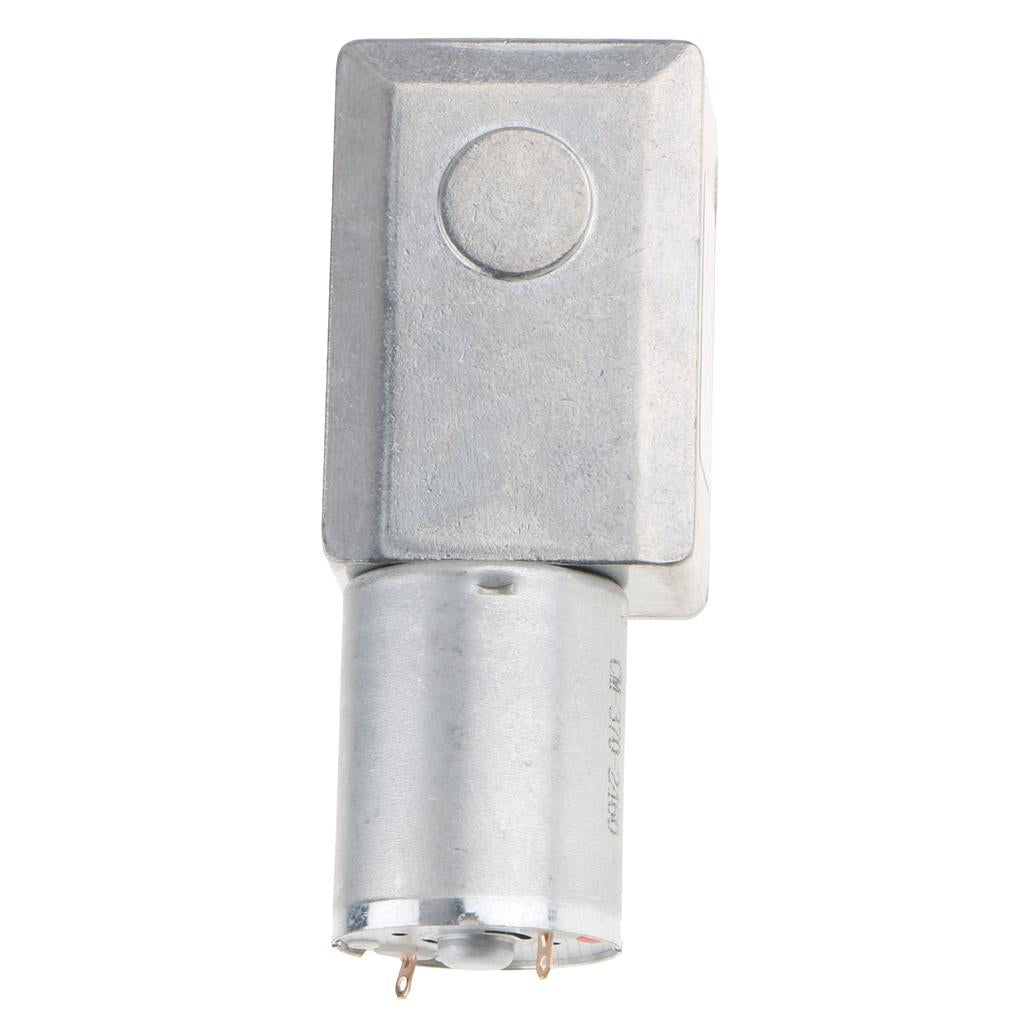

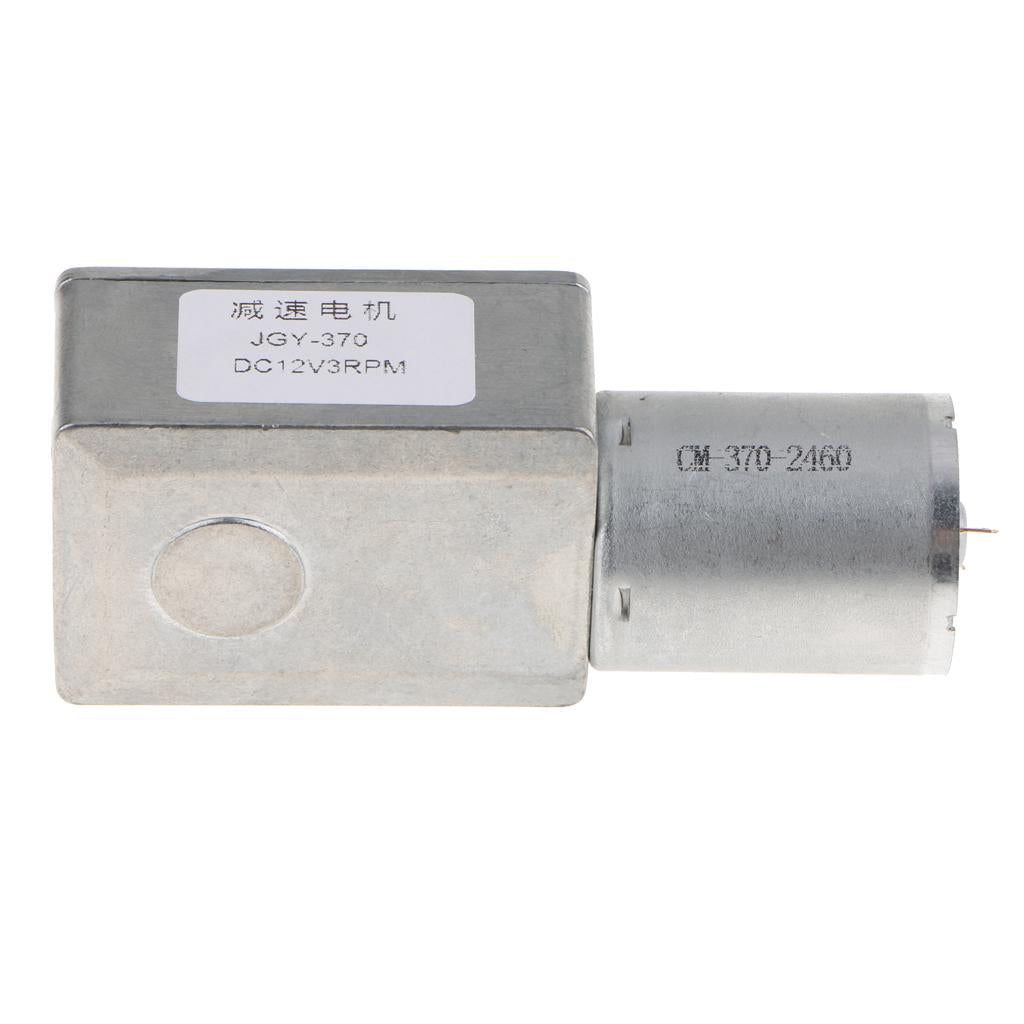

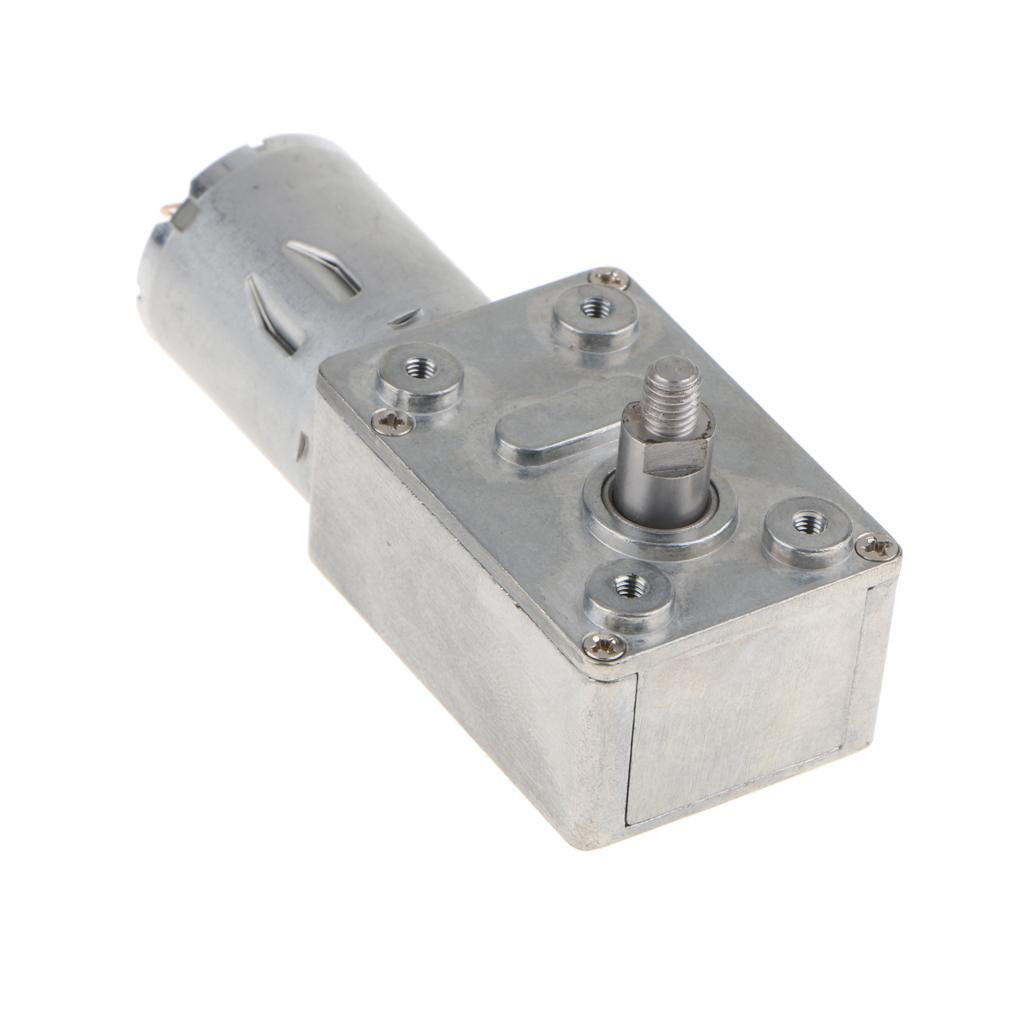

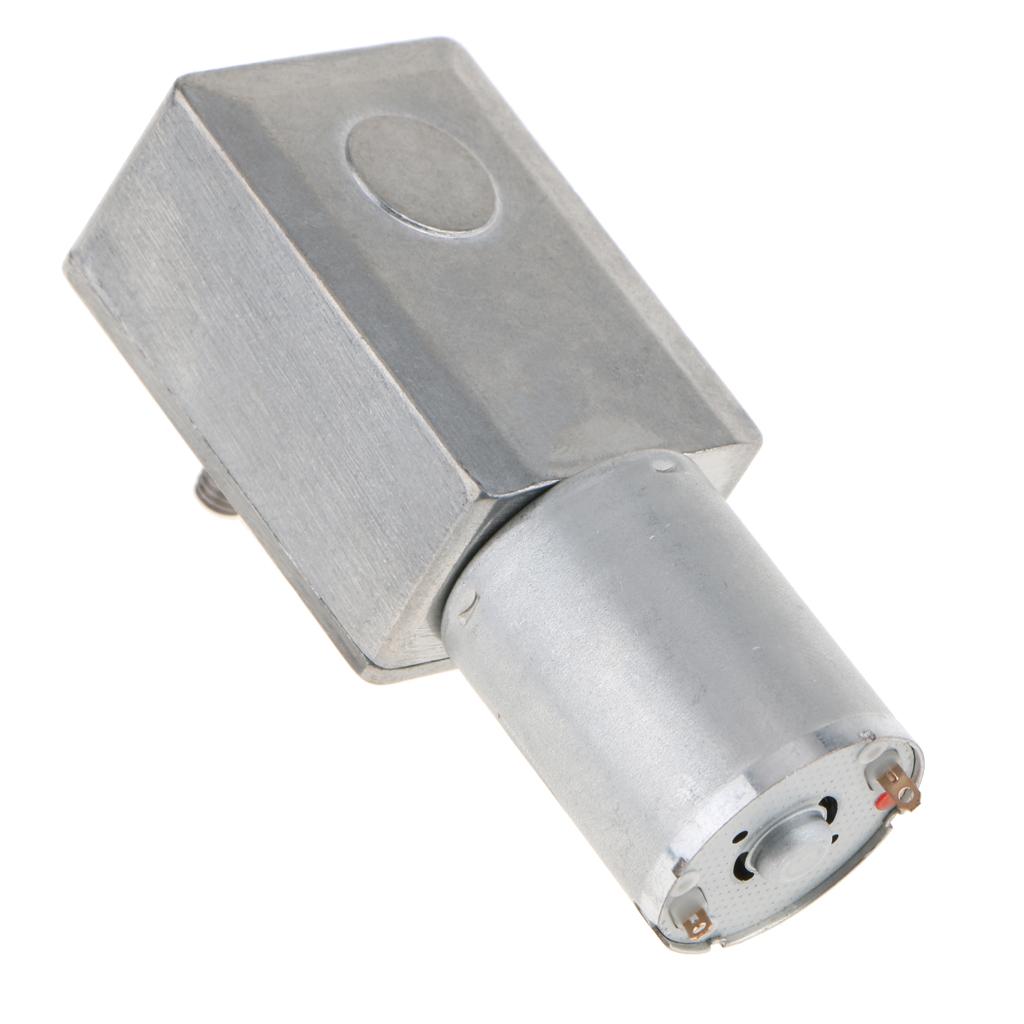

DC12V Metal Turbo Worm Gear Speed Reducer Motor Geared Motor 3-55rpm 76.8x32x25.2mm 10rpm

Description:

The worm gear motor with self-locking, ie, in the case in the absence of electric motors.
The output shaft is not to move, that is self-locking.
The gearbox output shaft direction of the motor shaft is arranged vertically.
The entire body 8mm of the motor output shaft relative to the general direction of gear motor short.
Suitable for robots, electronic locks, automatic rotating equipment, pan/tilt, etc.

Specification:

Material: metal
Color: silver
Dimensions (L*W*H): 76.8x32x25.2 mm / 3.02x1.25x0.99 inch
Output shaft: 8mm
Model: JGY370
Voltage: DC12V
Load : 10KG.CM
No-load speed choice: 3rpm/6rpm/10rpm/18rpm/23rpm/40rpm/55rpm

Package Includes:

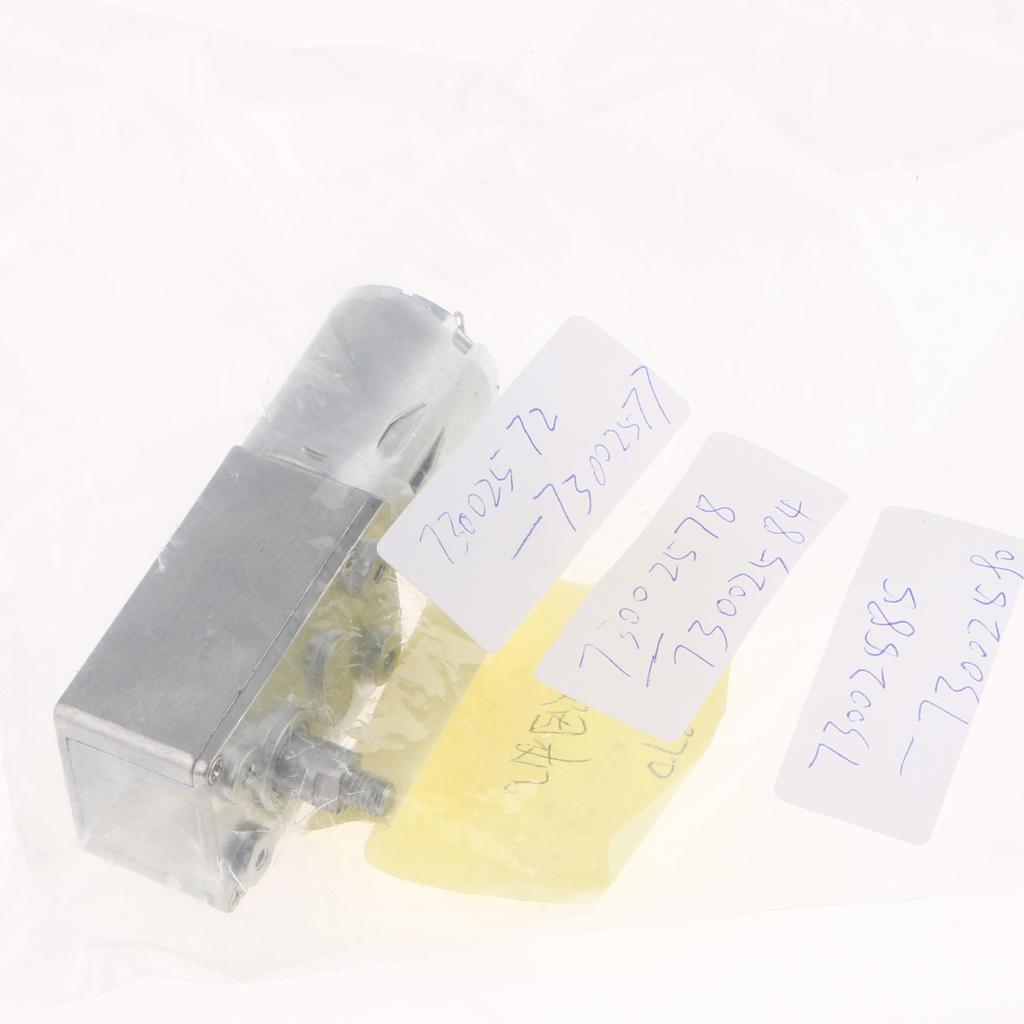

1 Piece DC Geared Motor

Note:

Since the size above is measured by hand, the size of the actual item could be slightly different from the size above.
Due to the lighting effects, monitor settings, etc. There could be some slight difference in the color tone of the pictures and the actual item.
