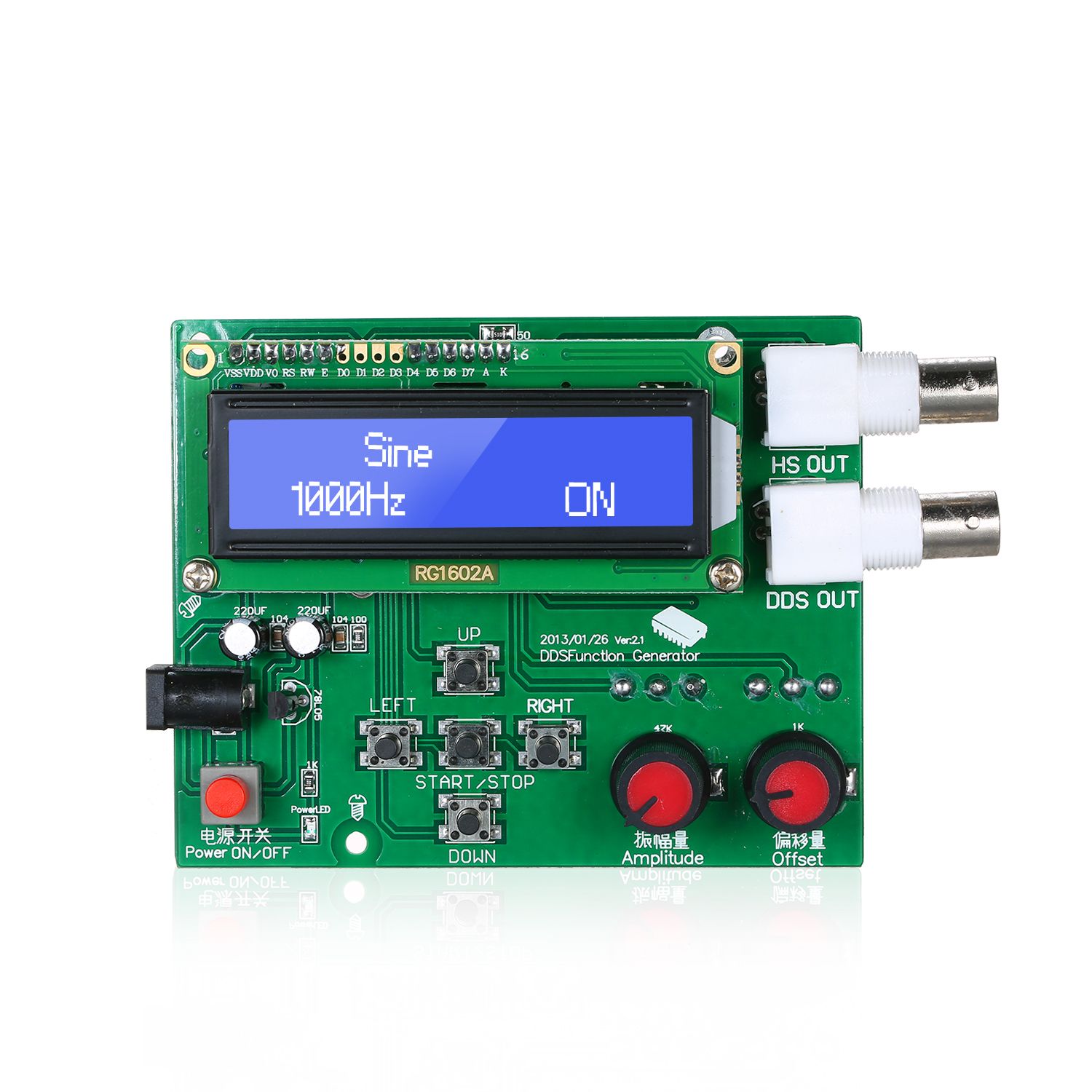

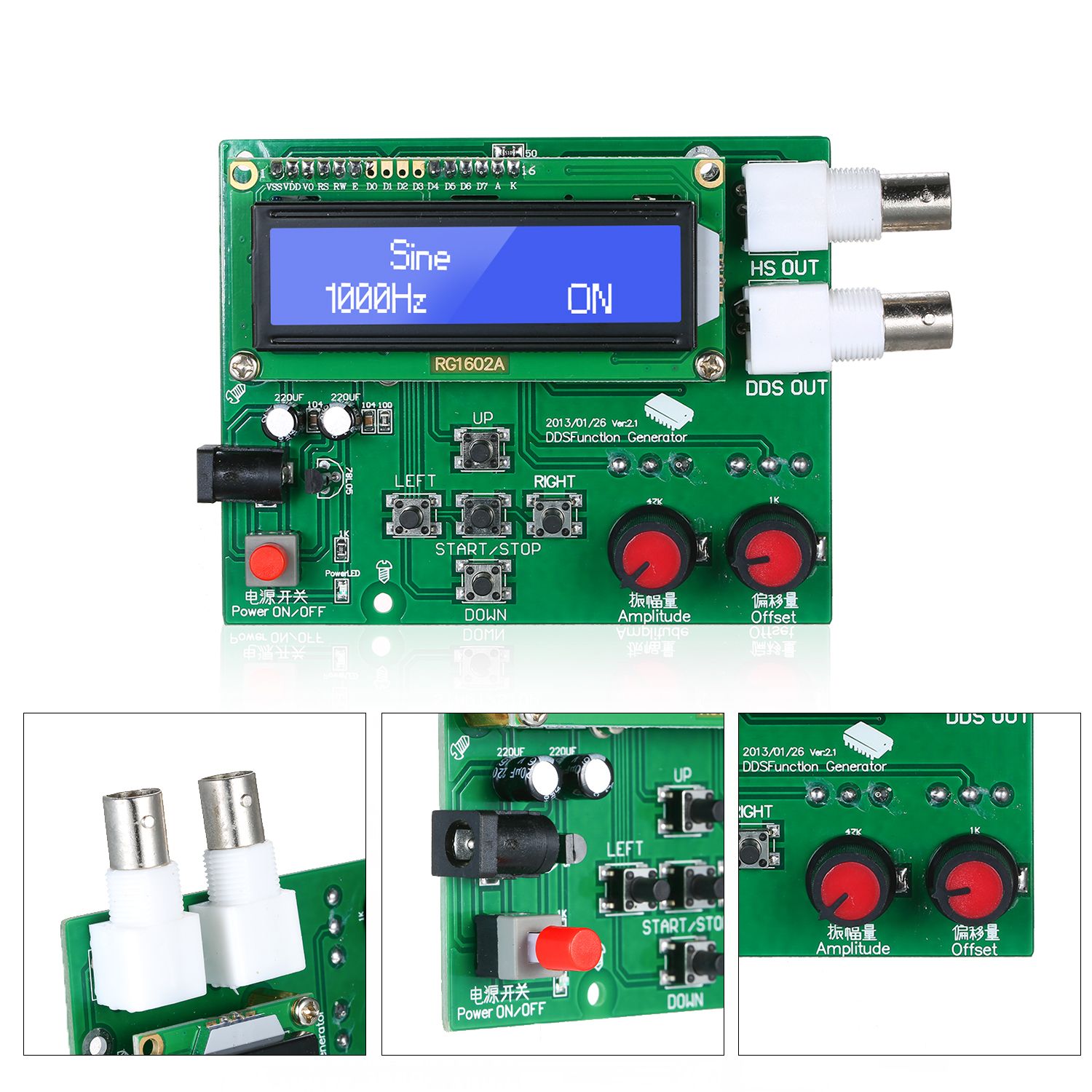

DDS Function Signal Generator Module Sine Square Triangle

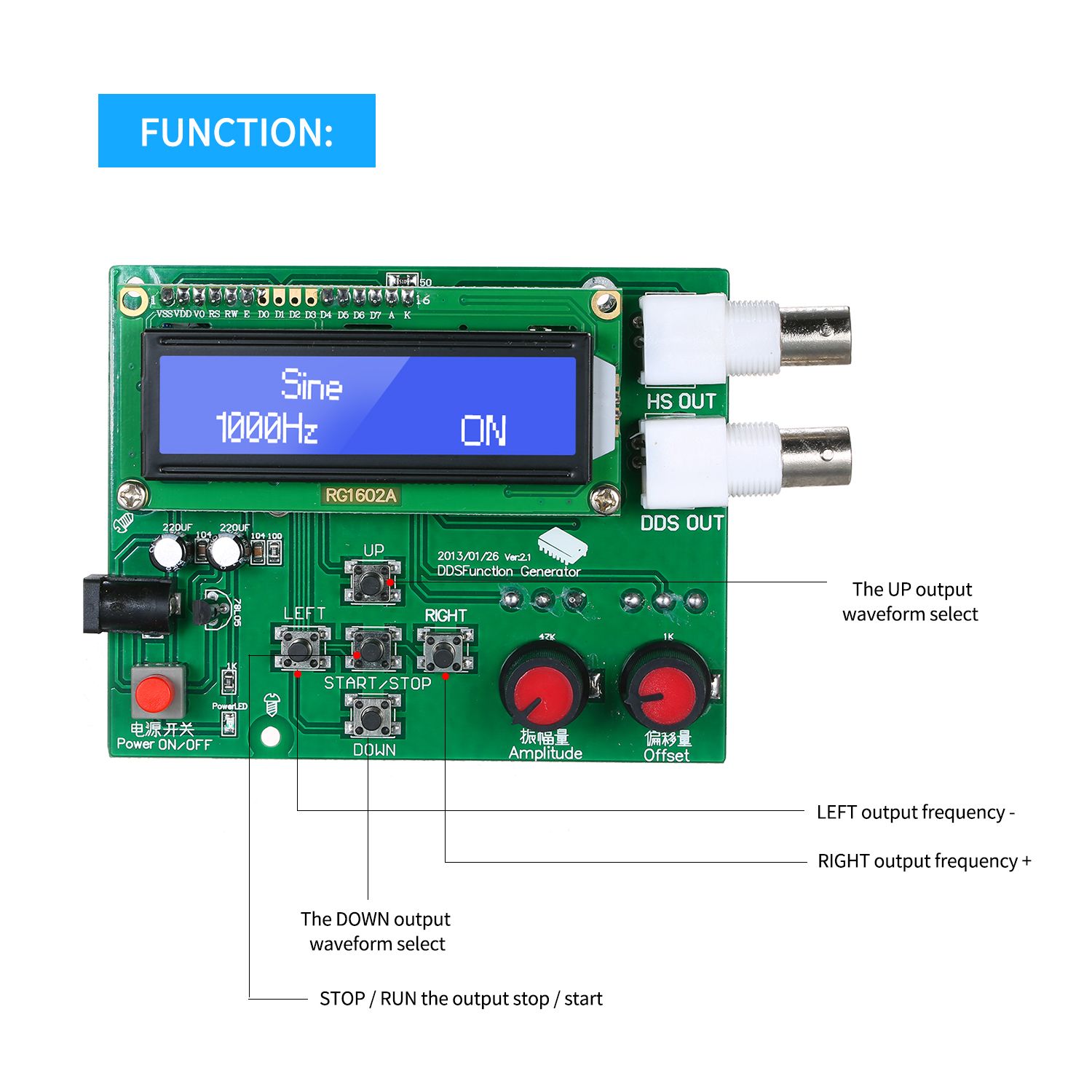

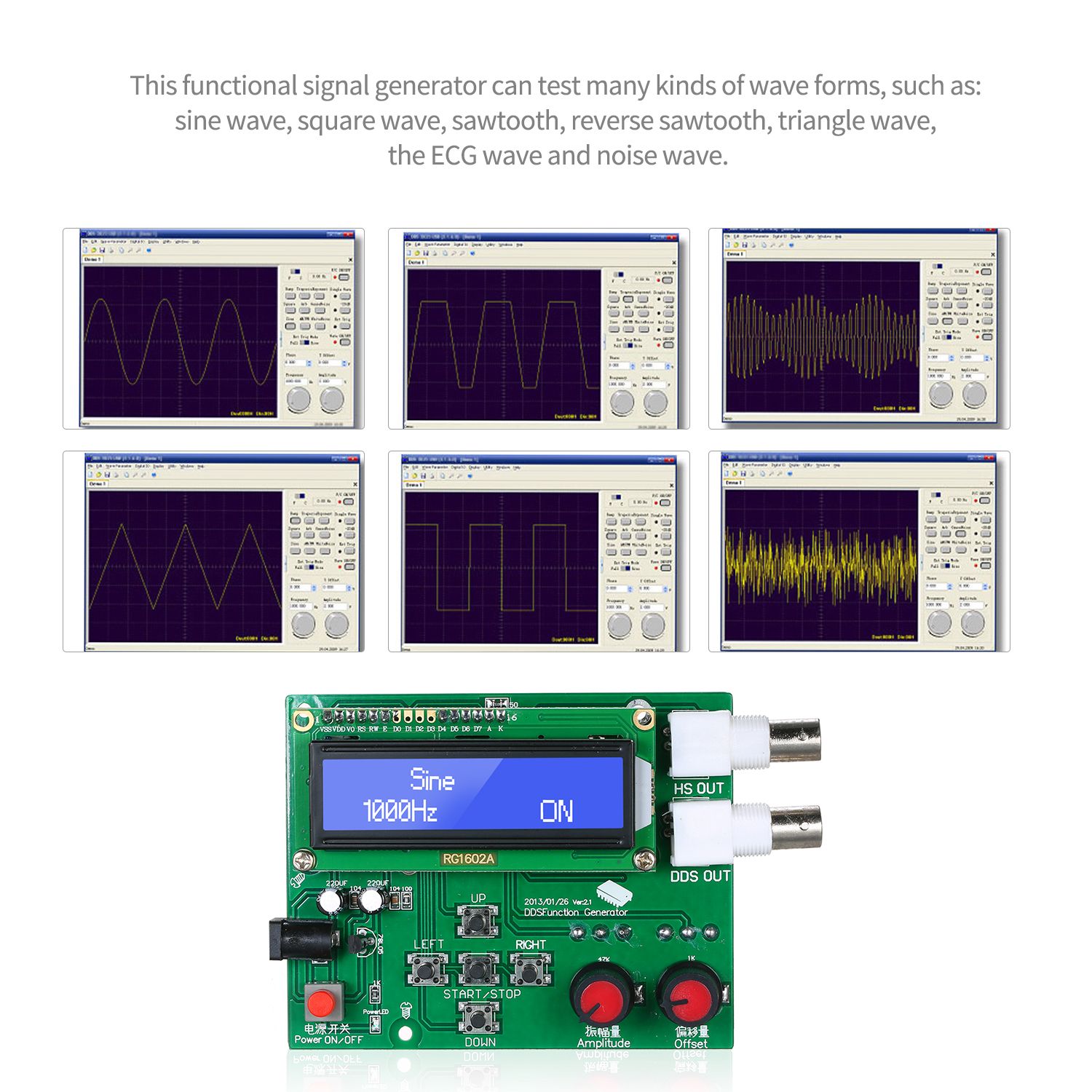

Function (waveform) signal generator can produce some specific periodic time function waveform (sine square triangle sawtooth etc.) signal the frequency range is 1Hz-65534Hz.Features:Compact Size --- Small size powered by DC 7V-9V easy and portable for use.DDS frequency range --- 1Hz-65534Hz high-speed frequency (HS) output up to 8MHz.Flexible Operation --- DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.DDS signals --- sine wave square wave sawtooth reverse sawtooth triangle wave the ECG wave and noise wave.Easy Use --- LCD display for clear reading intuitive 5 buttons for convenient operation. The power automatically restore the last used configuration.Key Functions:The UP output waveform selectThe DOWN output waveform selectLEFT output frequency -RIGHT output frequency +STOP / RUN the output stop / startUP key waveforms order:ECG = electrocardiogram wave (in the OFF state the left and right keys to set the output frequency. Middle button start all of the following waveform set)Rev Sawtooth = reverse sawtoothSawTooth = sawtoothTriangle = triangle waveSquare = square waveSpecifications:Material: PCB + Electronic ComponentsColor: RedOperating voltage: DC7-9VDDS frequency range: 1HZ-65534Hz.Display: 1602 LCDHigh-speed frequency (HS) output up to 8MHz;DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers;DDS signals: sine wave square wave sawtooth reverse sawtooth triangle wave the ECG wave and noise wave.Section into the value: 1 10 100 1000 10000 Hz;The power automatically restore the last used configuration.Offset: 0.5pp-5VppAmplitude amount: 0.5Vpp-14VppPCB Size: 100 * 80mm / 3.94 * 3.15inItem Weight: 100g/3.53ozPackage Weight: 103g/3.63ozPackage Size: 120*80*20mm / 4.72*3.15*0.79inNote:Please allow 1-3 cm differs due to manual measurement.Due to the different display and different light the picture may not show the actual color of the item. Thanks for your understanding.Package List:1 * DDS Signal Generator Module1 * Bag of Hex Nut
